10-15Watts Single Output Wallmount adapter
WMA series
Feature:
l
l
l
l
l
l
90 to 264Vac universal input range.
Meet UL/CUL ,TUV ,T-Mark.
EMI/RFI meet VDE & FCC limit B.
Low cost & compact size.
International AC Plug available.
2 Year Warranty.
Specifications:
typical at nominal line, full load at 25°C.
Input Specifications:
General Specifications:
Input voltage:
90 to 264Vac
Input Frequency:
47 Hz to 63Hz
Input inrush current:
20A at 115Vac
40A at 230Vac
Earth leakage:
0.2mA max @ 115Vac
0.4mA max @ 230Vac
Efficiency:
65% typical at full load
Hold-up time:
10ms @ 115Vac full load
EMI/RFI:
VDE & FCC Class B limits
Dielectric Withstand:
Input/output: 3000Vac
Input/Ground: 1500Vac
¬Safety
Meet:
UL/CUL UL60950
TUV EN60950
T-Mark.
Switching frequency:
50kHz
Weight:
170g
MTBF:
100,000hours(MIL-HDBK-217F)
Output Specifications:
Output Rating:
See Selection Table
Output Voltage Accuracy :
±
5% max.
Line Regulation:
±
1% max
Load Regulation:
±
5% max.
(Full to half load)
Transient Response:
±
1% max.dev.
(Full to half load) 1mS recovery
Temperature Coefficient:
±
0.04% /
°C
Ripple & Noise:
2% P-P max.
Protections:
a. Over current protection
b. Over power protection
c. Short circuit protection
Environmental Specifications:
Operating temperature:
0 to +40°C
Storage temperature:
-20 to +85°C
Humidity:
5 to 95 % RH non-condensing
Vibration:
2.4G , 5 to 500Hz
Cooling:
Free air convection
Note:
1. Vibration test: Three orthogonal axes, random vibration, 10 minutes for each axis.
2.
Maximum output power is 15W.
3.
Ripple & noise test method is measured at output terminal across a 0.1uF ceramic cap
& a 10uF tantalum or electrolytic cap in parallel with a 20MHz bandwidth oscilloscope
directly.
¬
Please refer the safety approval status on appendix 1, For latest safety approval status
Please consult YCL or visit"
www.ycl.com.tw
Date: Sep 19,2003
65
10-15Watts Single Output Wallmount adapter
WMA series
Model Selection Table:
Model No.
WMA-1201
YZ
WMA-1005
YZ
Output
Voltage
5V
3.3V
Output Current
Minimum
0mA
0mA
Output Current
Maximum
2500mA
3000mA
Max.
Power
12.5W
10W
¬

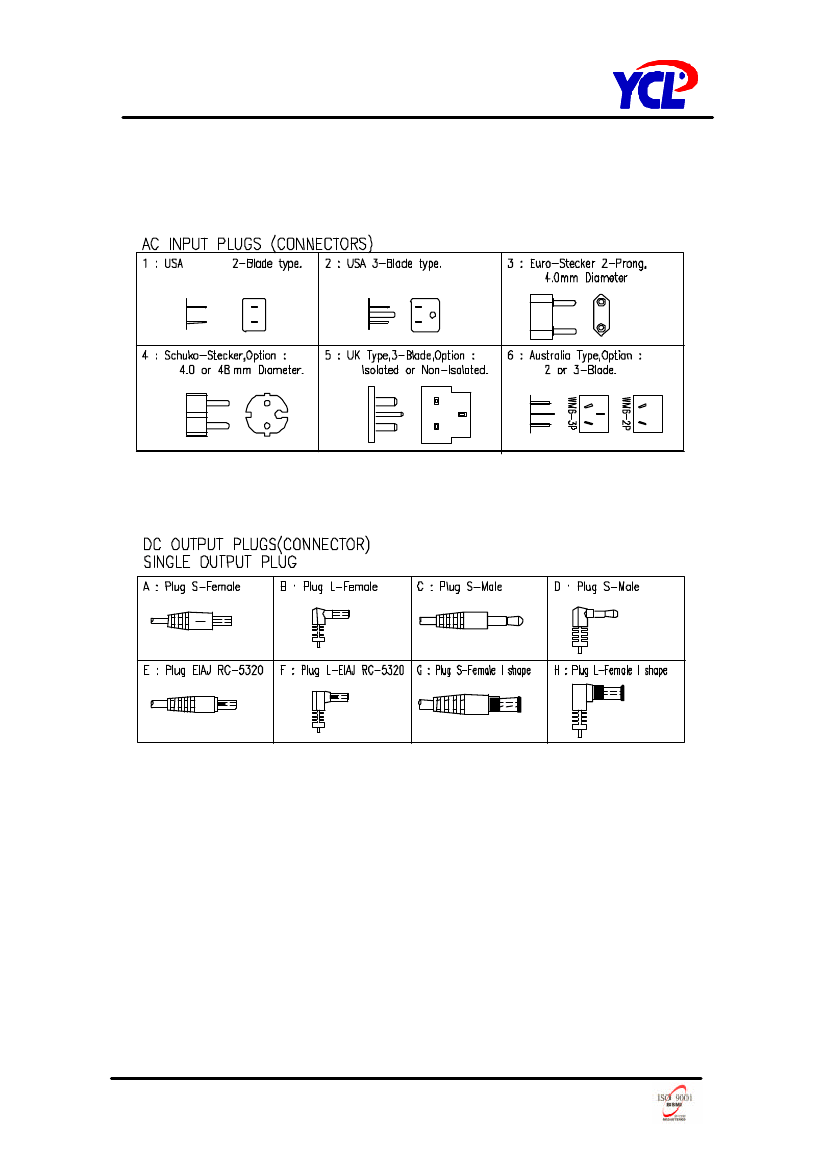

Order information: WMA-XXXXY Z
Input Connector Type.
DC output plugs type.
Model No.
-
Others output voltage or output cord versions are available. Please consult factory for details.

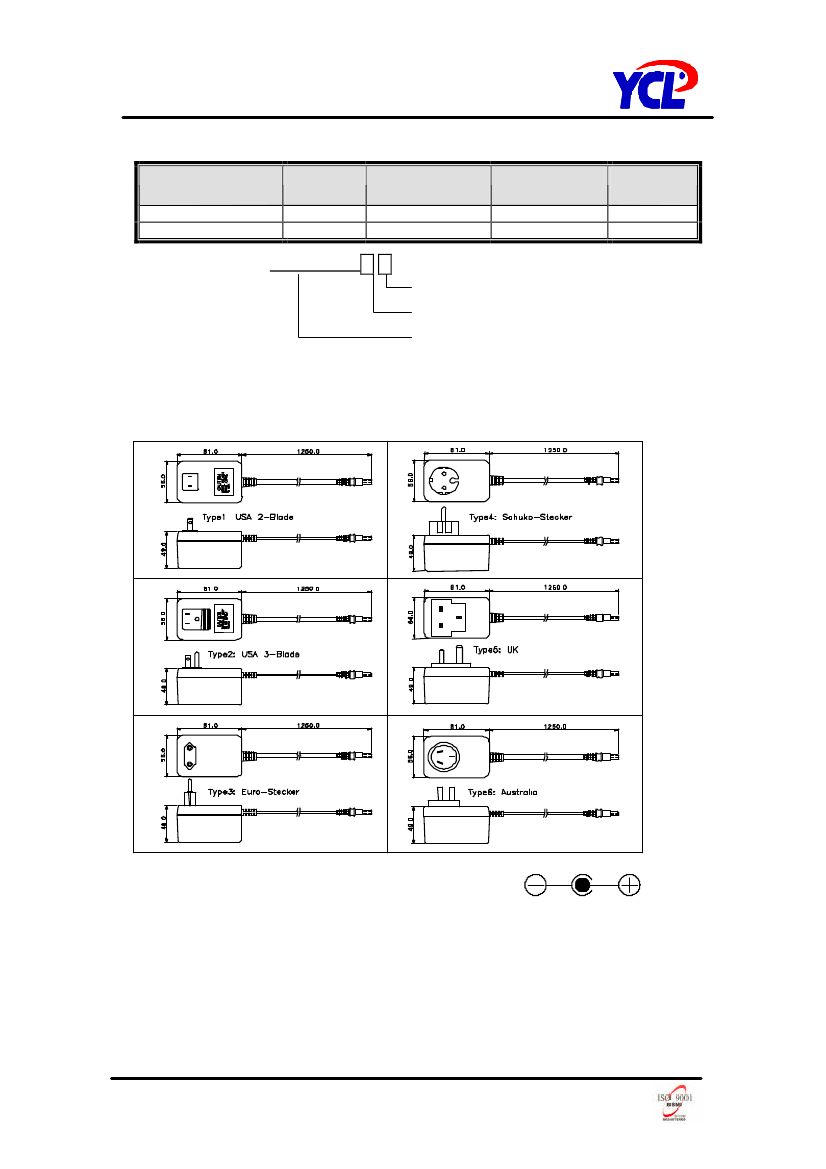

Dimensions:
mm
±
1.0mm
Date: Sep 19,2003
66
