5035661100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5035661100

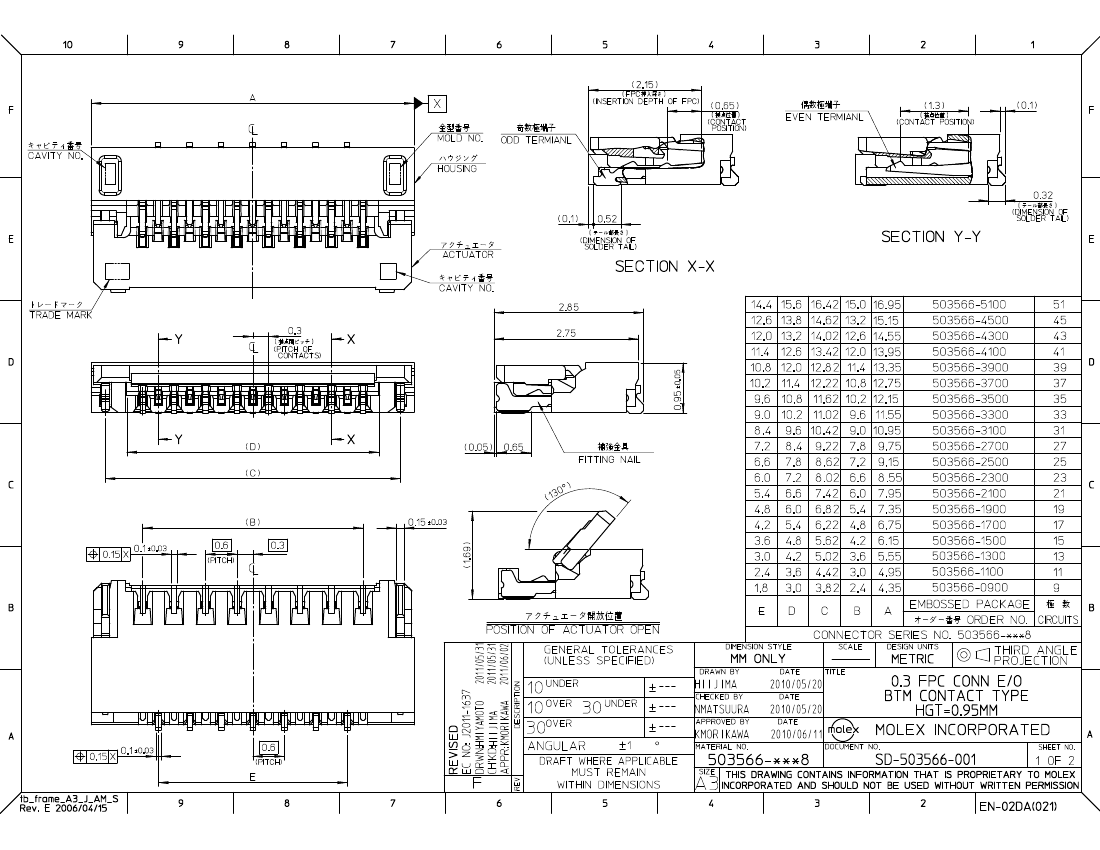

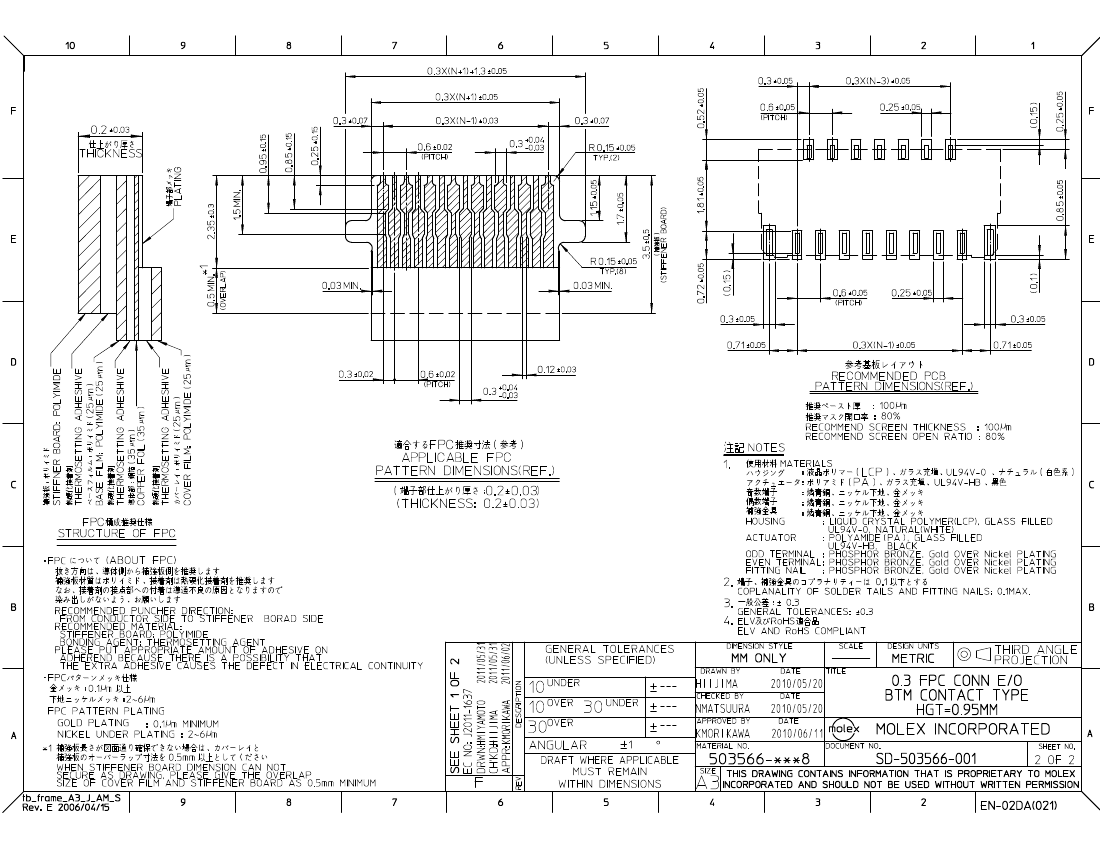

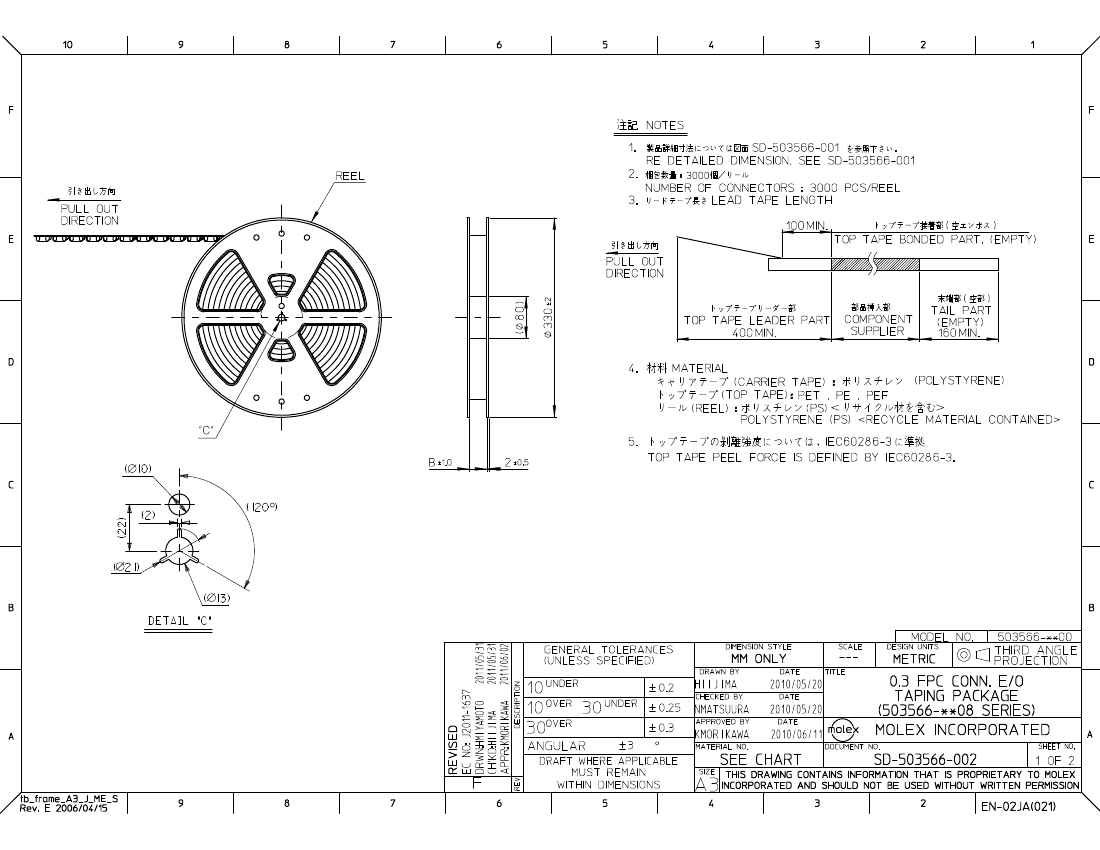

5035661100: DescriptionCONN FPC BOTTOM 11POS 0.30MM R/A; CategoryThe connector; File Size1015KB，8 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5035661100 Overview

CONN FPC BOTTOM 11POS 0.30MM R/A

5035661100 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	11
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.037"（0.95mm）
Lock function	trigger lock
Cable end type	Welding lug type
Contact material	Phosphor bronze
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Fixed solder tail
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0，UL94 HB
Rated current	0.2A
Contact plating thickness	-
Shell color	White
Actuator color	black
Number of patches	10

Preview

Download Datasheet

View All

5035661100 Related Products

	5035661100	5035664500	503566-2300	5035665100	5035660900	503566-4300	5035663100	5035663500	5035661500
Description	CONN FPC BOTTOM 11POS 0.30MM R/A	CONN FPC BOTTOM 45POS 0.30MM R/A	CONN FPC BOTTOM 23POS 0.30MM R/A	CONN FPC BOTTOM 51POS 0.30MM R/A	CONN FPC BOTTOM 9POS 0.30MM R/A	CONN FPC BOTTOM 43POS 0.30MM R/A	CONN FPC BOTTOM 31POS 0.30MM R/A	CONN FPC BOTTOM 35POS 0.30MM R/A	CONN FPC BOTTOM 15POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	11	45	23	51	9	43	31	35	15
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）	0.037"（0.95mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold	gold	gold	gold	gold	gold	gold	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail
Rated voltage	50V	50V	50V	50V	50V	50V	50V	50V	50V
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB
Rated current	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A
Shell color	White	White	White	White	White	White	White	White	White
Actuator color	black	black	black	black	black	black	black	black	black
Number of patches	10	10	10	10	10	10	10	10	10
