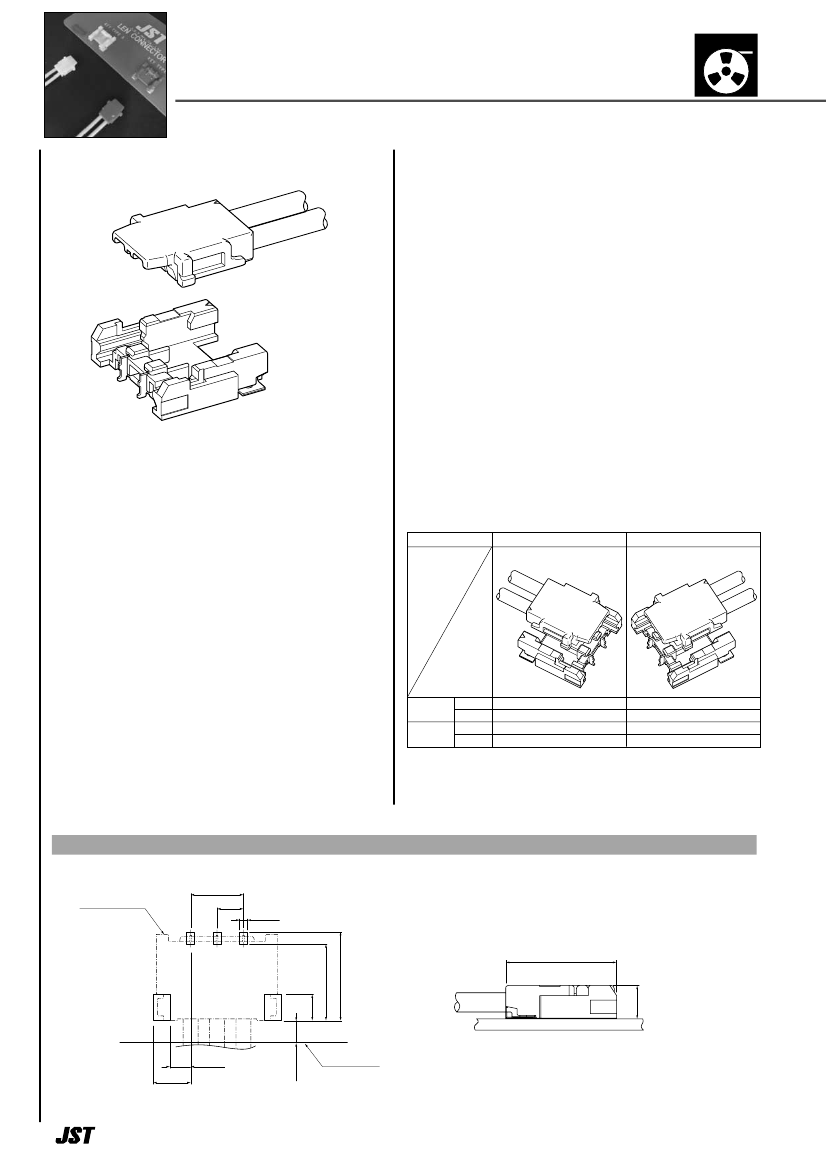

LEN
CONNECTOR
Emboss Tape
3.0mm pitch/For LED Lamp/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 300 V AC, DC
• Temperature range:
-
55˚C to
+
105˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,700 VAC/minute
• Applicable wire: Conductor size/ AWG #26 to #22
Insulation O.D./ 0.95 to 1.7 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Considering about the luminescence
property of LED package, this LEN
connector is designed as low profile type
connector for LED lighting.
In consideration of connector mating
operation to the LED mounting PCB that
is integrated in the equipment, side-feed
mechanism that provides to enable
mating the connector from above is
adopted, and secure lock that considered
handling and mechanism for preventing
wrong insertion are provided.
Table of product combinations –––––
Key pattern
A
B
Housing
Color
Model No.
Natural
LENR-( )V-S-A(HF)
Natural
BM( )B-LENSS-A-TB(HF)
Blue
LENR-( )V-E-B(HF)
Blue
BM( )B-LENES-B-TB(HF)
• Low profile design
Mounting height at connector mounting side : 3mm
• Secure locking mechanism
• Mechanism for preventing wrong insertion
• Halogen-free and RoHS compliant
Color
Shrouded
header
Model No.
Standards ––––––––––––––––––––––
0
Recognized E 60389
PC board layout and Assembly layout
A
±0.05
Connector outline
3
±0.03
0.9
0
＋0.1
9.8
8.7
-0.1
10.1
0
0
＋0.1
＋0.1
2.35
-0.1
4.25
＋0.1
0
0
2.5 Min.
3
0
PC board edge
Note: 1. The figure on the left side is the figure viewed from the connector mounting side.
Note:
2. Tolerances are non-cumulative: ±0.05 mm for all centers.
The dimensions above should serve as a guideline. Contact JST for details.
1
3
LEN CONNECTOR
Contact
Model No.
SLEN-001T-P0.2
6.15
2.9
0.7
1.3
1.5
2.5
mm
2
0.13∼0.33
Applicable wire
AWG#
Insulation O.D. (mm)
26∼22
0.95∼1.7
Q'ty/
reel
9,000
Material and Finish
Copper alloy, tin-plated (reflow treatment)
RoHS compliance
1.25
Contact
Crimping
machine Crimp applicator
MKS-L
―
Applicator
Dies
―
Crimp applicator with dies
―
SLEN-001T-P0.2
AP-K2N
MK/SLEN-001-02 APLMK SLEN001-02
Housing
Circuits
2
3
B
A
3
9.4
Key
pattern
A
B
A
B
A
B
Color
Natural
Blue
Natural
Blue
Natural
Blue
Model No.
LENR-02V-S-A(HF)
LENR-02V-E-B(HF)
LENR-03V-S-A(HF)
LENR-03V-E-B(HF)
LENR-04V-S-A(HF)
LENR-04V-E-B(HF)
Material
Glass-filled PA 66, UL94V-0
Dimensions (mm) Q’ty/
box
A
B
—
6.0
9.0
7.9
10.9
13.9
2,000
2,000
1,800
4
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
LENR-02V-S-A(HF)-
S…natural E…blue
Shrouded header
Circuits
2
3
B
A
3
9.8
Key
pattern
A
B
A
B
A
B
Color
Natural
Blue
Natural
Blue
Natural
Blue
Model No.
BM02B-LENSS-A-TB(HF)
BM02B-LENES-B-TB(HF)
BM03B-LENSS-A-TB(HF)
BM03B-LENES-B-TB(HF)
BM04B-LENSS-A-TB(HF)
BM04B-LENES-B-TB(HF)
Material and Finish
Dimensions (mm) Q’ty/
reel
A
B
—
6.0
9.0
10.8
13.8
16.8
1,500
1,500
1,500
4
Contact: Copper, copper-undercoated, tin-plated (reflow treatment)
Housing: PA 9T, UL94V-0
2.9
RoHS compliance
Note: The products listed above are supplied on embossed-tape.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BM02B-LENSS-A-TB(HF)-
S…natural E…blue
2
