O
.827 MAX OVER MALE
DIAMOND KNURL
O
.62
WEST MICROW
TT-0219-XX-NNN
YdB DC-18 GHz
TYPE N MALE
PER MIL STD-348
FIGURE 304-1
TYPE N FEMALE
PER MIL STD-348
FIGURE 304-2
1.77
NOTES: UNLESS OTHERWISE SPECIFIED.
1.0 MATERIALS & FINISH:
1.1 HOUSING, COUPLING SLEEVE: PASSIVATED STAINLESS STEEL.
1.2 DIELECTRIC: PTFE (TEFLON)
1.3 CENTER CONTACT: GOLD PLATED BERYLLIUM COPPER
1.5 GASKET: SILICONE RUBBER
2.0 ELECTRICAL SPECIFICATIONS:
2.1 FREQUENCY RANGE: DC TO 18 GHz
2.2 ATTENUATION AND ACCURACY:
2.2.1 1-6dB
u
0.3dB
2.2.2 7-20dB
u
0.5dB
2.2.3 21-30dB
u
1.0dB
2.3 IMPEDANCE: 50 OHMS NOMINAL
2.4 MAXIMUM VSWR: 1.07 +0.015f (GHz)
2.5 MAXIMUM INPUT POWER: 2 WATTS AVERAGE AT
+40
v
C DERATED LINEARLY TO 0.5 WATTS AT +125
v
C
2.6 OPERATING TEMPERATURE RANGE: -54
v
C TO +125C
3RD ANGLE PROJECTION
Midwest Microwave
Title:
RoHS2
This PROPRIETARY Document
is property of Emerson Network
Power Connectivity Solutions.
It is confidential in nature,
non-transferable, and issued with
the clear understanding that it is
not traced or copied without
permission and is returnable
upon demand.

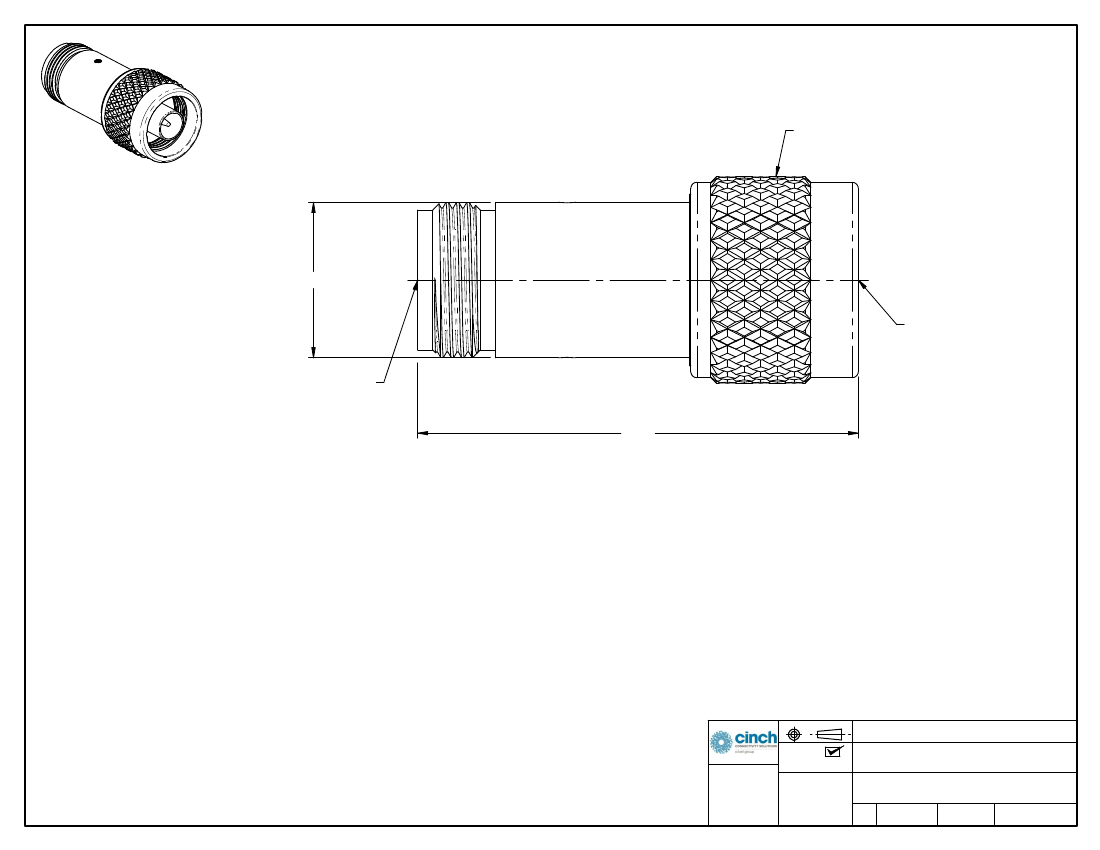

ATTENUATOR, 1-30dB
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: INCH
Model No.
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.XX
u
.02
.XXX
u
.005
ANGLES
u
2
v
ATT-0219-XX-NNN-02
Size
A
DO NOT SCALE
Date:
3/6/2015
DRAWING
Sheet 1 of 1
