SOIC TO DIP ADAPTER - 8-PIN



SparkFun SOIC to DIP Adapter - 8-Pin

B OB-00 494 ROH S



    

3



images are CC BY-NC-SA 3.0

3D Download:

STL, Blender

Description:

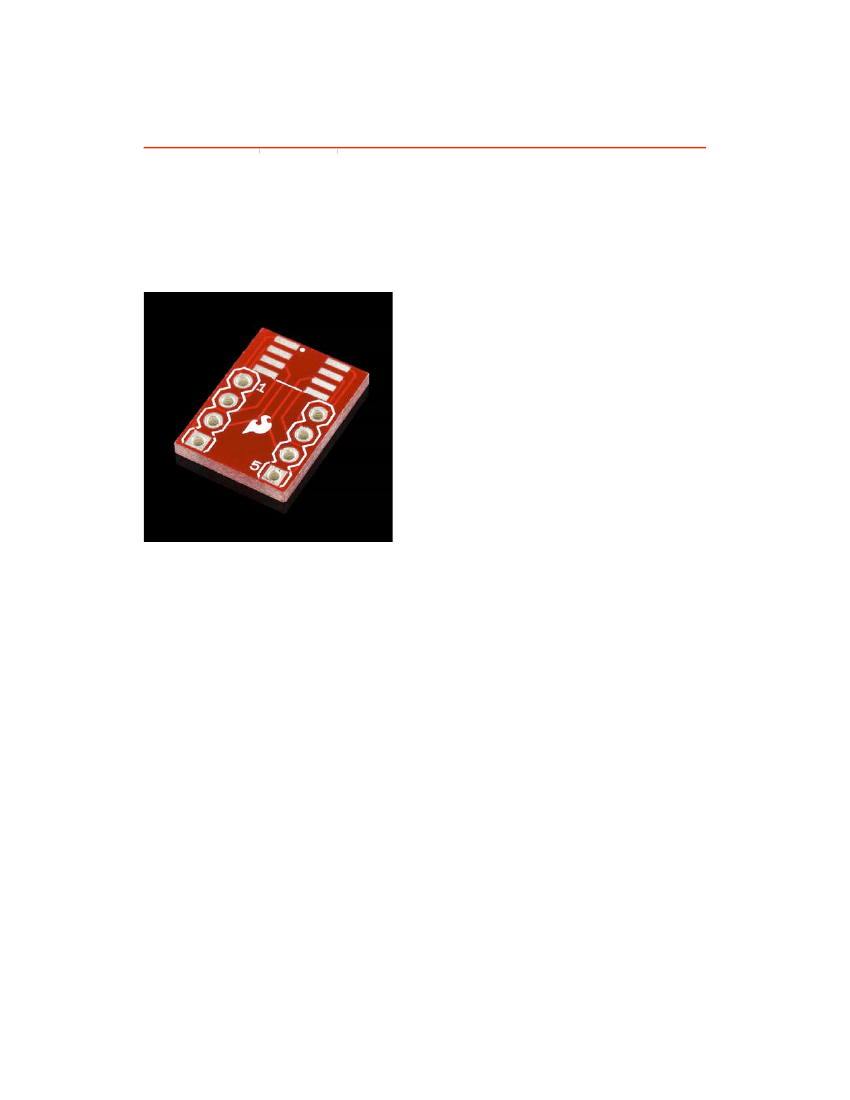

Your basic SOIC break out boards. What’s the difference? The 8 Pin

board is TINY. And you can’t beat the price! These are custom PCB boards that

interface standard JEDEC SOIC devices to standard .1" headers.

This board has a standard SOIC-8 footprint with a layout that fits all standard JEDEC

SOIC-8 devices.

40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin

headers may be a better option for IC sockets.

https://www.sparkfun.com/products/494
