WJ117F
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
FEATURES:
•
UL F class rated standard
•
Low profile and narrow width
•
High dielectric strength
•
Creepage distance: >8mm
E197851
28.5 x 10.1 x 12.3 mm
CONTACT DATA
Contact Arrangement
Contact Rating
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
1A = SPST N.O.
1C = SPDT
8A @ 250VAC & 30VDC
< 50 milliohms initial
AgSnO
2
In
2
O
3
300W, 2500VA
380VAC, 110VDC
10A
COIL DATA
Coil Voltage
VDC
Coil
Resistance
Ω ±
10%
Pick Up Voltage
VDC (max)
75%
of rated voltage
Release Voltage
VDC (min)
10%
of rated voltage
Coil Power
W
Operate Time
ms
Release Time
ms
Rated
Max.
5
6.5
3.75
0.5
6
7.8
4.50
0.6
12
15.6
9.00
1.2
.22
10
5
18
23.4
13.50
1.8
24
31.2
18.00
2.4
48
62.4
36.00
4.8
60
78.0
45.00
6.0
CAUTION:
1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.
2. Pickup and release voltages are for test purposes only and are not to be used as design criteria.
.22W
113
164
620
1295
2350
9600
12500
GENERAL DATA
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength, Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Operating Temperature
Storage Temperature
Solderability
Weight
100K cycles, typical
10M cycles, typical
100MΩ min @ 500VDC
5000V rms min. @ sea level
1000V rms min. @ sea level
100m/s
2
for 11ms
1.50mm double amplitude 10-40Hz
-55
°C
to + 125
°C
-55
°C
to + 155
°C
230
°C ±
2
°C
for 10
±
0.5s
8.2g
WJ117F
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
ORDERING INFORMATION
1. Series:
WJ117F
2.Contact Arrangement:
1A = SPST N.O.
1C = SPDT
3. Sealing Options:
S = Sealed
4. Coil Voltage:
5VDC
6VDC
9VDC
12VDC
18VDC
24VDC
48VDC
60VDC
WJ117F
1C
S
12VDC

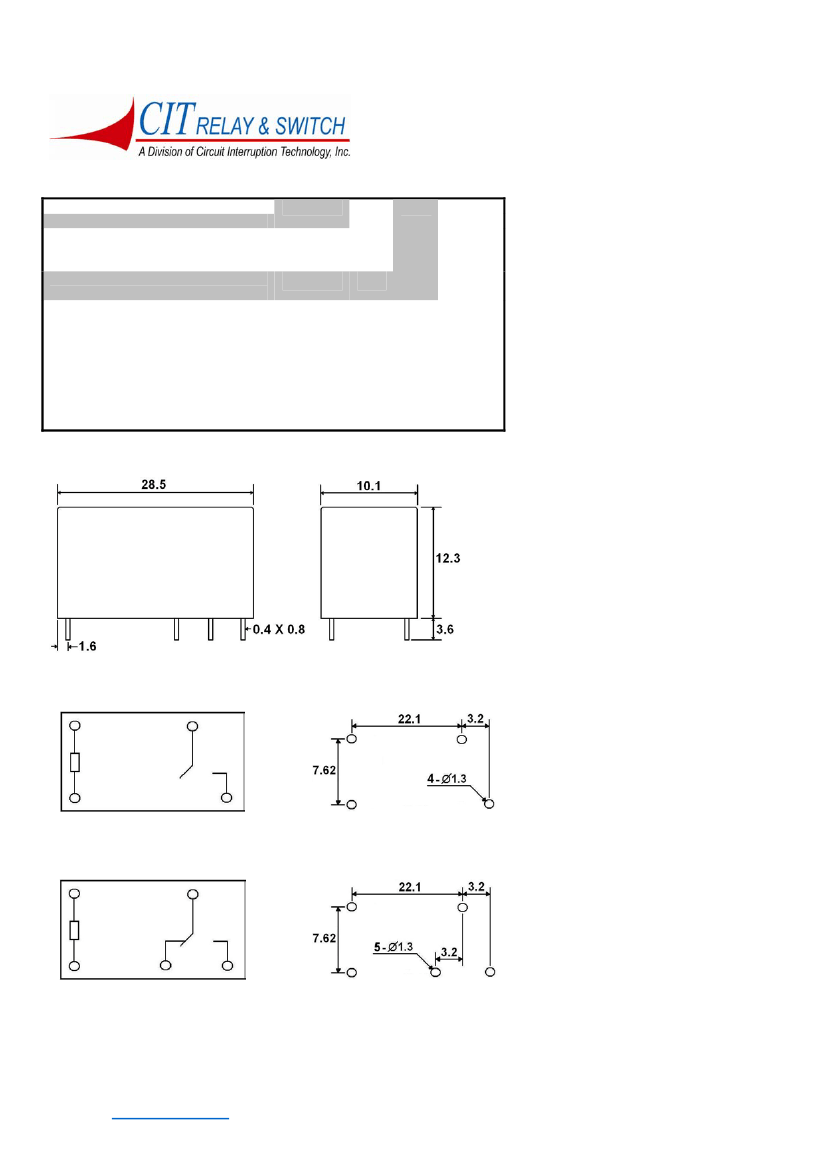

DIMENSIONS (Units = mm)
SCHEMATICS & PC LAYOUTS (BOTTOM VIEWS)
1A
1C
