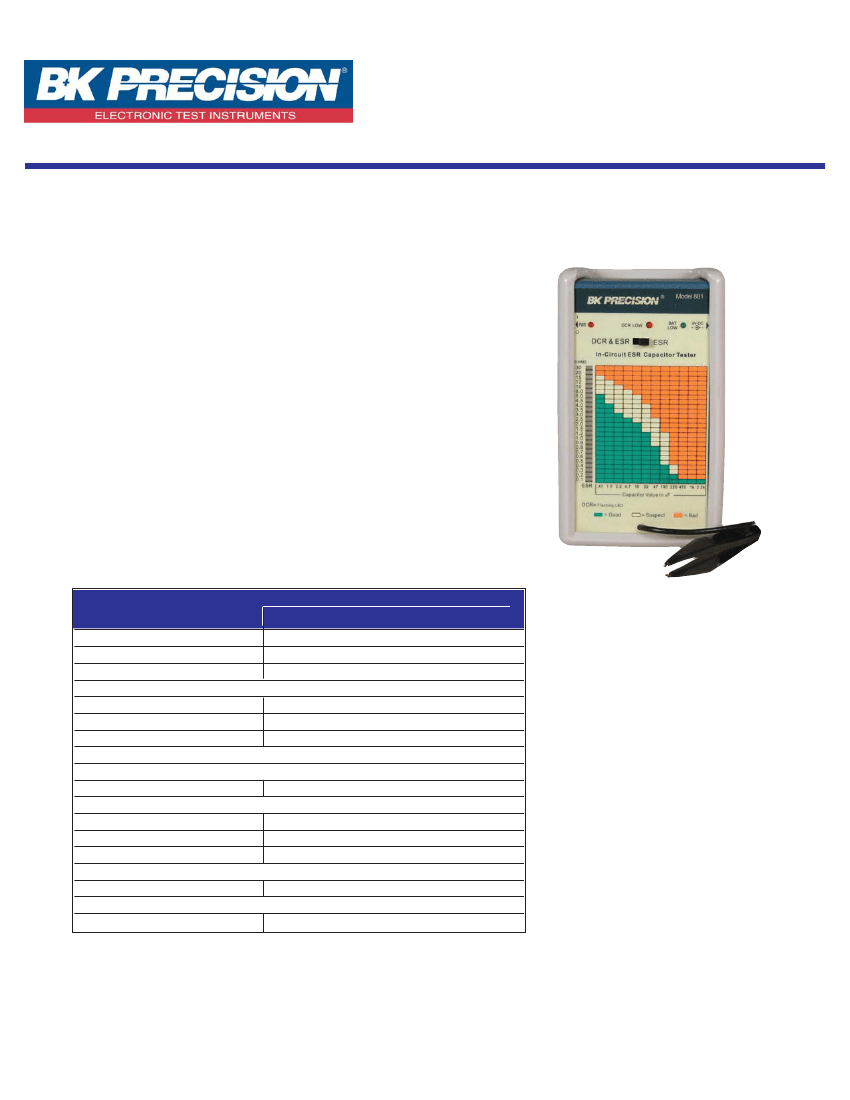

Model 881
In-Circuit ESR &
DC Resistance Capacitor Tester
Data Sheet
In-Circuit ESR & DC Resistance Capacitor Tester
Model 881
Model 881 is a new portable In-Circuit ESR Meter, the new compact hand-held tester can
be used to measure the equivalent series resistance of electrolytic capacitors in or out of
circuit and can also be used to measure low value non-inductive resistors. Model 881 is a
must for anyone that tests or trouble shoots printed circuit boards.
■
Measures ESR with a range of 0.1 to 30 ohms
■
Three color front panel chart shows ESR readings of
Good, Fair, and Bad
■
Measures DC Resistance with a range of 0.1 to 30 ohms
■
Automatically calibrates internal signal
■
15mVp-p Output test voltage (will not turn on any solid-
state devices)
■
Includes a one-handed tweezers test probe
■
Uses a standard 9VDC battery as power source
Specifications
Open circuit probe voltage
Output test frequency
Measures ESR
ESR range
Ω
Model
881
15mV pp
100 KHz sine wave
0.1 – 30 (25 segment LED bar scale)
Beeps from 1 to 5 beeps depending on
ESR of capacitor
Measures DC Resistance
DC Resistance range
Ω
Power
0.5 – 30 flashing the LED
One 9V battery or an external
AC adapter (9V DC 100mA
5.5mm x 2.1mm center pin+)
10mA typical
1.5" x 3.8" x 5.7"
Power drain
Dimensions
B&K Precision Corporation
22820 Savi Ranch Parkway, Yorba Linda, CA 92887
Tel: 714-921-9095, Fax: 714-921-6422
www.bkprecision.com
Specifications subject to change without notice
