0.3 or 0.4 mm pitch, 3 mm above the board, Flip-Lock actuator,
Flexible Printed Circuit ZIF connectors
FH30 Series

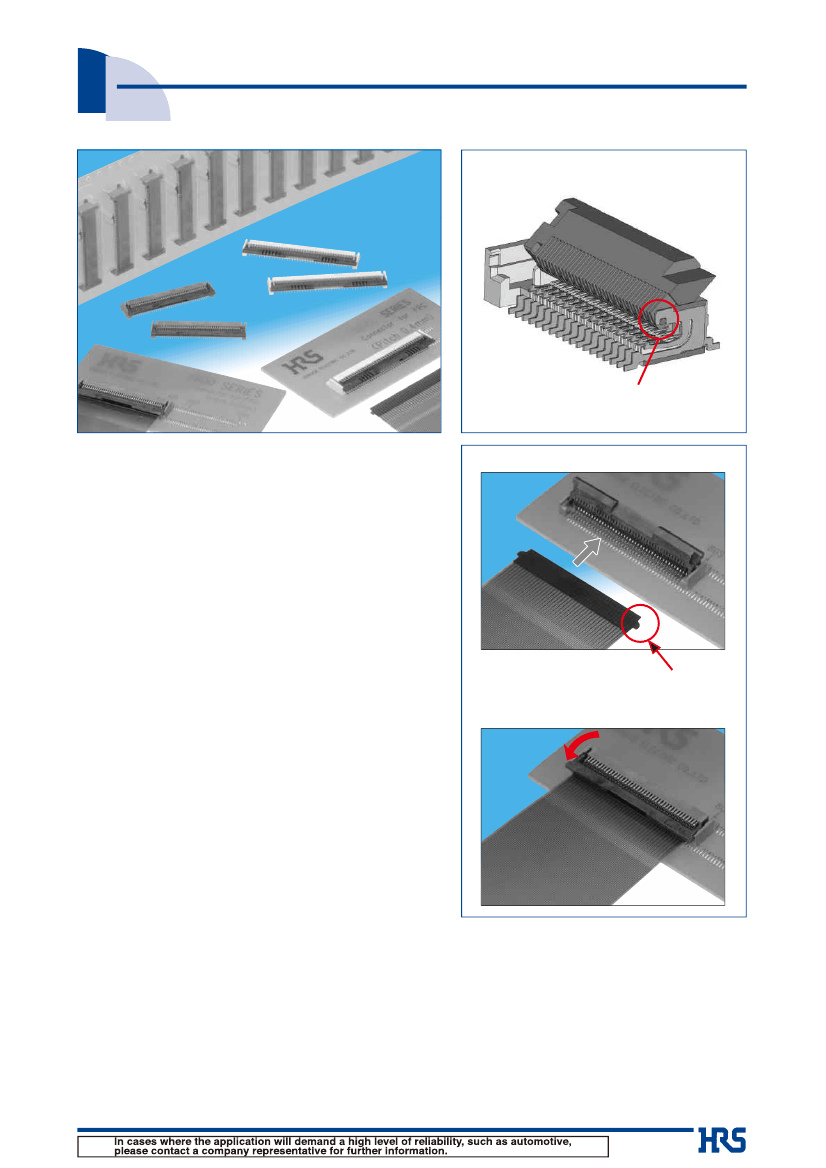

Strong actuator construction
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Enclosed shaft of the actuator
prevents it from dislocation
■Features
1. Strong actuator retention
Actuator will not be dislodged when operating under harsh
conditions.
Simple FPC insertion
2. Rotating Flip–Lock actuator
Rotating actuator permits easy insertion and retention of the
FPC.
Tactile sensation confirms complete FPC insertion and reliable
mechanical and electrical connection.
3. FPC position hold
Tabs on each side of the FPC assure correct placement and
hold in the connector prior to closing of the actuator.
FPC positioning tab
4. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC) can be
used.
Lock
5. Easy solderability on the PC board
The soldering leads are on 0.6 mm or 0.8 mm pitch, exiting on
the front and back of the connector.
6. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate vacuum
pick-up and placement. Standard reel packaging contains 1000
connectors.
7. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
8. Halogen-free
*
* As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
2013.11w
1
FH30 Series●0.3 or 0.4mm pitch, 3mm above the board, Flip-Lock actuator, Flexible Printed Circuit ZIF connectors
■Product
Specifications
0.3 mm pitch 0.4 mm pitch Operating temperature range -40 to +85°C (Note 2)
Ratings Current rating(Note 1)
Voltage rating
Recommended FPC
Item
1. Insulation resistance
2. Withstanding voltage
Operating humidity range
30 Vrms AC 50 Vrms AC (No condensation)
0.15 A
0.3 A
Storage temperature range -10 to +50°C (Note 3)
Relative humidity 90% max.
Relative humidity 90% max. Storage humidity range
(No condensation)
Thickness: 0.3±0.05, Gold plated contact pads
Specification
500 Mø min.
No flashover or insulation breakdown
150 mø max.
* Including FPC conductor resistance
Contact resistance: 150 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1μs or longer
Contact resistance: 150 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1μs or longer
Contact resistance: 150 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 150 mø max.
Insulation resistance: 50Mø min.
No damage, cracks, or parts dislocation
Contact resistance: 150 mø max.
Insulation resistance: 50Mø min.
No damage, cracks, or parts dislocation
No deformation of components affecting
performance.
Conditions
100 V DC
0.3 mm pitch: 90 Vrms AC / 1 minute
0.4mm pitch: 150 Vrms AC / 1 minute
1 mA AC
20 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm
10 cycles in each of the 3 directions
Acceleration of 981m/s
2
, 6 ms duration,
sine half-wave, 3 cycles in each of the 3 axis
96 hours at 40°C and humidity of 90 to 95%
Temperature: -40°C
➝
+15°C to 35°C
➝
+85°C➝ +15°C to 35°C
Time:
-30
➝
2 to 3
➝
+30
➝
+2 to 3
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350°C for 5 seconds
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Contact resistance
4. Durability
5. Vibration
6. Shock
7. Humidity (Steady state)
8. Temperature cycle
9. Resistance to soldering heat
Note1: When passing the current through all of the contacts, use 70% of the rated current.
Note2: Includes temperature rise caused by current flow.
Note3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after installation on a
board.
■Materials
Part
Insulator
Contacts
Material
LCP
Phosphor bronze
Finish
FH30 series Color:Gray
FH30M series Color:Beige
Gold plated
Remarks
UL94V-0
--------------
■Ordering
information
q
Series name
w
Series No.
: FH
: 30
: 0.3mm pitch
: 0.4 mm pitch
: FH30 series 60, 80, 90
FH30M series 80, 96
t
Contact pitch
y
Contact type
: 0.3 mm, 0.4 mm
: SHW(SMT horizontal staggered mounting)
FH 30 M - 80S - 0.3 SHW (05)
1
2
3
4
5
6
7
e
Blank
M
r
Number of contacts
u
Plating specifications : (05)…Gold plated
(98)…Gold plated, 500 pieces/reel
2
FH30 Series●0.3 or 0.4mm pitch, 3mm above the board, Flip-Lock actuator, Flexible Printed Circuit ZIF connectors
■Dimensions
A
B
Q
R
C
9
(0.12)
Vacuum pick-up surface
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
R
D
(0.12)
Vacuum pick-up surface
6.55
**
0.8
(E: FPC insertion slot dimension)
Number of contacts indicator
0.8
Notes 1: The coplanarity of each terminal lead is within 0.1.
2: Packaged on tape and reel only. Check packaging specification.
3: Slight variations in color of the plastic compounds do not affect form ,fit or function of the connector.
4: After reflow, the terminal plating may change color, however this does not represent a quality issue.
3
All dimensions: mm
Part Number
FH30-60S-0.3SHW(05)
FH30-80S-0.3SHW(05)
FH30-90S-0.3SHW(05)
FH30M-80S-0.4SHW(05)
FH30M-96S-0.4SHW(05)
CL No.
580-0105-8-05
580-0100-4-05
580-0106-0-05
580-0102-0-05
580-0103-2-05
Number of Contacts FPC contact pitch
60
80
90
80
96
0.3
0.3
0.3
0.4
0.4
A
21.9
27.9
30.9
35.8
42.2
B
17.7
23.7
26.7
31.6
38
C
17.4
23.4
26.4
31.2
37.6
D
E
Q
0.3
0.3
0.3
0.4
0.4
R
0.6
0.6
0.6
0.8
0.8
17.4 18.35
23.4 24.35
26.4 27.35
31.2 32.25
37.6 38.65
Tape and reel packaging (1,000 pieces/reel, 500 pieces/reel).
Order by number of reels.
4.2
4.85
3
FH30 Series●0.3 or 0.4mm pitch, 3mm above the board, Flip-Lock actuator, Flexible Printed Circuit ZIF connectors
■Recommended
PCB mounting
■Recommended
FPC Dimensions
pattern and metal mask dimensions
B±0.05
Q±0.05
1.7±0.1
R±0.05
C±0.05
0.3±0.03(Land)
1.3±0.1
2.2±0.1
2.65±0.2
3.2±0.3
R0
0.3
R0
.2
.2
+0.04
-0.03
A
0.1±0.05
0.07±0.07
No(n-1)
(0.5)
No.1
3.95±0.1
0.25±0.03(Metal mask)
0.
5)
(0.8)
(C
0.
2
No.2
Q±0.02
R±0.02
2
R
No (n)
0.3±0.05
0.3
B±0.03
F±0.05
G±0.1
H MIN
+0.04
-0.03
1.4±0.1
Detail A
1.7±0.1
Mark side
R±0.05
D±0.05
0.3±0.03(Land)
0.25±0.03(Metal mask)
0.3±0.07
0.3±0.07
0.05 MIN
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Recommended metal mask thickness: t=0.15
J±0.1
Note 1 : Conductor width shall be 0.1±0.05 if FPC has plating bars.
All dimensions: mm
Part Number
FH30-60S-0.3SHW(05)
FH30-80S-0.3SHW(05)
FH30-90S-0.3SHW(05)
CL No.
580-0105-8-05
580-0100-4-05
580-0106-0-05
Number of Contacts FPC contact pitch
60
80
90
80
96
0.3
0.3
0.3
0.4
0.4
B
C
D
F
G
H
J
Q
R
0.6
0.6
0.6
0.8
0.8
17.7 17.4 17.4 18.3 18.8 19.3 20.3 0.3
23.7 23.4 23.4 24.3 24.8 25.3 26.3 0.3
26.7 26.4 26.4 27.3 27.8 28.3 29.3 0.3
31.6 31.2 31.2 32.2 32.7 33.2 34.2 0.4
38
37.6 37.6 38.6 39.1 39.6 40.6 0.4
FH30M-80S-0.4SHW(05) 580-0102-0-05
FH30M-96S-0.4SHW(05) 580-0103-2-05
■FH30

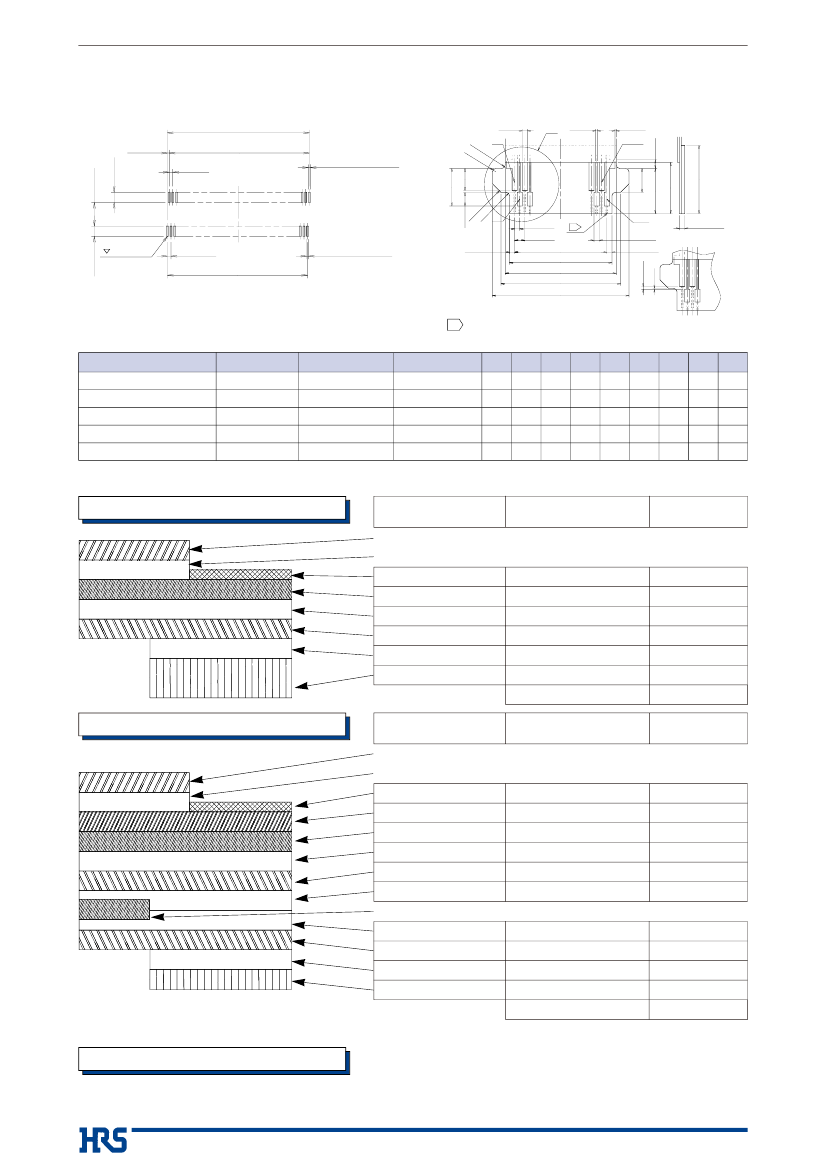

Series Recommended FPC Construction
1. Using Single-sided FPC
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Polyimide
0±0.1
Material
1 mil thick
Material Thickness
(μm)
(25)
(25)
3
35
25
25
30
175
293
0.2μm thick gold plated over 1 to
5μm thick nickel underplating
Cu
1oz
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Polyimide
Total
7 mil thick
2. Using Double-sided FPC
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Polyimide
Material
1 mil thick
Material Thickness
(μm)
(25)
(25)
3
15
0.2μm thick gold plated over 1 to
5μm thick nickel underplating
Cu
Cu
1/2oz
4.2±0.3
18
18
25
18
(18)
25
25
50
100
297
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Cu
1/2oz
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Polyimide
Total
4 mil thick
* To prevent release of the FPC due to it’s bending, use of the double-sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1. This specification is a recommendation for the construction of the FH30 Series FPC (t=0.3 ± 0.05).
2. For details about the construction, please contact the FPC manufacturers.
4
FH30 Series●0.3 or 0.4mm pitch, 3mm above the board, Flip-Lock actuator, Flexible Printed Circuit ZIF connectors

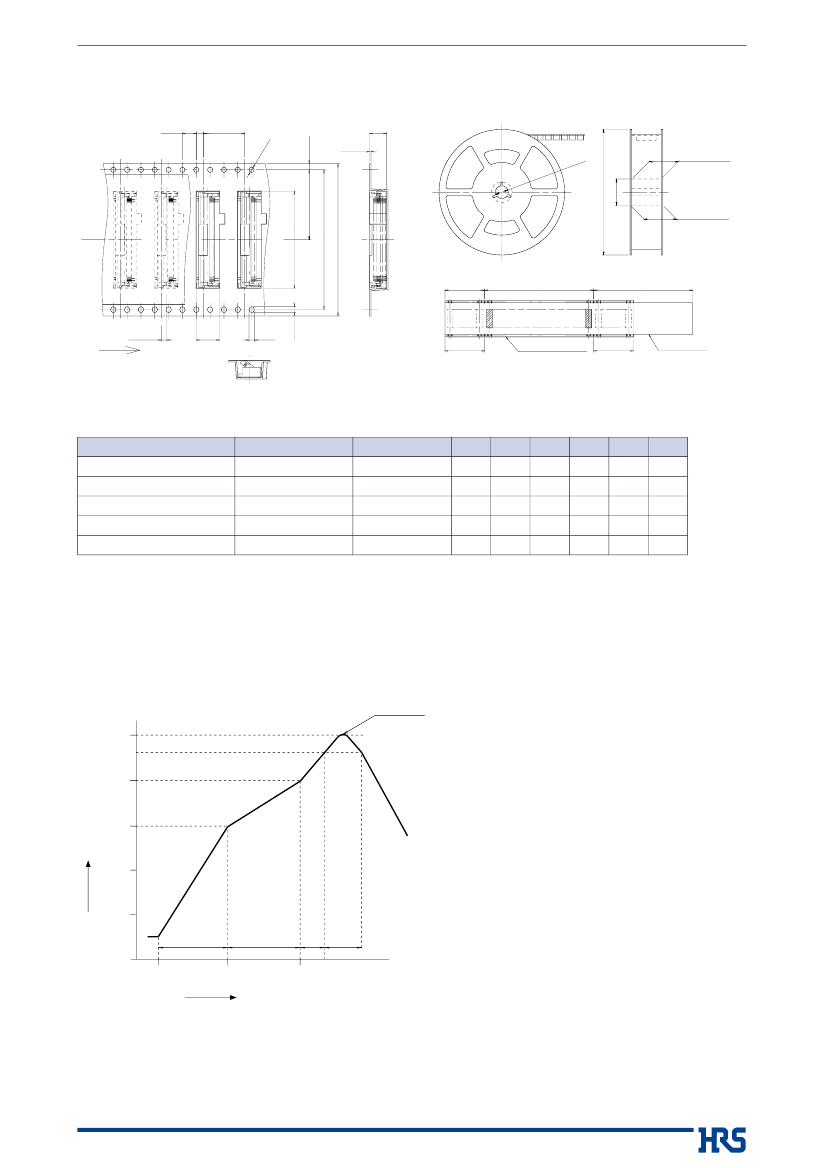

■Packaging
Specifications
●
Embossed Carrier Tape Dimensions
Ø1
.5
+0
.
●
Reel Dimensions
(4.9)
0.4±0.1
1.75±0.1
4±0.1
2±0.15 12±0.1
0
1
(Ø1
3)
(T: INSIDE)
(Ø380)
M±0.1
(Ø80)
(U: OUTSIDE)
K±0.3
L±0.1
(N)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
End section
Mounting section
Lead section (400mm min.)
1.35±0.1
Unreeling direction
(6.8)
1.5
+0.1
0
1.7
+0.15
0
Embossed carrier tape
No connector inserted
(10 pockets min.)
No connector inserted
(10 pockets min.)
Top cover tape
All dimensions: mm
Part Number
FH30-60S-0.3SHW(05)
FH30-80S-0.3SHW(05)
FH30-90S-0.3SHW(05)
FH30M-80S-0.4SHW(05)
FH30M-96S-0.4SHW(05)
CL No.
580-0105-8-05
580-0100-4-05
580-0106-0-05
580-0102-0-05
580-0103-2-05
Number of Contacts
60
80
90
80
96
K
44
44
44
56
56
L
40.4
40.4
40.4
52.4
52.4
M
20.2
20.2
20.2
26.2
26.2
N
22.1
28.1
31.1
36
42.4
T
45.4
45.4
45.4
57.4
57.4
U
49.4
49.4
49.4
61.4
61.4
Tape and reel packaging (1,000 pieces/reel).
■
Temperature Profile
●
Using Lead-free Solder Paste
MAX 250ç
250
230ç
200
200ç
HRS test condition
Solder method
Environment
:Reflow, IR/hot air
:Room air
(Senju Metal Industry, Co., Ltd.'s Part
Number:M705-221CM5-32-10.5)
Test board
:Glass epoxy FH30:45∞80∞1.6mm thick
FH30M:70∞130∞1.6mm
thick
Land dimensions
Metal mask
:0.3mm∞1.7mm
:0.15mm thick
0.25mm∞1.7mm
Solder composition :Paste, 96.5%Sn/3.0%Ag/0.5%Cu
Temperature(ç)
150
150ç
100
50
25ç (60 sec.)
0
Start
Time (Seconds)
90 to 120 sec.
Preheating
(30 sec.)
Soldering
The temperature profiles shown are based on the above
conditions.
In individual applications the actual temperature may
vary,depending on solder paste type, volume / thickness and
board size / thickness. Consult your solder paste and
equipment manufacturer for specific recommendations.
5
MicroPython Open Source section
京公网安备 11010802033920号
EEWORLD
