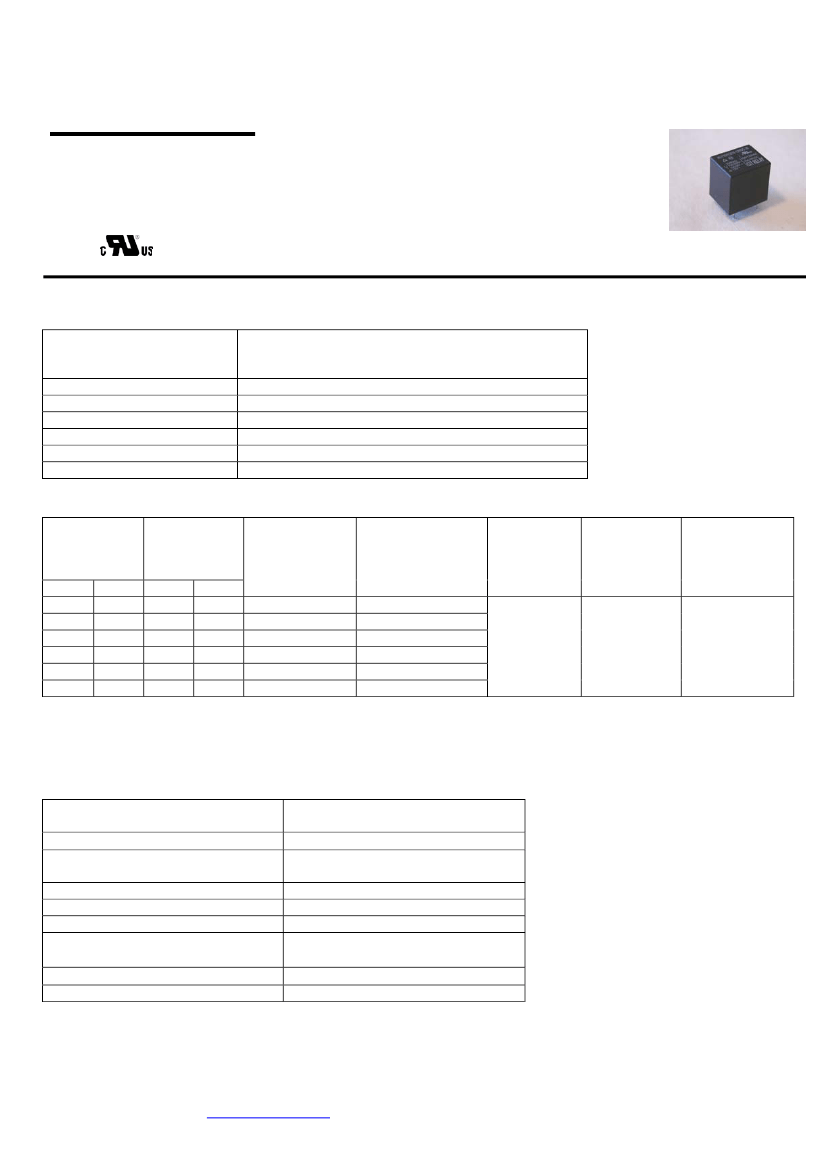

CIT RELAY

™

FEATURES:

•

Load capacity of up to 15A

•

Small size and light weight

•

PC board mounting

•

UL/CUL certified

WJ110

E197851

19.5 x 16.2 x 16.5 mm

CONTACT DATA

Contact Arrangement

Contact Rating

Contact Resistance

Contact Material

Maximum Switching Power

Maximum Switching Voltage

Maximum Switching Current

1A = SPST N.O.

1B = SPST N.C.

1C = SPDT

5A, 7A, 12A, 15A @ 125VAC & 28VDC

< 50 milliohms initial

AgCdO

420W

380VAC, 110VDC

15A

COIL DATA

Coil Voltage

VDC

Coil

Resistance

Ω ±

10%

Pick Up Voltage

VDC (max)

75%

of rated voltage

Release Voltage

VDC (min)

10%

of rated voltage

Coil Power

Operate Time

Release Time

Rated

Max.

3.9

7.8

11.7

15.6

31.2

62.4

.36W

100

225

400

1600

6400

.45W

180

320

1280

5120

2.25

4.50

6.75

9.00

18.00

36.00

0.3

0.6

0.9

1.2

2.4

4.8

.36

.45

CAUTION:

1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.

2. Pickup and release voltages are for test purposes only and are not to be used as design criteria.

GENERAL DATA

Electrical Life @ rated load

Mechanical Life

Insulation Resistance

Dielectric Strength, Coil to Contact

Contact to Contact

Shock Resistance

Vibration Resistance

Terminal (Copper Alloy) Strength

Operating Temperature

Storage Temperature

Solderability

Weight

100K cycles, typical

10M cycles, typical

100MΩ min @ 500VDC

1500V rms min. @ sea level

750V rms min. @ sea level

100m/s

for 11ms

1.50mm double amplitude 10-40Hz

10N

-40

°C

to + 85

°C

-40

°C

to + 155

°C

230

°C ±

°C

for 10

0.5s

13g
