WJ107F1A1524VDC.45

Description
CIT SWITCH
File Size191KB,2 Pages
ManufacturerCIT
Websitehttp://www.citswitch.com/
Download Datasheet View All

WJ107F1A1524VDC.45 Overview

CIT SWITCH

WJ107F
FEATURES:
UL F class rated standard
Small size and light weight
PC board mounting
UL/CUL certified
E197851

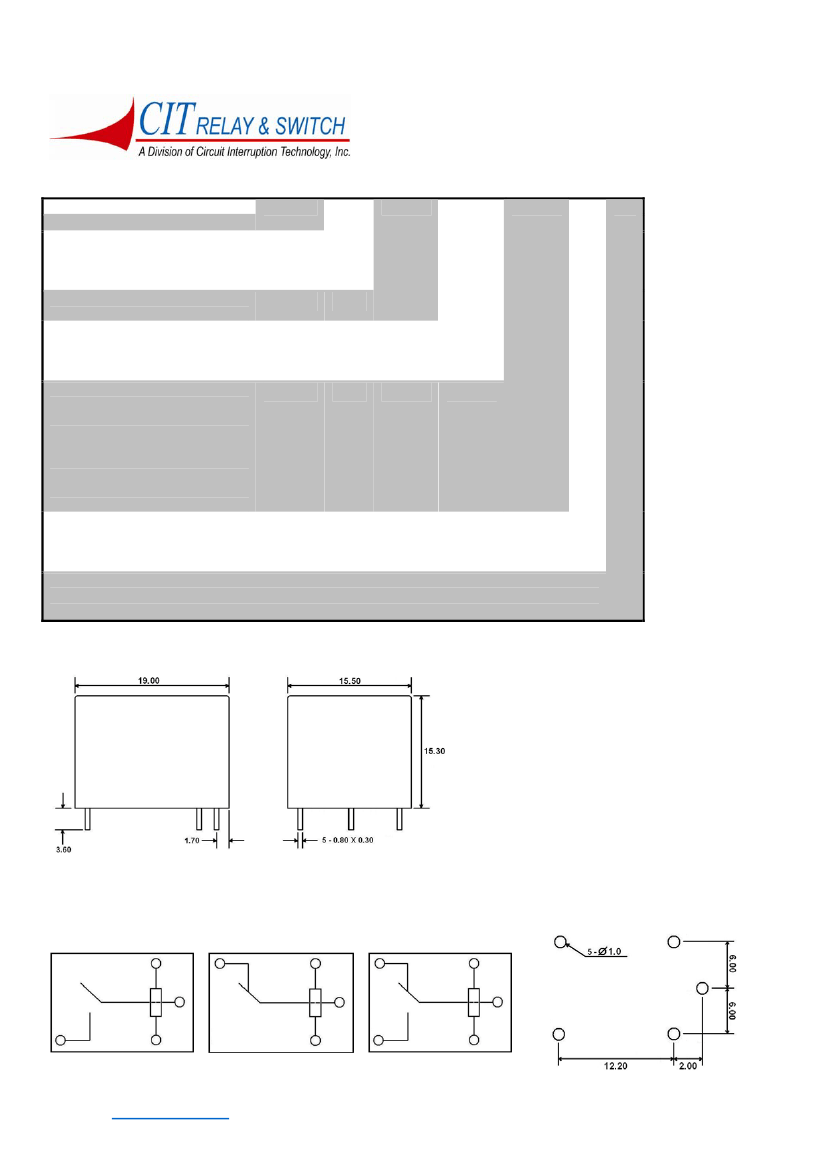

19.0 x 15.5 x 15.3 mm
CONTACT DATA
Contact Arrangement
Contact Rating
1A = SPST N.O.
1B = SPST N.C.
1C = SPDT
6A @ 277VAC
10A @ 250 VAC & 28VDC
12A, 15A @ 125VAC & 28VDC
20A @ 125VAC & 16VDC, 1/3hp - 125/277 VAC
< 50 milliohms initial
AgCdO, AgSnO
2
420W
380VAC, 110VDC
20A
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
COIL DATA
Coil Voltage
VDC
Coil Resistance
Ω ±
10%
Pick Up Voltage
VDC (max)
75%
of rated voltage
Release Voltage
VDC (min)
10%
of rated voltage
Coil Power
W
Operate Time
ms
Release Time
ms
Rated
Max.
3
3.9
2.25
0.3
5
6.5
3.75
0.5
.36
6
7.8
4.50
0.6
.45
10
9
11.7
6.75
0.9
.80
12
15.6
9.00
1.2
18
23.4
13.5
1.8
24
31.2
18.00
2.4
48
62.4
36.00
4.8
CAUTION:
1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.
2. Pickup and release voltages are for test purposes only and are not to be used as design criteria.
.36W
25
70
100
225
400
900
1600
6400
.45W
20
56
80
180
320
720
1280
5120
.80W
11
31
45
101
180
405
720
2880
5
GENERAL DATA
Electrical Life @ rated load
100K cycles, typical
Mechanical Life
10M cycles, typical
Insulation Resistance
100MΩ min @ 500VDC
Dielectric Strength, Coil to Contact
1500V rms min. @ sea level
Contact to Contact
750V rms min. @ sea level
Shock Resistance
100m/s
2
for 11ms
Vibration Resistance
1.50mm double amplitude 10-40Hz
Operating Temperature
-55
°C
to + 125
°C
Storage Temperature
-55
°C
to + 155
°C
Solderability
230
°C ±
2
°C
for 10
±
0.5s
Weight
9.5g
