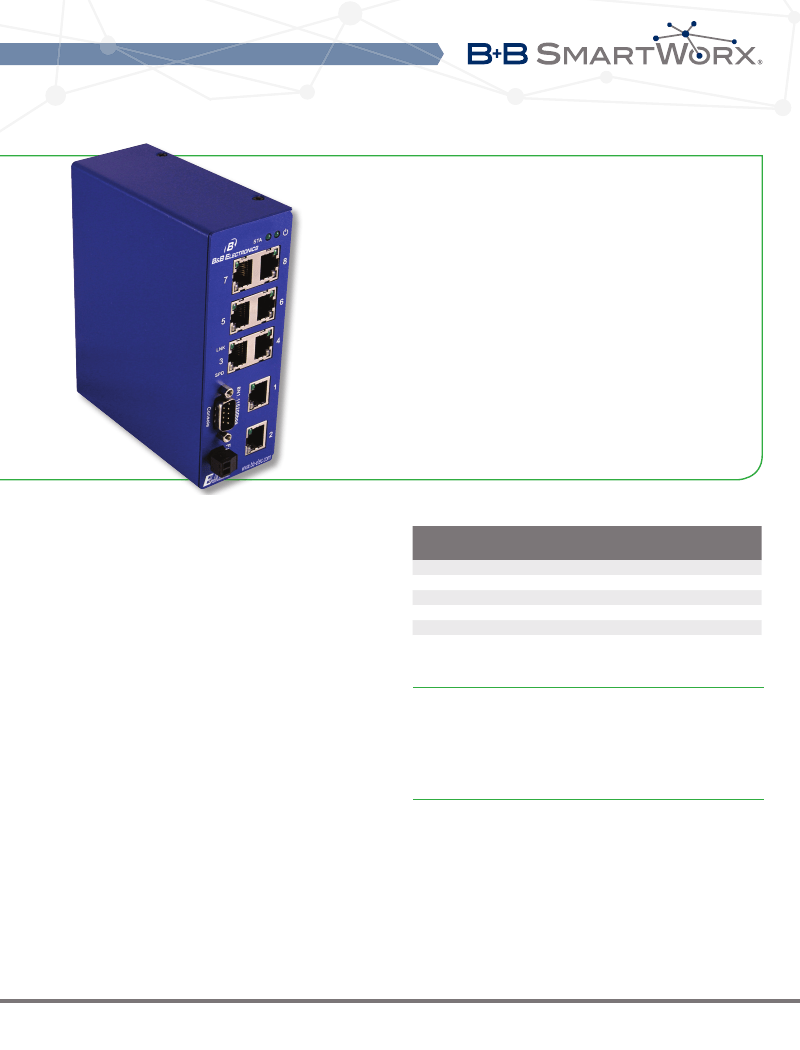

Industrial Managed Ethernet Switches
ESW500 Series
PRODUCT FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Supports IEEE 802.3 10Base-T,802.3u 100Base-TX
RJ-45 port supports auto MDI/MDI-X function
SC single mode and multi mode fiber connectors
Gigabit options with copper and SFP combo ports
Web browser management and configuration
Ring On redundant rapid recovery system, 15 mS
Rapid spanning tree protocol recover system
IGMP with query mode for multimedia application
Port based VLAN / 802.1 Q Tag VLAN
Relay alarm output for system events
Port mirroring for diagnostics
256K bytes packet buffer
8k MAC address table
NEMA TS2 (ESW508-T)
Shock and vibration tested
-10 to 60°C or -40 to 75°C (-T models) temperature rating
The Elinx
™
family of Managed DIN rail mount Ethernet switches have been
designed to meet industrial and commercial communication requirements.
Switch configurations range from 8 ports to 16 ports featuring all RJ45
copper to RJ45 copper with multi mode, single mode, and or SFP Gigabit
ports.
RingOn Technology
Two ports can be used for network redundancy by implementing RingOn
technology providing a rapid recovery system for industrial networks.
If any part of the ring disconnects the network communications will
automatically be restored.
Web-based Management
Each switch has an embedded HTML web site residing in flash memory,
offering advanced management features allowing users to manage the
switch from anywhere on the network via a standard web browser.
VLAN Configuration
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast
domain. This allows you to isolate network traffic so that members of
a VLAN will only receive traffic from other members of the same VLAN.
Creating a VLAN from a switch is the logical equivalent of reconnecting
a group of network devices to another Layer 2 switch. However, since it
is a virtual network, the network devices remain connected to the same
switch physically. Both port-based and 802.1Q (tagged-based) VLAN are
supported.
ORDERING INFORMATION
10/
MULTI-
MODEL
10/100 100/ SFP
MODE
1000 1000 FIBER
ESW508
ESW516
ESW508-T*
ESW508-2MC-T
ESW508-2SC-T
ESW516-T
*NEMA TS2
8
16
8
6
6
16
SINGLE-
MODE
FIBER
TEMPERATURE
-10 to 60°C
-10 to 60°C
-40 to 75°C
-40 to 75°C
-40 to 75°C
-40 to 75°C
2 (SC)
2 (SC)
ACCESSORIES
MDR-60-24 - DIN Rail Power supply 24VDC, 2.5A, 60W
C5UMB3FBL - 3 ft. (1 M) - Blue - Category 5e UTP Patch Cord
DFMM-STST-1M
- Multi-Mode Duplex Fiber Cable, ST To ST, 1 Meter
DFSM-SCSC-1M
- Single-Mode Duplex Fiber Cable, SC To SC, 1 Meter
WWW.BB-SMARTWORX.COM
|
ENABLING CONNECTED INTELLIGENCE
ESW500 series_3615ds
Industrial Managed Ethernet Switches
ESW500 Series
SPECIFICATIONS
TECHNOLOGY
• IEEE802.3, 802.3u,802.3ab,802.3z, 802.3x
• IEEE802.1D STP
• IEEE802.1W RSTP
• IEEE802.1p Class of Service
• IEEE802.1Q VLAN Tagging
Standards and Managed • IEEE802.1ad Port Trunk with LACP
• IEEE802.1x Port-Based Access Control
Protocols
• Protocols: SNMP V1/V2/V3, DHCP Server, SNTP,
SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP
• Priority Queues: 4
• IGMP Groups: 64
• Maximum VLANs:256
Store and forward with IEEE802.3x full duplex, non-
Processing Type
blocking flow control
Flow Control
IEEE802.3x flow control, back pressure flow control
MAC Address Table Size 8 KB
Packet Buffer Memory
256 K bytes
Address Table Size
8K MAC Addresses
INTERFACE
10/100BaseT(x) auto negation, Full/Half duplex, auto
RJ45 Ports
MDI/MDI-connection
100BaseFX ports (multi-mode or single-mode with SC
Fiber Ports
connector) Mini-GBIC SFP Combo Ports
LED Indicators
Power, Link, Speed, System Status
FIBER OPTICS
Fiber Type
Distance
Multi-mode
2 km
Single mode
20 km
POWER
Input Voltage
Wavelength
1310 nm
1310 nm
Output Power
Sensitivity
-20 to -14 dBm ≤ - 33.9 dBm
-15 to -14 dBm ≤ - 31 dBm
Power Consumption
Input Connection
Protection
ENVIRONMENTAL
Operating Temperature -10 to 60°C or -40 to 75°C (Wide Temperature Models)
Storage Temperature
-40 to 80 °C
Operating Humidity
0 to 95% Non-condensing
MTBF
200,000 hours
MECHANICAL
Enclosure
IP 30 Metal
Dimensions
See drawings
Installation
DIN rail and Panel mount
REGULATORY APPROVALS
CE, FCC, RoHS - Yes, NEMA TS2
(ESW508-T)
EN61000-6-1 Shock & Vibration Tested
18 to 36 VDC (All Models)
10 to 24 VAC (ESW508, ESW516 Models)
20W Max
Terminal Block
Reverse Polarity Protection
SPECIFICATIONS - EN 61000-6-1: 2006
TEST
DESCRIPTION
TEST LEVEL
EN55022: 2006 + A1:2007
Class B Emissions
Enclosure Contact
EN61000-4-2: 2009
Electro-Static Discharge (ESD)
Enclosure Air
EN61000-4-3:2006+A1:2008
Radiated Field Immunity (RFI)
Enclosure Ports
Signal Ports
EN61000-4-4:2004
Burst (Fast Transient)
DC Ports
Signal Ports
EN61000-4-5:2006
Surge
DC Power Ports
Signal Ports
EN61000-4-6: 2009
Induced (Conductive) RFI
DC Power Ports
ENVIRONMENTAL
IEC60068-2-6
Vibration
Test Fc
IEC60068-2-27
Shock
Test Ea

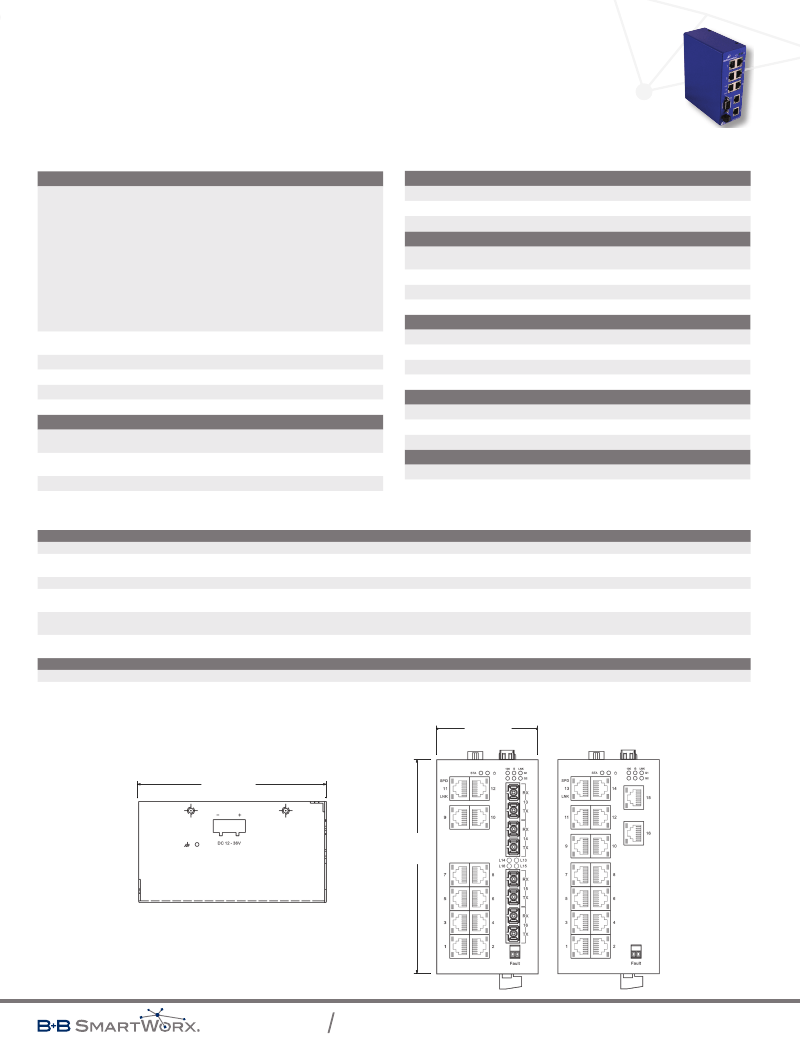

MECHANICAL DIAGRAM
LEVEL
6kV
8kV
10V/m
0.5kV@2.5Khz
1kV
1kV
2kV
10 V RMS
10 V RMS
2G
30G
3
3
3
2
2
3
3
3
3
-
-
7.04 cm
2.77 in
13.1 cm
5.16 in
14.91 cm
5.87 in
orders@bb-smartworx.com
support@bb-smartworx.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
