ED104/9DS

Description
TERMINAL BLOCK 5MM VERT 9POS
CategoryThe connector
File Size657KB,1 Pages
ManufacturerOn Shore Technology Inc.
Environmental Compliance
Download Datasheet Parametric View All

ED104/9DS Overview

TERMINAL BLOCK 5MM VERT 9POS

ED104/9DS Parametric

Parameter NameAttribute value
Number of levels1
Number of pins per level9
spacing0.197"(5.00mm)
Mating directionHorizontal, with board
current15A
Voltage300V
Wire gauge14-22 AWG
Installation typeThrough hole
wire terminationScrews - leaf springs, wire guards
characteristic-
colorgrey
Operating temperature-30°C ~ 105°C
Shell materialPolyamide (PA), nylon
Contact material - platingbrass
Fixture Material - PlatingStainless steel
Screw material - coating-
Torque - Screws0.8 Nm(7.1 Lb-In)
ThreadM3

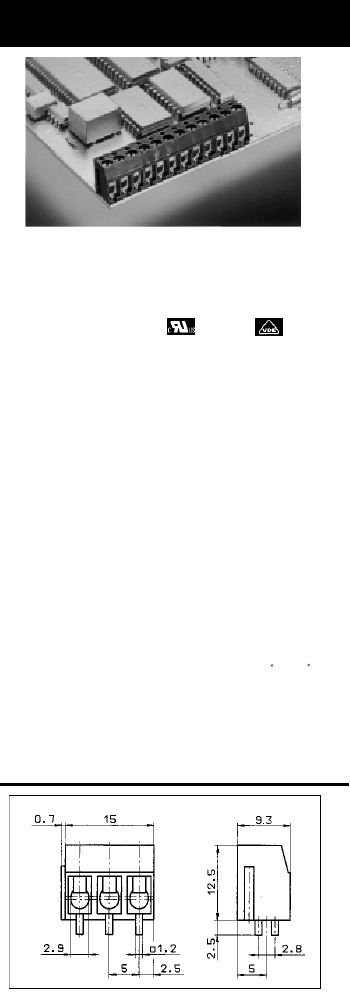

ED104/XDS
2-12 poles, Spacing 5.0 mm
insert required no. of poles
x
How to order see page 5
Ratings:
Rated Voltage
Rated Current
Wire Size
Test Voltage
Rated Torque/ScrewSize
Max. Rated Cross Section
Single Wire (solid)
Stranded Wire (flexible)
Stranded wire with Ferrules
Dimensions
Spacing
PCB Hole Diameter
Stripped Length
Materials
Insulating Material
Flammability Class
Temperature Range
Terminal Block
Wire Guard
Color
Grey
300V
15 A
AWG 22-14
250 V
32 A (T60)
2
4.0 mm
2.0 kV
0.8 Nm/M3
4.0 mm
2
2.5 mm
2
1.5 mm
2
5.0 mm
2.0 mm x 2.8 mm
7.0 mm
PA
UL94 V-0
-30 C/+105 C
CuZn
Stainless Steel
