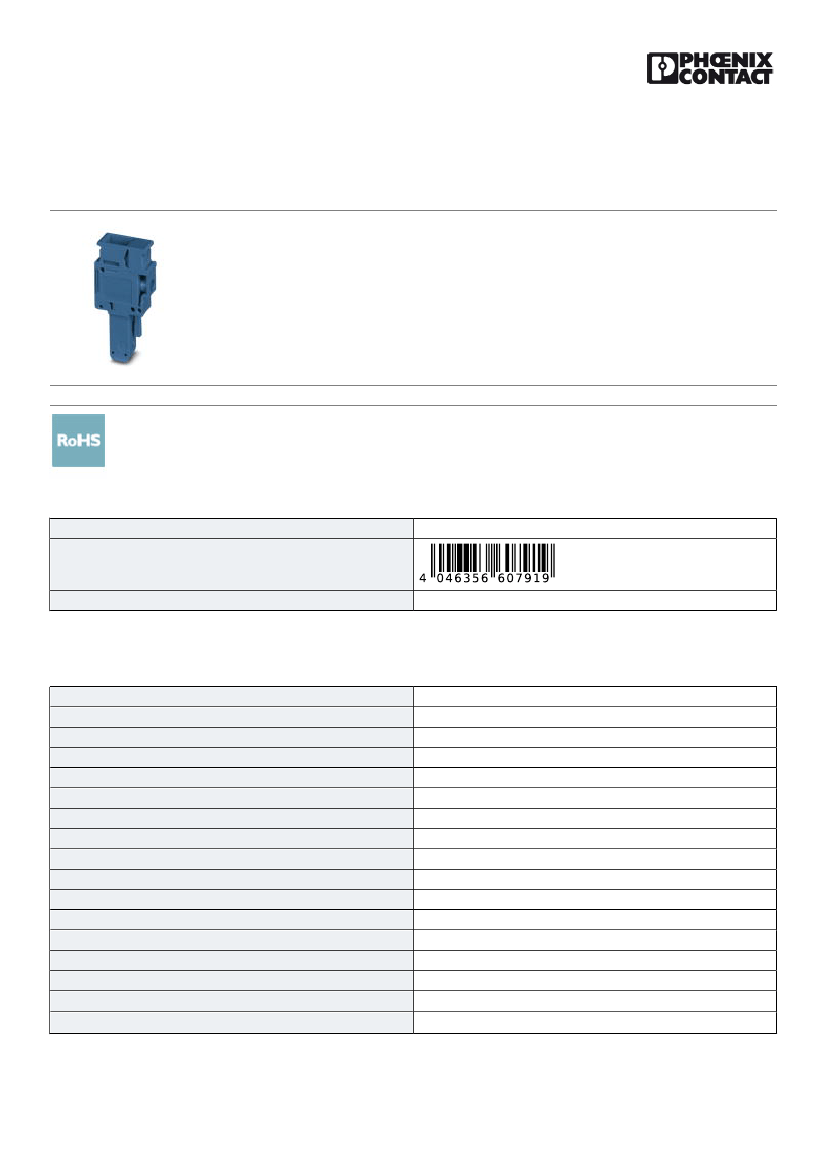

Plug - UP 6/ 1 BU - 3060717
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, nom. voltage: 1000 V, nominal current: 41 A, connection method: Screw connection, number of
connections: 1, number of positions: 1, cross section:0.2 mm² - 6 mm², AWG: 24 - 8, width: 8.2 mm, height:
42.7 mm, color: blue
Key Commercial Data
Packing unit
GTIN
GTIN
4046356607919
50 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
1
1
1
1
6 mm²
blue
PA
V0
41 A (with 6 mm² conductor cross section)
8 kV
3
III
I
1.31 W
41 A (with 6 mm² conductor cross section)
41 A
1000 V
11/09/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3060717
Plug - UP 6/ 1 BU - 3060717
Technical data
General
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
No
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Pitch
8.2 mm
21 mm
42.7 mm
26 mm
8.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
Screw connection
IEC 61984
0.2 mm²
6 mm²
24
8
0.2 mm²
10 mm²
24
8
0.25 mm²
0.25 mm²
6 mm²
0.2 mm²
11/09/2018 Page 2 / 5
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
https://www.phoenixcontact.com/pi/products/3060717
Plug - UP 6/ 1 BU - 3060717
Technical data
Connection data
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
2.5 mm²
0.2 mm²
2.5 mm²
0.5 mm²
4 mm²
0.25 mm²
1.5 mm²
10 mm
A5
M3
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 61984
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / cULus Recognized
11/09/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3060717
Plug - UP 6/ 1 BU - 3060717
Approvals
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
50 A
24-8
http://www.csagroup.org/services-industries/product-listing/
C
600 V
50 A
24-8
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
40 A
24-8
FILE E 60425
600 V
40 A
24-8
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
40 A
24-8
FILE E 60425
600 V
40 A
24-8
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-60929
1000 V
41 A
0.2-6
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
1000 V
40034876
11/09/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3060717
Plug - UP 6/ 1 BU - 3060717
Approvals
Nominal current IN
mm²/AWG/kcmil
41 A
0.2-6
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/09/2018 Page 5 / 5
