969M101-18-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 969M101-18-4

969M101-18-4: DescriptionCBL RIBN 4COND CLEAR 250'; CategoryThe connector Connector bracket; File Size1MB，2 Pages; ManufacturerCicoil; Environmental Compliance

Download Datasheet Parametric View All

969M101-18-4 Overview

CBL RIBN 4COND CLEAR 250'

969M101-18-4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cicoil
Reach Compliance Code	unknown
Other features	DIAMETER OF INDIVIDUAL CONDUCTOR IS 3.556 MM
application	AEROSPACE, FESTOON SYSTEMS, ROBOTICS, MEDICAL,OIL DRILLING
Certification	CE; CSA; UL
conductor material	TINNED COPPER
Connector bracket type	WIRE AND CABLE
structure	STRANDED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Number of conductors	4
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Rated current	20 A
Rated voltage	20000 V
shield	NO
Wire gauge	18 AWG
Wire and Cable Names	FLAT FLEXIBLE CABLE

Preview

Download Datasheet

View All

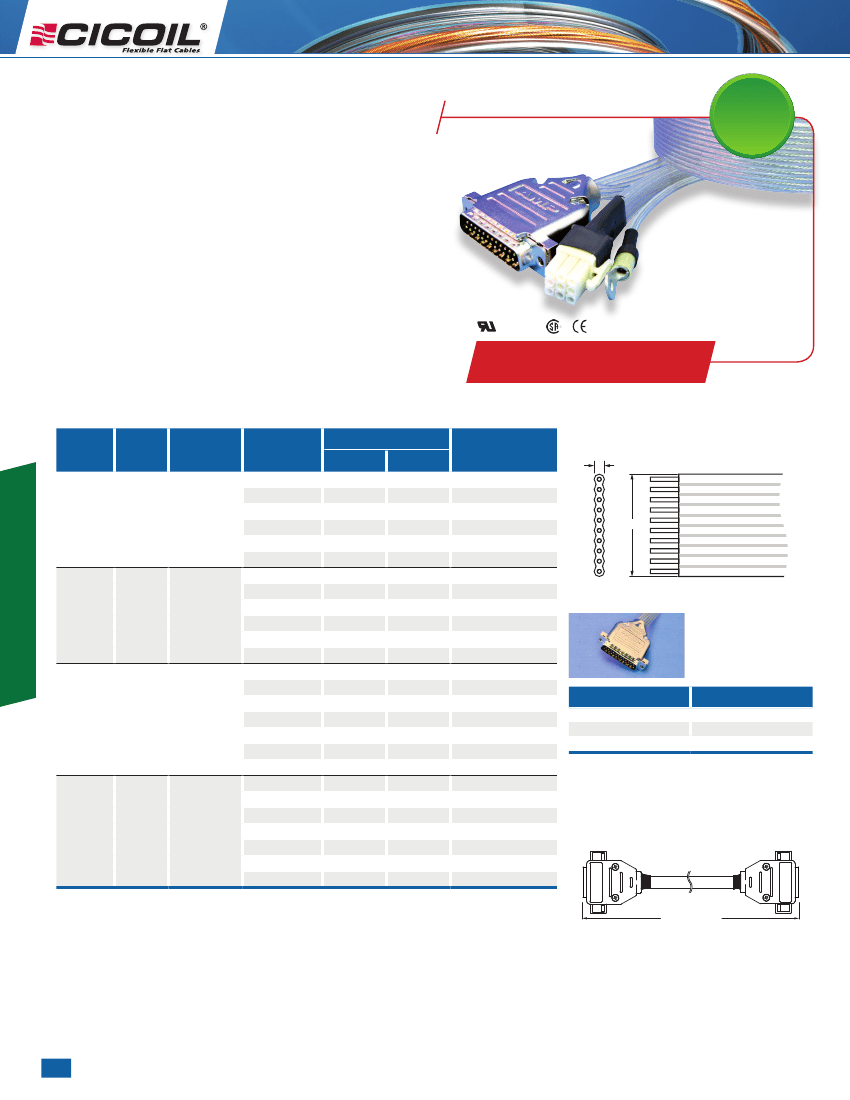

Hi-Flex Unshielded Cable

Ideal for High Performance Power & Control Applications

Ultra Flexible Cable for Confined Area and Continuous Motion

4 AWG - 28 AWG Conductors Available in 2 - 12 Conductors

NEED

CUSTOMS?

See Page

Cicoil’s line of Hi-Flex Unshielded Cables provides the advantages

of all Cicoil flexible cables in a standard, low-cost package. Ultra-

flexible, finely stranded wire conductors are used for maximum

flexibility and long life in dynamic, flexing applications. Cicoil’s

patented extrusion process encapsulates the wire conductors in a

crystal clear, flexible, yet extremely durable Flexx-Sil™ insulation.

MEETS 94V-0

.050” Pitch

.035”

COMPLIANT

1mm Pitch

.037”

RoHS

REACH

COMPLIANT

FLAME TESTED

FAA

Applications

Aerospace, Festoon Systems, Robotics,

Medical, Oil Drilling, Packaging

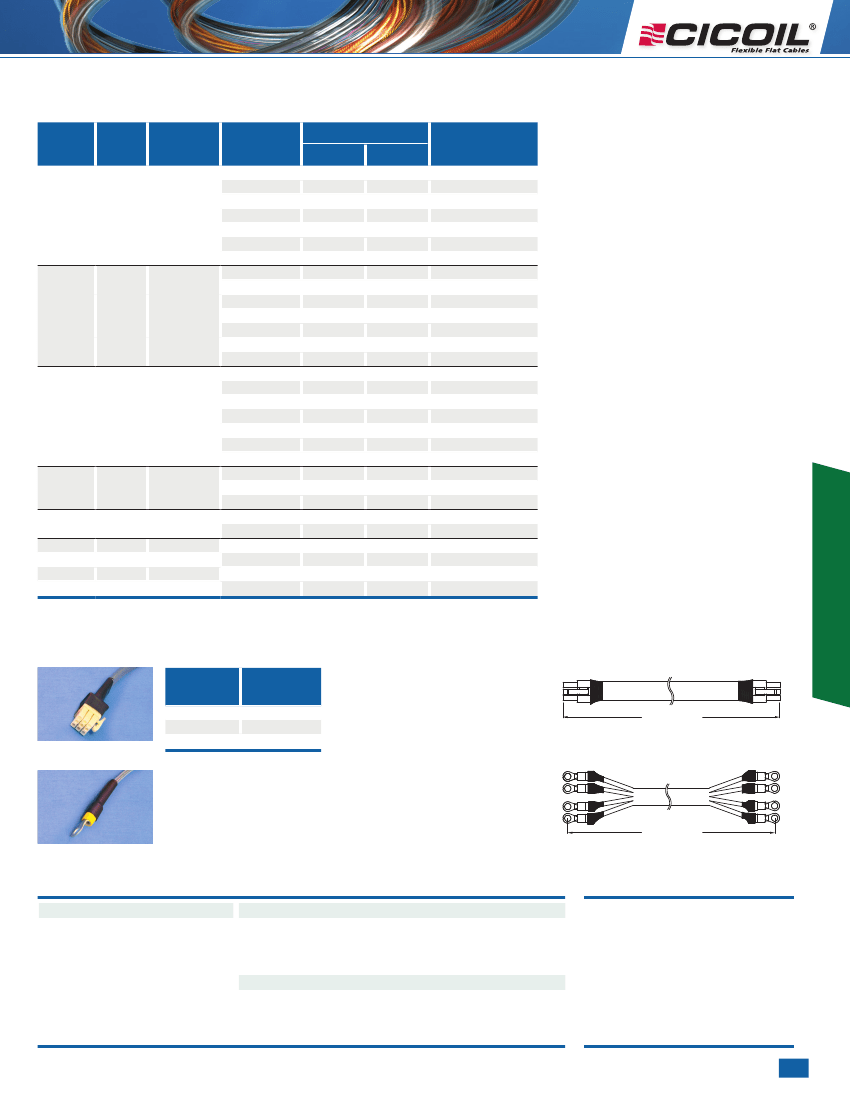

Cable

Dimensions

Amp

Rating

Volts

Conductor

Gauge

No. of

Conductors

Dimensions [inches]

Width

0.13

0.18

0.23

0.33

0.43

0.53

0.14

0.19

0.25

0.35

0.46

0.57

0.15

0.21

0.27

0.38

0.50

0.62

0.74

0.18

0.25

0.32

0.45

0.59

0.73

0.87

Height

0.08

0.09

0.10

0.11

Part

Number

969M101-28-2

969M101-28-3

969M101-28-4

969M101-28-6

969M101-28-8

969M101-28-10

969M101-26-2

969M101-26-3

969M101-26-4

969M101-26-6

969M101-26-8

969M101-26-10

969M101-24-2

969M101-24-3

969M101-24-4

969M101-24-6

969M101-24-8

969M101-24-10

969M101-24-12

969M101-22-2

969M101-22-3

969M101-22-4

969M101-22-6

969M101-22-8

969M101-22-10

969M101-22-12

2-12 Conductors

HEIGHT

12K

28 AWG

WIDTH

Unshielded

Cable Assemblies – 22-28 AWG

Please contact Cicoil for other

connectors and length options.

12K

26 AWG

Cable Length (feet)

Part Number Addition

-CA003

-CA006

-CA012

12K

24 AWG

Notes

1. Append onto base cable Part Number for complete

assembly. Example: 969M101-28-2-CA003

2. Connector ratings may differ from cable ratings; refer to

manufacturer specifications.

18K

22 AWG

Assembly Dimensions

Note

1. Amp rating is the maximum value for each conductor at room temperature of 70°F (21°C). Amp rating decreases as

temperature increases.

CABLE LENGTH

Connectors for 28 AWG

• Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P

Metallized Shell - TE, P/N 5748677-3

Connectors for

22-26 AWG

• Signal (J1): Gold Contacts - TE, P/N 745254-2

25-Pos D-SUB Housing - TE, P/N 5205208-1

Flexible Flat Cables & Cable Assemblies

xxx / p1of1 / 08-MAY-14

661-295-1295

Cicoil.com
