HPC-7140
1U Rackmount Server Chassis for
MicroATX/ATX Server board with
4 x 3.5" Hot-swap Drive Bays

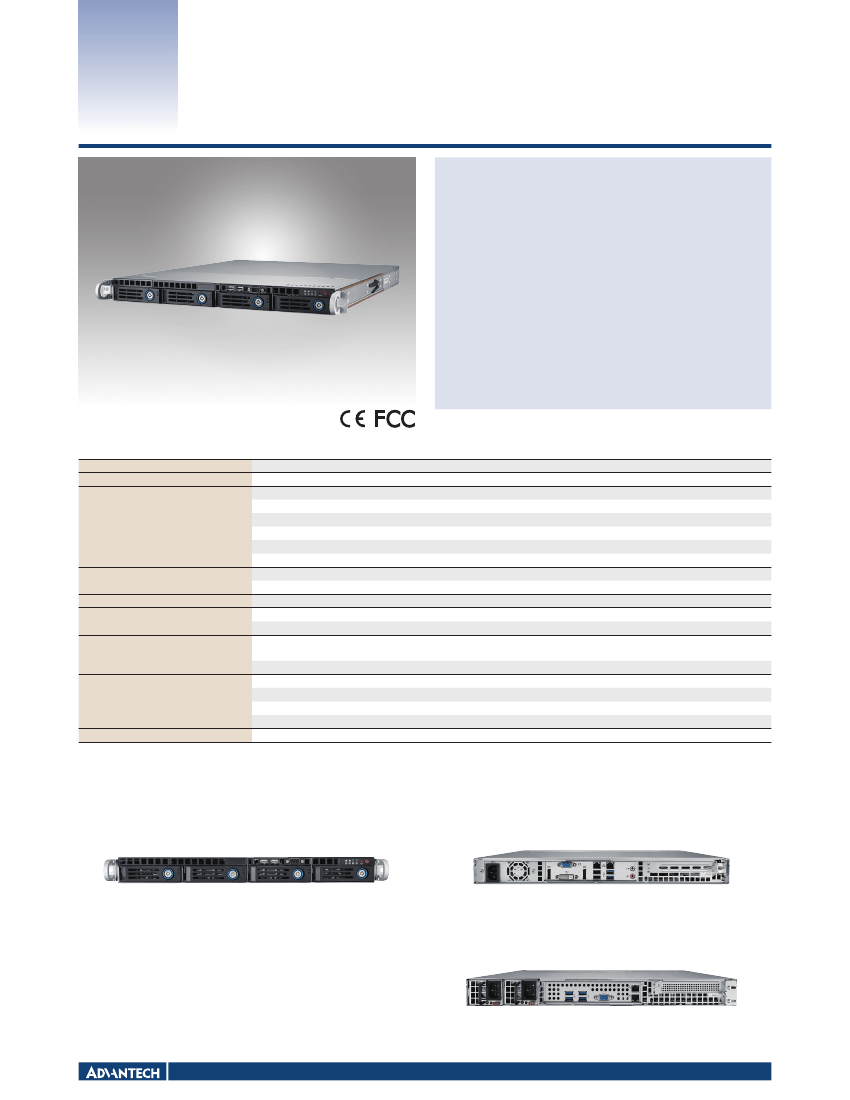

Features
1U rackmount server chassis supports MicroATX/ATX motherboard
Four hot swap 3.5" SAS/SATA/SSD drive bays
Supports 1U single and redundant power supply
Easy swap and anti-vibration FAN design
Two front USB and one front COM ports
Specifications
Form Factor Support
Expansion Slots
Slim ODD Bay
5.25" (front-accessible)
3.5" (hot-swappable)
3.5" (internal)
2.5" (hot-swappable)
2.5" (internal)
Chassis Fan
Air Filter
Chassis intrusion switch
USB 2.0
COM Ports
LED Indicators
Rear Panel
Environment
Physical Characteristics
Temperature
Humidity
Vibration (5-500 Hz)
Dimensions (W x H x D)
MicroATX/ATX
PCIe x16 Full Height / Half Length x1
1 (ODD should be purchased separately)
-
4 x SASll / SATAlll
-
Optional
-
4 x Swappable 40mm PWM fan module
-
2
1
System : Power, LAN1, LAN2, HDD, System Information
HDD Tray: HDD Power and Activity LED
-
Operating
Non-Operating
0 ~ 35 °C (32 ~ 95 °F)
-40 ~ 70 °C (-40 ~ 158 °F)
10 ~ 85% @ 40 °C non-condensing
10 ~ 95% @ 40 °C, non-condensing
0.25Grms
0.5G
437 x 43 x 504 mm (17.2" x 1.7" x 19.85")
Drive Bay
Cooling
System Monitoring
Front I/O Interface
Miscellaneous
Front View
Rear View
Single Power Supply SKU
Redundant Power Supply SKU
Industrial Server Chassis
All product specifications are subject to change without notice.
Last updated: 13-Sep-2017
HPC-7140

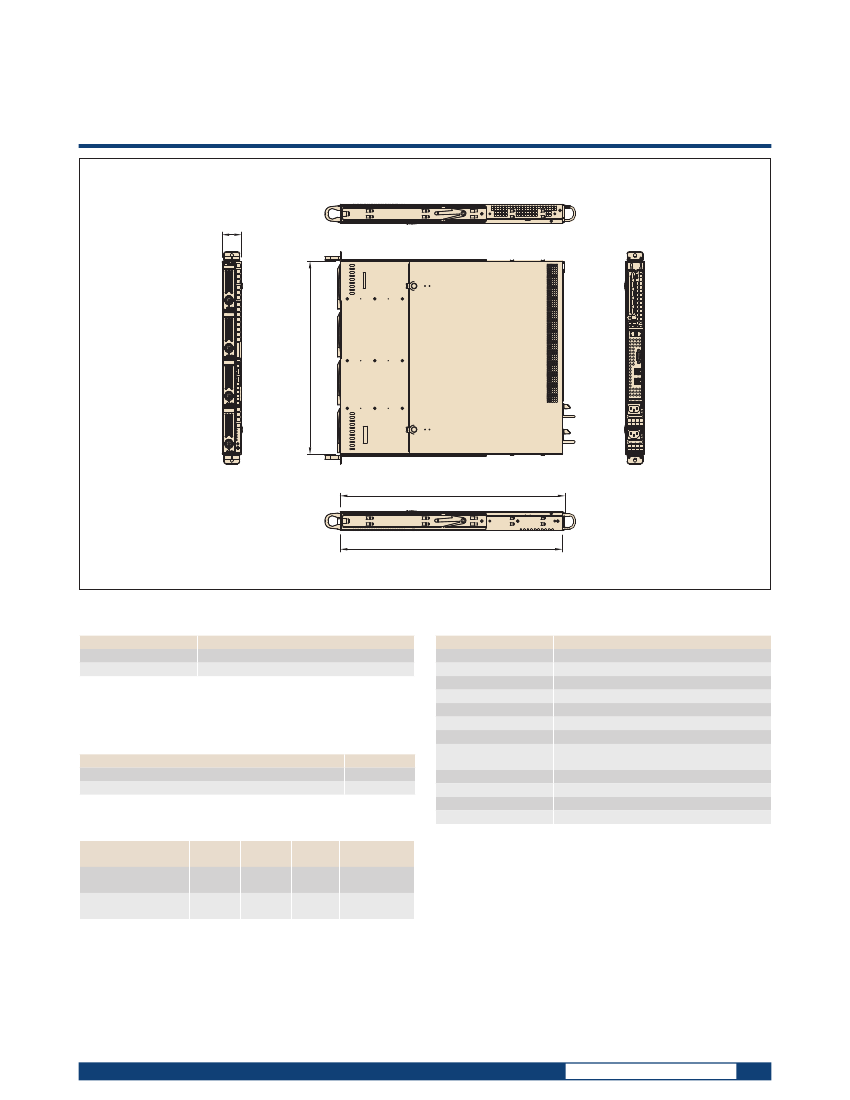

Dimensions
43.6 [1.717]
Unit: mm [inch]
438.4 [17.26]
510.09 [20.08]
504.19 [19.85]
Ordering Information
Part Number
HPC-7140-00A1E
HPC-7140-R4A1E
Description
HPC-7140 1U 4 bays server chassis (w/o SPS)
HPC-7140 1U 4 bays server chassis (w/400W RPS)
Optional Accessories
Part Number
96CB-SAS-SATA-4P1
19Z0001023T000
19Z0000747T000
19Z0000406T000
19Z0000811N000
19Z0000806T000
1703040150
96CB-SATAPOWER-6P2
AIMB-RF10F-01A1E
1990026944T000
9680016633
9680016685
* Note:
Type
Single
Single
Input
AC 100 ~ 240V
(full range)
AC 100 ~ 240V
(full range)
1. When using add-on RAID Card with Mini-SAS connector(s), purchasing
96CB-SAS-SATA-4P1 cable is a MUST.
2. HPC-7140 does not support AIMB series motherboards.
3. HPC-7140 only supports up to 30 °C when ASMB-823 has been installed.
4. When installing Slim ODD in HPC-7140-R4A1E, purchasing 1703040150 is a
MUST.
5. Purchasing 1990026944T000 is a MUST if using dual CPUs on ASMB-823.
Description
Mini SAS to 4-port SATA Cable*
1U IO Shield for ASMB-584
1U IO Shield for ASMB-784
1U IO Shield for ASMB-781/782/820
1U IO Shield for ASMB-822/813
1U IO Shield for ASMB-823
A Cable B4P-5.08/B4P-5.08*2 15cm*
SATA POWER ADAPTER 6PIN TO BIG 4 PIN(G) for
Slim ODD
1U PCIe x16 to PCIe x16 Riser Card
ASMB-823 Mylar FAN DUCT for HPC-7140*
2.5" HDD Bracket for Swappable HDD Tray
25.6" - 33" Rail Kit for HPC-7140
Note: Standard HPC-7140-R4A1E does not support PMBUS function. This function is
only supported on a per project basis.
Packing List
Items
Hot-Swap 3.5" HDD tray with SATA cable (Pre-install)
Accessory Box
Quantity
4
1
Power Supply Options
Part Number
XARR-CPS-2511-1A2
XARR-CPS-6811-2A12
80 Plus
Grade
Bronze
Gold
Wattage
250W
680W
Online Download
www.advantech.com/products
