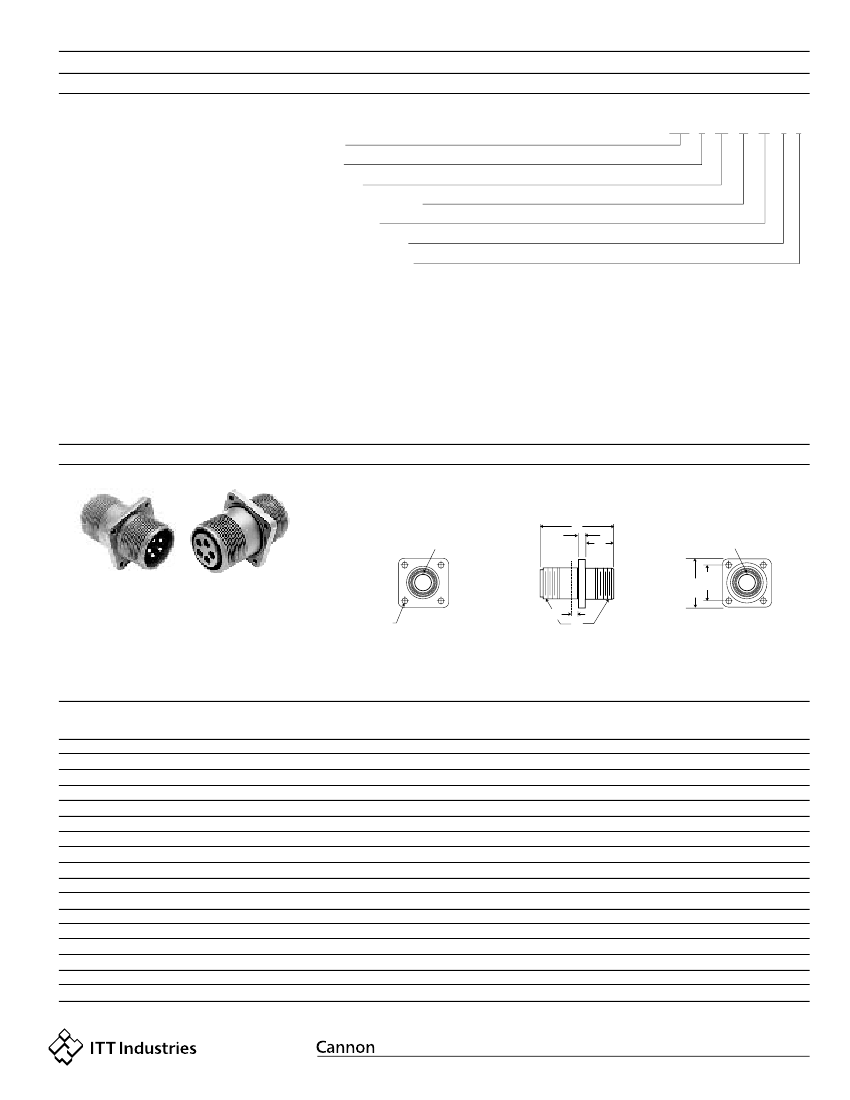

MIL-C-5015 Bulkhead Receptacles

How to Order

TBF and BFR pressurized bulkhead receptacles

mate with standard MS type plugs (3106,3107 and

3108) if contact arrangements correspond. Both

the BFR and TBF have resilient insulators. The TBF

(thru-bulkhead fitting) version has a double-faced

contstruction allowing mating from both ends. An O

ring is supplied as standard on both the BFR and the

TBF. Contacts are silver plated copper or brass

alloy. Shells are aluminum alloy.

BF

TBF

PREFIX

CLASS

SHELL SIZE

CONTACT ARRANGEMENT

CONTACT TYPE

ALTERNATE POSITION

MOUNTING (BFR ONLY)

PREFIX

CONTACT ARRANGEMENTS

R

BFR/TBF

14S - 5

20 - 15

P

PS

*

1

BF - Bulkhead Fittings

TBF - Thru bulkhead fittings

CLASS

See pages 171 - 174.

CONTACT TYPE

* R - Resilient insulators

H - Hermetic; see page 327

*Letter designator "R" not required for TBF.

SHELL SIZE

P for Pin; S for Socket; PS for Pin and Socket (TBF

only)

ALTERNATE POSITION

(Consult factory for available alternate positions.)

Coupling thread diameter figured in sixteenths of

an inch

MOUNTING

BFR only; see chart on page 183

Thru-Bulkhead Receptacle

TBF - Resilient Insulator

L

Polarizing Boss

K

Socket

Side

M

Side

Polarizing Boss

Pin Insert End

Socket Insert End

R

S Typ.

Typ.

T Dia.

4 Mtg. Holes

Panel Thickness

A

Thd.

V

TBF thru-bulkhead fittings have pressurized resil-

ient insulators. Special douple-face pin and socket

contact construction permits cable components to

be wired and tested in the shop and then to be

plugged into the mounted TBF plug to complete the

installation. The TBF mates with 3106, 3107 and

3108 plugs.

Shell

Size

8S

10S

10SL

12S

14S

16S

12

14

16

18

20

22

24

28

32

36

40

K

Max.

.125 (3.18)

.140 (3.56)

.146 (3.71)

.180 (4.57)

.203 (5.16)

L

Max.

1.482 (37.64)

2.030 (51.56)

M

+.031 (0.79)

-.000 (0.00)

.562 (14.27)

.750 (19.05)

.812 (20.62)

.875 (22.22)

.812 (20.62)

.875 (22.22)

R

_

+.005 (0.13)

.594 )15.09)

.179 (18.26)

.812 (20.62)

.906 (23.01)

.968 (24.59)

.812 (20.62)

.906 (23.01)

.968 (24.59)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.92)

1.562 (39.67)

1.750 (44.45)

1.938 (49.23)

2.188 (55.58)

S

_

+.031 (0.79)

.875 (22.22)

1.000 (25.40)

1.094 (27.79)

1.188 (30.18)

1.281 (32.54)

1.094 (27.79)

1.188 (30.18)

1.281 (32.54)

1.375 (34.92)

1.500 (38.10)

1.625 (41.28)

1.750 (44.45)

2.000 (50.80)

2.250 (57.15)

2.500 (63.50)

2.750 (69.85)

T

+.010 (0.25)

-.005 (0.13)

.120 (3.05)

.147 (3.73)

.173 (4.39)

V

Max.

.325 (8.26)

.445 (11.30)

.383 (9.73)

.320 (8.13)

.383 (9.73)

A

Thread

1/2-28UNEF-2A

5/8-24UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

1-20UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

1-20UNEF-2A

1/18-18UNEF-2A

1-1/4-18UNEF-2A

1-3/8-18UNEF-2A

1-1/2-18UNEF-2A

1-3/4-18UNS-2A

2-18UNS-2A

2-1/4-16UN-2A

Performance Specifications - Page 168

Contacts, Sealing Plugs, Assembly Tools - Page 187

Contact Arrangements - Page 171-174

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

182

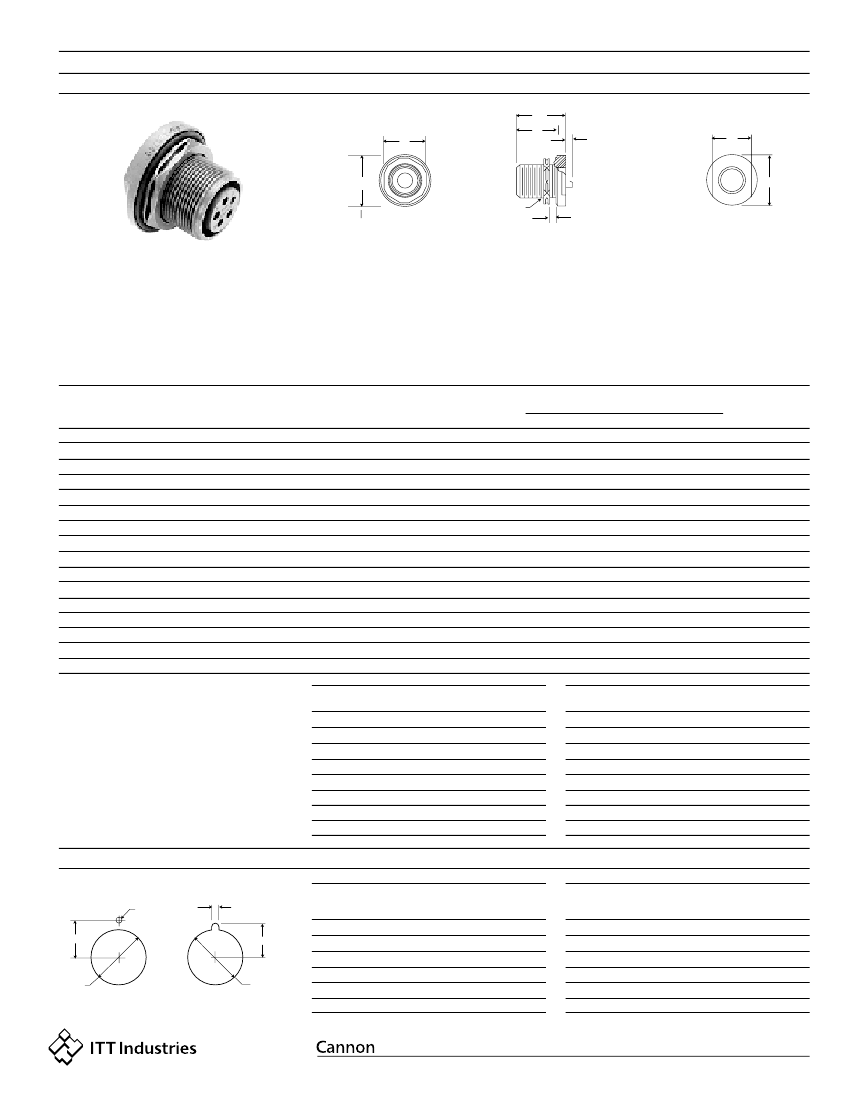

MIL-C-5015 Bulkhead Receptacles

Pressurized Bulkhead Receptacle

BFR

C

M

T

L

BFR/TBF

G

N

A

Thd.

Across Hex

H

V Panel Thickness

BFR pressurized bulkhead receptacles withstand

the air leackage requiremenst of MIL-C-5015 not to

exceed 1 cu. in. of air per hour when subjected to a

pressure differential of 30 psi at - 55˚C. Insulators

are resilient material bonded to aluminum shell.

Both pin and socket assemblies are available. The

BFR will mate with standard MS type 3106, 3107,

3108 plugs.

Standard Position

Pin is 3/32" Dia.

TYPE 1

Shell

Insulator

Lock Nut

O Ring

Position Pin

Mounting

Part No. Example:

Standard

Polychloroprene

Hex with 6 wire holes

Neoprene

Standard

Figure 1 or 2

BFR14S-5P-1

Shell

Size

8S

10S

10SL

12S

14S

16S

12

14

16

18

20

22

24

28

32

36

C

Max.

.853 (21.67)

1.244 (31.60)

G

Max.

.895 (22.73)

1.015 (25.78)

1.077 (27.36)

1.203 (30.56)

1.327 (33.71)

1.077 (27.36)

1.203 (30.56)

1.327 (33.71)

1.453 (36.91)

1.577 (40.06)

1.827 (46.41)

1.953 (49.61)

2.203 (55.96)

2.577 (65.46)

H

Max.

1.077 (27.36)

1.203 (30.56)

1.327 (33.71)

1.453 (36.91)

1.577 (40.06)

1.327 (33.71)

1.453 (36.91)

1.577 (40.06)

1.703 (43.26)

1.827 (46.41)

1.953 (49.61)

2.077 (52.76)

2.327 (59.11)

2.577 (65.46)

2.827 (71.81)

L

Max.

1.087 (27.61)

1.525 (38.74)

M

Max.

.702 (17.83)

.822 (20.88)

.955 (24.26)

1.072 (27.23)

1.265 (32.13)

.955 (24.26)

1.072 (27.23)

1.265 (32.13)

1.395 (35.43)

1.515 (38.48)

1.635 (41.53)

1.765 (44.83)

2.015 (51.18)

2.205 (56.01)

2.455 (62.36)

N

Max.

.820 (20.83)

.960 (24.38)

1.110 (28.19)

1.250 (31.75)

1.460 (37.08)

1.110 (28.19)

1.250 (31.75)

1.460 (37.08)

1.610 (40.89)

1.750 (44.45)

1.900 (48.26)

2.030 (51.56)

2.330 (59.18)

2.550 (64.77)

2.840 (72.14)

T

Max. Solder Pot Ext.

#16

.140 (3.56)

.062 (1.57)

#12

-

.062 (1.57)

#8

-

.125 (3.18)

#4

-

.125 (3.18)

#0

-

.359 (9.12)

V

Max.

.250 (6.35)

.375 (9.52)

.312 (7.92)

Shell Size

8S

10S

10SL

A

Thread

1/2-28UNEF-2A

5/8-24UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

1-20UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

Shell Size

16

18

20

22

24

28

32

36

A

Thread

1-20UNEF-2A

1-1/8-18UNEF-2A

1-1/4-18UNEF-2A

1-3/8-18UNEF-2A

1-1/2-18UNEF-2A

1-3/4-18UNS-2A

2-18UNS-2A

2-1/4-16UN-2A

Performance Specifications - Page 168

Contacts, Sealing Plugs, Assembly Tool - Page

187

Contact Arrangements - Page 171-174

12S

14S

16S

12

14

Mounting Dimensions

.102 (2.59)

.097 (2.46) DIA

.102 (2.59)

.097 (2.46) DIA

A

Shell Size

8S

A

+.005

_

(0.13)

.323 (8.20)

.385 (9.78)

.448 (11.38)

.510 (12.95)

.573 (14.55)

.635 (16.13)

E

+.015 (0.38)

-.000 (0.00)

.500 (12.70)

.625 (15.88)

.750 (19.05)

.875 (22.22)

1.000 (25.40)

1.125 (28.58)

F

_

+.005

(0.13)

.373 (9.47)

.435 (11.05)

.498 (12.65)

.560 (14.22)

.623 (15.82)

.685 (17.40)

Shell Size

20

22

24

28

32

36

A

+.005

_

(0.13)

E

+.015 (0.38)

-.000 (0.00)

F

+.005

_

(0.13)

.748 (19.00)

.810 (20.57)

.873 (22.17)

.998 (25.35)

.698 (17.73) 1.250 (31.75)

.760 (19.30) 1.375 (34.92)

.823 (20.90) 1.500 (38.10)

.948 (24.08) 1.750 (44.45)

F

10S, 10SL

12S, 12

14S, 14

E

16S, 16

18

1.073 (27.25) 2.000 (50.80) 1.123 (28.52)

1.198 (30.43) 2.250 (57.15) 1.248 (31.70)

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

183

MIL-C-5015 Connectors

Pressurized Bulkhead Receptacle

MS25042

CA17530

CA19741

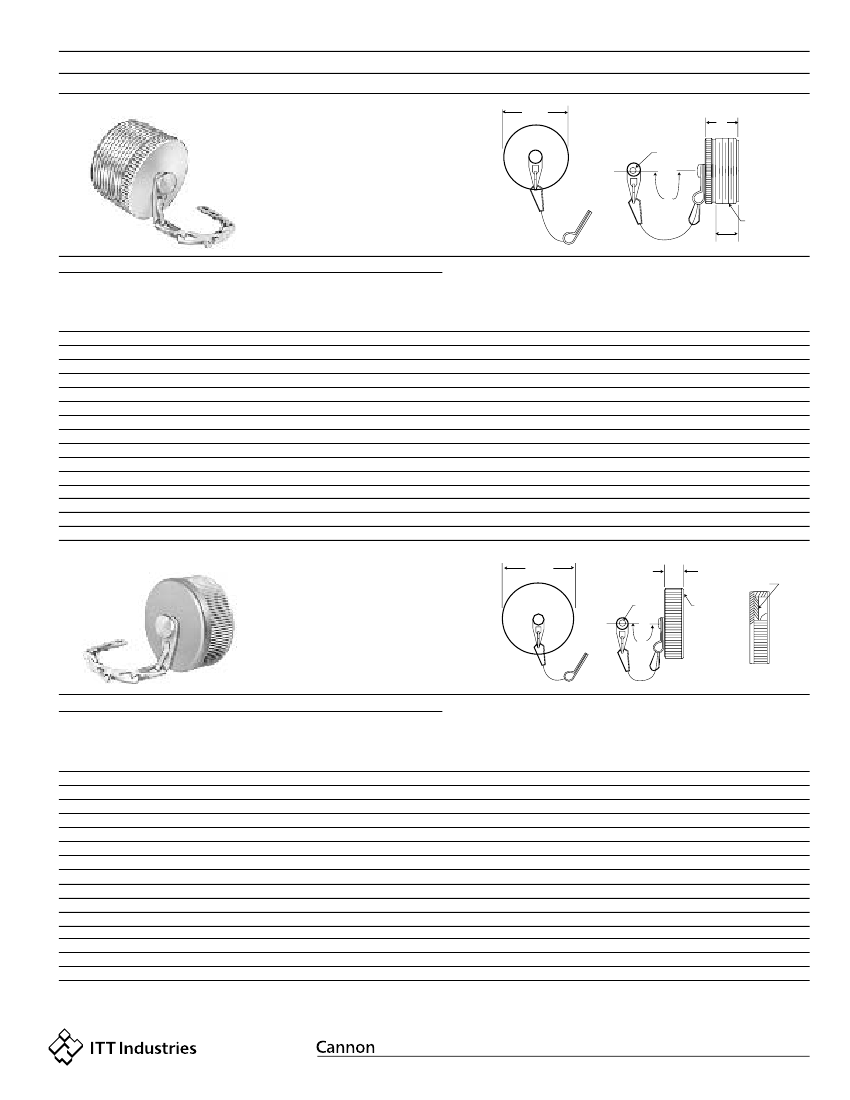

Accessories

For 06 and 08 Style Plugs

These externally threaded metal

dust caps are used to protect

the MS3106 and MS3108

plugs. Material is aluminum

alloy. They are furnished with

sash chain or less sash chain.

C Dia.

B

D Dia.

E

A Thd.

.250 Min.

Perf. Thd.

Part Number

Olive Drab Chromate Over

Cadmium Finish With Sash Chain Olive Drab Chromate Over

Cadmium Finish,

May Still be

Without Sash Chain

Purchased by

Superseded

ITTC Part Number

MS Number (Ref) ITTC Part Number

MS25042-8D

MS25042-10D

MS25042-12D

MS25042-14D

MS25042-16D

MS25042-18D

MS25042-20D

MS25042-22D

MS25042-24D

MS25042-28D

MS25042-32D

MS25042-36D

MS25042-40D

MS25042-44D

MS25042-48D

CA17530-5100

CA17530-5101

CA17530-5102

CA17530-5103

CA17530-5104

CA17530-5105

CA17530-5106

CA17530-5107

CA17530-5108

CA17530-5109

CA17530-5110

CA17530-5111

CA17530-5112

CA17530-5113

CA17530-5114

CA19741-8

CA19741-10

CA19741-12

CA19741-14

CA19741-16

CA19741-18

CA19741-20

CA19741-22

CA19741-24

CA19741-28

CA19741-32

CA19741-36

CA19741-40

CA19741-44

CA19741-48

Black Anodized Finish With

Sash Chain

MS

ITT Cannon

MS25042-8DA

CA17530-8000

MS25042-10DA CA17530-8001

MS25042-12DA CA17530-8002

MS25042-14DA CA17530-8003

MS25042-16DA CA17530-8004

MS25042-18DA CA17530-8005

MS25042-20DA CA17530-8006

MS25042-22DA CA17530-8007

MS25042-24DA CA17530-8008

MS25042-28DA CA17530-8009

MS25042-32DA CA17530-8010

MS25042-36DA CA17530-8011

MS25042-40DA CA17530-8012

MS25042-44DA CA17530-8013

MS25042-48DA CA17530-8014

Fits

Shell Size

8S

10S, 10SL

12, 12S

14, 14S

16, 16S

18

20

22

24

28

32

36

40

44

48

B

Max.

.656 (16.66)

.844 (21.44)

C

Dia.

Max.

.562 (14.27)

.687 (17.45)

.812 (20.62)

.937 (23.80)

1.062 (26.97)

1.187 (30.15)

1.312 (33.32)

1.437 (36.50)

1.562 (39.67)

1.812 (46.02)

2.062 (52.37)

2.312 (58.72)

2.562 (65.07)

2.812 (71.42)

3.062 (77.77)

E

Max.

4.500 (114.30)

5.000 (127.00)

5.500 (139.70)

6.000 (152.40)

8.250 (209.55)

D

Dia.

Max.

.166 (4.22)

.197 (5.00)

.228 (5.79)

A

Thread

1/2-28UNEF-2A

5/8-24UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

1-20UNEF-2A

1-1/8-18UNEF-2A

1-1/4-18UNEF-2A

1-3/8-18UNEF-2A

1-1/2-18UNEF-2A

1-3/4-18UNEF-2A

2-18UNEF-2A

2-1/4-16UN-2A

2-1/2-16UN-2A

2-3/4-16UN-2A

3-16UN-2A

MS25043

CA2209

CA2322

For 00, 01 and 02

Style Receptacles

These internally threaded metal

dust caps are used to protect

MS3100, MS3101 and MS3102

receptacles. Material is

aluminum alloy. They are

furnished with sash chain or

less sash chain.

C Dia.

B

Gasket

D Dia.

A Thd.

E

Part Number

Olive Drab Chromate Over

Cadmium Finish With Sash Chain Olive Drab Chromate Over

Black Anodized Finish With

Cadmium Finish,

May Still be

Sash Chain

Without Sash Chain

Purchased by

Superseded

MS

ITT Cannon

ITTC Part Number

MS Number (Ref) ITTC Part Number

MS25043-8DA

CA2209-8000

MS25043-8D

CA2209-5100

CA2322-1

MS25043-10DA

MS25043-12DA

MS25043-14DA

MS25043-16DA

MS25043-18DA

MS25043-20DA

MS25043-22DA

MS25043-24DA

MS25043-28DA

MS25043-32DA

MS25043-36DA

MS25043-40DA

MS25043-44DA

MS25043-48DA

CA2209-8001

CA2209-8002

CA2209-8003

CA2209-8004

CA2209-8005

CA2209-8006

CA2209-8007

CA2209-8008

CA2209-8009

CA2209-8010

CA2209-8011

CA2209-8012

CA2209-8013

CA2209-8014

MS25043-10D

MS25043-12D

MS25043-14D

MS25043-16D

MS25043-18D

MS25043-20D

MS25043-22D

MS25043-24D

MS25043-28D

MS25043-32D

MS25043-36D

MS25043-40D

MS25043-44D

MS25043-48D

CA2209-5101

CA2209-5102

CA2209-5103

CA2209-5104

CA2209-5105

CA2209-5106

CA2209-5107

CA2209-5108

CA2209-5109

CA2209-5110

CA2209-5111

CA2209-5112

CA2209-5113

CA2209-5114

CA2322-2

CA2322-3

CA2322-4

CA2322-5

CA2322-6

CA2322-7

CA2322-8

CA2322-9

CA2322-10

CA2322-11

CA2322-12

CA2322-13

CA2322-14

CA2322-15

Fits

Shell Size

8S

10S, 10SL

12, 12S

14, 14S

16, 16S

18

20

22

24

28

32

36

40

44

48

B

Max.

4.69 (11.91)

.531 (13.49)

C

Dia.

Max.

.688 (17.48)

.815 (20.70)

1.000 (25.40)

1.125 (28.58)

1.188 (30.18)

1.344 (34.14)

1.469 (37.31)

1.594 (40.49)

1.719 (43.66)

1.969 (50.01)

2.219 (56.36)

2.469 (62.71)

2.719 (69.06)

2.969 (75.41)

3.188 (80.98)

E

Max.

4.500 (114.30)

5.000 (127.00)

5.500 (139.70)

6.000 (152.40)

8.250 (209.55)

D

Dia.

Max.

.150 (3.81)

A

Thread

1/2-28UNEF-2B

5/8-24UNEF-2B

3/4-20UNEF-2B

7/8-20UNEF-2B

1-20UNEF-2B

.150 (3.81) 1-1/8-18UNEF-2B

.150 (3.81) 1-1/4-18UNEF-2B

.150 (3.81) 1-3/8-18UNEF-2B

.181 (4.60) 1-1/2-18UNEF-2B

.181 (4.60)

.197 (5.00)

1-3/4-18UNS-2B

2-18UNS-2B

2-1/4-16UN-2B

2-1/2-16UN-2B

2-3/4-16UN-2B

3-16UN-2B

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

184

MIL-C-5015 Connectors

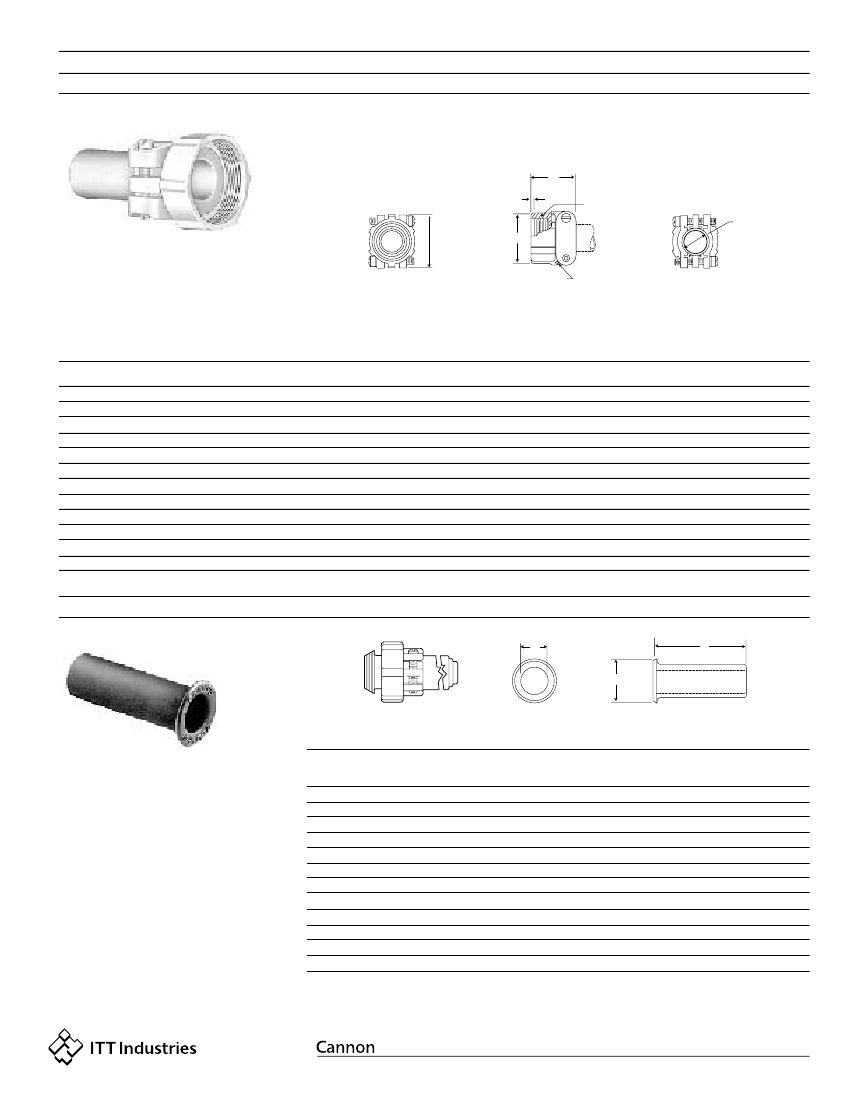

Cable Clamp

M85049/41

With or Without Bushing

Accessories

L

.063

A Thd.

E

The M85049/41 cable clamp is made for plugs and

receptacles that have an endbell with external

conduit threads. The double clamping action pro-

vides a balanced, positive hold on the wires and

greatly reduces moisture transmission. Provision is

made for safety wiring. This clamp is supplied

without bushing; to order bushing; add "with bush-

ing" after part number.

Part

Number*

M85049/41-3A

M85049/41-4A

M85049/41-6A

M85049/41-8A

M85049/41-10A

M85049/41-12A

M85049/41-16A

M85049/41-20A

M85049/41-24A

M85049/41-28A

M85049/41-32A

M85049/41-40A

Superseded

Part Number*

MS3057-3A

MS3057-4A

MS3057-6A

MS3057-8A

MS3057-10A

MS3057-12A

MS3057-16A

MS3057-20A

MS3057-24A

MS3057-28A

MS3057-32A

MS3057-40A

Fits

Shell Size

8S-10S

10SL, 12S, 12

14S, 14

16S, 16

18

20, 22

24, 28

32

36

40

44

48

Accommodates

MS Bushings

MS3420-3

MS3420-4

MS3420-6

MS3420-8

MS3420-10

MS3420-12

MS3420-16, 12

MS3420-20, 16

MS3420-24, 20

MS3420-32, 28, 24

MS3420-40, 32, 28

E

Min.

R

P

2 Places

Safety Wires Holes

E

Max.

.250 (6.35)

.312 (7.92)

.438 (11.13)

.562 (14.27)

.625 (15.88)

.750 (19.05)

.938 (23.83)

1.250 (31.75)

1.375 (34.92)

1.625 (41.28)

1.875 (47.62)

2.375 (60.32)

L

+0.31 (0.79)

_

.812 (20.62)

.875 (22.22)

.938 (23.83)

1.031 (26.19)

1.094 (27.79)

1.156 (29.36)

1.688 (42.88)

1.750 (44.45)

P

+0.31 (0.79)

_

.688 (17.48)

.812 (20.62)

.969 (24.61)

1.094 (27.79)

1.188 (30.18)

1.375 (34.92)

1.656 (42.06)

2.031 (51.59)

2.219 (56.36)

2.500 (63.50)

2.781 (70.64)

3.281 (83.34)

R

+0.31 (0.79)

_

.812 (20.62)

.875 (22.22)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.469 (37.31)

1.688 (42.88)

2.031 (51.59)

2.281 (57.94)

2.688 (68.28)

2.938 (74.63)

3.500 (88.90)

A

Thread

1/2-28UNEF-2B

5/8-24UNEF-2B

3/4-20UNEF-2B

7/8-20UNEF-2B

1-20UNEF-2B

1-3/16-18UNEF-2B

1-7/16-18UNEF-2B

1-3/4-18UNS-2B

2-18UNS-2B

2-1/4-16UN-2B

2-1/2-16UN-2B

3-16UN-2B

.102 (2.59)

.140 (3.56)

.195 (4.95)

.255 (6.48)

.285 (7.24)

.350 (8.89)

.468 (11.89)

.664 (16.87)

.694 (17.63)

.911 (23.14)

-

*To order cable clamp with bushing, add "with bushing" after part number.

Telescoping Bushing

MS3420/

MS39056(REF.)

CA18220

R

L

C

Telescoping bushing with

M85049/41 cable clamp

Telescoping

gland

bushing

(used

with

M85049/41 cable clamp) keep dirt, oil and mois-

ture out of endbell. Taping or wrapping wires is

eliminated since bushing protects wires going thru

clamp. Combinations of bushings may be used to

decrease cable entry diameter to improve sealing.

MS Part

Number

MS3420-3

MS3420-4

MS3420-6

MS3420-8

MS3420-10

MS3420-12

MS3420-16

MS3420-20

MS3420-24

MS3420-28

MS3420-32

MS3420-40

Superseded

MS Part

Number

MS39056-1

MS39056-2

MS39056-3

MS39056-4

MS39056-5

MS39056-6

MS39056-7

MS39056-8

MS39056-9

MS39056-10

MS39056-11

MS39056-12

ITT Cannon

Part Number

CA18220-3

CA18220-4

CA18220-6

CA18220-8

CA18220-10

CA18220-12

CA18220-16

CA18220-20

CA18220-24

CA18220-28

CA18220-32

CA18220-40

Fits

Shell Size

8S-10S

10SL, 12S, 12

14S, 14

16S, 16

18

20, 22

24, 28

32

36

40

44

48

C

+0.16 (0.41)

_

.379 (9.63)

.505 (12.83)

.619 (15.72)

.744 (18.90)

.869 (22.07)

1.064 (27.03)

1.314 (33.38)

1.596 (40.54)

1.847 (46.91)

2.085 (52.96)

2.335 (59.31)

2.835 (72.01)

L

+0.31 (0.79)

_

2.875 (73.02)

2.750 (69.85)

2.625 (66.68)

2.500 (63.50)

2.375 (60.32)

2.250 (57.15)

2.125 (53.98)

2.000 (50.80)

1.875 (47.62)

1.750 (44.45)

1.625 (41.28)

1.500 (38.10)

R

+0.16 (0.41)

_

1.30 (3.30)

.200 (5.59)

.312 (7.92)

.437 (11.10)

.562 (14.27)

.625 (15.88)

.750 (19.05)

.937 (23.80)

1.250 (31.75)

1.375 (34.92)

1.624 (41.25)

1.874 (47.60)

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

185

MIL-C-5015 Connectors

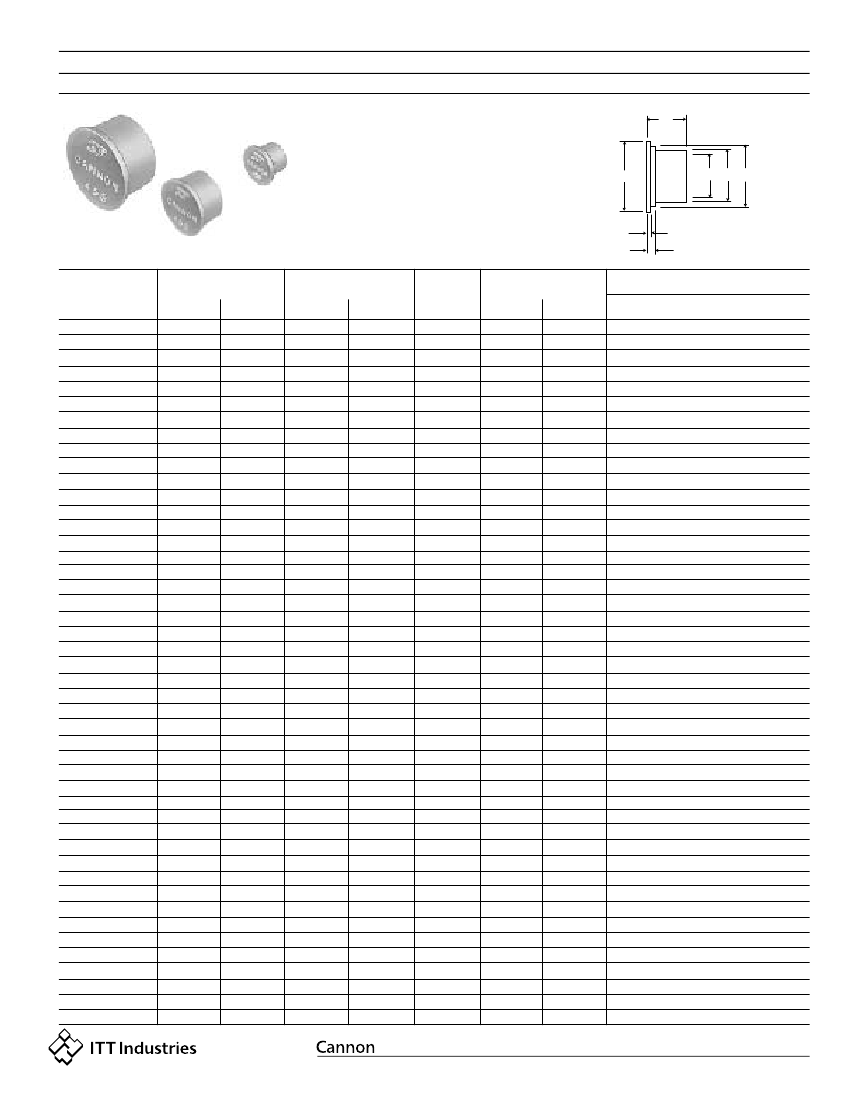

Plastic Protective Caps

025-XXXX-000

Accessories

Protective dust caps are designed to cover the

coupling and conduit ends of MS connectors where

there is a possiblity of foreign matter accumulating

on the interior of the connector or of damage to the

threaded parts. Material is red polyethylene. Plastic

dust caps can be reused, but are not intended to

replace the standard aluminum dust caps shown on

preceding pages.

B

A

C

D

E

.06

.13

MS3106/MS3108

F,R

Coupling

Solder

End

Pot End

8S

10S

10SL, 12S, 12

8S, 10S

10SL, 12S, 12

14S, 14

16S, 16

18

20

22

24

Part

Number*

025-0458-000

025-0459-000

025-0460-000

025-0462-000

025-0463-000

025-0466-000

025-0467-000

025-0468-000

025-0469-000

025-0470-000

025-0471-000

025-0472-000

025-0473-000

025-0474-000

025-0475-000

025-0477-000

025-0478-000

025-0479-000

025-0480-000

025-0484-000

025-0486-000

025-0487-000

025-0488-000

025-0489-000

025-0490-000

025-0491-000

025-0492-000

025-0493-000

025-0498-000

025-0499-000

025-0500-000

025-0501-000

025-0502-000

025-0503-000

025-0504-000

025-0505-000

025-0507-000

025-0510-000

025-0511-000

025-0608-000

025-0609-000

025-0610-000

025-0611-000

025-0612-000

025-0613-000

025-0614-000

MS3100F,R

Coupling

Solder

End

Pot End

MS3102F,R

Coupling

Solder

End

Pot End

8S

MS-F (only)

Solder

Pot End

Dimensions

A

Max.

.673

.734

.848

.973

1.098

1.209

1.396

1.500

1.625

1.870

2.120

2.370

2.501

2.872

3.122

B

Max.

.440

.700

.491

.571

.576

.700

.440

.700

C

Max.

.430

.490

.600

.730

.850

.950

1.150

1.240

1.360

1.610

1.860

2.110

2.310

2.590

2.840

.550

.669

.794

.919

1.028

1.278

1.403

1.645

1.895

2.140

2.390

2.640

2.890

.990

1.117

1.420

1.730

1.980

2.230

2.480

2.980

1.110

1.490

2.730

.400

.580

.710

.830

1.570

1.820

2.010

D

Max.

.486

.546

.656

.786

.908

1.016

1.216

1.306

1.426

1.676

1.926

2.176

2.380

2.660

2.910

.616

.725

.850

.975

1.094

1.344

1.469

1.711

1.961

2.216

2.466

2.716

2.966

1.056

1.183

1.486

1.796

2.046

2.296

2.546

3.046

1.176

1.556

2.796

.456

.636

.766

.886

1.626

1.876

2.066

E

Max.

Wt.

Lb.

.583 .0012

.644 .0014

.758 .0022

.883 .0028

1.008 .0033

1.119 .0042

1.308 .0054

1.405 .0060

1.530 .0067

1.775 .0087

2.025 .0103

2.275 .0141

2.491 .0164

2.772 .0186

3.022 .0222

.712 .0017

.821 .0022

.946 .0027

1.071 .0033

1.195 .0044

1.445 .0058

1.570 .0066

1.812 .0084

2.062 .0102

2.317 .0132

2.572 .0163

2.822 .0186

3.072 .0213

1.150 .0044

1.337 .0055

1.587 .0072

1.895 .0095

2.155 .0114

2.400 .0134

2.652 .0186

3.157 .0233

1.275 .0050

1.650 .0077

2.907 .0220

.553 .0011

.739 .0021

.864 .0028

.989 .0032

1.744 .0088

1.994 .0100

2.231 .0132

8S

10S, 10SL

12S, 12

14S, 14

8S, 10S

10SL, 12S, 12

14S, 14

16S, 16

8S

10S, 10SL

12S, 12

14S, 14

8S, 10S

10SL, 12S, 12

14S, 14

16S, 16

18

20

22

20

22

24

28

32

36

40

44

48

10S, 10SL

12S, 12

14S, 14

16S, 16

18

22

24

28

32

36

40

44

48

16S, 16

18

20, 22

24, 28

28

32

36

40

48

18

24

44

48

32

36

40

44

28

32

36

40

48

18

24

44

8S

10SL, 12S, 12

14S, 14

16S, 16

28

32

36

16S, 16

48

36

40

44

32

24, 28

20, 22

18

20

22

18

20, 22

24, 28

32

36

40

44

48

.802

.911

1.036

1.161

1.290

1.540

1.665

1.907

2.157

2.412

2.672

2.922

3.172

1.240

1.427

1.677

1.985

2.245

2.495

2.742

3.257

1.365

1.740

3.007

.643

.829

.954

1.079

1.839

2.089

2.376

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

186

BFH181P002

BFH181P002 Overview

Preview

Recommended Resources
