UltrX™, type 4X

speciFicatioNs

•

iNDUstry staNDarDs

•

Compression-molded fiberglass material has excellent

temperature and chemical resistance qualities and exhibits

outstanding physical properties, including high-impact

resistance

Fiberglass is easily punched, drilled, filed or sawed

Seamless foam-in-place gasket assures water-tight and dust-

tight seal

Enclosure may be rotated 180 degrees for left and right hinging

Molded-in drip shields are standard with each enclosure

Impact-resistant polycarbonate window is permanently bonded

in place

Fiberglass mounting brackets and stainless steel attachment

screws are provided with each enclosure

Unique hinge design allows for standard 180 degree door opening

with a maximum opening of 270 degrees

Door hinges are replaceable

Type 316 stainless steel quarter-turn latch. Optional keylocking

or padlocking handle available.

Molded-in DIN bosses

Molded bosses on door provide additional mounting provisions

Integral mounting rails provide infinite panel adjustment front to

back

Optional data pocket is high-impact thermoplastic

Mounting brackets required to meet UL/CSA external mounting

requirements.

FiNisH

UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.

E619977

Enclosure flammability evaluated per UL 508A

Window flammability evaluated per UL 508A

NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13

CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Exterior surface painted light-gray acrylic enamel for enhanced

UV protection. Optional steel panels are painted white. Optional

stainless steel, aluminum, conductive and composite panels are

unpainted.

accessories

applicatioN

See also Accessories.

H2OMIT™ Vent Drains, Type 4X

H2OMIT™ Thermoelectric Dehumidifier

HOL-SEALERS™ Non-Metallic Hole Seals

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Rack Angles (Type RA)

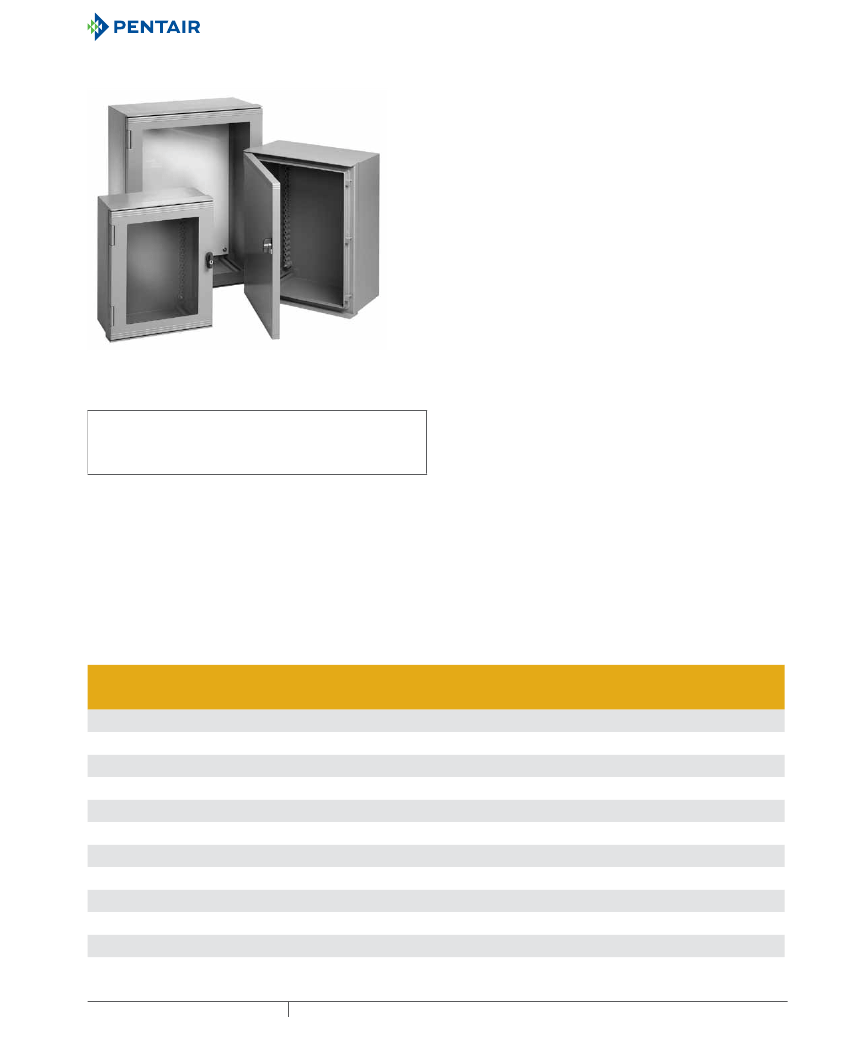

Providing outstanding protection against corrosion and the

elements, the clean lines and molded, embossed design of ULTRX™

fiberglass enclosures make them the most stylish and aesthetically

pleasing of their class. These enclosures feature hidden hinges, a

padlocking capability for security, and flexible internal mounting

options.

MoDiFicatioN aND cUstoMiZatioN

Hoffman excels at modifying and customizing products to

your specifications. Contact your local Hoffman sales office or

distributor for complete information.

Bulletin: uX1

Standard Product

Door

Style

Solid

Window

Solid

Window

Solid

Window

Solid

Window

Solid

Window

Solid

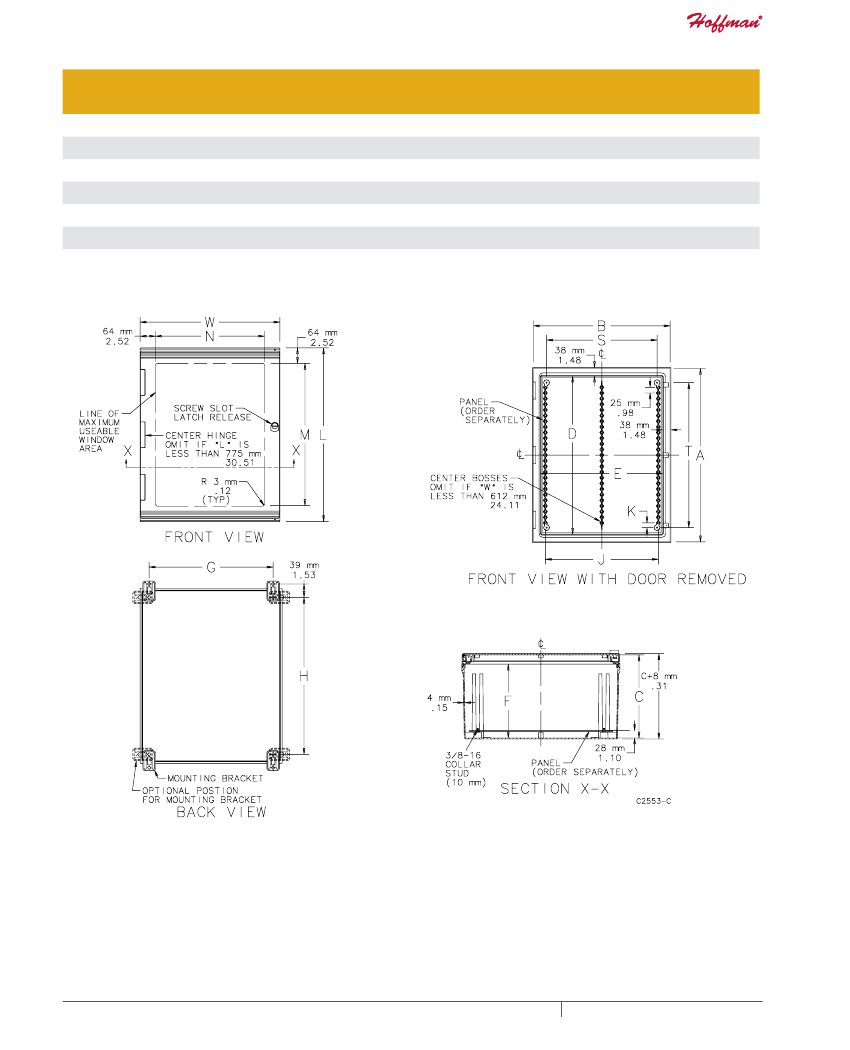

External

Dimensions

LxW

mm/in.

513 x 413

20.20 x 16.26

513 x 413

20.20 x 16.26

625 x 612

24.61 x 24.09

625 x 612

24.61 x 24.09

625 x 513

24.61 x 20.20

625 x 513

24.61 x 20.20

513 x 412

20.20 x 16.22

513 x 412

20.20 x 16.22

625 x 612

24.61 x 24.09

625 x 612

24.61 x 24.09

775 x 612

30.51 x 24.09

Internal

Dimensions

AxBxC

mm/in.

496 x 396 x 220

19.53 x 15.59 x 8.66

496 x 396 x 220

19.53 x 15.59 x 8.66

608 x 595 x 220

23.94 x 23.43 x 8.66

608 x 595 x 220

23.94 x 23.43 x 8.66

608 x 496 x 270

23.94 x 19.53 x 10.63

608 x 496 x 270

23.94 x 19.53 x 10.63

496 x 395 x 321

19.53 x 15.55 x 12.64

496 x 395 x 321

19.53 x 15.55 x 12.64

608 x 595 x 321

23.94 x 23.43 x 12.64

608 x 595 x 321

23.94 x 23.43 x 12.64

758 x 595 x 321

29.84 x 23.43 x 12.64

Conductive

Panel

A20P16G

A24P24G

A24P20G

A20P16G

A24P24G

A30P24G

Panel Size

DxE

mm/in.

432 x 330

17.00 x 12.99

439 x 330

17.00 x 12.99

533 x 533

20.98 x 20.98

533 x 533

20.98 x 20.98

533 x 432

20.98 x 17.00

533 x 432

20.98 x 17.00

432 x 330

17.00 x 12.99

432 x 330

17.00 x 12.99

533 x 533

20.98 x 20.98

533 x 533

20.98 x 20.98

686 x 533

27.01 x 20.98

Mounting

GxH

mm/in.

359 x 459

14.13 x 18.07

359 x 459

14.13 x 18.07

559 x 572

22.01 x 22.52

559 x 572

22.01 x 22.52

457 x 570

17.99 x 22.44

457 x 570

17.99 x 22.44

355 x 455

13.98 x 17.91

355 x 455

13.98 x 17.91

555 x 568

21.85 x 22.36

555 x 568

21.85 x 22.36

555 x 718

21.85 x 28.27

Window Size

MxN

mm/in.

—

386 x 286

15.20 x 11.26

—

498 x 486

19.61 x 19.13

—

498 x 386

19.61 x 15.20

—

386 x 286

15.20 x 11.26

—

498 x 486

19.61 x 19.13

—

F

mm/in.

186

7.32

186

7.32

186

7.32

186

7.32

239

9.41

239

9.41

287

11.30

287

11.30

287

11.30

287

11.30

287

11.30

J

mm/in.

297

11.69

297

11.69

500

19.68

500

19.68

400

15.75

400

15.75

300

11.81

300

11.81

500

19.68

500

19.68

500

19.68

K

mm/in.

19

0.75

19

0.75

21

0.83

21

0.83

21

0.83

21

0.83

19

0.75

19

0.75

21

0.83

21

0.83

21

0.83

S

mm/in.

286

11.26

286

11.26

489

19.25

489

19.25

387

15.24

387

15.24

286

11.26

286

11.26

489

19.25

489

19.25

489

19.25

T

mm/in.

387

15.24

387

15.24

489

19.25

489

19.25

489

19.25

489

19.25

387

15.24

387

15.24

489

19.25

489

19.25

641

25.24

Catalog Number

UU504020

UU504020W

UU606020

UU606020W

UU605025

UU605025W

UU504030

UU504030W

UU606030

UU606030W

UU756030

Panel

A20P16

A24P24

A24P20

A20P16

A24P24

A30P24

1

NoN-Metallic

SUBJECT TO CHANGE WITHOUT NOTICE

EQUIPMENT PROTECTION SOLUTIONS

Spec-00402 H

Fiberglass

ULTRX™

Catalog Number

UU756030W

UU1008030

UU1008030W

UU606040

UU606040W

UU756040

UU756040W

Door

Style

Window

Solid

Window

Solid

Window

Solid

Window

External

Dimensions

LxW

mm/in.

775 x 612

30.51 x 24.09

1025 x 825

40.35 x 32.48

1025 x 825

40.35 x 32.48

625 x 612

24.61 x 24.09

625 x 612

24.61 x 24.09

775 x 612

30.51 x 24.09

775 x 612

30.51 x 24.09

Internal

Dimensions

AxBxC

mm/in.

758 x 595 x 321

29.84 x 23.43 x 12.64

1008 x 808 x 321

39.68 x 31.81 x 12.64

1008 x 808 x 321

39.68 x 31.81 x 12.64

608 x 595 x 421

23.94 x 23.43 x 16.57

608 x 595 x 421

23.94 x 23.43 x 16.57

758 x 595 x 421

29.84 x 23.43 x 16.57

758 x 595 x 421

29.84 x 23.43 x 16.57

Panel

A30P24

A40P30

A24P24

A30P24

Conductive

Panel

A30P24G

A40P30G

A24P24G

A30P24G

Panel Size

DxE

mm/in.

686 x 533

27.01 x 20.98

940 x 737

37.01 x 29.02

940 x 737

37.01 x 29.02

533 x 533

20.98 x 20.98

533 x 533

20.98 x 20.98

686 x 533

27.01 x 20.98

686 x 533

27.01 x 20.98

Mounting

GxH

mm/in.

555 x 718

21.85 x 28.27

768 x 968

30.24 x 38.11

768 x 968

30.24 x 38.11

555 x 568

21.85 x 22.36

555 x 568

21.85 x 22.36

555 x 718

21.85 x 28.27

555 x 718

21.85 x 28.27

Window Size

MxN

mm/in.

648 x 486

25.51 x 19.13

—

898 x 698

35.35 x 27.48

—

498 x 486

19.61 x 19.13

—

648 x 486

25.51 x 19.13

F

mm/in.

287

11.30

287

11.30

287

11.30

387

15.24

387

15.24

387

15.24

387

15.24

J

mm/in.

500

19.68

700

27.56

700

27.56

500

19.68

500

19.68

500

19.68

500

19.68

K

mm/in.

21

0.83

23

0.91

23

0.91

21

0.83

21

0.83

21

0.83

21

0.83

S

mm/in.

489

19.25

692

27.24

692

27.24

489

19.25

489

19.25

489

19.25

489

19.25

T

mm/in.

641

25.24

895

35.24

895

35.24

489

19.25

489

19.25

641

25.24

641

25.24

Purchase panels separately.

Note: When installing enclosures in a right-hand hinge application that involves vibration, Hoffman recommends the use of pad-locking or key-locking quarter-turn latch accessories for door securement (UUHPL, UUHKL).

EQUIPMENT PROTECTION SOLUTIONS

Spec-00402 H

PH 763.422.2211 • FAX 763.422.2600 • HOFFMANONLINE.COM

NoN-Metallic

2

Fiberglass

ULTRX™

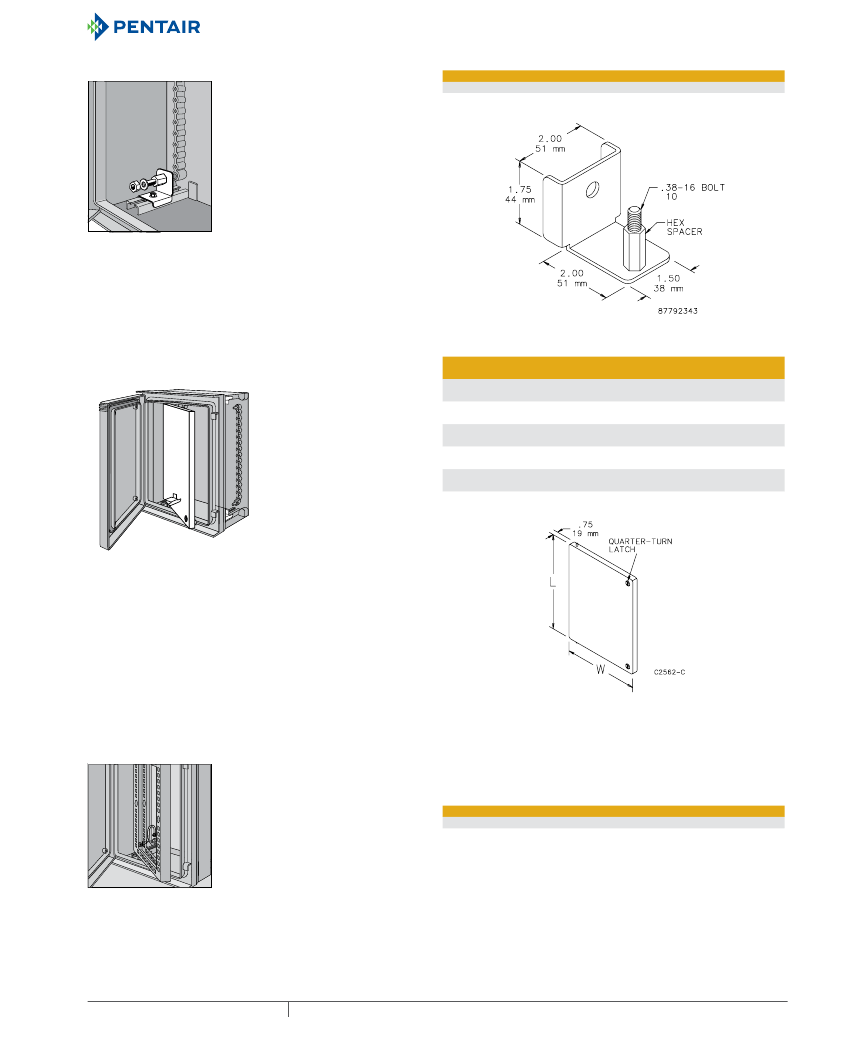

paNel bracket kit

Catalog Number

UUPB

Description

ULTRX Panel Bracket Kit

Pkg. Qty.

4

Panel Bracket Kit is used with steel panels and permits panel

adjustment from front to rear. Fits all ULTRX sizes. Mounts on

integrally molded body rail. Brackets are plated steel. All mounting

hardware is included.

Note: Front mounting position is approximately

140mm/5.5 in. back on 400mm enclosures.

Bulletin: uX1Y

swiNg-oUt paNel

Catalog Number

UU5040SP

UU6050SP

UU6060SP

UU7560SP

UU10080SP

Fits A x B

mm/in.

513 x 413

20.20 x 16.26

625 x 513

24.61 x 20.20

625 x 612

24.61 x 24.09

775 x 612

30.51 x 24.09

1025 x 825

40.35 x 32.48

L

mm/in.

432

17.00

536

21.10

540

21.25

687

27.05

935

36.80

W

mm/in.

330

12.99

432

17.00

535

21.08

535

21.08

737

29.00

Use UU6060SP with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.

Installs front-mounted panels in ULTRX fiberglass enclosures. The

front-mounted swing panel complements window-door units and is

suited for any application requiring a display of gauges, dials or any

type of control equipment monitor. Made of 14 gauge plated steel.

Easy installation; no drilling required. Fully adjustable front to rear.

Panel and mounting hardware included.

Note: Front mounting position is approximately 140mm/5.5 in. back on

400mm enclosures.

Bulletin: uX1Y

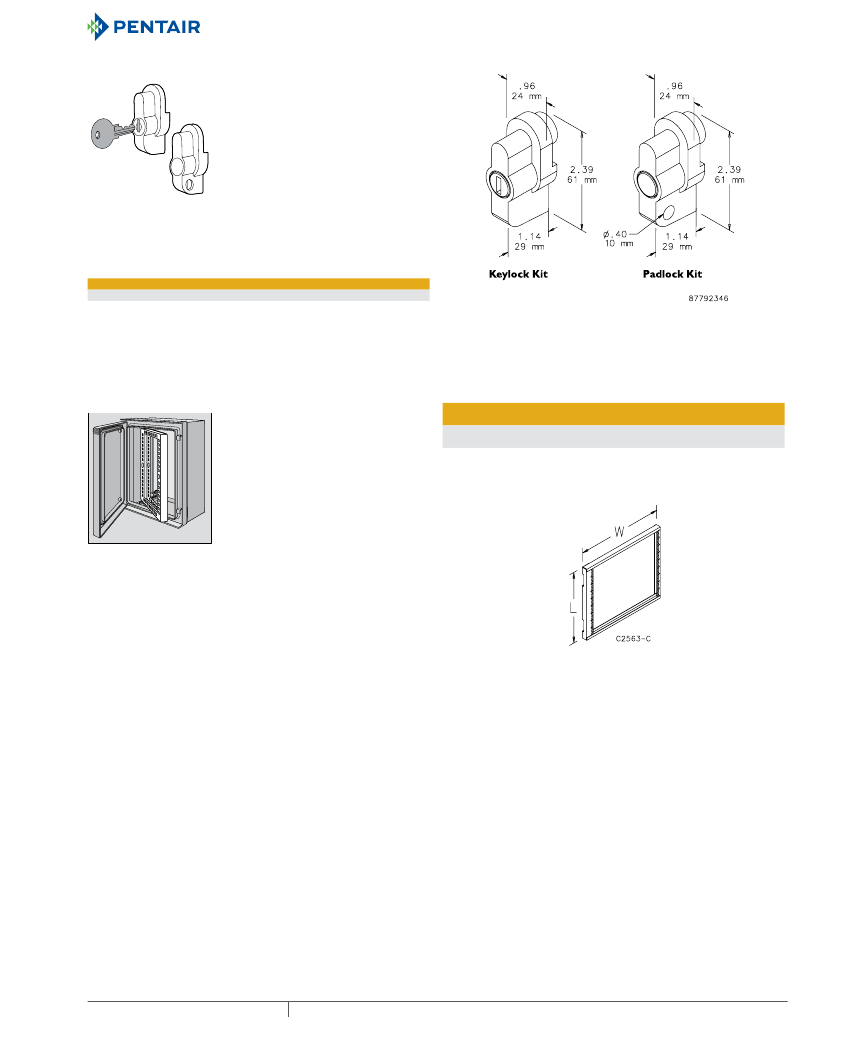

groUNDiNg Device

Grounding Device provides a means to attach a grounding conductor

to an ULTRX Swing-Out Panel or Swing-Out Frame. Includes all

installation hardware and instructions.

Bulletin: uX1Y

Catalog Number

UUGK

Description

ULTRX Grounding Device

3

NoN-Metallic

SUBJECT TO CHANGE WITHOUT NOTICE

EQUIPMENT PROTECTION SOLUTIONS

Spec-00402 H

Fiberglass

ULTRX™

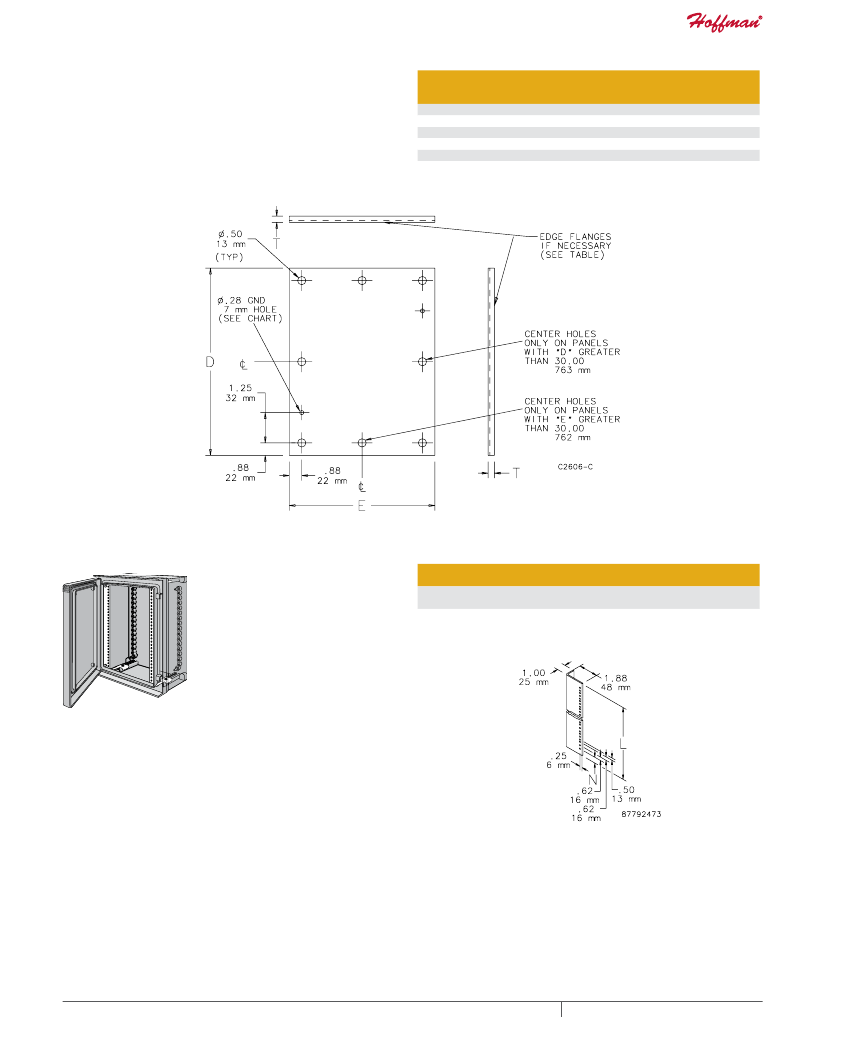

paNels For type 3r, 4, 4X, 12 aND 13 eNclosUres

Steel panels are 12 gauge with a white finish. Panel mounting

hardware is furnished with all enclosures which accept these

panels.

Bulletin: DWS12, pnlWM

Panel

Catalog Number Gauge

A20P16

12

A24P20

—

A24P24

—

A24P24WD

—

A30P24

—

A40P30

—

Flange

Thickness

T (in.)

—

0.75

Flange

Thickness

T (mm)

—

19

Panel Size

D x E (in.)

17.00 x 13.00

21.00 x 17.00

21.00 x 21.00

27.00 x 21.00

37.00 x 29.00

Panel Size

D x E (mm)

432 x 330

533 x 432

533 x 533

686 x 533

940 x 737

Number

of Holes

4

Edge

Flanges

0

2

—

2

4

Catalog number with “WD” is wood.

rack aNgles (type ra)

Catalog Number

UURA6060

UURA7560

Fits A x B

mm/in.

610 x 610

24.00 x 24.00

762 x 610

30.00 x 24.00

L

mm/in.

552

21.75

705

27.75

N

mm/in.

10

.38

19

.75

Rack

Units

12

15

Pkg.

Qty.

2

Use UURA6060 with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.

Pairs of full-length rack-mounting angles are available for

mounting 1- in. (483-mm) rack-mounted equipment. Type RA angles

are 14 gauge steel with .281-in. (7-mm) diameter mounting holes,

spaced per EIA standard RS-310-D (universal spacing). Use Clip

Nut Package (AN1032) to provide tapped holes at desired locations.

Angles and mounting hardware are plated steel. Mounting

hardware is furnished.

Bulletin: uX1Y

EQUIPMENT PROTECTION SOLUTIONS

Spec-00402 H

PH 763.422.2211 • FAX 763.422.2600 • HOFFMANONLINE.COM

NoN-Metallic

4

Fiberglass

ULTRX™

keylock kit aND paDlock kit

Keylock Kit or pushbutton-style Padlock Kit is easily inserted in

latch hole to prevent unauthorized personnel from gaining access to

enclosure contents. Each kit is fully assembled for easy installation

in the field. Type 316 stainless steel construction.

Bulletin: uX1Y

Catalog Number

UUHKL

UUHPL

UUHKL: Internal key components are not stainless steel.

UUHPL: Handles maintain UL 508A, Type 3, 4, 4X and 12 when properly installed on a Hoffman enclosure. Set

up for 1/4-in. or 3/8-in. padlock.

Description

Keylock Kit

Padlock Kit

swiNg FraMe

Catalog Number

UU6060SF

UU7560SF

Fits A x B

mm/in.

610 x 610

24.00 x 24.00

762 x 610

30.00 x 24.00

L

mm/in.

540

21.25

687

27.05

W

mm/in.

535

21.08

535

21.08

Rack

Units

11

14

Use UU6060SF with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.

Swing Frame provides 19-in. rack-mounting capabilities with

U-Style (Type RA) mounting hole pattern. Quarter-turn latch

has 100-degree swing. Adjustable mounting provision. 14 gauge

plated steel. Includes mounting hardware. Swing frame maintains

enclosure rating if properly installed in a Hoffman enclosure.

Note: Front mounting position is approximately 140mm/5.5 in. back on

400mm enclosures.

Bulletin: uX1Y

5

NoN-Metallic

SUBJECT TO CHANGE WITHOUT NOTICE

EQUIPMENT PROTECTION SOLUTIONS

Spec-00402 H

Parameter Name	Attribute value
Container type	box
size/dimensions	30.512" long x 24.094" wide (775.00mm x 612.00mm)
high	12.953"（329.00mm）
Area (L x W)	735 in²（4742 cm²）
design	hinged door, cover
Material	fiberglass/polyester
color	grey
thickness	0.157"（4.00mm）
characteristic	PCB support, gasket, wall mount
grade	IP66，NEMA 3，3R，4，4X，12，13，UL-508A
Material flammability rating	-
delivery information	Shipping from Digi-Key
weight	45 lbs (20.4kg)

	UU756030	UU605025	UUMF	UUHPL	UU606020
Description	BOX FIBERGLASS 30.51"L X 24.09"W	BOX FIBERGLASS GRAY 24.6"LX20"W	MOUNTING FOOT KIT (4)	PADLOCK KIT	BOX FIBERGLASS 24.62"L X 24.09"W
characteristic	PCB support, gasket, wall mount	PCB support, gasket, wall mount	Threaded	-	PCB support, gasket, wall mount
Container type	box	box	-	-	box
size/dimensions	30.512" long x 24.094" wide (775.00mm x 612.00mm)	24.616" long x 20.197" wide (625.00mm x 513.00mm)	-	-	24.616" long x 24.094" wide (625.00mm x 612.00mm)
high	12.953"（329.00mm）	10.945"（278.00mm）	-	-	8.976"（228.00mm）
Area (L x W)	735 in²（4742 cm²）	497 in²（3206 cm²）	-	-	593 in²（3825 cm²）
design	hinged door, cover	hinged door, cover	-	-	hinged door, cover
Material	fiberglass/polyester	fiberglass/polyester	-	-	fiberglass/polyester
color	grey	grey	-	-	grey
thickness	0.157"（4.00mm）	0.157"（4.00mm）	-	-	0.157"（4.00mm）
grade	IP66，NEMA 3，3R，4，4X，12，13，UL-508A	IP66，NEMA 3，3R，4，4X，12，13，UL-508A	-	-	IP66，NEMA 3，3R，4，4X，12，13，UL-508A
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	-	-	Shipping from Digi-Key
weight	45 lbs (20.4kg)	32 lbs (14.5kg)	-	-	34 lbs (15.4kg)

UU756030

UU756030 Overview

UU756030 Parametric

Preview

UU756030 Related Products

Recommended Resources
