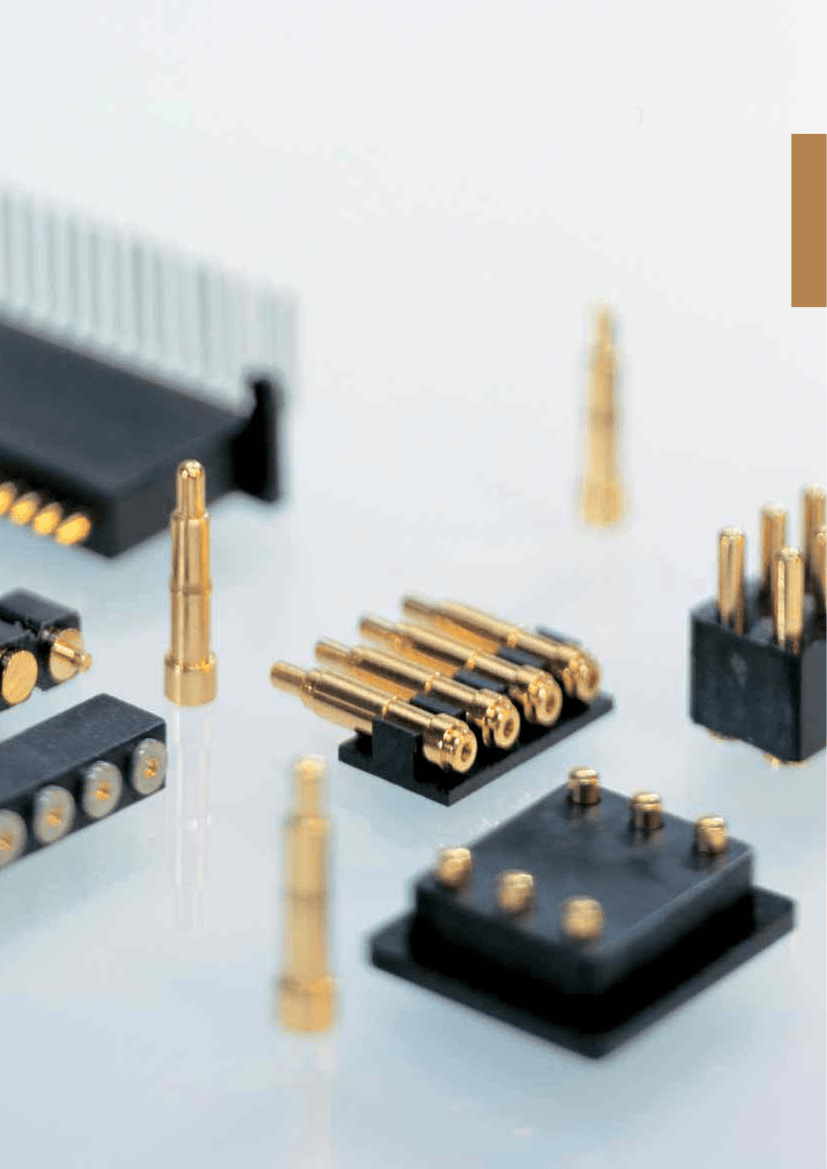

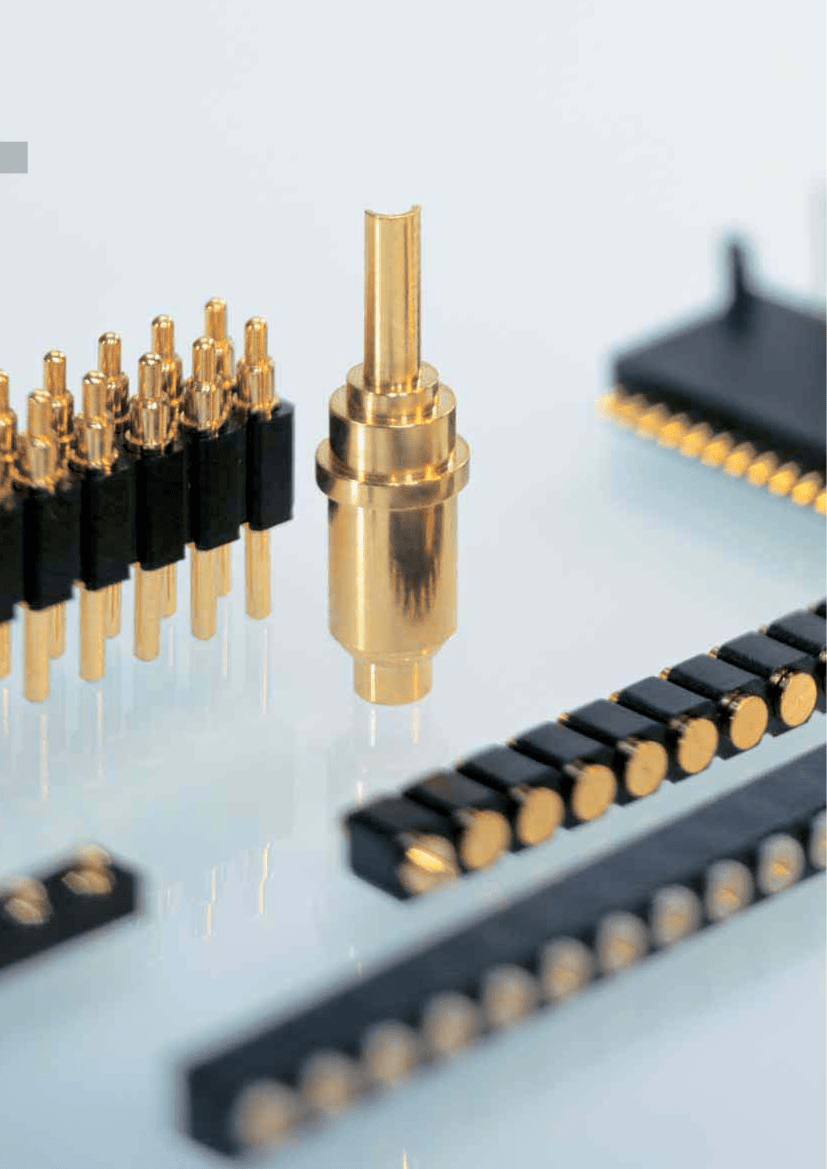

SPRING-LOADED CONNECTORS
PAD CONNECTORS
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
GENERAL SPECIFICATIONS
SPRING–LOADED CONNECTORS
The values listed below are general specs applying for PRECI-DIP spring-loaded connectors. Please see individual catalog page for additional and
product specific technical data.
OPERATING TEMPERATURE RANGE
CLIMATIC CATEGORY (IEC)
OPERATING HUMIDIT Y RANGE
MA X. WORKING VOLTAGE
-55 ... +125 °C (-55 °… +85 °C with music wire spring)
55/85/21
Annual mean 75%
100 V
RMS
/150 V
DC
(2.54 mm grid)
PRECI-DIP connectors designated « Series Preci-Dip Connector » are recognized by UL LLC and listed under « Connectors for Use
in Data, Signal, Control and Power Applications », File Nr. E174442.
MECHANICAL CHARACTERISTICS
BASIC
HOLLOW PISTON T YPE
MIN. INITIAL HEIGHT
STROKE/HEIGHT RATIO
MA X STROKE
MIN. INITIAL SPRING FORCE
LOW RESISTANCE
SHAPED PISTON T YPE
LOW RESISTANCE
CLIP IN-LINE DESIGN T YPE
PACKAGING
• Standard connector packaging is card box.
• SMD mount connectors available on request
with Tape & Reel packaging acc. to EIA Standard 481.
These products are marked with the symbol:
3 mm
Max. 0.3
2 mm
0.2 N
6 mm
Max. 0.2
2 mm
0.2 N
10 mm
Max. 0.15
1.5 mm
0.2 N
ELECTRICAL CHARACTERISTICS
INSUL ATION RESISTANCE BETWEEN ANY TWO ADJACENT CONTACTS
CAPACITANCE BETWEEN ANY TWO ADJACENT CONTACTS
T & R Packaging
Min. 10’000 M
Max. 1 pF
at 500 V
AC
Please consult
www.precidip.com
for availability,
size of tape, size of reel, number of components
per reel, packing units and part numbers.
ENVIRONMENTAL CHARACTERISTICS
The sockets withstand the following environmental tests without mechanical
and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH,
1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min
• Sinusoidal vibrations IEC 60512-6-4.6d / 60068-2-6.Fc: 10 to 500 Hz, 10 g,
1 octave/min, 10 cycles for each axis
• Shock IEC 60512-6-3.6c / 60068-2-27.Ea: 50 g, 11 ms, 3 shocks in three axis
During the above two tests, no contact interruption >50 ns does appear.
• Solderability J-STD-002A, Test A, 245 °C, 5 s, solder alloy SnAg3.8Cu0.7
• Resistance to soldering heat J-STD-020C, 260 °C, 20 s
• Moisture sensitivity J-STD-020C level 1
Due to technical progress, all information provided is subject to change without prior notice.
