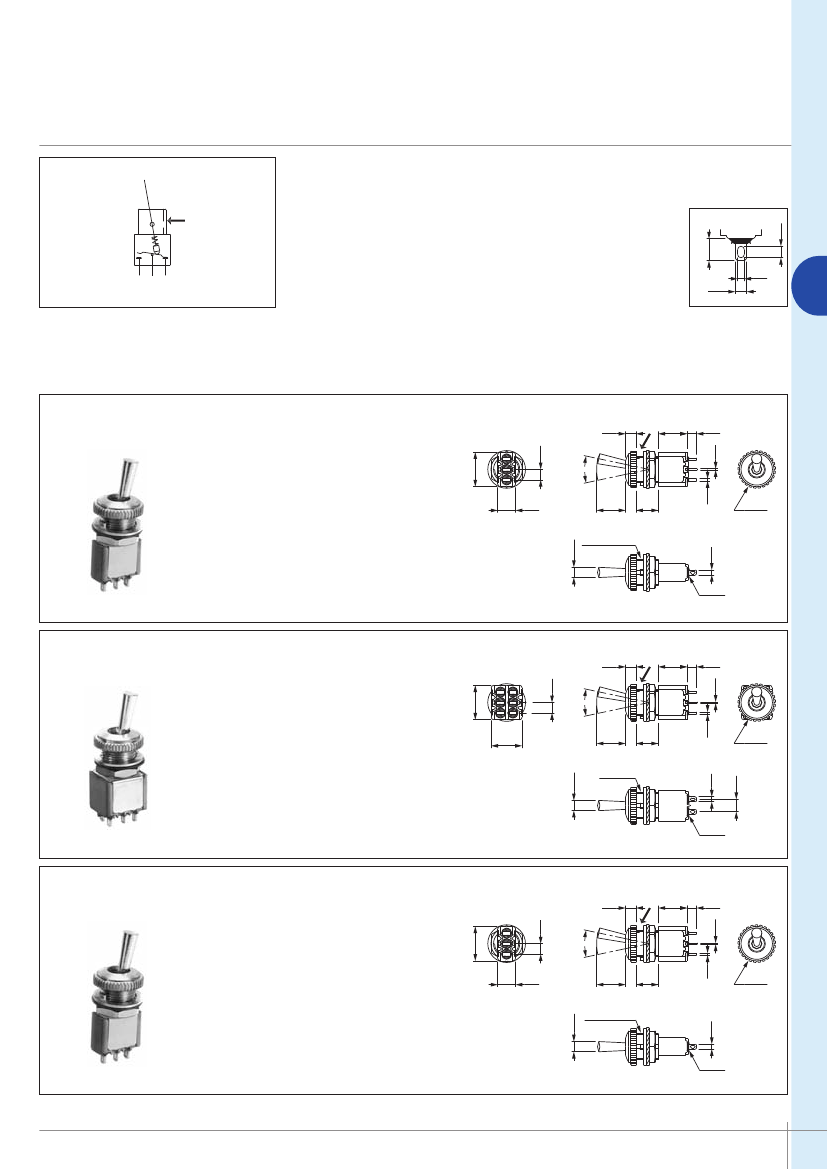

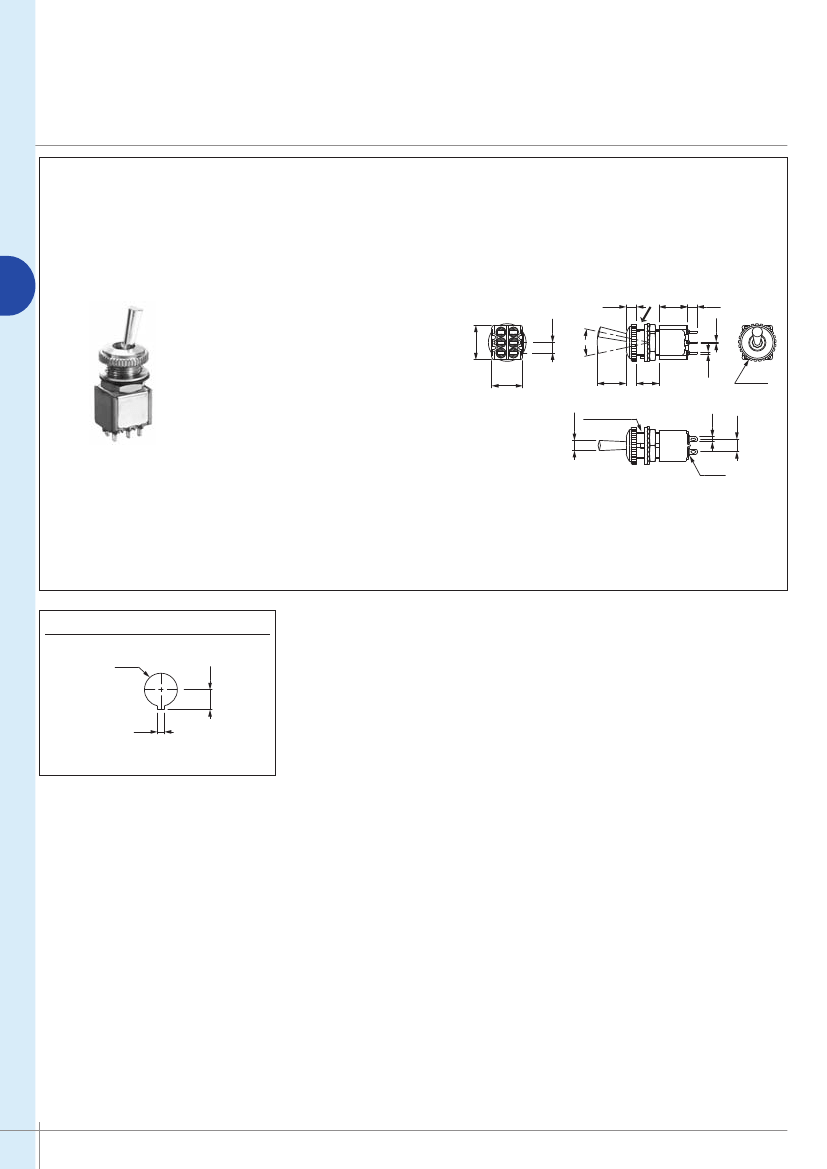

10600 series
Professional toggle switches - threaded bushing Ø 10 (.393)
Distinctive features and pecifications
K
CECC approved
A
• Max. current/voltage rating with resistive load : 3A 24VDC
• Minimum load : 100µA 10mV
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
1.000 Vrms 50 Hz min. between terminals of the same pole
2.000 Vrms 50 Hz min. between terminals and frame
2.000 Vrms 50 Hz min. between terminals of adjacent poles
• Electrical life : 50.000 cycles
ELECTRICAL SPECIFICATIONS
• Case : diallylphthalate (DAP) or
high temperature plastic material
(UL94- V0)
•Actuator : brass, nickel plated
• Bushing : brass, nickel plated
• Housing : stainless steel
• Contacts :
- silver
- silver, gold plated
• Terminal seal : epoxy
• Torque : 1,50 Nm (1.106 Ft.lb)
max. applied to nut
• Max. panel thickness :
4 mm (.157)
• Operating temperature :
- 40° to +85°
C
C
GENERAL SPECIFICATIONS
MATERIALS
HOMOLOGATION
CECC 96201- 007
Availability
: consult factory for details of approved models.
Marking
: to order switches marked CECC, add “CECC” to model number.
ABOUT THIS SERIES
Complete part numbers are shown on the following pages.
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
Sealing boots
are available to protect the switches against dust and water. They are presented in section H.
Mounting accessories
: standard hardware supplied with all models : 1 knurled cap nut, 1 hex nut, 1 locking ring and 1
lockwasher. They are presented in section I.
Packaging unit
: 25 pieces.
A-54
www.apem.com
APEM
10600 series
Professional toggle switches - threaded bushing Ø 10 (.393)
©
Keyway
• Solder lug terminals
•
2 and 3 positions
• 1 and 2 pole configurations
• Available with matt black finish :
consult factory for model number
1
2
3
3.70
(.145)
1.90
(.070)
1.10
(.043)
1.90
(.074)
A
2 positions - single pole
Silver contacts
106362103
106322103
Gold plated silver contacts
106361175
ON
ON
106321175
ON
ON
-
-
-
-
ON
MOM
ON
MOM
Ø4.00
(.157 DIA)
2 positions - double pole
Ø4.00
(.157 DIA)
Gold plated silver contacts
106461175
ON
106421175
ON
-
-
ON
MOM
EPOXY
3 positions - single pole
Gold plated silver contacts
106391175
ON OFF ON
106371175
MOM OFF MOM
106381175
ON OFF MOM
Ø4.00
(.157 DIA)
Silver contacts
106392103
106372103
106382103
ON OFF ON
MOM OFF MOM
ON OFF MOM
APEM
www.apem.com
1.80
(.070)
Ø10.00 X 0.75 SI
(.393 DIA X 0.75 IS)
0.80
(.031)
1
7.00
(.275)
III
1 2 3
13.20
(.519)
2
4.70
(.185)
II24˚
11.00
(.433)
8.50
(.334)
0.50
(.019)
III
2- 3
II
I
2- 1
©
Keyway
3
I
4.00
(.157)
11.00
(.433)
3.70
(.145)
4.75
(.187)
Ø14.00
(.551 DIA)
1.80
(.070)
Silver contacts
106462103
106422103
ON
ON
-
-
ON
MOM
Ø10.00 X 0.75 SI
(.393 DIA X 0.75 IS)
0.80
(.031)
1
12.00
(.472)
4
II
1 2 3
13.20
(.519)
II
2- 3
5- 6
I
2- 1
5- 4
©
Keyway
3
2
6
5
4.70
(.185)
I
24˚
4.00
(.157)
11.00
(.433)
0.50
(.019)
1.80
(.070)
Ø10.00 X 0.75 SI
(.393 DIA X 0.75 IS)
0.80
(.031)
2
7.00
(.275)
II
2 1 3
13.20
(.519)
1
4.70
(.185)
24˚
11.00
(.433)
8.50
(.334)
0.50
(.019)
II
1- 3
I
1- 2
©
Keyway
3
I
4.00
(.157)
11.00
(.433)
3.70
(.145)
Ø14.00
(.551 DIA)
EPOXY
3.70
(.145)
11.00
(.433)
8.50
(.334)
Ø14.00
(.551 DIA)
EPOXY
A-55
10600 series
Professional toggle switches - threaded bushing Ø 10 (.393)
3 positions - double pole
III
2- 3
5- 6
II
I
2- 1
5- 4
©
Keyway
4.00
(.157)
6
5
4
12.00
(.472)
3
2
1
4.70
(.185)
I
11.00
(.433)
3.70
(.145)
0.50
(.019)
A
Gold plated silver contacts
106491175
ON OFF ON
106471175
MOM OFF MOM
106481175
ON OFF MOM
106440944*
ON
(2- 3)
(5- 4)
(5- 4)
Ø4.00
(.157 DIA)
ON
ON
EPOXY
* Function 4 : SP in DP case. Jumper between terminals 2 and 4 to be wired by the user.
PANEL CUT
-
OUT
Ø10.20
(.401 DIA)
2.20
(.086)
A-56
6.20
(.244)
www.apem.com
4.75
(.187)
1.80
(.070)
Ø10.00 X 0.75 SI
(.393 DIA X 0.75 IS)
0.80
(.031)
106440886*
ON
(2- 3)
ON
ON
III
4 5 6
13.20
(.519)
Silver contacts
106492103
106472103
106482103
ON OFF ON
MOM OFF MOM
ON OFF MOM
II24˚
11.00
(.433)
8.50
(.334)
Ø14.00
(.551 DIA)
