Datasheet> All Categories > The connector> 1674008

Preview

1674008: DescriptionCONN HOOD SIDE ENTRY SZB16 PG21; CategoryThe connector; File Size71KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1674008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1674008	-	-	View	Buy Now

1674008 Overview

CONN HOOD SIDE ENTRY SZB16 PG21

1674008 Parametric

Parameter Name	Attribute value
Connector type	protecting mask
style	Side insertion
size	B16
lock position	Cover lock clip (2)
Thread size	PG21
size/dimensions	3.701" long x 1.693" wide x 2.559" high (94.00mm x 43.00mm x 65.00mm)
Shell color	grey
characteristic	-
Intrusion protection	IP65 - dust and water resistant
Shell material	Aluminum, casting
Shell surface	powder coating
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1674008

Housing - HC-B 16-TMQ-65/O1PG21S - 1674008

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://download.phoenixcontact.com)

Sleeve housing, with double locking latch, height: 65 mm, with supports, 1 x Pg21, lateral cable outlet

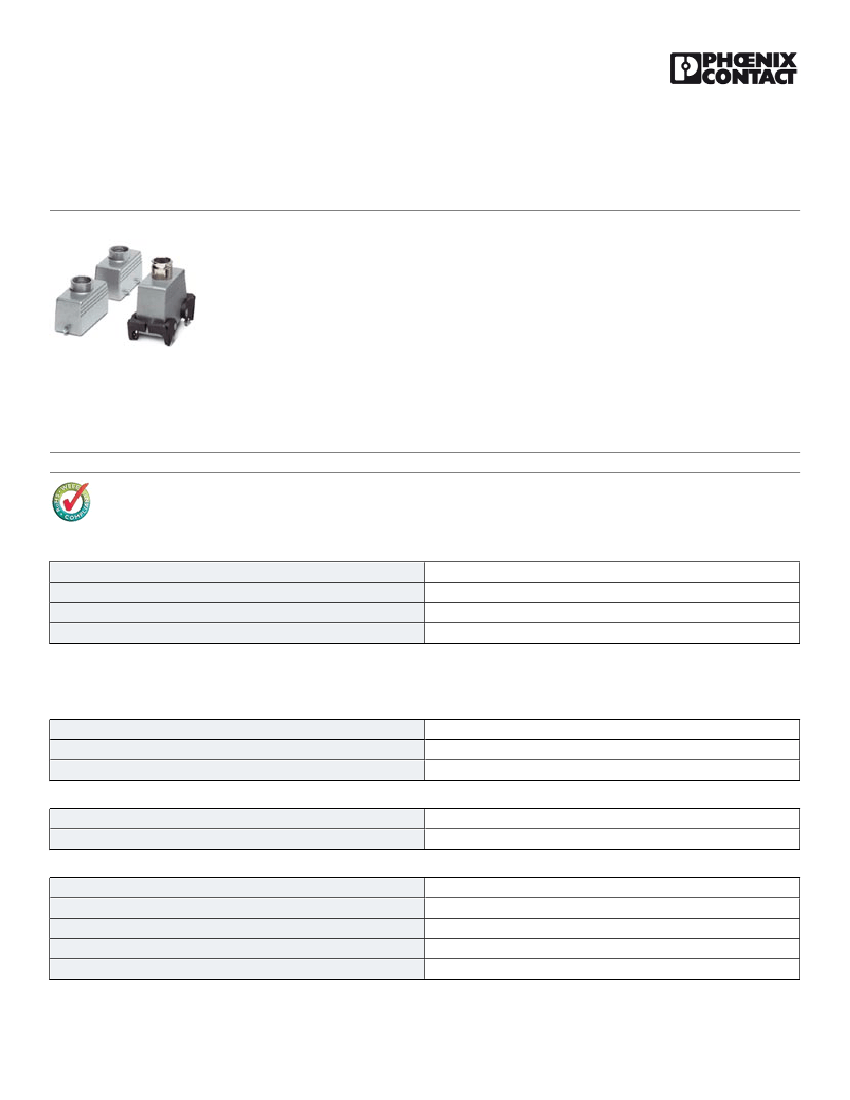

The illustration shows a sleeve

housing in the versions for double

locking latch and single locking latch

and with double locking latch, with

straight cable exit

Key commercial data

Packing unit

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 PCE

255.15 GRM

85389099

Germany

Technical data

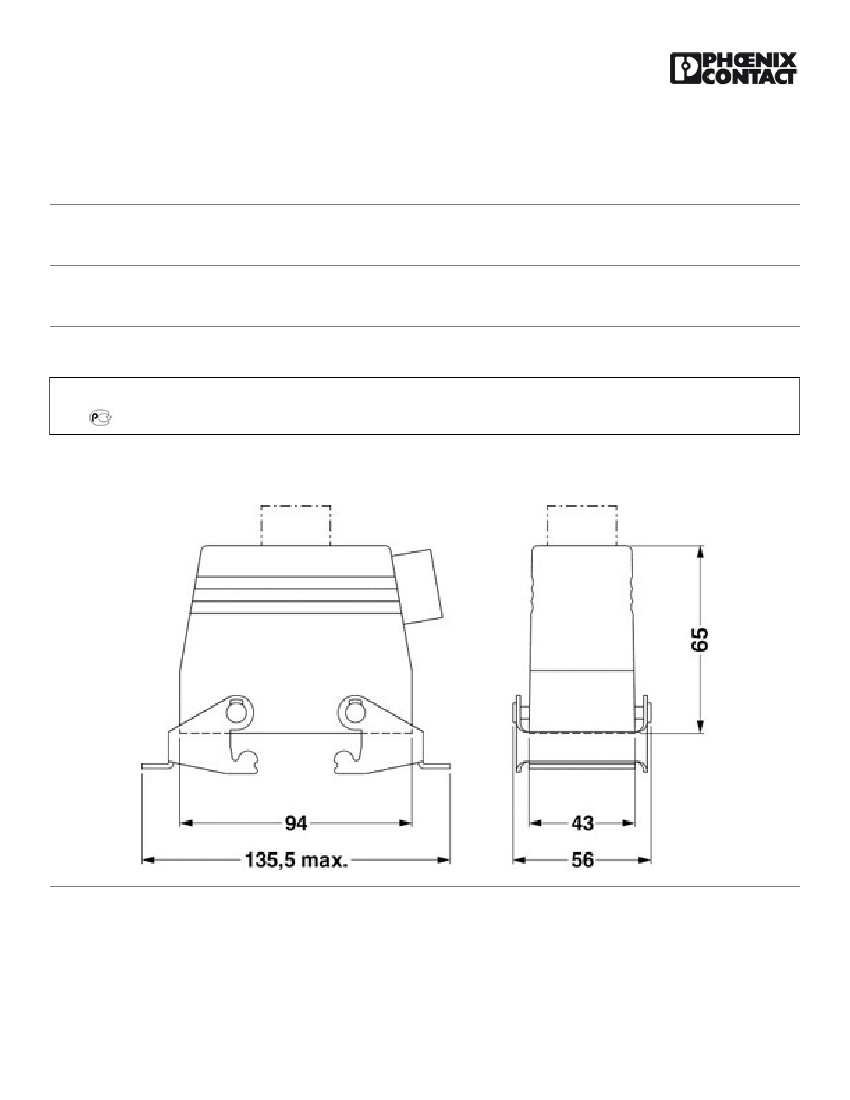

Dimensions

Height

Width

Length

65 mm

43 mm

94 mm

Ambient conditions

Degree of protection of housing (IP)

Ambient temperature (operation)

IP65

-40 °C ... 125 °C

General

Note

Design

Housing type

Locking type

No. of cable exits

For contact inserts HC-B10, BB18, DD42, M, K8/24

B16

Sleeve housings

With double locking latch

1

12/13/13 Page 1 / 3
