Sensor/Actuator cable - SAC-4P-MR/ 0,6-PUR/FS SCO - 1518931
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

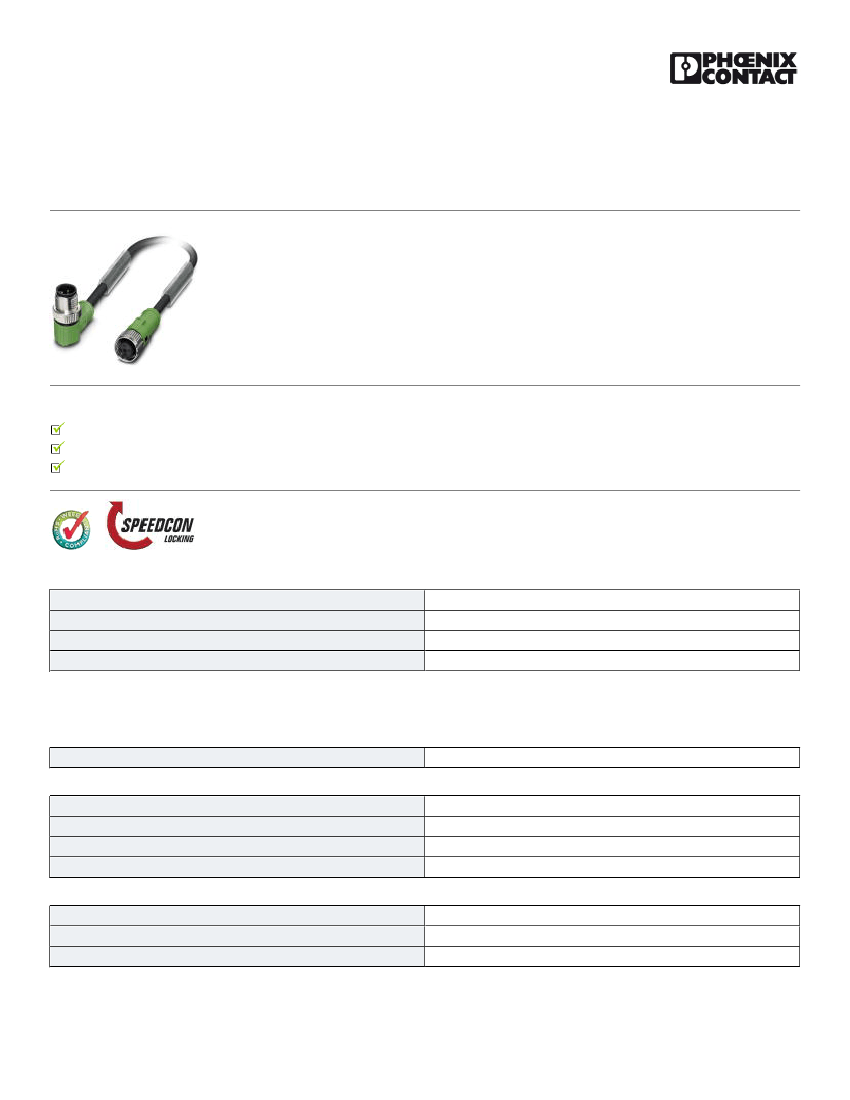

Sensor/Actuator cable, 4-position, PUR halogen-free, Black-gray RAL 7021, Plug angled M12 SPEEDCON, A-
coded, on Socket straight M12 SPEEDCON, A-coded, Cable length: 0.6 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Save time, thanks to installation with SPEEDCON rapid interlock system
Our standard: robust halogen-free PUR cable
Packing unit
11
38.6 GRM
85444290
Poland
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Length of cable
0.6 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
4A
250 V
4
04.11.2013 Page 1 / 9
https://www.phoenixcontact.com/us/products/1518931
Sensor/Actuator cable - SAC-4P-MR/ 0,6-PUR/FS SCO - 1518931
Technical data
General
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Surge voltage category
Pollution degree
Insertion/withdrawal cycles
Torque
≤ 5 mΩ
≥ 10 MΩ
A - standard
M12 connector IEC 61076-2-101
No
II
3
≥ 100
0.4 Nm (M12 connector)
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
PUR halogen-free black
PUR
Li9Y11Y-HF
20549
4x 0.34 mm² (signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (signal line)
≥ 0.21 mm (Core insulation)
≥ 0.8 mm (Outer cable sheath)
brown, white, blue, black
4 wires, twisted
49.5 mm
Black-gray RAL 7021
4.7 mm ±0.15 mm
23.5 mm
47 mm
4000000
04.11.2013 Page 2 / 9
https://www.phoenixcontact.com/us/products/1518931
Sensor/Actuator cable - SAC-4P-MR/ 0,6-PUR/FS SCO - 1518931
Technical data
Cable
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
47 mm
10 m
3 m/s
10 m/s²
30 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km
max. 58 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with FT1 as per UL 758
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
04.11.2013 Page 3 / 9
https://www.phoenixcontact.com/us/products/1518931
Sensor/Actuator cable - SAC-4P-MR/ 0,6-PUR/FS SCO - 1518931
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / GOST / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
Nominal current IN
Nominal voltage UN
4A
300 V
04.11.2013 Page 4 / 9
https://www.phoenixcontact.com/us/products/1518931
Sensor/Actuator cable - SAC-4P-MR/ 0,6-PUR/FS SCO - 1518931
Approvals
cUL Listed
Nominal current IN
Nominal voltage UN
4A
300 V
GOST
cULus Listed
Accessories
Accessories
Conductor marking
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
04.11.2013 Page 5 / 9
