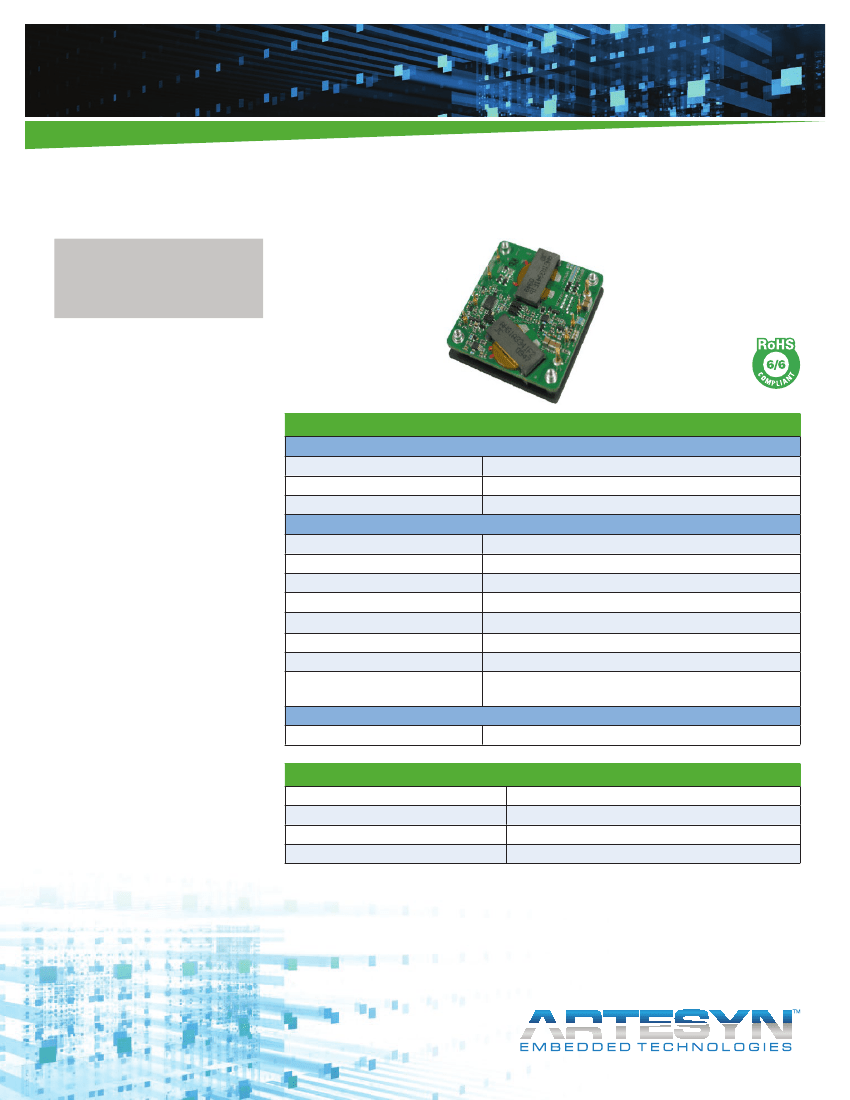

POWER
Data Sheet
Output Power:
82.5 Watts
Input Voltage:
36 - 75 V
Single Output:
3.3 V
SPECIAL FEATURES
2:1 wide input range
Optimised for high density,
small space applications
Low ripple and noise
Fixed switching frequency
High efficiency
High capacitive load capability
Basic insulation system
Pre-bias start-up capability
Openframe structure with
Baseplate option
Half Brick Fully Regulated DCDC Converter
AGH100 Series
Electrical Specifications
Input
Input range
Input surge
Efficiency
Output
Output voltage
Trim range
Output current
Noise/ripple
Regulation
Switching frequency
Isolation voltage
Transient response
Control
Enable
TTL compatible Positive or Negative enable
3.3 Vdc
+10% to =20% Vout
25 A
45 mV pk-pk
Load regulation 16.5 mV, Line regulation = 6.6 mV
Fixed switching frequency 270 KHz
2000 Vdc
80 mV deviation 80 µs recovery (25% deviation from 50%
Iout, 0.1 A/µs) typical
36 - 75 VDC
100 V for 100 ms
92.4% (3.3 V)
SAFETY
UL, cUL: UL60950
TUV/CE: IEC/EN60950
Environmental Specifications
Operating ambient temperature range
Storage temperature
OTP
MTBF @ 25
°C
-40 °C to +85 °C
-55 °C to +125 °C
118 °C
2 Million hours (Vin 48 V, Io = 20 A
AGH100 Series Data Sheet
Ordering Information
Model number
AGH100-48S3V3P-4L
AGH100-48S3V3-4L
AGH100-48S3V3PB-4L
AGH100-48S3V3B-4L
Input voltage
48 V
48 V
48 V
48 V
Output voltage
3.3 V
3.3 V
3.3 V
3.3 V
Power
25 A
25 A
25 A
25 A
Efficiency
92.4%
92.4%
92.4%
92.4%
Pin Assignments
Pin #
1
2
3
4
5
6
7
8
9
Function
+V in
Enable
Case
-V in
-V out
-Sense
Trim
+Sense
+V out
-
-
-
-
-
Standard converter is Negative enable
“B” = Baseplate option
“-4” = 4.8 mm pin length
“-P” = Positive remote control
“-L” = RoHS 6 compliant

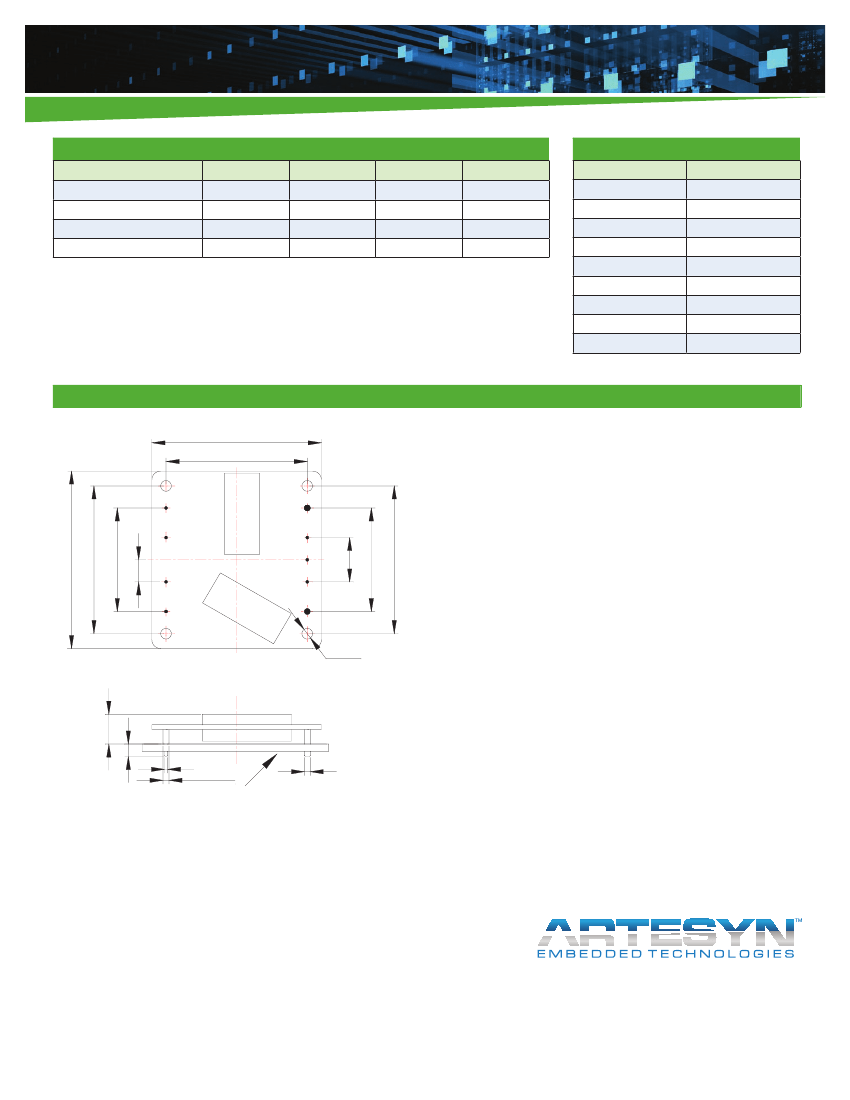

Mechanical Drawing - Open Frame
57.9 [2.280]
48.26 [1.900]
4
5
35.56 [1.400]
15.24 [0.600]
35.56 [1.400]
50.8 [2.000]
7.62 [0.300]
3
Bottom view
6
7
8
9
2
1
4-Ф4.3
Side view
Notes:
1. 20 MHz bandwidth. External 10 uF tantalum capacitor placed across +Vout and –Vout;
33 uF e-cap or equivalent placed across +Vin and –Vin.
2. Efficiency measurements taken at full load and nominal line and Tamb = 25 °C
3. All specifications taken at nominal line, full load and Tamb = 25 °C unless otherwise
noted.
4. Mechanical dimensions are for reference only. Dimensions are in MM. Mechanical
tolerance = +/- 0.5 mm
5. Technical reference notes should be consulted for detailed information when available.
6. All specifications subject to change without notice.
7. Warranty 2 years.
8. The through-hole terminated modules are intended for wave-soldering process;
special request for other manufacturing processes to be made to Artesyn.
10.0 [0.394]
L
7-Ф1.0±0.1
7-Ф2.0±0.1
Load board
Unit: mm[inch]
2-Ф2.0±0.1
Bottom view: pin on upside
Tolerance: X.Xmm±0.5mm[X.X in.±0.02in.]
X.XXmm±0.25mm[X.XX in.±0.01in.]
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
50 8 [2 000]
61.0[2.402]
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
AGH100 DS 18May2015
While every precaution has been taken to ensure accuracy and completeness in this literature, Artesyn
Embedded Technologies assumes no responsibility, and disclaims all liability for damages resulting from use
of this information or for any errors or omissions. Artesyn Embedded Technologies, Artesyn and the Artesyn
Embedded Technologies logo are trademarks and service marks of Artesyn Embedded Technologies, Inc.
All other names and logos referred to are trade names, trademarks, or registered trademarks of their respective
owners. © 2015 Artesyn Embedded Technologies, Inc.
