HMC260LC3B
v05.0414
GaAs MMIC FUNDAMENTAL
MIXER, 14 - 26 GHz
Typical Applications
The HMC260LC3B is ideal for:
Features
Passive: No DC Bias Required
Input IP3: +20 dBm
LO/RF Isolation: 40 dB
Wide IF Bandwidth: DC - 8 GHz
12 Lead Ceramic 3x3 mm SMT Package: 9mm
2
MIXERS - SINGLE & DOUBLE BALANCED - SMT
• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• Test Equipment & Sensors
• Military End-Use

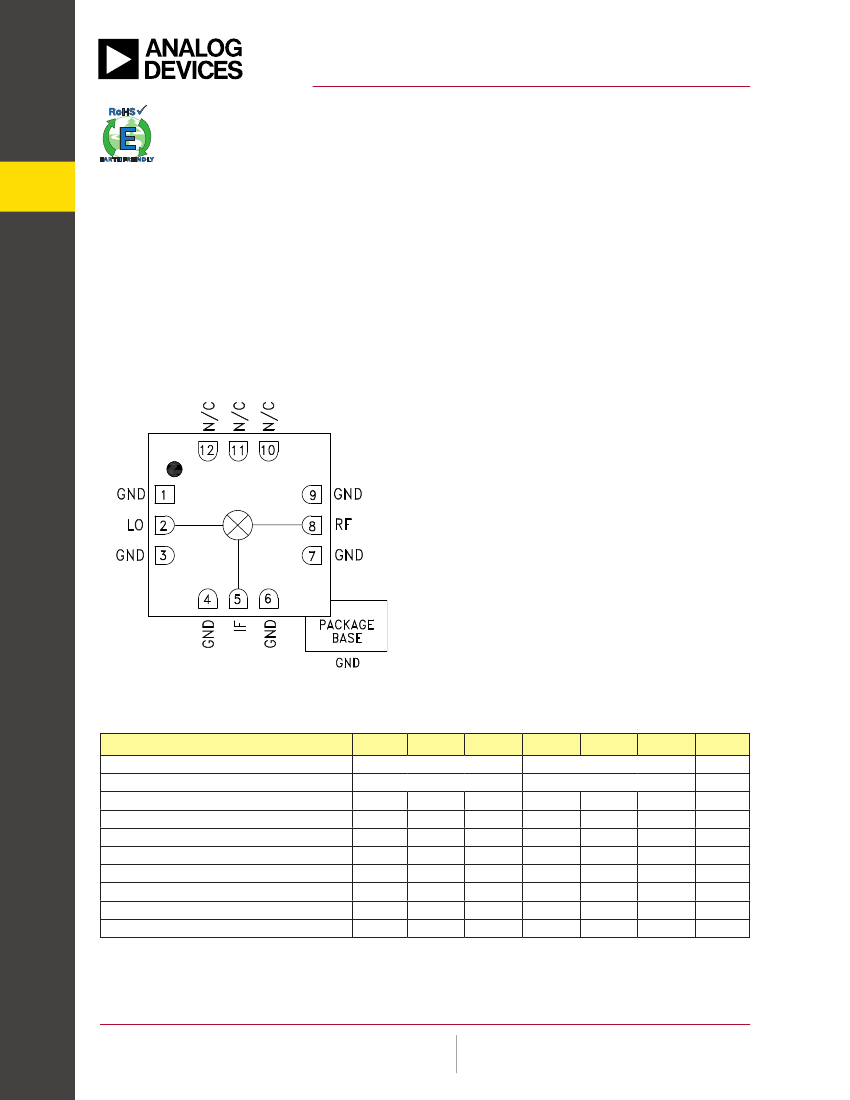

Functional Diagram
General Description
The HMC260LC3B is a general purpose double
balanced mixer in a leadless RoHS compliant
SMT package that can be used as an upconverter
or downconverter between 14 and 26 GHz. This
mixer requires no external components or matching
circuitry. The HMC260LC3B provides excellent LO to
RF and LO to IF suppression due to optimized balun
structures. The mixer operates with LO drive levels
above +9 dBm. The HMC260LC3B eliminates the
need for wire bonding, allowing use of surface mount
manufacturing techniques.
Electrical Specifications,
T
A
= +25° C, IF= 1 GHz, LO= +13 dBm*
Parameter
Frequency Range, RF & LO
Frequency Range, IF
Conversion Loss
Noise Figure (SSB)
LO to RF Isolation
LO to IF Isolation
RF to IF Isolation
IP3 (Input)
IP2 (Input)
1 dB Gain Compression (Input)
34
24
15
Min.
Typ.
14 - 18
DC - 8
7.5
7.5
40
30
25
18
50
12
10.5
10.5
30
24
25
Max.
Min.
Typ.
18 - 26
DC - 8
9
9
35
35
30
20
50
14
12
12
Max.
Units
GHz
GHz
dB
dB
dB
dB
dB
dBm
dBm
dBm
*Unless otherwise noted, all measurements performed as downconverter, IF= 1 GHz.
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC260LC3B
v05.0414
GaAs MMIC FUNDAMENTAL
MIXER, 14 - 26 GHz

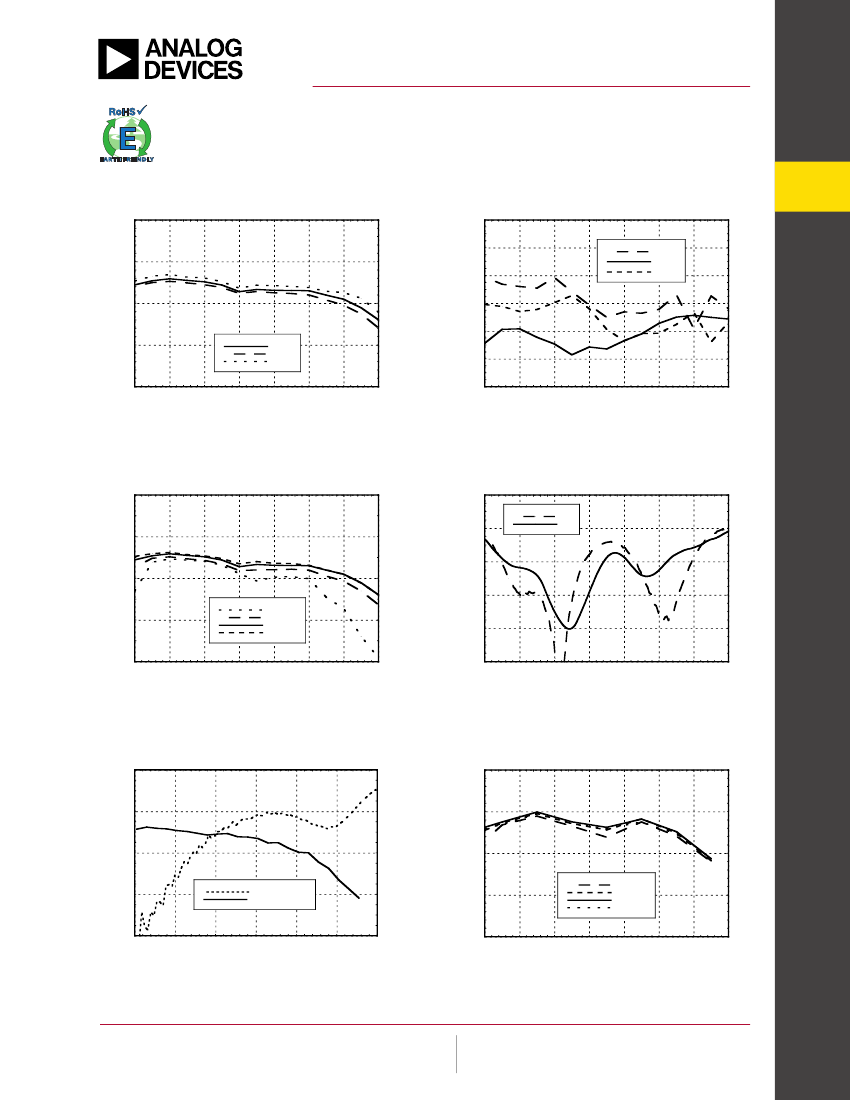

Conversion Gain vs. Temperature
0
Isolation
0
-10
-5
ISOLATION (dB)
-20
-30
-40
-50
-60
13
15
17
19
21
23
25
27
13
15
17
19
21
RF/IF
LO/RF
LO/IF
-10
-15
+25 C
+85 C
-40 C
-20
FREQUENCY (GHz)
23
25
27
FREQUENCY (GHz)
Conversion Gain vs. LO Drive
0
Return Loss
0
RF
LO
CONVERSION GAIN (dB)
RETURN LOSS (dB)
-5
-5
-10
-10
-15
-15
+9 dBm
+11 dBm
+13 dBm
+15 dBm
-20
-20
13
15
17
19
21
23
25
27
FREQUENCY (GHz)
-25
13
15
17
19
21
23
25
27
FREQUENCY (GHz)
IF Bandwidth
0
Upconverter Performance
Conversion Gain vs. LO Drive
0
-5
RESPONSE (dB)
CONVERSION GAIN (dB)
-5
-10
-10
-15
IF Return Loss
Conversion Gain
-15
+9 dBm
+11 dBm
+13 dBm
+15 dBm
-20
0
2
4
6
8
10
12
FREQUENCY (GHz)
-20
13
15
17
19
21
23
25
27
FREQUENCY (GHz)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
MIXERS - SINGLE & DOUBLE BALANCED - SMT
2
CONVERSION GAIN (dB)
HMC260LC3B
v05.0414
GaAs MMIC FUNDAMENTAL
MIXER, 14 - 26 GHz

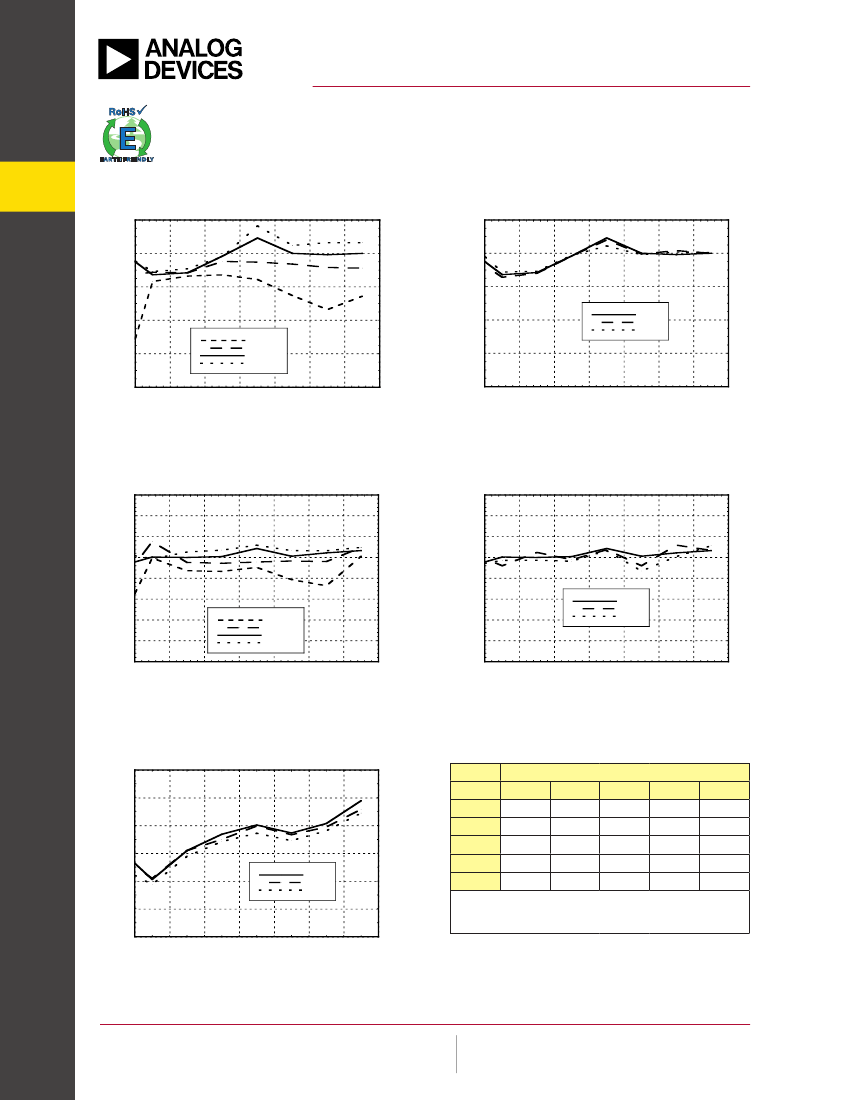

Input IP3 vs. LO Drive *
25
Input IP3 vs. Temperature *
25
MIXERS - SINGLE & DOUBLE BALANCED - SMT
20
IP3 (dBm)
20
IP3 (dBm)
15
15
+25 C
+85 C
-40 C
10
+9 dBm
+11 dBm
+13 dBm
+15 dBm
10
5
5
0
13
15
17
19
21
23
25
27
LO FREQUENCY (GHz)
0
13
15
17
19
21
23
25
27
LO FREQUENCY (GHz)
Input IP2 vs. LO Drive *
80
70
60
IP2 (dBm)
Input IP2 vs. Temperature *
80
70
60
IP2 (dBm)
50
40
30
20
10
0
+25 C
+85 C
-40 C
50
40
30
20
10
0
13
15
17
19
21
23
25
27
LO FREQUENCY (GHz)
+9 dBm
+11 dBm
+13 dBm
+15 dBm
13
15
17
19
21
23
25
27
LO FREQUENCY (GHz)
Input P1dB vs. Temperature
18
16
14
12
10
8
6
13
15
17
19
21
23
25
27
FREQUENCY (GHz)
+25 C
+85 C
-40 C
MxN Spurious Outputs
nLO
mRF
0
0
xx
18
82
xx
xx
1
-2
0
74
90
xx
2
17
38
71
95
93
3
xx
50
65
77
98
4
xx
78
84
90
104
P1dB (dBm)
1
2
3
4
RF = 18 GHz @ -10 dBm
LO = 17 GHz @ +13 dBm
All values in dBc below the IF output power level.
* Two-tone input power = -10 dBm each tone, 1 MHz spacing.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
3
HMC260LC3B
v05.0414
GaAs MMIC FUNDAMENTAL
MIXER, 14 - 26 GHz
Absolute Maximum Ratings
RF / IF Input
LO Drive
Channel Temperature
Continuous Pdiss (Ta = 85 °C)
(derate 3.95 mW/°C above 85 °C)
Thermal Resistance
(junction to ground paddle)
Storage Temperature
Operating Temperature
ESD Sensitivity (HBM)
+15 dBm
150 °C
260 mW
253 °C/W
-65 to +150 °C
-40 to +85 °C
Class 1A
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

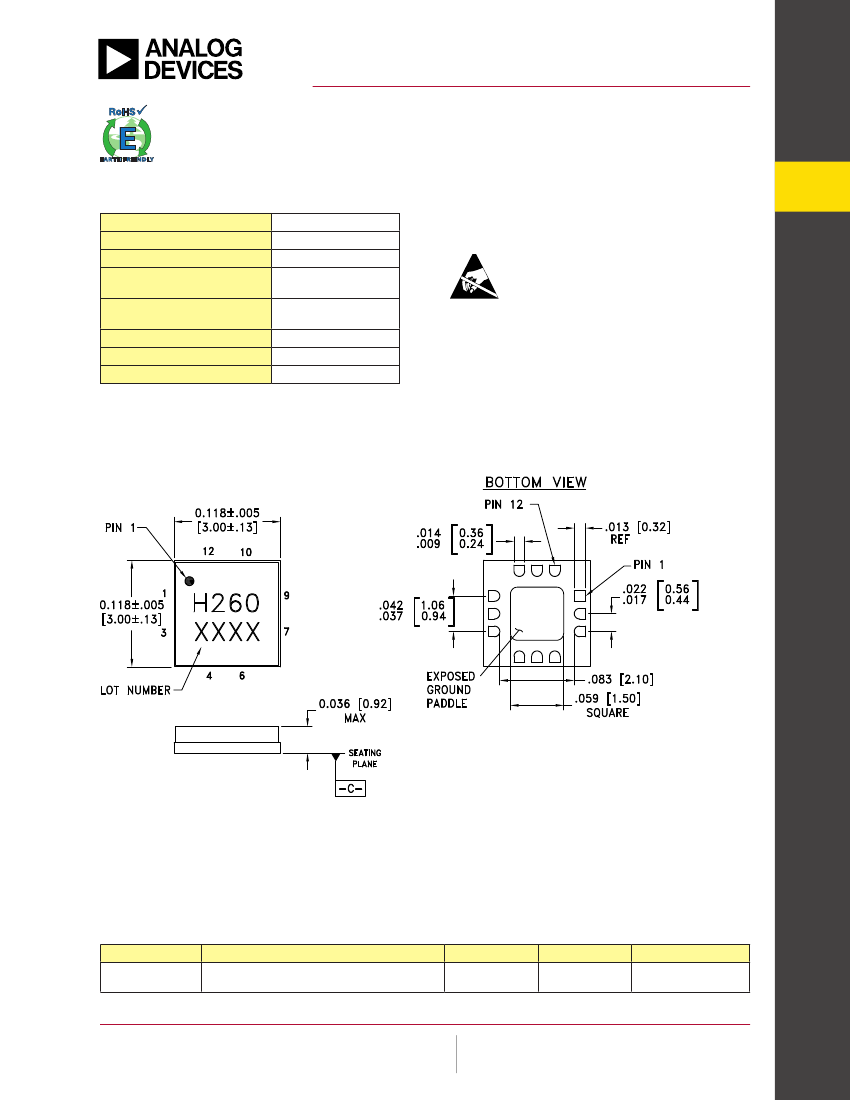

Outline Drawing
NOTES:
1. PACKAGE BODY MATERIAL: ALUMINA.
2. LEAD AND GROUND PADDLE PLATING: GOLD FLASH OVER NICKEL.
3. DIMENSIONS ARE IN INCHES (MILLIMETERS).
4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
5. CHARACTERS TO BE HELVETICA MEDIUM, .025 HIGH, BLACK INK,
OR LASER MARK LOCATED APPROX. AS SHOWN.
6. PACKAGE WARP SHALL NOT EXCEED 0.05MM DATUM – C –
7. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED
TO PCB RF GROUND.
Package Information
Part Number
HMC260LC3B
Package Body Material
Alumina, White
Lead Finish
Gold over Nickel
MSL Rating
MSL3
[1]
Package Marking
[2]
H260
XXXX
[1] Max peak reflow temperature of 260 °C
[2] 4-Digit lot number XXXX
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
MIXERS - SINGLE & DOUBLE BALANCED - SMT
4
+27 dBm
HMC260LC3B
v05.0414
GaAs MMIC FUNDAMENTAL
MIXER, 14 - 26 GHz
Pin Descriptions
Pin Number
Function
GND
Description
Package bottom must also be connected to RF/DC ground.
Interface Schematic
MIXERS - SINGLE & DOUBLE BALANCED - SMT
1, 3, 4, 6, 7, 9
2
LO
This pin is DC coupled
and matched to 50 Ohm.
5
IF
This pin is DC coupled. For applications not requiring
operation to DC, this port should be DC blocked externally
using a series capacitor whose value has been chosen to
pass the necessary IF frequency range. For operation to DC,
this pin must not source or sink more than 2 mA of current or
part non-function and possible part failure will result.
8
RF
This pin is DC coupled
and matched to 50 Ohm.
10, 11, 12
N/C
No connection required. These pins may be connected to RF/
DC ground without affecting performance.
5
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
