67120-502 datasheet, PDF - EEWORLD Datasheet

67120-502: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size386KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

67120-502 Overview

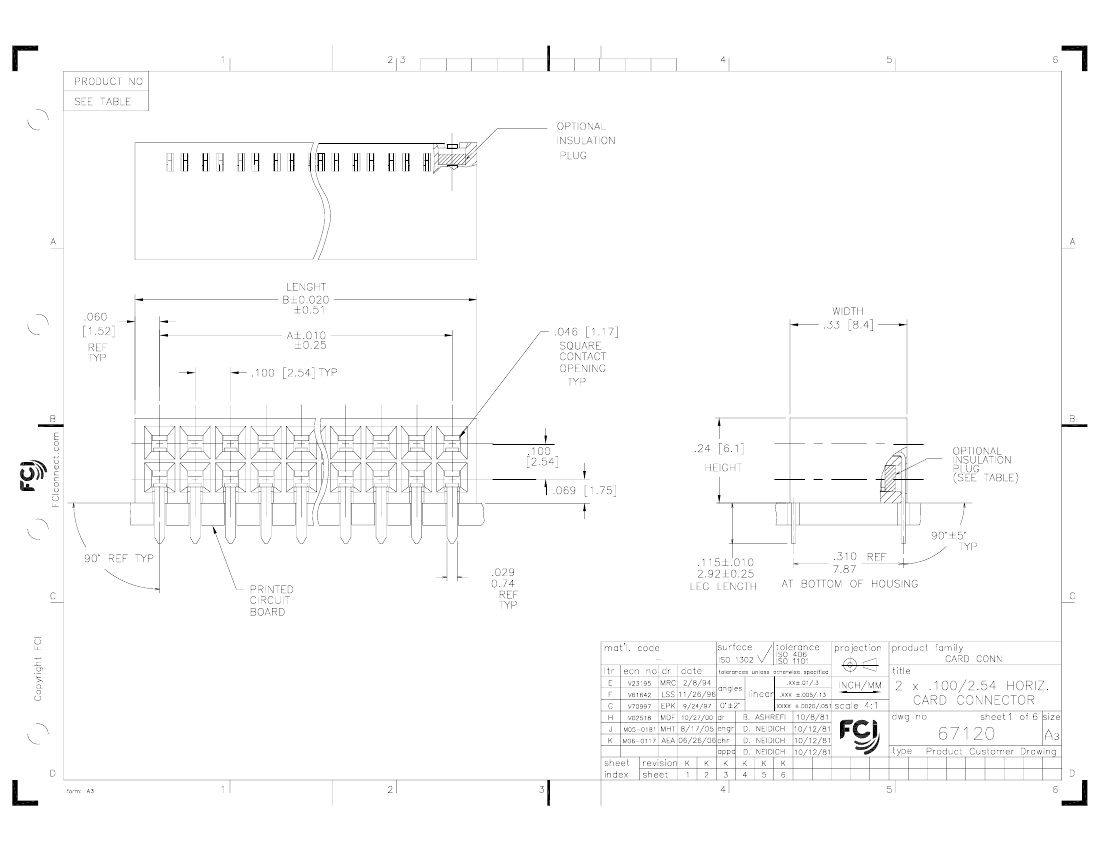

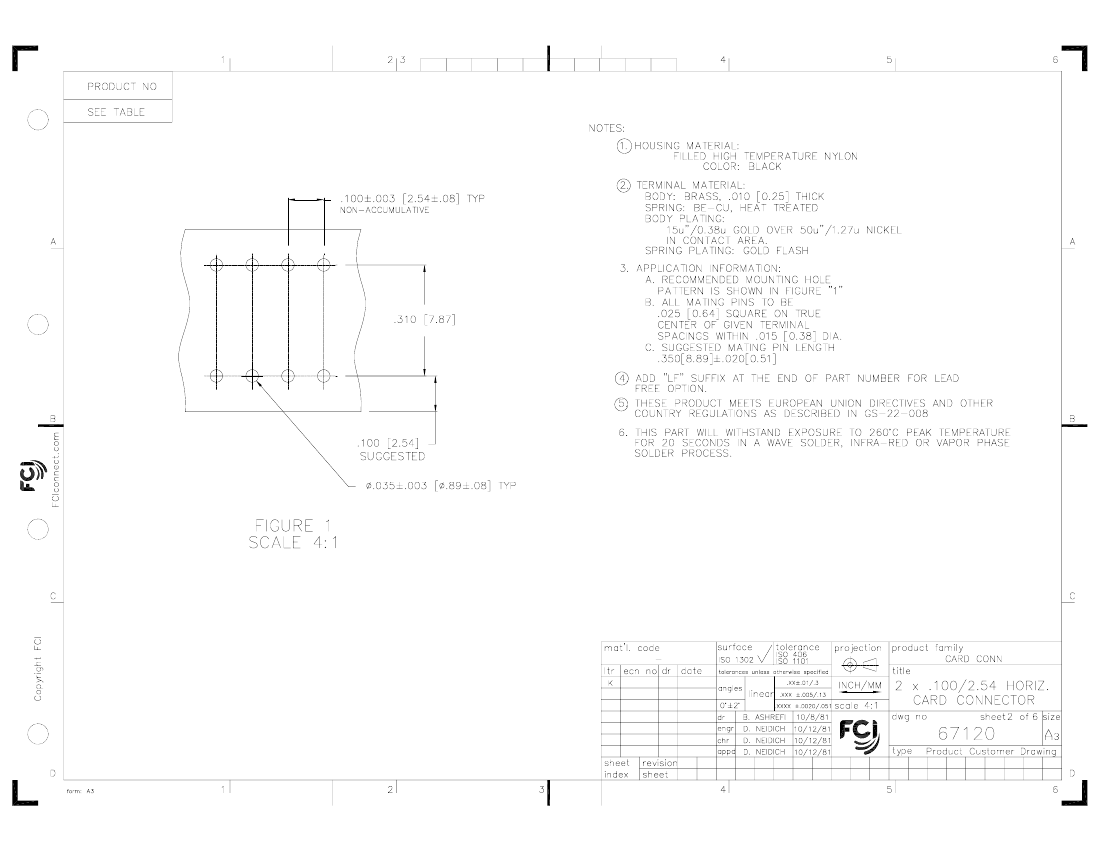

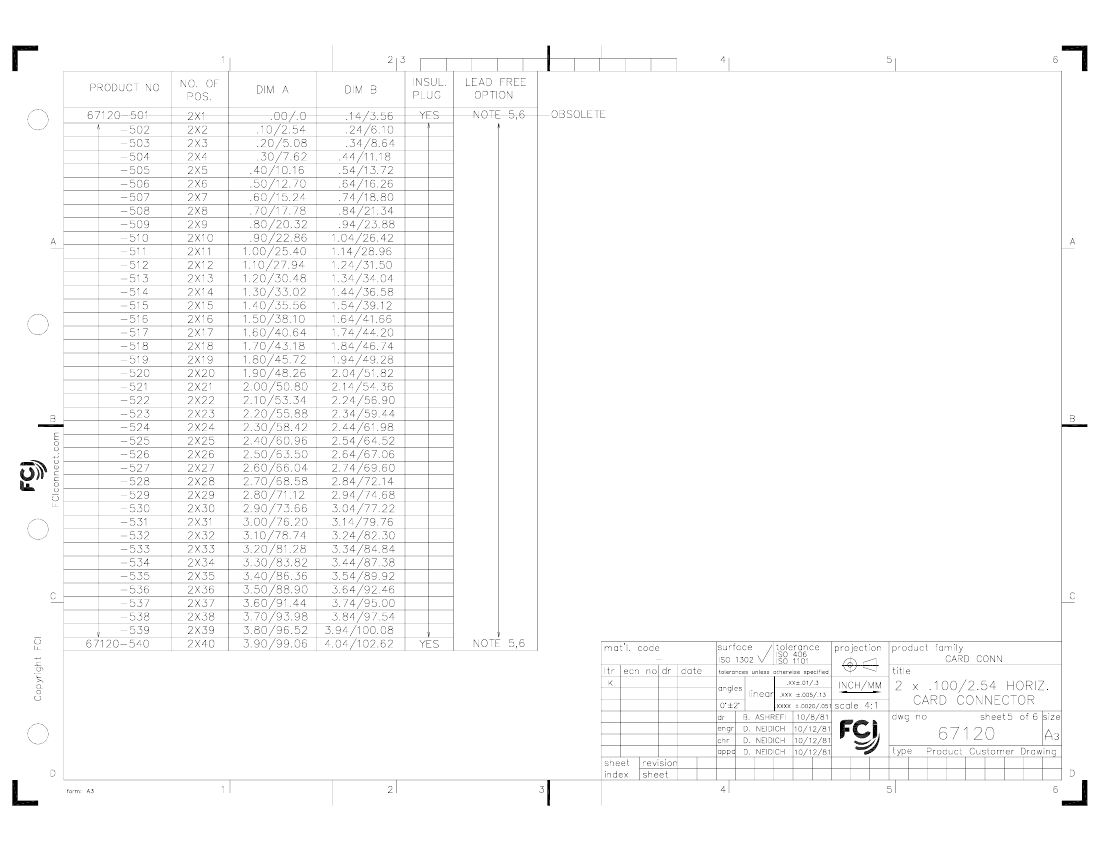

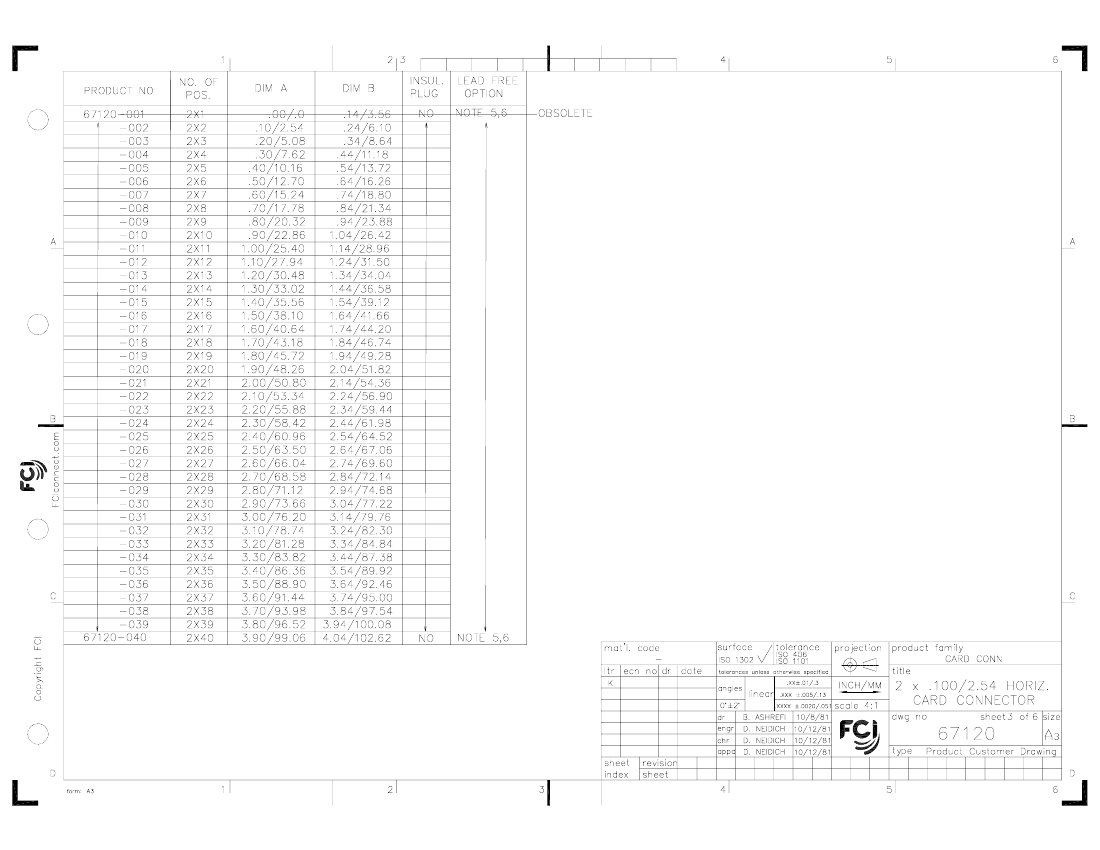

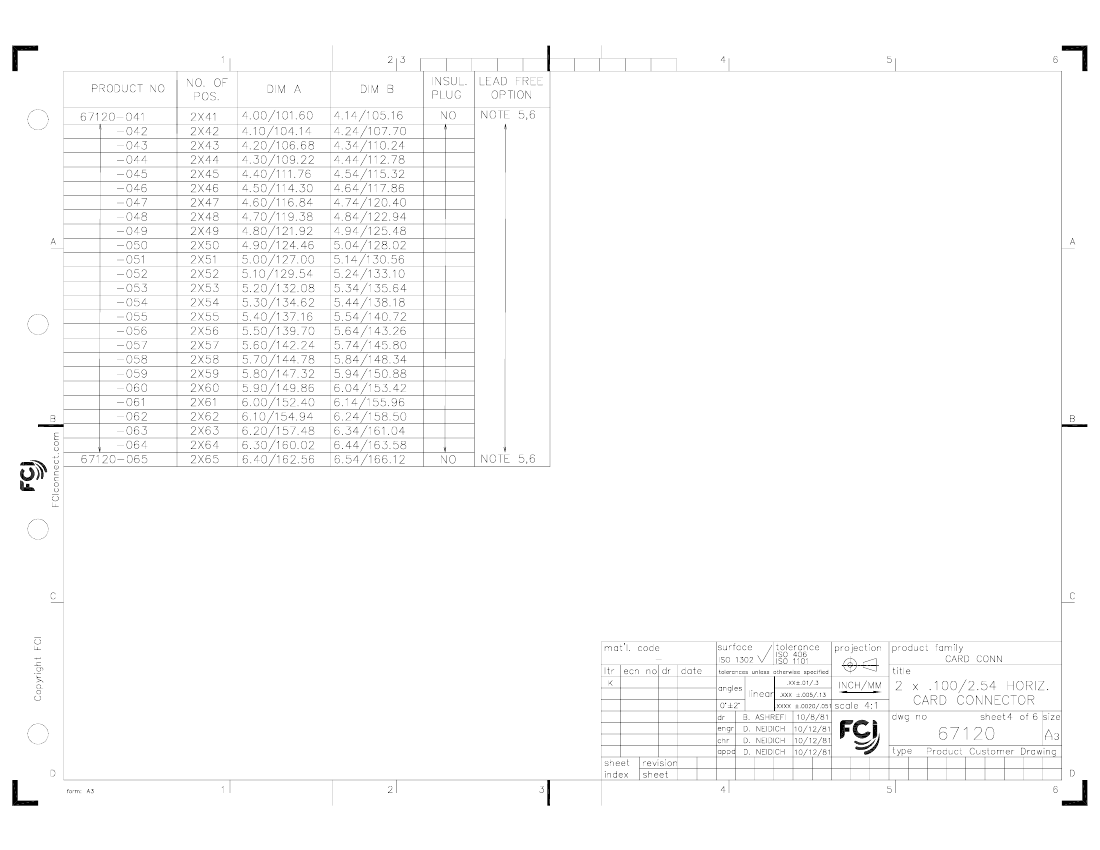

Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	67120
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4

PDM: Rev:K

STATUS:

Released

Printed: Dec 12, 2008

.
