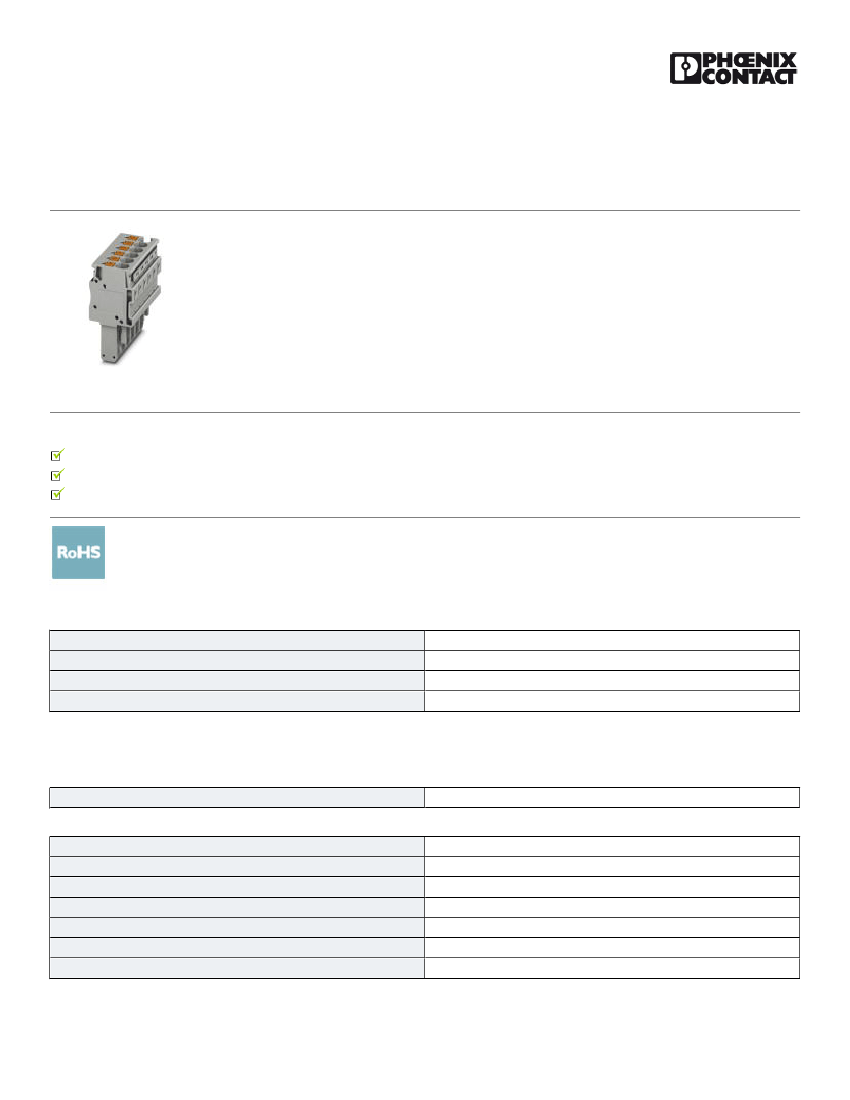

Plug - PP-H 4/12 - 3212080
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Push-in / plug connection, Number of positions: 12, Cross section: 0.2 mm² - 6 mm²,
AWG: 24 - 10, Width: 74.4 mm, Height: 42.3 mm, Color: gray
The figure shows a version of the
article
Why buy this product
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
10 STK
85366990
Poland
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
12
1
12
12
4 mm²
gray
PA
09/06/2016 Page 1 / 13
https://www.phoenixcontact.com/us/products/3212080
Plug - PP-H 4/12 - 3212080
Technical data
General
Flammability rating according to UL 94
Area of application
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
8 kV
3
III
I
32 A (with 6 mm² conductor cross section)
32 A
800 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
Length
Height
Pitch
74.4 mm
21 mm
42.3 mm
24 mm
6.2 mm
Connection data
Connection method
Push-in / plug connection
09/06/2016 Page 2 / 13
https://www.phoenixcontact.com/us/products/3212080
Plug - PP-H 4/12 - 3212080
Technical data
Connection data
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
IEC 61984
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
24
12
0.25 mm²
4 mm²
0.25 mm²
4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
10 mm ... 12 mm
A4
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 61984
V0
Drawings
Circuit diagram
Current strength [A]
35
30
25
20
15
10
5
0
0
20
40
60
80
100
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 10-pos.
= 15-pos.
Diagram
09/06/2016 Page 3 / 13
https://www.phoenixcontact.com/us/products/3212080
Plug - PP-H 4/12 - 3212080

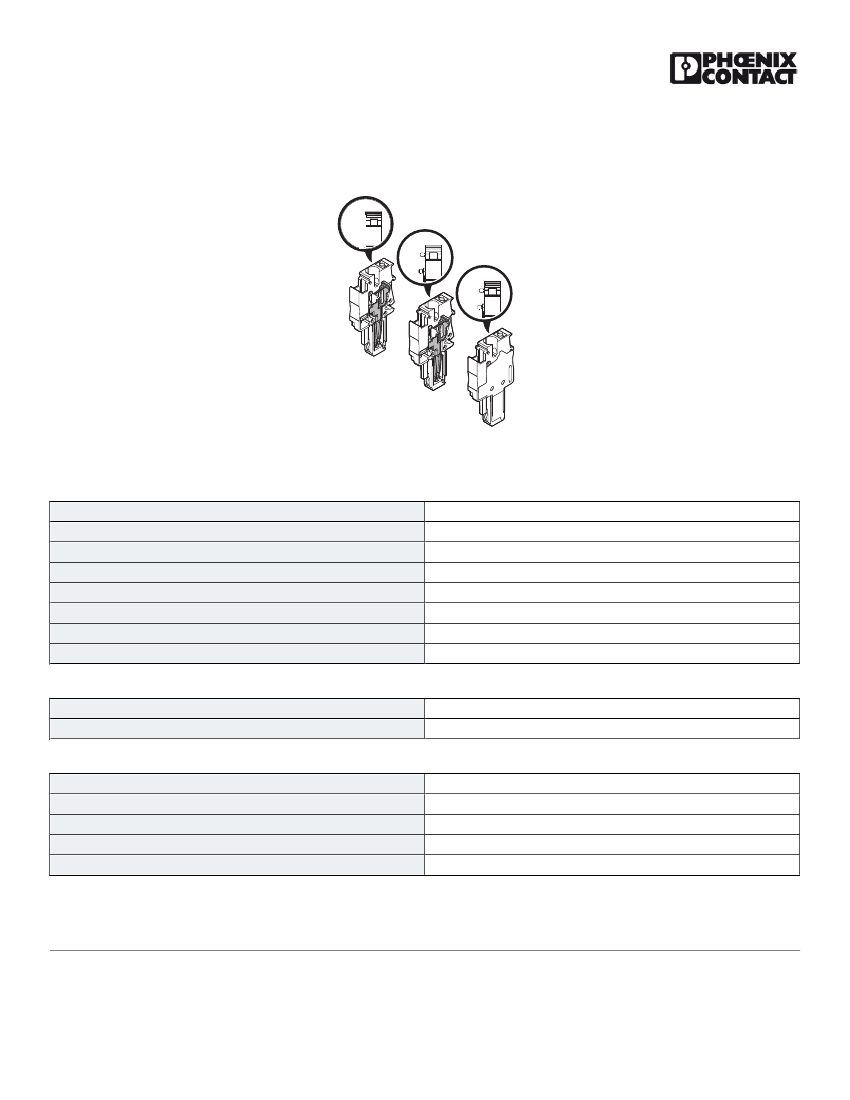

Schematic diagram
.../1-L
.../1-M
.../1-R
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141151
27141151
27141151
27141151
ETIM
ETIM 4.0
ETIM 5.0
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
09/06/2016 Page 4 / 13
https://www.phoenixcontact.com/us/products/3212080
Plug - PP-H 4/12 - 3212080
Approvals
Approvals
UL Recognized / cUL Recognized / LR / EAC / BV / DNV GL / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-10
28 A
600 V
C
24-10
28 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-10
28 A
600 V
C
24-10
28 A
600 V
LR http://www.lr.org/en 14/20057
EAC 7500651.22.01.00246
BV http://www.veristar.com/wps/portal/!ut/p/_s.7_0_A/7_0_RIM 39979/A0 BV
DNV GL https://www.dnvgl.com/ TAE000010T
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
09/06/2016 Page 5 / 13
