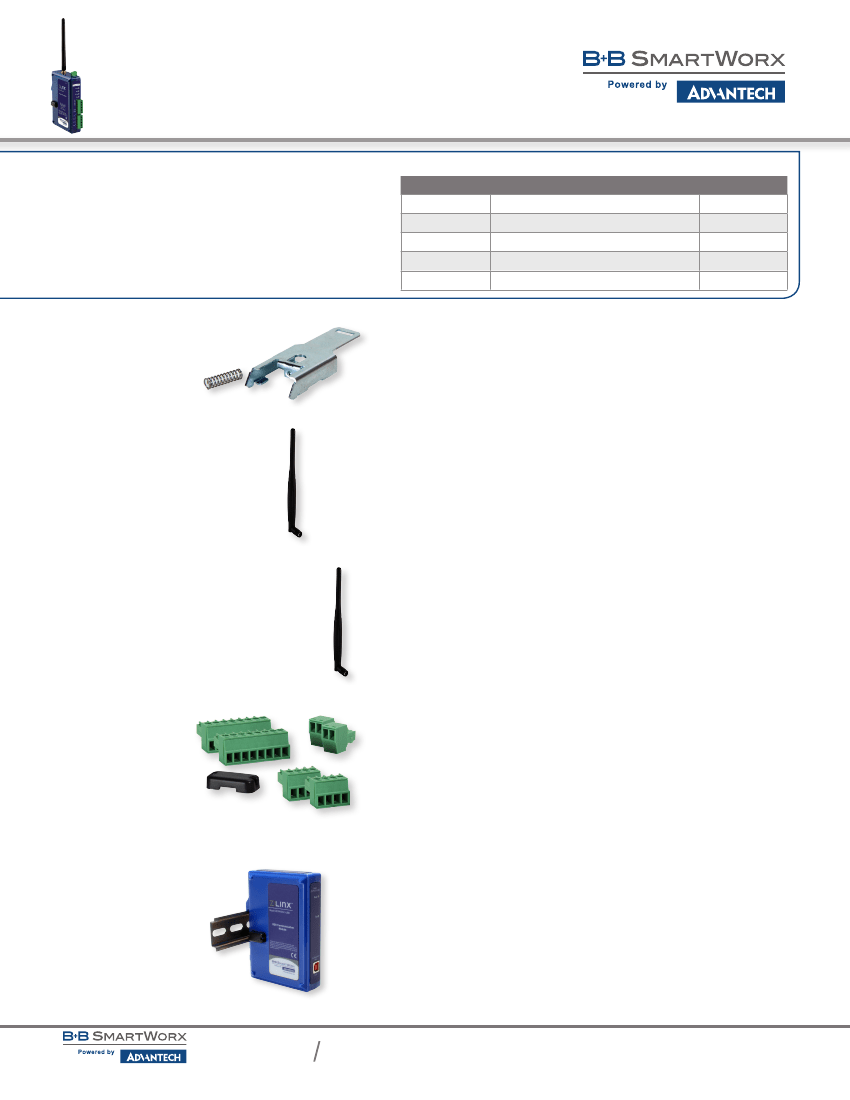

Accessories
– for Zlinx™ Standard Wireless IO products
ORDERING INFORMATION
MODEL NUMBER
DESCRIPTION
www.advantech-bb.com
ZZx series industrial I/O modules
add wireless remote I/O to Modbus
systems – from PLCs to HMIs to PC based software applications.
B+B SmartWorx offers a selection of accessories and replacement parts
for use with these products.
FOR USE WITH
ZZx Wireless I/O
ZZx Wireless I/O
ZZx Wireless I/O
ZZx Wireless I/O
ZZx Wireless I/O
ZP9D-DIN1
ZZ9D-ANT1
ZZ24D-ANT1
ZZ-TB1
ZZ-PROG1-USB
DIN Rail Mounting Clip, Spring, Screws
900 MHz, 2.1 dBi Antenna
2.4 GHz, 2.1 dBi Antenna
Terminal Blocks, DIP Switch Cover
USB Programming Module, Cable, Software CD
DIN Rail Mounting Bracket
Model ZP9D-DIN1
Model ZP9D-DIN1 is a spare/replacement DIN rail mounting bracket for B+B SmartWorx
Zlinx ZZx series standard industrial wireless I/O products.
+
Metal mounting bracket with spring and 4 screws included
900 MHz, 2.1 dBi Antenna
Model ZZ9D-ANT1
Model ZZ9D-ANT1 is a 900 MHz spare /replacement antenna for B+B SmartWorx
Zlinx ZZx series standard industrial wireless I/O products.
+
900 MHz, 2.1 dBi
+
RPSMA di-pole
2.4 GHz, 2.1 dBi Antenna
Model ZZ24D-ANT1
Model ZZ24D-ANT1 is a 2.4 GHz spare/replacement antenna for B+B SmartWorx
Zlinx ZZx series standard industrial wireless I/O products.
+
2.4 GHz, 2.1 dBi
+
RPSMA di-pole
Terminal Blocks & DIP Switch Cover
Model ZZ-TB1
Model ZZ-TB1 accessory kit includes removable terminal blocks and a DIP switch cover
for B+B SmartWorx Zlinx ZZx series standard industrial wireless I/O products. Includes:
+
(2)
+
(2)
+
(2)
+
(1)
2-position 3.5mm terminal block, 8A, 300V, 28-16 AWG
4-position 3.5mm terminal block, 8A, 300V, 28-16 AWG
8-position 3.5mm terminal block, 8A, 300V
protective DIP switch cover
USB Programming Module
Model ZZ-PROG1-USB
Model ZZ-PROG1-USB is a snap-on programming module with cable and software
CD for B+B SmartWorx Zlinx ZZx series standard industrial wireless I/O products. The
module provides a convenient way to interface base and expansion modules with a PC
and the software used to configure them. Includes:
+
ZZ-PROG1-USB Configuration Module with USB
interface instead of serial interface
+
Modbus-Mode Quick Start Guide (print)
+
Peer-to-Peer Mode Quick Start Guide (print)
+
1 USB cable, 1 meter
+
CD-ROM disc with:
• Zlinx I/O Manager Configuration Software
• Zlinx I/O Firmware Updater
• USB Driver
• Manual (PDF format)
• Modbus-Mode Quick Start Guide (PDF)
• Peer-to-Peer Mode Quick Start Guide (PDF)
All product specifications are subject to change without notice.
Accessories_ZlinxStdWirelessIO_5017ds
