Housing - HC-STA-B24-SLWS-2SSP21-ELC-AL - 1412879
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

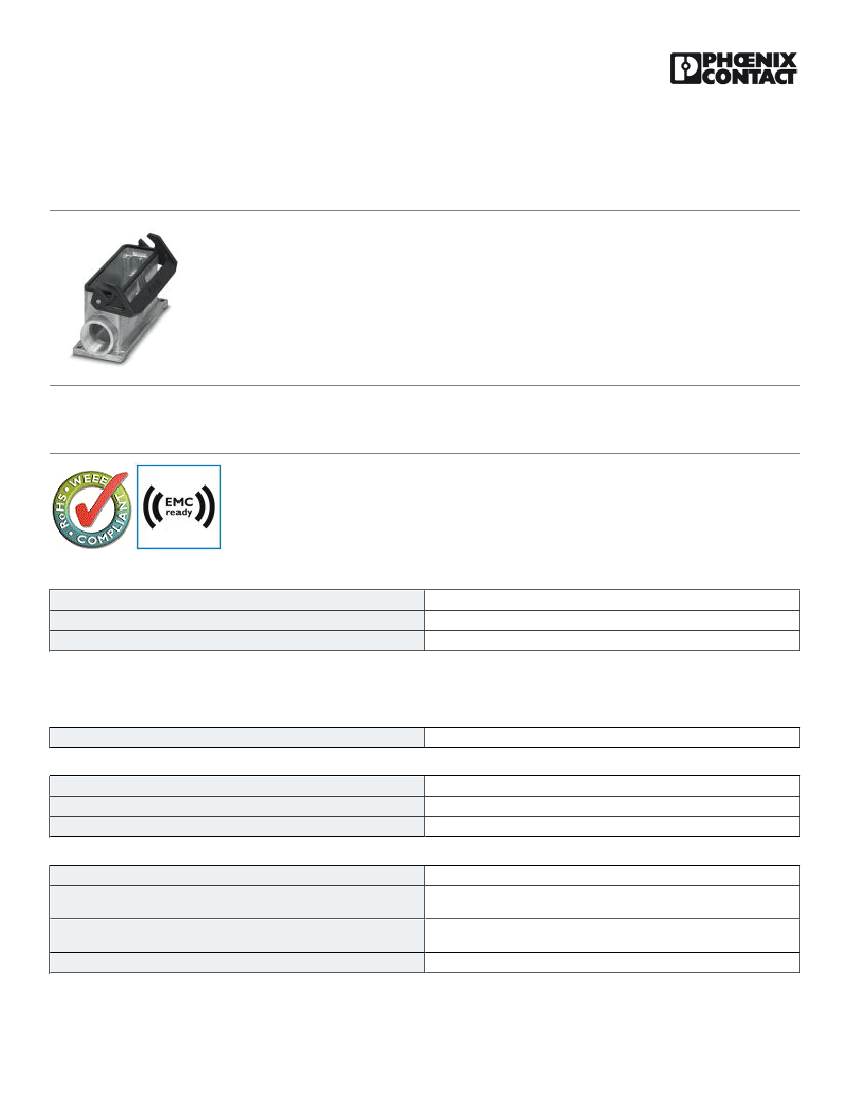

Box mounting bases B24, With single locking latch, Material: Die-cast aluminum, salt water resistant, Cable
outlets: 2, lateral, Height: 68 mm, Cable gland: none, Gland: Yes, 2x Pg21, Standard
Why buy this product
■
good shielding in the event of electromagnetic interference
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 STK
85389099
China
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
Dimensions
Height
Width
Length
68 mm
57 mm
144 mm
Ambient conditions
Degree of protection of housing (IP)
IP66 (for HC-EVO... / HC-STA... metal sleeve housing)
IP69K (ISO 20653:2013-02, with suitable cable gland/suitable filler plug, for
HC-EVO... / HC-STA... metal sleeve housing)
IP67 (with suitable screw connection/suitable filler plug, for HC-STA...
metal sleeve housing)
Degree of protection of housing (NEMA)
4
08/10/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1412879
Housing - HC-STA-B24-SLWS-2SSP21-ELC-AL - 1412879
Technical data
Ambient conditions
4X
12
Ambient temperature (operation)
-40 °C ... 125 °C
General
Note
Size
Housing type
Locking type
No. of cable outlets
Cable exit
Screw connection
Type of the screw connection
Housing material
Housing surface material
Material lock
Assembly instructions
for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M
B24
Box mounting bases
With single locking latch
2
lateral
none
2x Pg21
Die-cast aluminum, salt water resistant
Uncoated
PA
One opening is sealed with a plastic filler plug and can be opened using a
screwdriver.
Drawings
Dimensional drawing
68
Ø5,5
132
144
45
57
Dimensional drawing
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27143424
27143423
27440202
27440202
08/10/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1412879
Housing - HC-STA-B24-SLWS-2SSP21-ELC-AL - 1412879
Classifications
ETIM
ETIM 5.0
EC000437
Approvals
Approvals
Approvals
EAC / GL
Ex Approvals
Approvals submitted
Approval details
EAC
GL

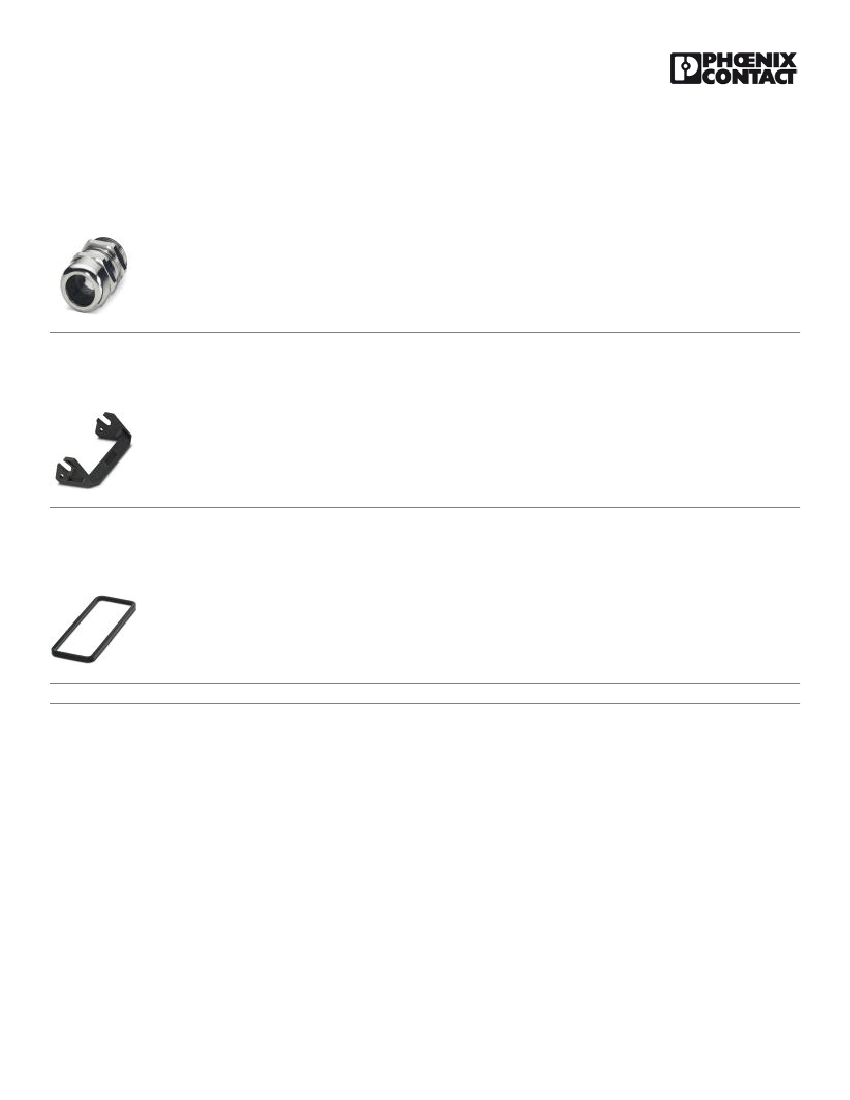

Accessories
Accessories
Full screw connection
Cable gland - G-INS-PG21-M68N-NNES-S - 1411175
Cable gland, Cable gland material: Brass, nickel-plated, External cable diameter 13 mm ... 18
mm, Shielding: No, Connecting thread: Pg21, Color: silver
08/10/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1412879
Housing - HC-STA-B24-SLWS-2SSP21-ELC-AL - 1412879
Accessories
Cable gland - G-INSEC-PG21-M68N-NNES-S - 1411200
Cable gland, Cable gland material: Brass, nickel-plated, External cable diameter 13 mm ... 18
mm, Shielding: yes, Connecting thread: Pg21, Color: silver
Housing latches
Replacement part - HC-STA-B24-SL-PLBK - 1412885
Single locking latch for B24 housing, HC-EVO....AL and HC-STA....AL
Seal
Profile gasket - HC-B24-SP-CBK - 1411482
Profile gasket for HEAVYCON EVO supporting base element type B24, conductive
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
08/10/2016 Page 4 / 4
