Sensor/actuator cable - SAC-4P-M 8MS/ 3,0-600/M 8FR FB - 1406865
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

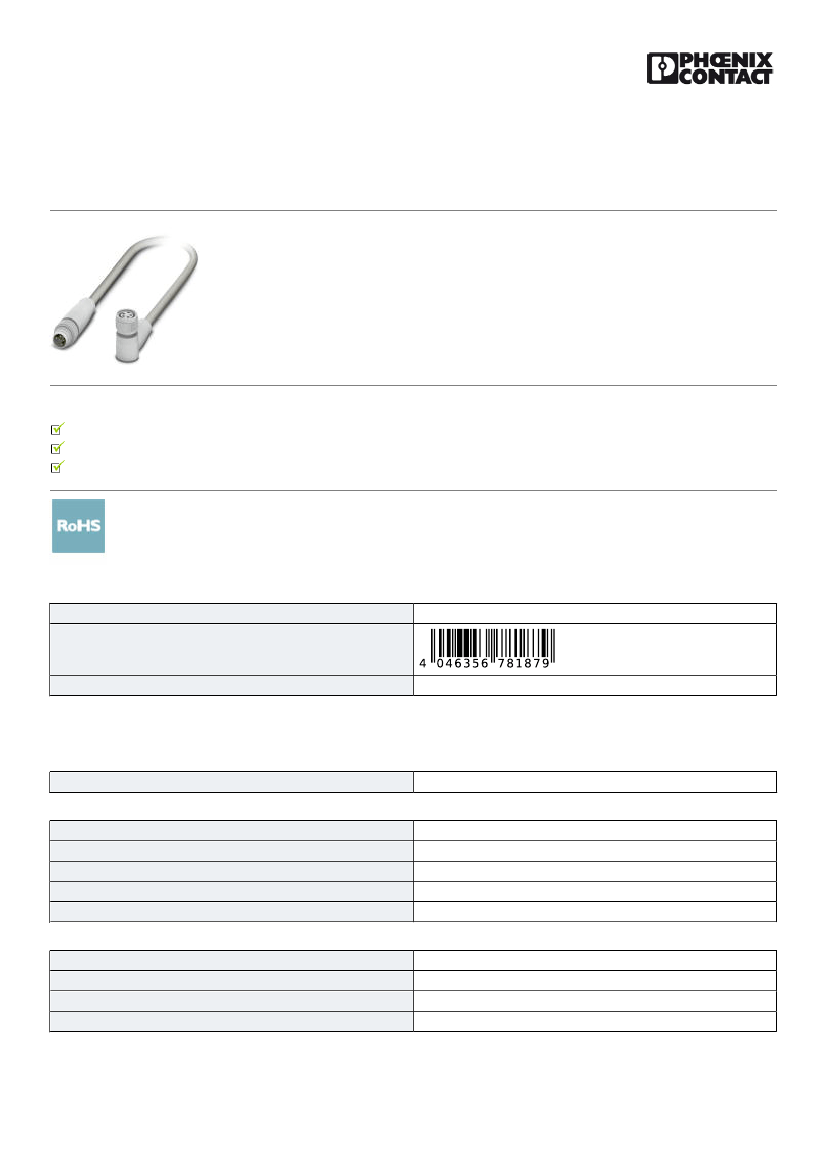

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M8, on Socket
angled M8, cable length: 3 m, Hygienic design, with plastic knurl
Your advantages
Easy and safe: 100% electrically tested plug-in components
Easy to clean, thanks to the special hygienic design
Contamination can be detected quickly – thanks to the light color
Key Commercial Data
Packing unit
GTIN
GTIN
4046356781879
1 pc
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 105 °C (Plug / socket)
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
Number of positions
4A
48 V AC
60 V DC
4
11/09/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1406865
Sensor/actuator cable - SAC-4P-M 8MS/ 3,0-600/M 8FR FB - 1406865
Technical data
General
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
≥ 100 MΩ
A - standard
M8 connector IEC 61076-2-104
Material conformance FDA 21 CFR 177.2600
No
Unwired
II
3
≥ 100
0.2 Nm (M8 connectors)
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
CuSn
Ni/Au
PP
PP
Polypropylene
FKM
Standards and Regulations
Standard designation
Standards/regulations
Standard designation
Standards/regulations
M8 connector
IEC 61076-2-104
Material conformance
FDA 21 CFR 177.2600
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Halogen-free PP gray
600
Li9Y14Y
4x 0.25 mm² (Signal line)
24
32x 0.10 mm
1.17 mm ±0.02 mm (Signal line)
≥ 0.21 mm (Core insulation)
brown, white, blue, black
4 wires, twisted
44 mm
gray RAL 7035
approx. 0.8 mm
4.5 mm ±0.15 mm
5xD
10 x D
11/09/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1406865
Sensor/actuator cable - SAC-4P-M 8MS/ 3,0-600/M 8FR FB - 1406865
Technical data
Cable
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Torsion force
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
4000000
10 x D
10 m
3 m/s
10 m/s²
± 270 °/m (4,000,000 torsion cycles, max. 25 torsion cycles/min)
23 kg/km
PP-EPDM
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
78 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
FDA compliant according to FDA 21 CFR 177.2600
highly flexible
Flexible cable conduit capable
Halogen-free
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Other resistance
Ambient temperature (operation)
Resistant to cold bending and cold impacts According to DIN EN
60811-1-4 (-40 °C)
-40 °C ... 105 °C (cable, fixed installation)
-25 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Schematic diagram
Schematic diagram
2
4
4
2
1
3
3
1
Pin assignment M8 plug, 4-pos., view male side
Pin assignment M8 socket, 4-pos., view female side
11/09/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1406865
Sensor/actuator cable - SAC-4P-M 8MS/ 3,0-600/M 8FR FB - 1406865

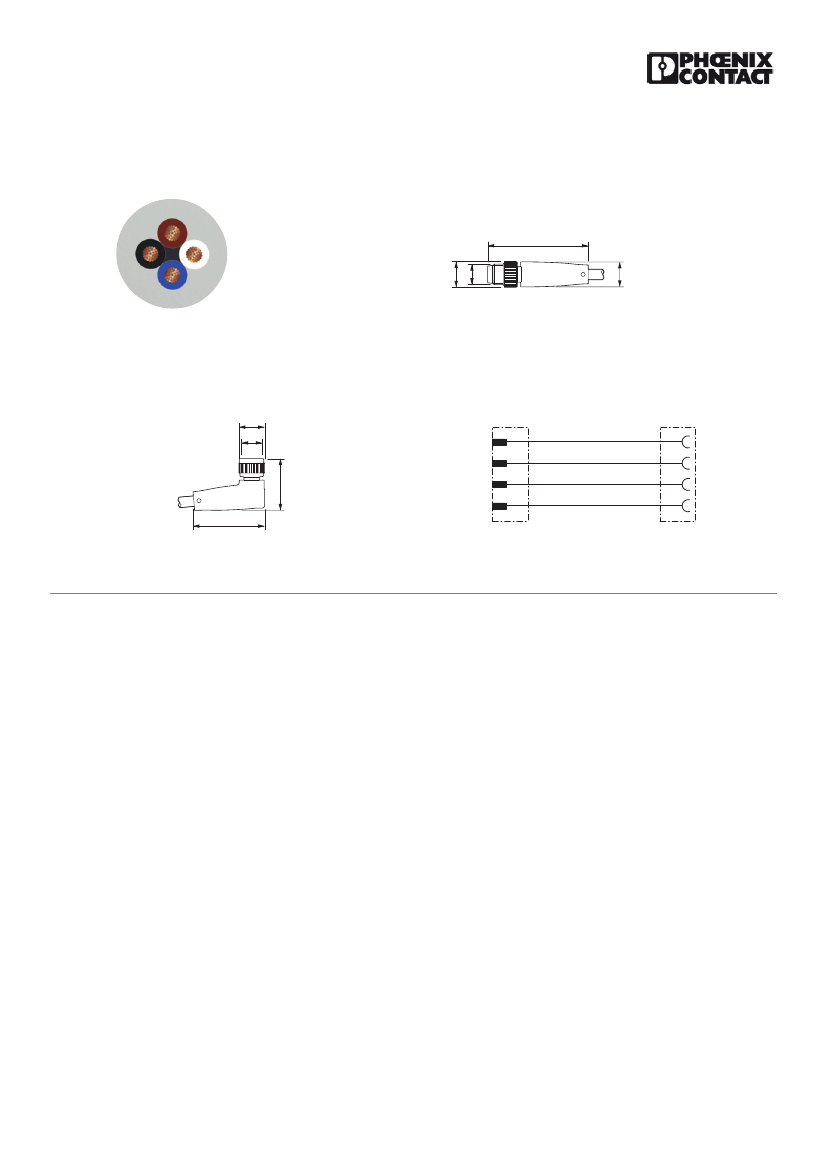

Cable cross section
Dimensional drawing
38,7
M8x1
Ø10
Halogen-free PP gray [600]
M8 x 1 male plug, straight version
Dimensional drawing
Ø10
M8x1
1
4
Circuit diagram
9,6
1
4
3
2
20
3
2
27,6
Socket M8 x 1, angled
Contact assignment of M8 plugs/sockets
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/09/2018 Page 4 / 4
