AN820002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> AN820002

AN820002: DescriptionTLAPS SENSOR NO MAGNET 0-360DEG; CategoryThe sensor; File Size230KB，1 Pages; ManufacturerZF Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

AN820002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AN820002	-	-	View	Buy Now

AN820002 Overview

TLAPS SENSOR NO MAGNET 0-360DEG

AN820002 Parametric

Parameter Name	Attribute value
for measurement	angle
technology	Hall Effect
Angle of rotation - electrical, mechanical	0° ~ 360°, continuous
linear range	-
output	Analog voltage
output signal	increasing clockwise
Actuator type	External magnet, not included
linearity	±3.5%
Resistor tolerance	-
Voltage - Power	5V
Installation type	Base installation
Terminal type	Connector
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

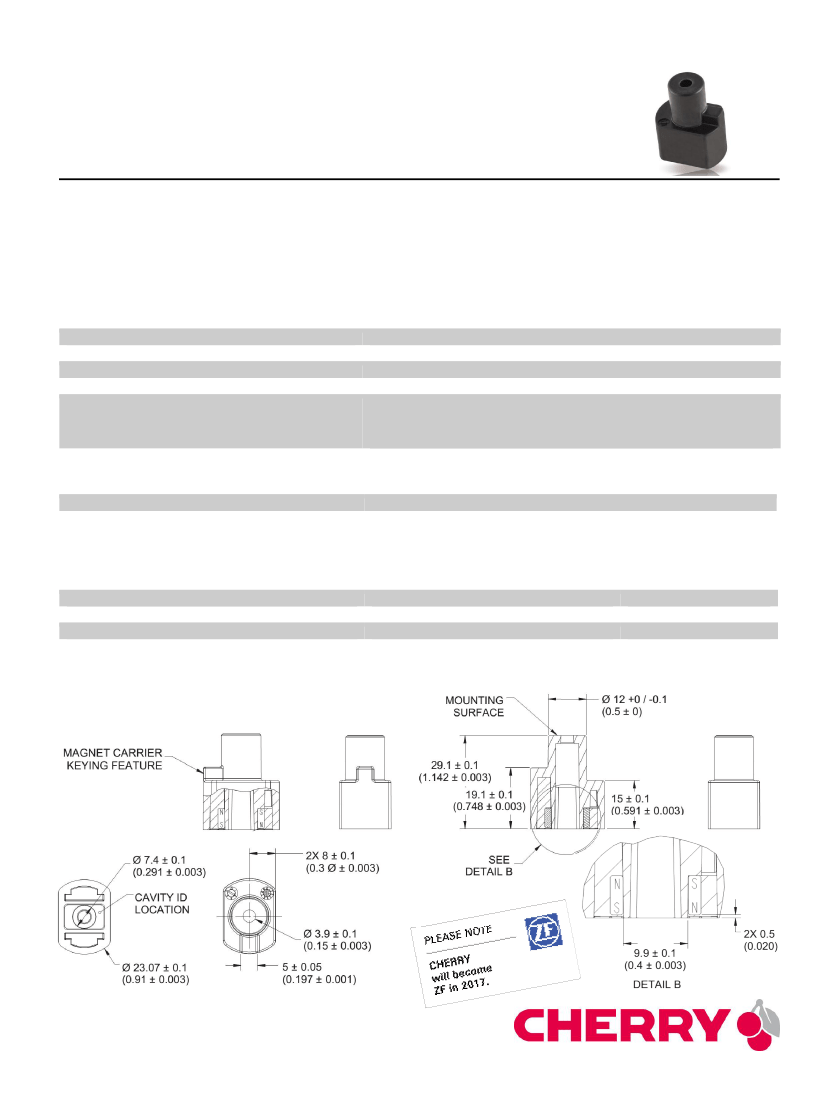

Angle Position Sensors

AS500106

Magnet carrier for use with Angle Position Sensors

Features



PPS housing

Samarium Cobalt 28 magnet

RoHS compliant

Environmental Specifications

Vibration

Operation Temperature

Storage Temperature

Salt Spray

Immersion

15g sinusoidal, 9.26g RMS axial; 40 Hz – 2 kHz all 3 axes

-40 °C to 125 °C (-40 °F to 257 °F)

-40 °C to 150 °C (-40 °F to 302 °F)

SAEJ1455, Section 4.3.3

Tested per SAE J 1455, Section 4.4.1: Engine oil and additives,

Transmission oils, Water, Power steering fluid, Brake fluids, Washer

solvent, Gasoline, Diesel fuel, Alcohol, Antifreeze water mixture, Battery

acid, Salt water, Kerosene, Ammonia

Mechanical Specifications

Recommended Fastener

Recommended Torque

M4 Cap Screw

3 Nm (26.5 in lbs)

Products

Part Number

AS500106

CU103601

CU103602

CU103603

Description

Magnet only

Kit with AN820001 sensor

Kit with AN820002 sensor

Kit with AN820003 sensor

Sensing Range

N/A

180°

360°

45°

Dimensions mm (inches)

www.cherryswitches.com

Page 1 of 1, last update 2014-10-29, Specifications subject to change without notice.

AN820002 Related Products

	AN820002	AS500106	CU103601	CU103602	AN820001	CU103603	AN820031	AN820032
Description	TLAPS SENSOR NO MAGNET 0-360DEG	Sensor Hardware & Accessories TLAPS Magnet Carrier	Industrial Motion & Position Sensors 180 Degree Sense Rg AN820001 w/Magnet	SENSOR MAGN PROG 5VDC RANGE 360	TLAPS SENSOR NO MAGNET 0-180DEG	SENSOR MAGN PROG 5VDC RANGE 45	SENSOR TLAPS WIRE VERSION 180DEG	SENSOR TLAPS WIRE VERSION 360DEG
for measurement	angle	-	-	angle	angle	angle	angle	angle
technology	Hall Effect	-	-	Hall Effect	Hall Effect	Hall Effect	Hall Effect	Hall Effect
Angle of rotation - electrical, mechanical	0° ~ 360°, continuous	-	-	0° ~ 360°, continuous	0° ~ 180°, continuous	0° ~ 45°, continuous	0° ~ 180°, continuous	0° ~ 360°, continuous
output	Analog voltage	-	-	Analog voltage	Analog voltage	Analog voltage	Analog voltage	Analog voltage
output signal	increasing clockwise	-	-	increasing clockwise	increasing clockwise	increasing clockwise	increasing clockwise	increasing clockwise
Actuator type	External magnet, not included	-	-	External magnet, included	External magnet, not included	External magnet, included	External magnet, not included	External magnet, not included
linearity	±3.5%	-	-	±3.5%	±3.5%	±3.5%	±3.5%	±3.5%
Voltage - Power	5V	-	-	5V	5V	5V	5V	5V
Installation type	Base installation	-	-	Base installation	Base installation	Base installation	Base installation	Base installation
Terminal type	Connector	-	-	Connector	Connector	Connector	Wire leads	Wire leads
Operating temperature	-40°C ~ 125°C	-	-	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 150°C	-40°C ~ 150°C
