Thermal Overcurrent Circuit Breakers 104/105/106-...

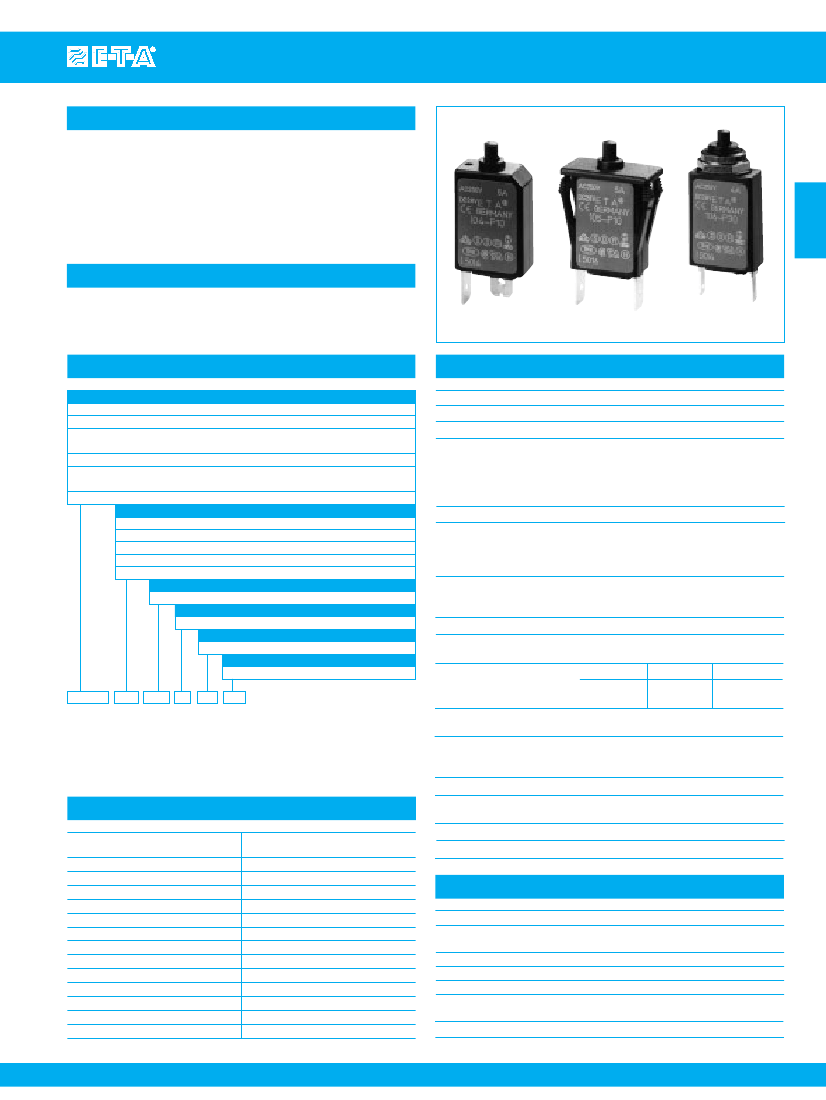

Description
Miniaturised single pole thermal circuit breaker with push-to-reset
tease free, trip-free, snap action mechanism (R-type TO CBE to EN
60934). Available in versions for PCB or panel mounting, snap-in or
threadneck, or as an integral type. Manual release facility optional for
type 105.
Approved to CBE standard EN 60934 (IEC 60934). For higher current
ratings see type 1140.
1
Typical applications
Motors, transformers, solenoids, printed circuit boards, hand-held
machines and appliances, marine applications, caravans.
104-...
Technical data
Voltage rating
Current ratings
Auxiliary circuit
Typical life
105-...
106-...
Ordering information
Type No.
104
PCB mounting type (-PR), or integral type (-P30/P10)
105
snap-in panel mounting
106
threadneck panel mounting with hex and knurled nut *
(international version)
106-M1 as 106 but for standard fuseholder cut-out * (double D)
106-M2 threadneck panel mounting 3/8-27UNS with collar, hex nut and
knurled nut* (US version)
106-M3 as 106-M2 but for standard fuseholder cut-out (double D)
Terminal design
P10
blade terminals A6.3-0.8 (QC .250)
P30
blade terminals A2.8-0.8 (QC .110)
PR
solder terminal pins for PCB mounting (type 104 only)
PR2
PCB mounting (vertical), type 104 only up to 6 A
PR3
PCB mounting (vertical), type 104 only
Shunt terminal
(optional)
A3 same as main terminals (up to I
N
6 A/3 A max. load)
Manual release facility
H
type 105 only
Auxiliary contacts
(optional)
Si51 type 104 only
Current ratings
0.05...10 A
106-M2 - P30
-
-
-5A
= ordering example
AC 240 V; DC 48 V (UL: AC 250 V)
0.05...10 A
0.5 A, AC 240 V, DC 28 V
0.05...5 A: 3,000 operations at 2 x I
N
6 ...8 A:
500 operations at 2 x I
N
10 A
50 operations at 2 x I
N
with -H: 0.05...8 A 2,000 operations at 1 x I
N
10 A
200 operations at 1 x I
N
-20...+60
°C
(-4...+140
°F)
T 60
Rated impulse
Pollution
withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
Test voltage
AC 3,000 V
>100 MΩ (DC 500 V)
0.05 ... 2 A 6 x I
N
2.5 ...10 A 5 x I
N
I
N
U
N
0.05...10 A
AC 250 V
0.05...10 A
DC 48 V
operating area IP 40
terminal area IP 00
10 g (57-500 Hz),±0.76 mm (10-57 Hz),
to IEC 60068-2-6, test Fc,
10 frequency cycles/axis
25 g ( 11 ms) to IEC 60068-2-27, test Ea
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH, to IEC 60068-2-3, test Ca
Ambient temperature
Insulation co-ordination
(IEC 60664 and 60664 A)
Dielectric strength
(IEC 60664 and 60664A)
operating area
Insulation resistance
Interrupting capacity I
cn
Interrupting capacity
(UL 1077)
Degree of protection
(IEC 60529/DIN 40050)
Vibration
2000 A
200 A
The exact part number required can be built up from the table of choices shown
above. Ordering references for optional features should be omitted if not required.
* mounting hardware bulk shipped
Packaging quantity: 125 pcs
Standard current ratings and typical internal resistance values
Current
rating (A)
0.05
0.08
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
1
1.2
1.5
Internal
resistance (Ω)
285
134
81
22
8.7
5.5
3.3
2.45
1.6
1.45
0.9
0.6
0.4
Current
rating (A)
1.8
2
2.5
3
3.5
4
4.5
5
6
7
8
10
Internal
resistance (Ω)
0.28
0.25
0.18
0.11
0.076
0.067
0.051
≤
0.05
≤
0.05
≤
0.05
≤
0.05
≤
0.05
Shock
Corrosion
Humidity
Mass
approx. 10 g
Approvals
Voltage ratings
AC 240 V
DC 48 V
Demko
AC 250 V, DC 28 V
CSA, UL
AC 250 V, DC 48 V
Semko
AC 250 V, DC 48 V
Kema (EN 60934)
AC 240 V
DC 48 V
Circuit breakers with -Si51 not approved
Authority
VDE (EN 60934), SEV
Current ratings
0,05...8 A
0.05...10 A
0.05...10 A
0.05...10 A
0.1...10 A
0,05...8 A
0.05...10 A
Issue C
☎
USA (847) 827-7600 - CANADA (905) 764-9510
27
Thermal Overcurrent Circuit Breakers 104/105/106-...

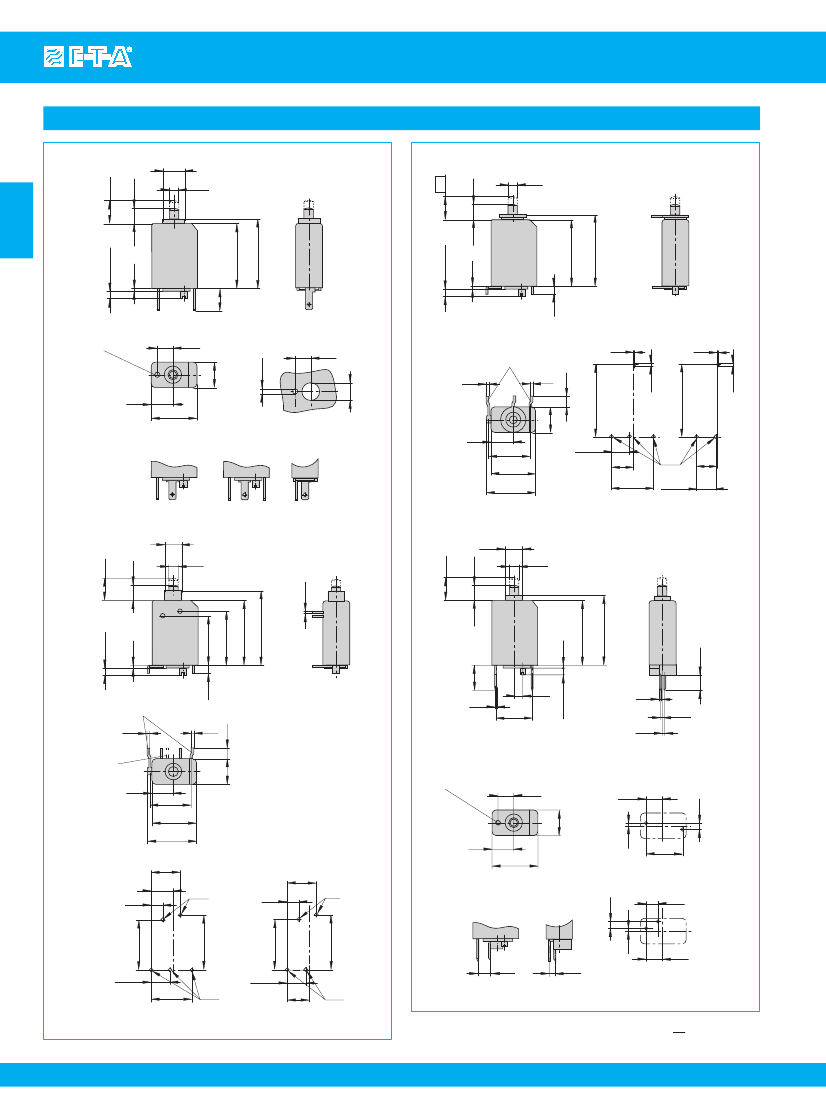

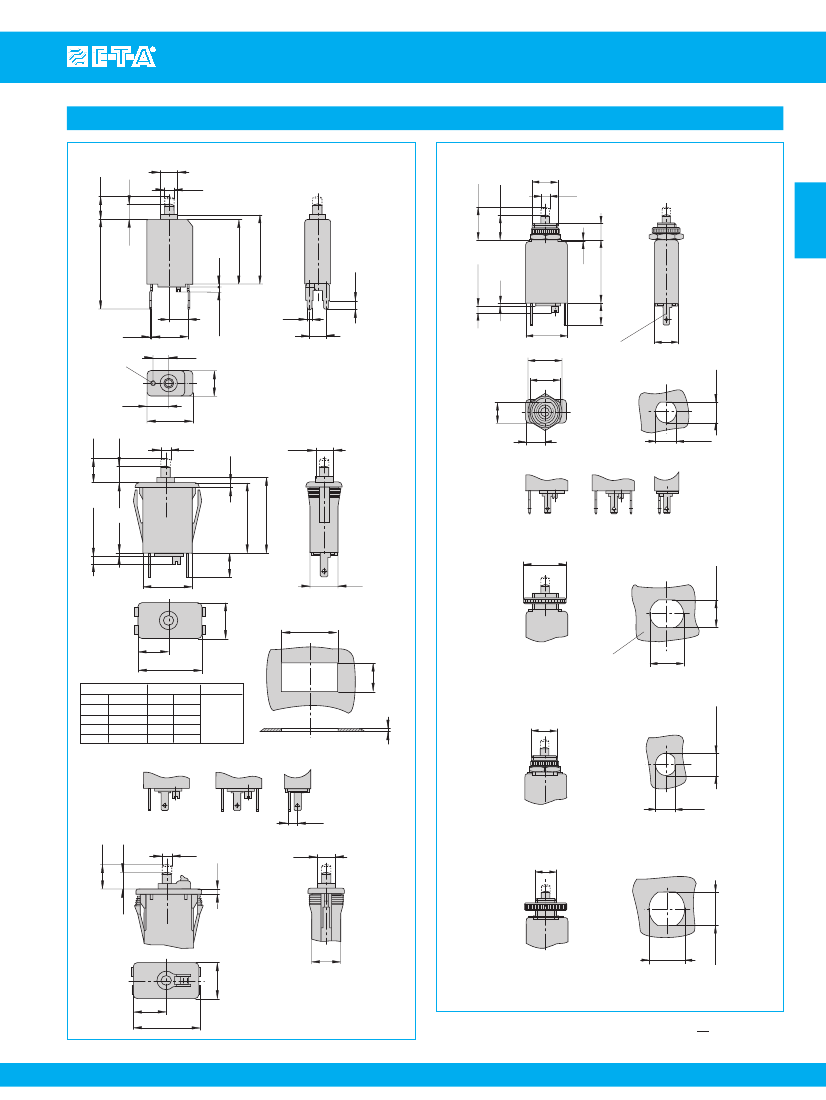

Installation drawings
104-…
operating area

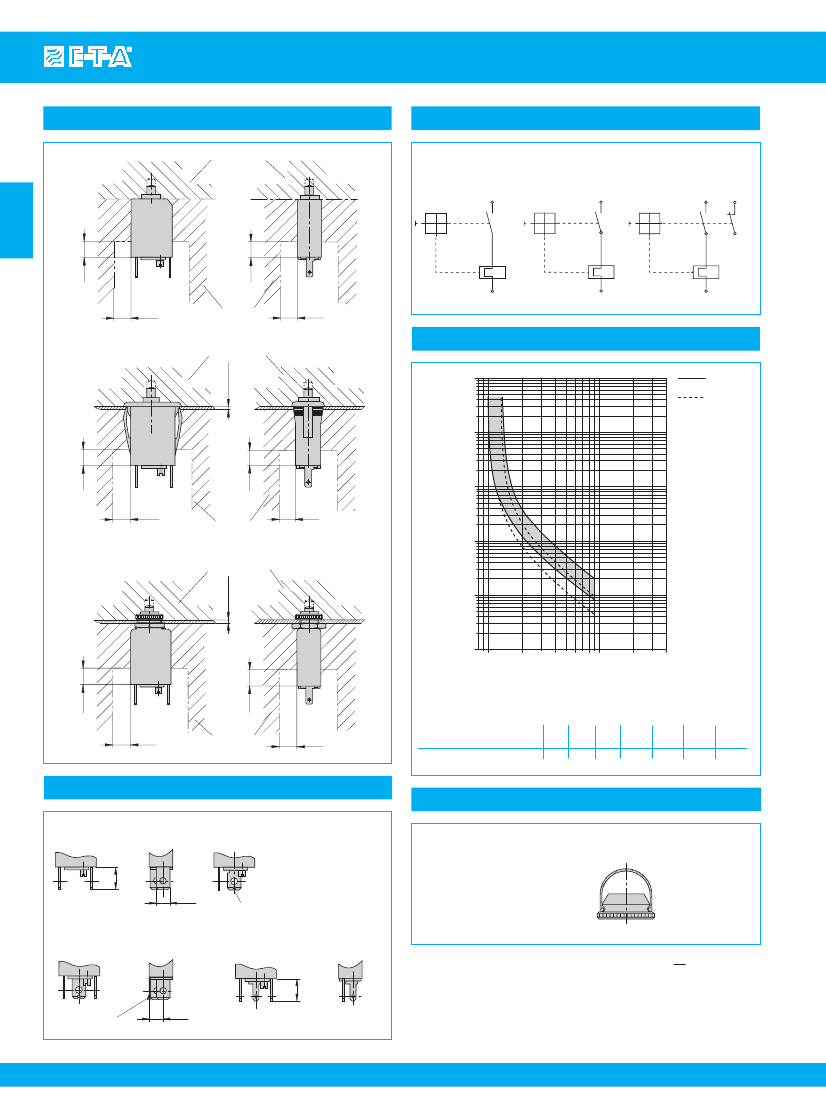

Internal connection diagrams
Types 104
105
106
1
Types 104-...-A3
105-...-A3
106-...-A3
1
Types 104-...-A3-Si51
1
5
1
8
.315
8
.315
2
2
3
3
4
2
8
.315
mounting area
8
.315
Typical time/current characteristics +23°C/+73.4°F
105-…
operating area
max. 2
max .079
10000
0.05 - 6 A
7 - 10 A
1000
Trip time in seconds
8
.315
8
.315
100
8
.315
mounting area
8
.315
10
106-…
operating area
max. 2
max .079
1
0.1
1
2
4
6 8 10
… times rated current
20
40
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the circuit
breaker current ratings by the derating factor shown below. See also section 9
– Technical information.
8
.315
8
.315
8
.315
8
.315
mounting area
Ambient temperature
°F
°C
Multiplication factor
-4
+14 +32 +73.4 +104 +122 +140
-20 -10 0
+23
+40
+50
+60
0.76 0.84 0.92 1
1.08 1.16
1.24
Terminal design
104/105/106-P10
0.05...6 A
7...10 A
blade terminals
DIN 46244-A6.3-0.8
(QC .250)
6.3
.248
polarizing tooth
Accessories
Water splash cover (transparent)/knurled nut assembly
(type 106-... only)
X 201 285 01
Degree of protection IP 64
104/105/106-P10-A3
0.05...6 A
10
.394
104/105/106-P30-A3
0.05...6 A
This is a metric design and millimeter dimensions take precedence
(
inch
)
mm
9.5
.374
polarizing tooth
5.3
.209
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications without
notice is reserved.Product markings may not be exactly as the ordering codes. Errors and
omissions excepted.
30
☎
USA (847) 827-7600 - CANADA (905) 764-9510
Issue C
