304080003 Overview

SINGLE DIGIT 7 SEGMENT SMD DISPL

304080003 Parametric

Parameter NameAttribute value
Number of characters1
size/dimensions0.591" high x 0.386" wide x 0.148" diameter (15.00mm x 9.80mm x 3.75mm)
Number/letter size0.39"(10.00mm)
display type7 segment display
Common pinscommon anode
colorred
Voltage - Forward (Vf) (Typical)2V
Current - Test25mA
millicandela level7.2mcd

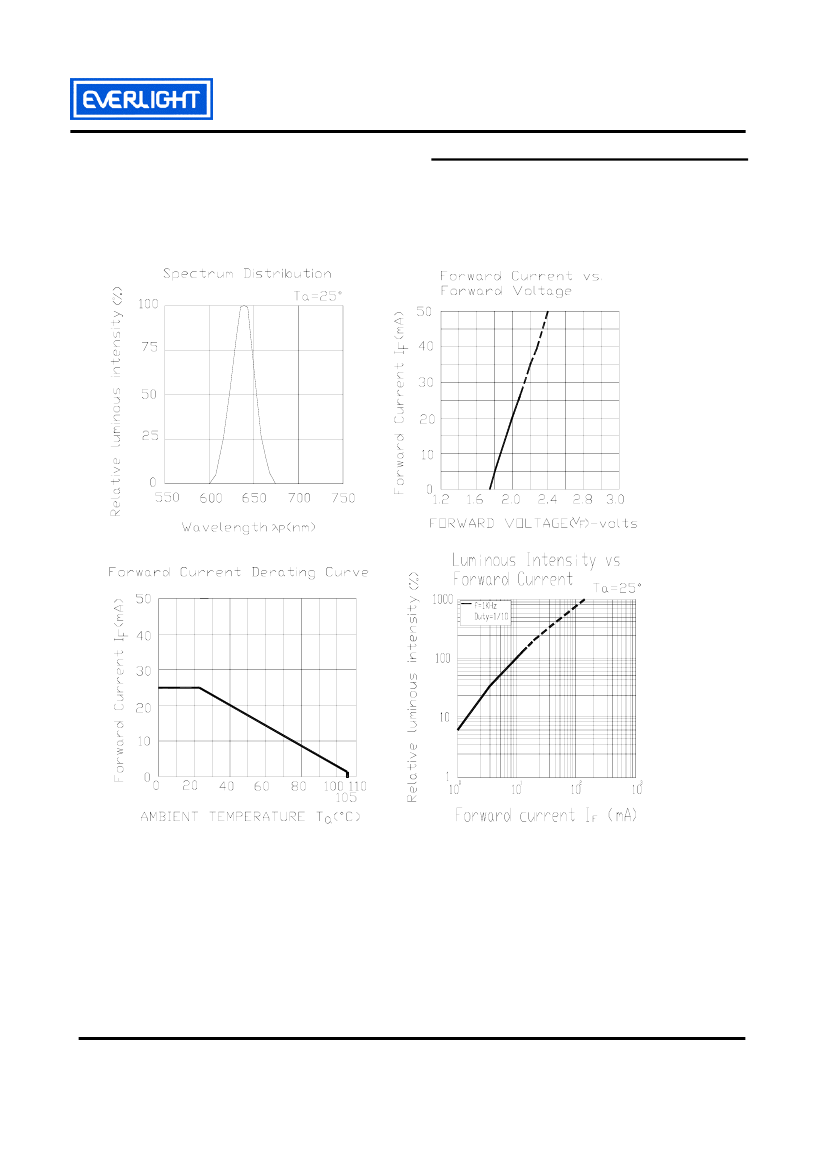

Wavelength - Peak632nm
Power dissipation (maximum)60mW

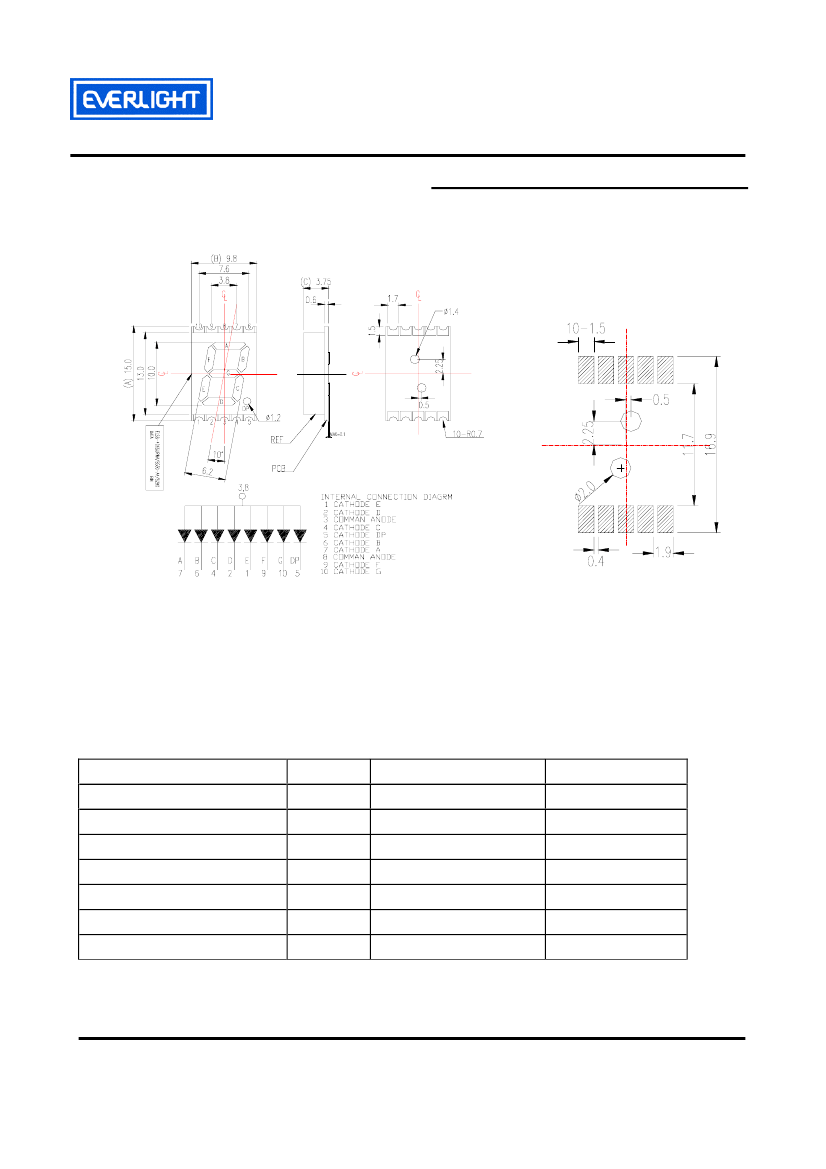

Package/casing10-SMD, no leads

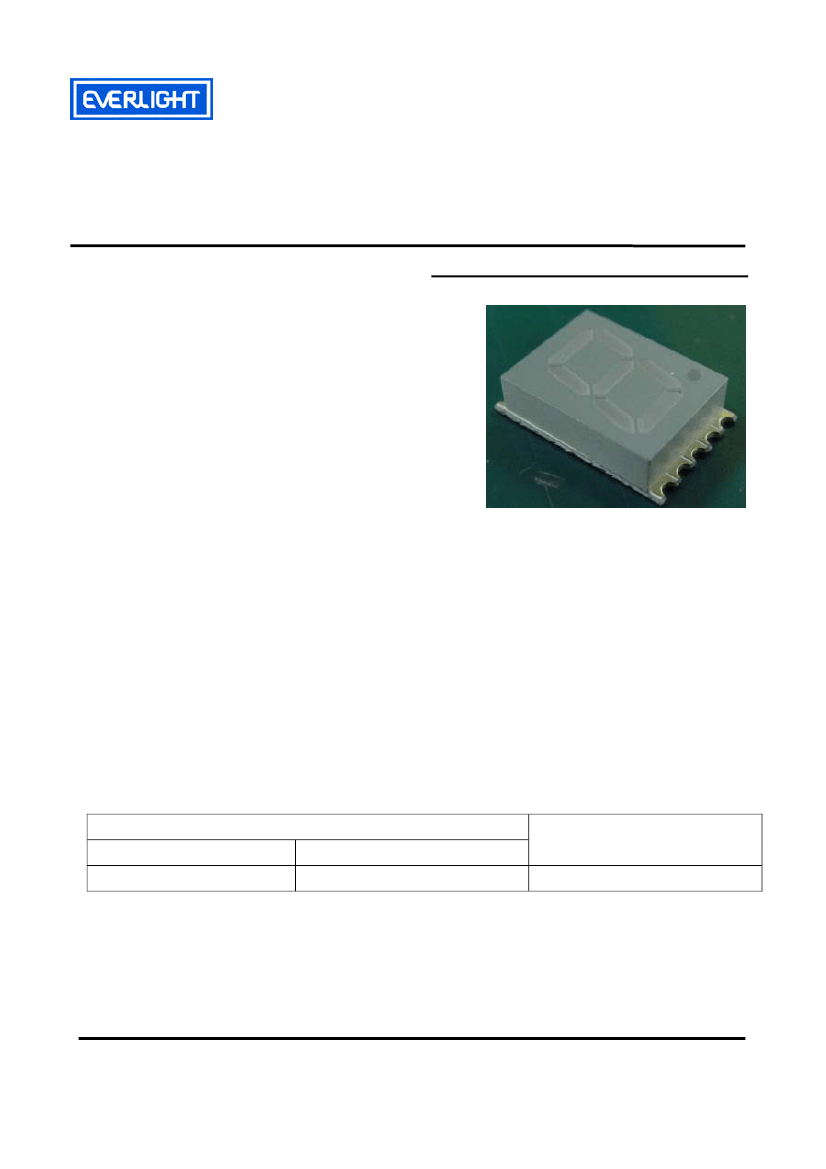

Technical Data Sheet
0.39" Single Digit SMD Displays
ELSS-406SURWA/S530-A2/S290
Features
˙Packaged
in tape and reel for SMT manufacturing.
˙Design
flexibility(common cathode or anode).
˙Categorized
for luminous intensity.
˙The
thickness is thinness than tradition display.
Descriptions
˙The
SMD type is much smaller than tradition
type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
Applications
˙Suitable
for indoor use.
˙Audio
system.
˙Set
top box.
˙Game
machine.
˙Channel
indicator of TV.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Hyper Red
Gray
Face Color
Everlight Electronics Co., Ltd.
Device No.:
http://www.everlight.com
Rev.
Page: 1 of 6
