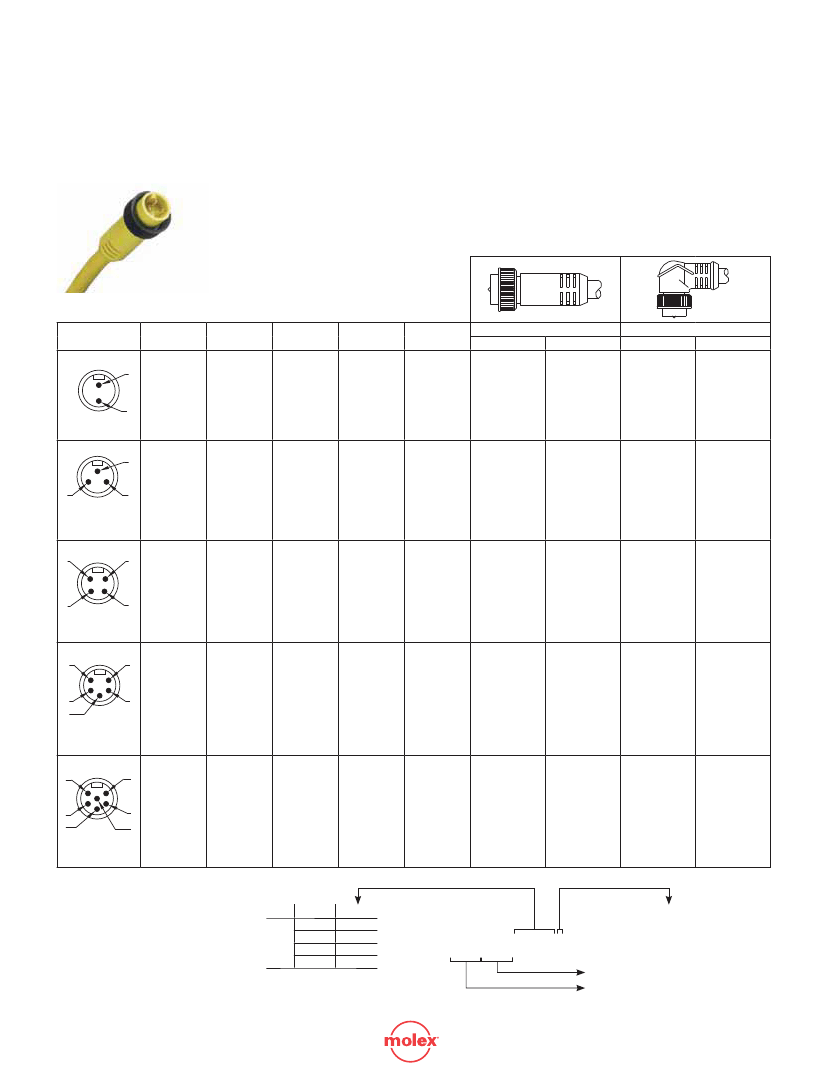

Brad
®
Mini-Change
®
A-Size Single-Ended Cordsets
130006
Male
Straight, Right Angle
Internal Thread
Features and Benefits
•
Low-resistance contact design with Gold over Nickel
plating
•
Epoxy coated coupling nut is corrosion and weld slag
resistant
•
Cable is oil, water and abrasion resistant
Reference Information
UL File No.: E152210
CSA File No.: LR6837
Electrical
Voltage: 600V AC/DC
Mechanical
Wire Size: 16 AWG
Cable Type: UL Type ST00W
Physical
Connector Face: PVC
Connector Body: PVC
Contact: Brass with Gold over Nickel plating
Coupling Nut: Black epoxy coated Zinc
Cable: UL Type STOOW, 105C
Hard Service Cord (A01)
Cable Jacket: PVC
Cable Jacket Color: Yellow
Operating Temperature: -20 to +105°C
Environmental
Protection: IP67
Poles
(Male View)
2 Pole
1
Current
Cable Type
Cable Jacket
(Cable Code)
Wire Size
AWG
Length
Male Straight
Engineering No.
Standard Order No.
Male Right Angle
Engineering No.
Standard Order No.
13.0A
2
1 - white
3 Pole
1
2 - black
STOOW
PVC (A01)
16
6'
102002A01F060
130006-0159
2
1 - green
2 - black
3 - white
3
13.0A
STOOW
PVC (A01)
16
6'
103002A01F060
130006-0534
103003A01F060
130006-0647
4 Pole
4
1
10.0A
3
1 - black
2 - white
3 - red
4 - grn-yel
5 Pole
1
5
STOOW
PVC (A01)
16
6'
104002A01F060
130006-0995
104003A01F060
130006-1087
2
2
4
8.0A
STOOW
PVC (A01)
16
6'
105002A01F060
130006-1438
105003A01F060
130006-1518
3
1 - red/white 4 - red/yel
2 - red
5 - red/blk
3 - green
6 Pole
1
5
4
2
3
6
1 - white
4 - orange
2 - red
5 - black
3 - green-gnd 6 - blue
8.0A
STOOW
PVC (A01)
16
6'
106002A01F060
130006-1675
Note: Sales drawings for all standard order numbers are available on molex.com
Coupling Nut Option
Configuration Code*
Build-a-Part Number
Feet
Length
3
6
12
20
Code
F030
F060
F120
F200
102002A01F0601
Stainless Steel . . . . .
1
Nonmetallic . . . . . .
2
Cable Code
Orientation Code
*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.
www.molex.com
141
