180-066-25-8-C: DescriptionFiber Optic Connector, Single Mode, Simplex, Plug; CategoryThe connector The connector; File Size219KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-066-25-8-C Overview

Fiber Optic Connector, Single Mode, Simplex, Plug

180-066-25-8-C Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	180-066
model	SINGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

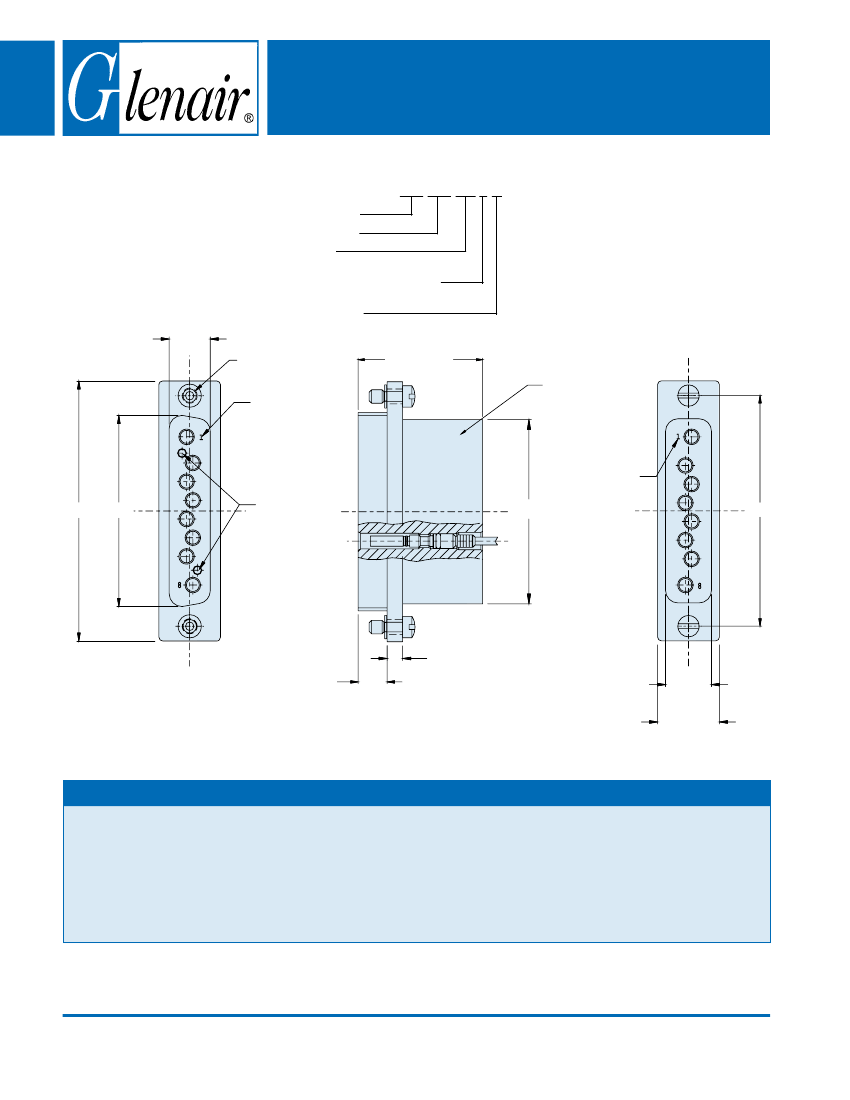

8 Channel D-Subminiature Fiber Optic Plug Connector

for Glenair Front Release Socket Terminus 181-011

180-066

Custom

Connector

System

D

1

180-066-15- 5-C

Product Series

Basic Number

Shell Size

(Table I)

Number of Fiber Optic Sockets

(Table I)

Finish (Table II)

.120 (3.0) Dia

2 Places

Cavity

Identification

No.1 Location

1.000 (25.4)

See Note 4

Cavity

Identification

No.1 Location

Alignment Pins

G

1

A

B

C

8

.125 (3.2)

.233 (5.9)

F

E

APPLICATION NOTES

1.

2.

Assembly to be identified with Glenair's name, Part Number

and date Code.

Material/Finish:

Shell: Aluminum Alloy/Black Anodized (Standard)

Jackscrew: Stainless Steel/Passivate

Retaining Ring: Cres

Fiber Optic Terminus to be ordered separately

(See Glenair Drawing #181-011-XXX).

4.

5.

6.

Backshell to be ordered separately (Consult Glenair for

available Backshell and Jackscrew Hardware).

This Connector Plug is designed to be used with Glenair

Part Number #180-065 (See Page H-8) Receptacle Connector.

Metric dimensions (mm) are in parentheses.

3.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

H-10
