ADM6996FCX-AC-T-1 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ADM6996FCX-AC-T-1

ADM6996FCX-AC-T-1: DescriptionIC ETHERNET SW CTRLR 128QFP; CategoryThe embedded processor and controller Microcontrollers and processors; File Size106KB，2 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ADM6996FCX-AC-T-1 Overview

IC ETHERNET SW CTRLR 128QFP

ADM6996FCX-AC-T-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	QFP
package instruction	GREEN, PLASTIC, QFP-128
Contacts	128
Reach Compliance Code	compliant
Other features	ALSO REQUIRES 3.3V SUPPLY
boundary scan	NO
maximum clock frequency	25 MHz
Data encoding/decoding methods	NRZ; NRZI; BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	12.5 MBps
JESD-30 code	R-PQFP-G128
length	20 mm
low power mode	NO
Number of serial I/Os	6
Number of terminals	128
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Package shape	RECTANGULAR
Package form	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	3.4 mm
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN

Preview

Download Datasheet

View All

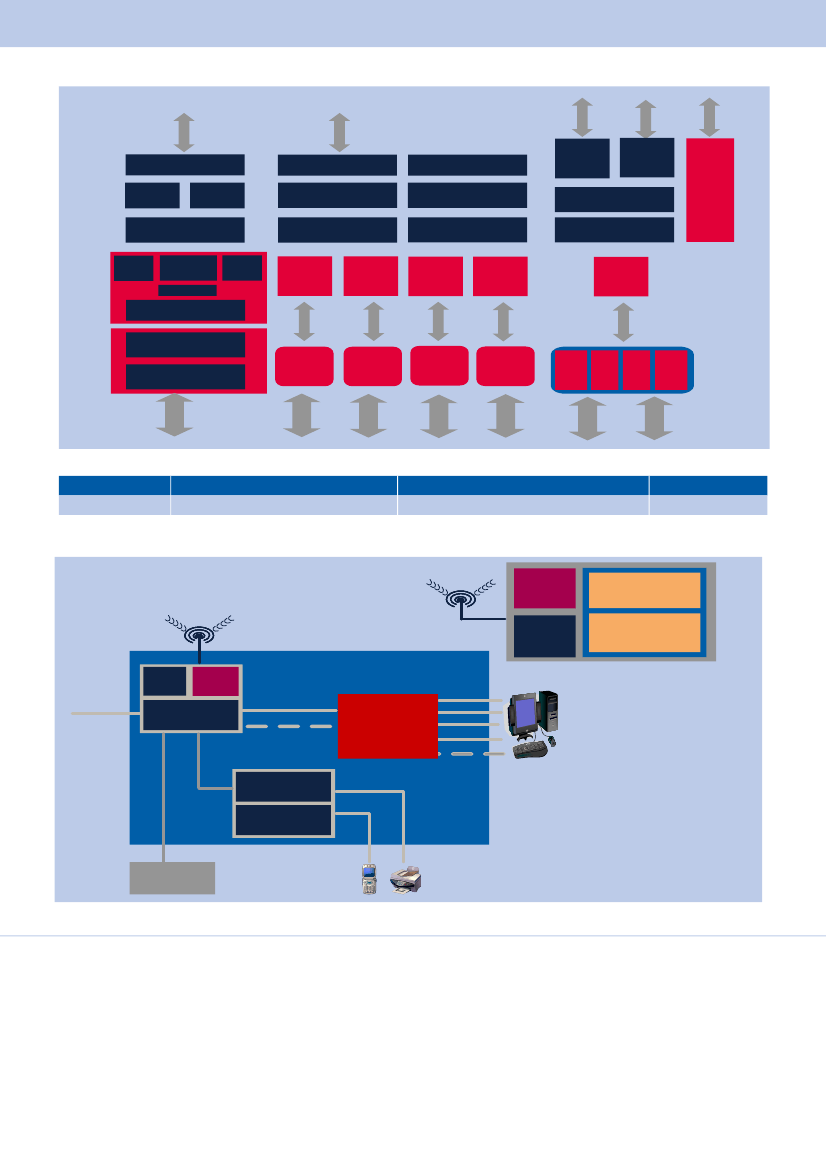

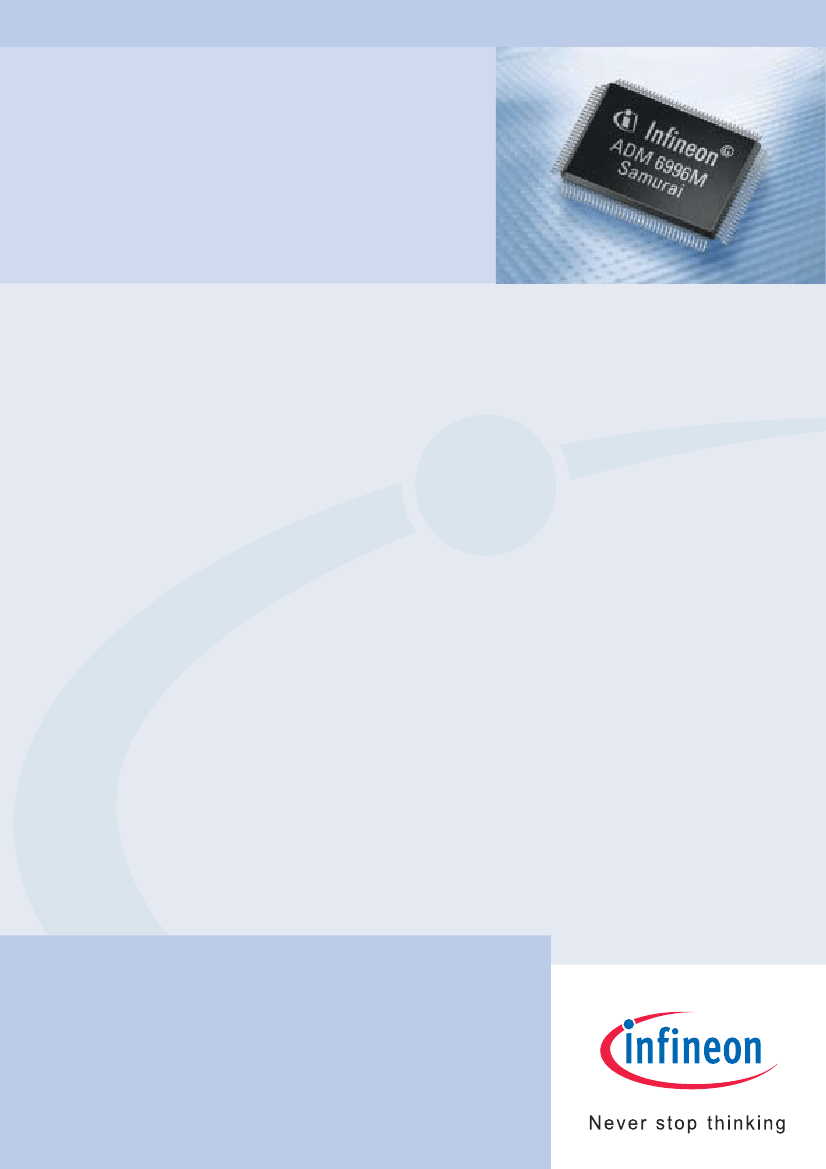

Product Brief

Samurai

ADM6996M/I/LC/FC and ADM6995LCL2

Ethernet Switch Controllers

Product Features

Samurai is a high performance, low cost, integrated (Controller, PHY and

Memory) six-port Ethernet switch controller with all ports supporting

10/100 Mb/s Full/Half duplex operation.

Advanced features such as Layer 4 QoS, 802.1p(QoS.), 802.1q(VLAN),

bandwidth control and switch management functions make the Samurai

one of the most innovative and economical low-port switches available in

the market.

Some of the Samurai’s benefits include low temperature and a small

footprint for complete design flexibility, advanced network monitoring

functions using the Port Mirror feature, Harware and Software IGMP for

VOD and excellent L4 Quality of Service (QoS) performance for

Multimedia applications.

The Samurai was designed using a New Design Application (NDA)

making it one of the most economical solutions available. With five

diffierent packaging options: Samurai 6M, 6I, 6LC , 6FC & 5LC and pin

compatibility with the legacy ADM6996/5L/F series, the Samurai offers

smooth migration aswell as new design flexibility for Infineon’s system

vendors.

■

Applications

■

ADSL Routers

Wireless/Wired Routers

Home Gateways

Cable Modems

Web DVDs

10/100 Mbps MDIX TX/FX transceivers with five/six-port

10/100M Ethernet L2 switch controller

Hardware and Software IGMP, MAC Table Access and

Port Mirror functions

L4 Ethernet Q.O.S.¡Security Functions: 802.1x, MAC

Address and “Accept/Reject” address control

dScalable Ingress/Egress Bandwidth Control-

64K~100M with 64K/Scale.

Port Mirror, Spanning Tree, Special Tag

PPPoE Identification- Receive PPPoE packet only

16 VLANs. Learn 12 Bits VLAN ID.

Supports MDC/MDIO applications

128-pin LQFP package

New features only available in the ADM6996M/I

packages:

– IPv4/v6 DiffServ priority

– TAG PRI Replacement- IGMP snooping

– Spanning Tree

– 802.1x, Port Mirroring and special Tag

– PPPoE and SNAP/ARP/RARP

New features unavailable in the ADM6996L/F and

ADM6995L legacy products:

– 2K, 4-layer hashing, accessible address table

– TCP/UDP destination port MAC Address DA priorities

– Maximum packet length support: 1784bytes

– RMII MAC interface

– Low power (1.0W)

– Advanced filter support such as TCP/UDP Destination

Port, IP Protocol ID and Ethernet Type

– Multicast Broadcast Storm protection

– 16 and 32bit SDC/SDIOADSL Routers

w w w. i n f i n eo n . c o m / c p e

Communications Solutions

ADM6996FCX-AC-T-1 Related Products

	ADM6996FCX-AC-T-1	ADM6996LC-AC-R-1	ADM6996LCX-AC-T-1	ADM6996FCX-AD-R-1	ADM6996FCX-AD-T-1	ADM6996IX-AD-R-1	ADM6996IX-AD-T-1	ADM6996LCX-AD-R-1	ADM6996LCX-AD-T-1	ADM6996MX-AD-T-1
Description	IC ETHERNET SW CTRLR 128QFP	IC ETHERNET SW CTRLR 128QFP	IC ETHERNET SW CTRLR 128QFP	IC SWITCH ETHER 5PORT 128-FQFP	IC SWITCH ETHER 5PORT 128-FQFP	IC SWITCH ETHER 5PORT 128-FQFP	IC SWITCH ETHER 5PORT 128-FQFP	IC SWITCH ETHER 5PORT 128-FQFP	IC SWITCH ETHER 5PORT 128-FQFP	IC SWITCH ETHER 5PORT 128-FQFP
Is it Rohs certified?	conform to	-	conform to	-	conform to	-	conform to	-	conform to	conform to
Parts packaging code	QFP	-	QFP	-	QFP	-	QFP	-	QFP	QFP
package instruction	GREEN, PLASTIC, QFP-128	-	GREEN, PLASTIC, QFP-128	-	FQFP,	-	FQFP,	-	FQFP,	FQFP,
Contacts	128	-	128	-	128	-	128	-	128	128
Reach Compliance Code	compliant	-	compliant	-	compliant	-	compliant	-	compliant	compliant
Other features	ALSO REQUIRES 3.3V SUPPLY	-	ALSO REQUIRES 3.3V SUPPLY	-	ALSO REQUIRES 3.3V SUPPLY	-	ALSO REQUIRES 3.3V SUPPLY	-	ALSO REQUIRES 3.3V SUPPLY	ALSO REQUIRES 3.3V SUPPLY
boundary scan	NO	-	NO	-	NO	-	NO	-	NO	NO
maximum clock frequency	25 MHz	-	25 MHz	-	25 MHz	-	25 MHz	-	25 MHz	25 MHz
Data encoding/decoding methods	NRZ; NRZI; BIPH-LEVEL(MANCHESTER)	-	NRZ; NRZI; BIPH-LEVEL(MANCHESTER)	-	NRZ; NRZI; BIPH-LEVEL(MANCHESTER)	-	NRZ; NRZI	-	NRZ; NRZI; BIPH-LEVEL(MANCHESTER)	NRZ; NRZI
Maximum data transfer rate	12.5 MBps	-	12.5 MBps	-	12.5 MBps	-	12.5 MBps	-	12.5 MBps	12.5 MBps
JESD-30 code	R-PQFP-G128	-	R-PQFP-G128	-	R-PQFP-G128	-	R-PQFP-G128	-	R-PQFP-G128	R-PQFP-G128
length	20 mm	-	20 mm	-	20 mm	-	20 mm	-	20 mm	20 mm
low power mode	NO	-	NO	-	NO	-	YES	-	YES	YES
Number of serial I/Os	6	-	6	-	6	-	7	-	6	7
Number of terminals	128	-	128	-	128	-	128	-	128	128
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	FQFP	-	FQFP	-	FQFP	-	FQFP	-	FQFP	FQFP
Package shape	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, FINE PITCH	-	FLATPACK, FINE PITCH	-	FLATPACK, FINE PITCH	-	FLATPACK, FINE PITCH	-	FLATPACK, FINE PITCH	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	260	-	260	-	260	-	260	-	260	260
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	3.4 mm	-	3.4 mm	-	3.4 mm	-	3.4 mm	-	3.4 mm	3.4 mm
Maximum supply voltage	1.89 V	-	1.89 V	-	1.89 V	-	1.89 V	-	1.89 V	1.89 V
Minimum supply voltage	1.71 V	-	1.71 V	-	1.71 V	-	1.71 V	-	1.71 V	1.71 V
Nominal supply voltage	1.8 V	-	1.8 V	-	1.8 V	-	1.8 V	-	1.8 V	1.8 V
surface mount	YES	-	YES	-	YES	-	YES	-	YES	YES
technology	CMOS	-	CMOS	-	CMOS	-	CMOS	-	CMOS	CMOS
Terminal form	GULL WING	-	GULL WING	-	GULL WING	-	GULL WING	-	GULL WING	GULL WING
Terminal pitch	0.5 mm	-	0.5 mm	-	0.5 mm	-	0.5 mm	-	0.5 mm	0.5 mm
Terminal location	QUAD	-	QUAD	-	QUAD	-	QUAD	-	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	40	-	40	-	40	40
width	14 mm	-	14 mm	-	14 mm	-	14 mm	-	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	-	SERIAL IO/COMMUNICATION CONTROLLER, LAN	-	SERIAL IO/COMMUNICATION CONTROLLER, LAN	-	SERIAL IO/COMMUNICATION CONTROLLER, LAN	-	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
