MODULE SERIES
Cutting edge Nordic Semiconductor SoC enables dual protocol capabilities to fast-
track time-to-market in sport & fitness and broader IoT applications.
Based on Nordic Semiconductor’s nRF5832 SoC, the D52 ANT SoC Module series offers
dual protocol ANT and Bluetooth Low Energy concurrent operation in a compact form
factor suitable for wearables. Featuring a built in antenna, as well as on board clock crystals
for highly accurate and ultra low power concurrent operation of ANT and BLE wireless
protocols, D52 modules give developers the opportunity to create products with enhanced
capabilities.
A complete 2.4GHz RF solution, the D52 module series allows developers to achieve faster
time-to-market for applications such as wearable technology, sport and fitness monitoring,
commercial and home IoT, battery powered sensors, high node count networks and more.
To further accelerate time-to-market, all modules carry radio certifications for global regions
including North America, Europe, Australia, New Zealand, Japan and Korea when operating
with ANT and BLE, and have been qualified by the Bluetooth SIG. D52Q models are
optionally available with an onboard accelerometer.
The D52 starter kit contains everything needed to begin developing with D52 modules, the
nRF52832 SoC, and ANT or BLE.
D52Q M6
Development
Module
D52QD2M6IA-A
D52M M8
Form Factor
D52MD2M8IA
D52Q M4
Form Factor
D52QD2M4IA,
D52QD2M4IA-A
D52 Starter Kit
D52DK1
D52 ANT SoC
DYNASTREAM.COM/D52
SALES@DYNASTREAM.COM

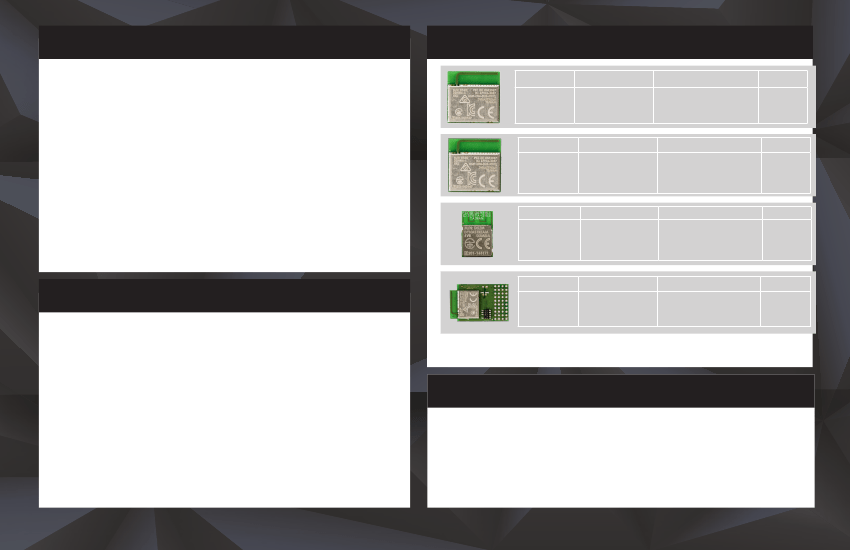

MODULE HARDWARE
• Integrated printed antenna
• On-board 32MHz and 20ppm
32.768 kHz crystal clocks
• Supply Voltage range:
- 1.7V to 3.6V (D52QD2M4IA)
- 1.71V to 3.6V (D52QD2M4IA-A)
• Operating temperature: Industrial
(-40°C to +85°C)
• Up to 30 GPIOs (D52QD2M4IA), 24 GPIOs
(D52QD2M4IA-A, D52CD2M8IA)
• Programmable output/channel from
-20dBm to 4dBm
• RoHS compliant
• Layout compatible options with
N5 M4, AP2, C7
• Excellent receiver sensitivity
-93dBm ANT mode (D52Q)
-96dBm BLE mode (D52Q)
• 1dBm resolution RSSI
• Total 512kB flash, 64kB RAM
• SPI, I2C and UART interface
• Onboard 3-axis MEMS accelerometer
(D52QD2M4IA-A)
• 2 programmable interrupt pins
• Radio regulatory approval for major
markets
• BLUETOOTH SIG qualification
• Pre-loaded with S210 ANT SoftDevice
and Network Processor application
https://www.thisisant.com/assets/D52Q.M4.250x250.png
MODELS
PART NUMBER
D52QD2M4IA
DESCRIPTION
20x20mm, 30GPIOs, 8
analog inputs
DESCRIPTION
20x20mm, 24GPIOs,
5 analog inputs;
onboard 3-axis MEMS
accelerometer
DESCRIPTION
ORDERING/PACKAGE INFO*
TRAY: 20pc in 4x5 tray
REEL: 800pc on 13” tape and reel
PART STATUS
Active
PART NUMBER
D52QD2M4IA-A
ORDERING/PACKAGE INFO*
TRAY: 20pc in 4x5 tray
REEL: 800pc on 13” tape and reel
ORDERING/PACKAGE INFO*
PART STATUS
Active
PART NUMBER
D52MD2M8IA
PART STATUS
Active
14.0x9.8x2.0mm,
TRAY: 40pc in 8x5 tray
24GPIOs, 8 analog inputs REEL: 1500pc on 13” tape and reel
(when loaded with S212 or S332 SoftDevice)
ANT® OPERATION
PART NUMBER
D52D2M6IA-A
• 79 selectable RF channels (2402 to 2480
MHz)
• Simple to complex network topologies:
peer-to-peer, star, tree, star-to-star and more
• Broadcast, acknowledged, and burst data
communication modes
• Built-in device search and pairing
• Built-in interference handling and radio
coexistence management with application
radio disable requests and application flash
write/erase requests
• Enhanced ANT features
- Supports up to 15 logical channels each
with configurable channel periods
(5.2ms - 2s)
- Advanced burst data transfer modes
(up to 60kbps)
- Optional channel encryption mode
(AES-128)
- Supports up to 8 public, private
and/or managed networks
- Advanced power management
features to optimize application power
consumption including Event Filtering &
Selective data updates
- Asynchronous transmit channel
- Fast channel initiation
DESCRIPTION
Mounted on a carrier
board for starter kit &
development use
ORDERING/PACKAGE INFO*
TRAY: 10 pc on 150x165mm tray
PART STATUS
Active
*Dynastream D52 ANT SoC series modules are available in tray and tape and reel packaging
CONTACT SALES@DYNASTREAM.COM FOR PRICING AND MORE INFORMATION
(when loaded with the S332 SoftDevice)
BLUETOOTH® OPERATION*
• Link layer
• L2CAP, ATT, and SM protocols
• GATT and GAP APIs
• GATT Client and Server
* Bluetooth only mode when
loaded with the S132 SoftDevice
• Bluetooth 4. 2 compliant low energy single
mode protocol stack suitable for Bluetooth
low energy products
• Concurrent Central, Observer, Peripheral,
and Broadcaster roles with up to:
- Multiple connections as a central
- One connection as a peripheral
- Observe & Broadcaster
