5090: DescriptionCONN ADAPT TRIAX PLUG - BNC JACK; CategoryThe connector; File Size192KB，1 Pages; ManufacturerPomona Electronics; Environmental Compliance

Download Datasheet Parametric View All

5090 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5090	-	-	View	Buy Now

5090 Overview

CONN ADAPT TRIAX PLUG - BNC JACK

5090 Parametric

Parameter Name	Attribute value
Adapter type	plug to jack
conversion type	Across series
Adapter series	BNC to BNC three-axis
neutral	female to male
Convert from (adapter side)	BNC triaxial plug, male pins
Convert to (adapter side)	BNC jack, female jack
impedance	-
style	Straight
Installation type	free hanging
Installation features	-
Fastening type	bayonet lock, bayonet lock
Frequency - maximum	500MHz
Intrusion protection	-
Center contact plating	gold
characteristic	-
include	-
Matrix material	brass
substrate surface	nickel
center contact material	Copper beryllium, brass
dielectric materials	Polytetrafluoroethylene (PTFE)
Number of patches	-
Insertion loss	-
Operating temperature	-

Preview

Download Datasheet

View All

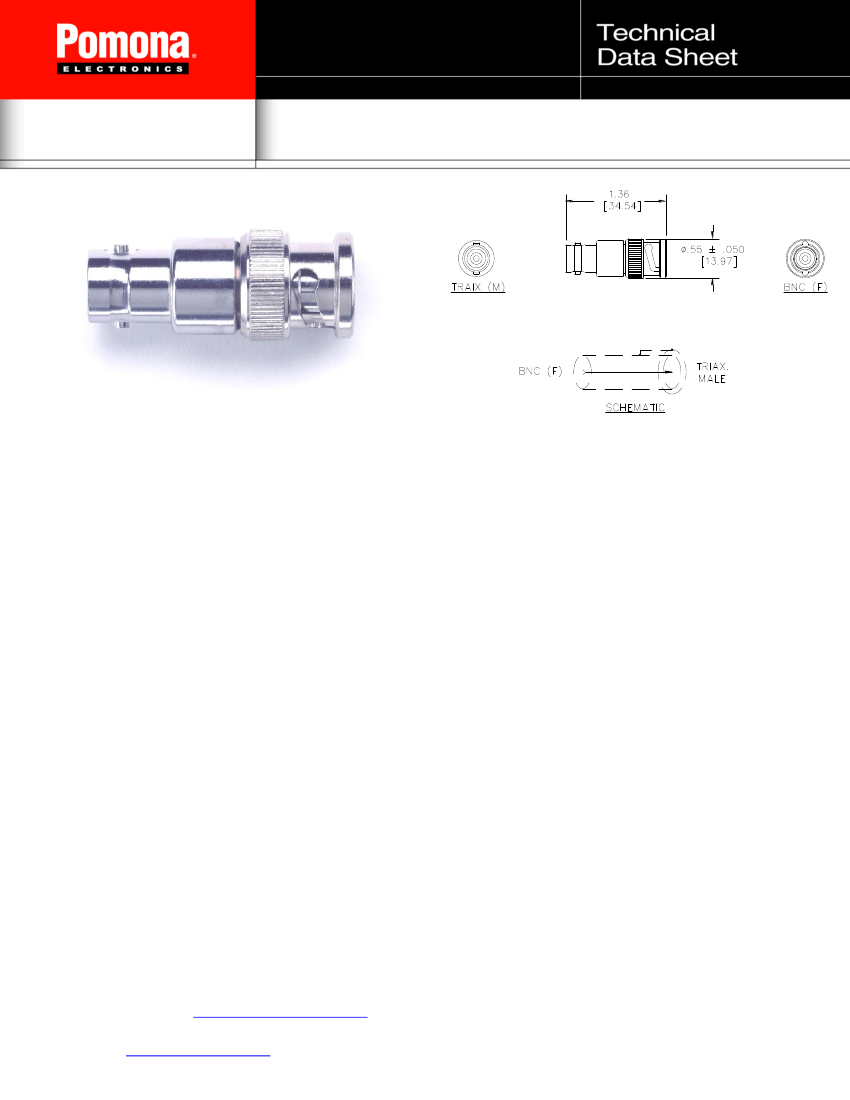

Model 5090

BNC (F) to 2 Lug Triaxial (M) Adapter

Model 5090

BNC (F) to 2 Lug Triaxial (M) Adapter

Features



Provides an easy interface between a BNC (F) and a 2 Lug Triax (M).

Materials

Body:

Dielectric:

Center Contact:

Outer Contact:

Marking:

Brass, Tarnish Resistant Nickel Plated

PTFE per L-P-403

Male – Brass, Gold Plated

Female – Beryllium Copper, Gold Plated

Beryllium Copper, Tarnish Resistant

“POMONA 5090” (optional)

Ratings

For

CE compliance

and for personal safety, do not hold in hand when voltages

exceed 30 Vrms/60 Vdc.

Maximum voltage for

hands free use

in controlled testing environments: 500 Vdc

Do not use on circuits where transient stresses can exceed the rated voltage.

Frequency Range: DC to 500 MHz

Voltage:

Ordering Information

Model: 5090

BNC (F)/2 LUG TRIAXIAL (M)

USA:

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1094198 Rev. 101

Page 1 of 1
