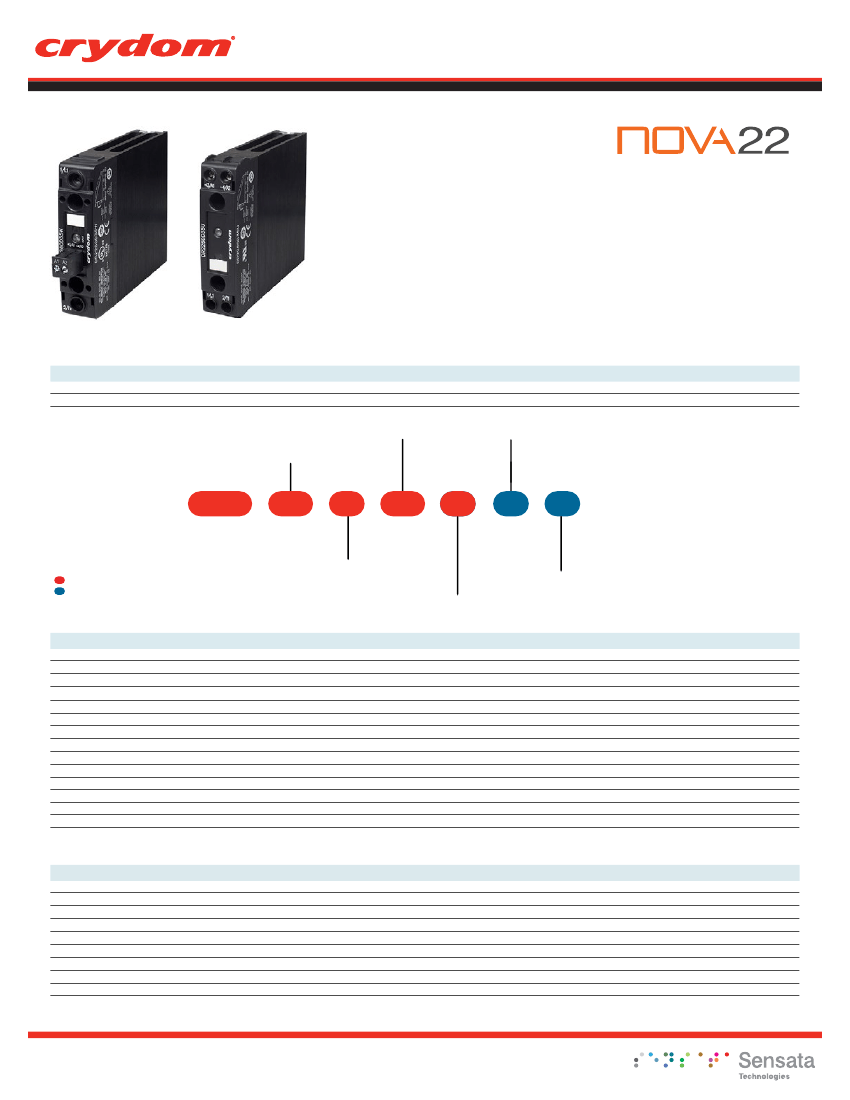

Datasheet
DR22 Series
AC Output DIN Rail Mount SSRs
•
Output ratings up to 35 Amps at 600 VAC
•
Built-in overvoltage protection
•
Relay or Contactor configuration
•
Integral heat sink eliminates the need for complex thermal calculations
•
DBC substrate for superior thermal performance
•
"Elevator" screw option to allow the use of ring or lug type terminals
•
IP20 touch-safe housing
•
AC or DC control
•
C-UL-US and TUV approved
20A
DR2260A20x
DR2260D20x
DIN Rail Mount
PRODUCT SELECTION
Control Voltage
90-280 VAC/VDC
4-32 VDC
30A
DR2260A30x
DR2260D30x
35A
DR2260A35x
DR2260D35x
AVAILABLE OPTIONS
Series
Operating Voltage
60:
48-600 VAC
Rated Load Current
20:
20 Amps
30:
30 Amps
35:
35 Amps [High I
2
t]
Switching Type
Blank:
Zero Voltage Turn-On
R:
Instantaneous Turn-On
(Motor Rating Certified)
DR22
60
A
20
U
V
R
J
Control Voltage
(1)
A:
90-280 VAC/VDC
D:
4-32 VDC
Required for valid part number
For options only and not required for valid part number
Terminal Layout
Input Connector
U:
Relay Configuration
Blank:
Screw Terminal
V:
Contactor Configuration
J:
Spring Terminal
(std. screw)
(V and W suffixes only)
W:
Contactor Configuration
(elevator screw)
OUTPUT SPECIFICATIONS
(2)
Description
Operating Voltage (47-440Hz) [V
RMS
]
Transient Overvoltage [Vpk]
(3)
Maximum Off-State Leakage Current @ Rated Voltage [mA
RMS
]
Minimum Off-State dV/dt @ Maximum Rated Voltage [V/ sec]
Load Current, General Use UL508/LC A IEC62314 @ 40°C [A
RMS
]
Load Current, Motor Starting UL508 FLA/LC B IEC62314 @ 40°C [A
RMS
]
Minimum Load Current [mA
RMS
]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Minimum Power Factor (at Maximum Load)
(4)
Motor Rating UL 508/IEC62314 [HP (kW)]: 120 VAC
Motor Rating UL 508/IEC62314 [HP (kW)]: 240 VAC
Motor Rating UL 508/IEC62314 [HP (kW)]: 480 VAC
20A
48-600
1200
1
500
20
8.5/4.8
100
286/300
1.35
409/375
0.5
0.5 (0.37)
1.5 (1.1)
3 (2.24)
30A
48-600
1200
1
500
30
14/7.6
100
716/750
1.35
2563/2343
0.5
1 (0.74)
3 (2.2)
5 (3.7)
35A
48-600
1200
1
500
35
26/14
150
1290/1350
1.3
8320/7593
0.5
2 (1.5)
5 (3.73)
10 (7.4)
INPUT SPECIFICATIONS
(2)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
DR2260Dxxx
4-32 VDC
(5)
-32 VDC
4 VDC
1 VDC
10 mA
15 mA
Current Limited
1/2 Cycle
(7)
1/2 Cycle
DR2260Axxx
90-280 VAC/VDC
(6)
-
90 VAC/VDC
5 VAC/VDC
6 mA
10 mA
Current Limited
20
30
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet
GENERAL SPECIFICATIONS
(2)
Description
Dielectric Strength, Input to Output (50/60Hz)
Dielectric Strength, Input/Output to Case (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
(8)
Ambient Storage Temperature Range
Short Circuit Current Rating
(9)
Weight (typical)
Housing Material
Heat Sink Material
Din Rail Clip Material
Hardware Finish
Input Terminal Screw Torque Range (lb-in/Nm)
Load Terminal Screw Torque Range (lb-in/Nm)
Humidity
LED Input Status Indicator
DIN Rail Mount
Parameters
4000 V
RMS
4000 V
RMS
10
9
Ohms
8 pF
-40 to 80 °C
-40 to 100 °C
100kA
Option “U” 10.5 oz (298 g), Option “V”,“W” 10.6 oz (301 g)
UL94 V-0
Aluminum
Zink Plated Steel
Nickel Plating
Option “U” 13-15/1.5-1.7, Option “V”,“W” 5/0.5
(10)
Option “U” 13-15/1.5-1.7, Option “V”,“W” 18-20/2-2.2
95% non-condensing
Green
INPUT CURRENT INFORMATION
4-32 VDC Input
14
7
12
6
5
4
3
2
1
0
5
10
15
20
25
30
35
0
0
40
80
120
160
200
240
280
90-280 VAC/VDC Input
Input Current (mA)
10
8
6
4
2
0
Input Current (mA)
Input Voltage (VDC)
Input Voltage (VAC/VDC)
SURGE CURRENT INFORMATION
DR2260x20x
Surge Current (Amp) AC Peak
Surge Current (Amp) AC Peak
300
250
200
150
100
50
0
0.01
0.1
1
10
700
600
500
400
300
200
100
0
0.01
0.1
1
10
DR2260x30x
Surge Duration (sec)
Surge Duration (sec)
DR2260x35x
Surge Current (Amp) AC Peak
1400
1200
1000
800
600
400
200
0
0.01
0.1
1
10
Single Pulse
(11)
Surge Duration (sec)
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet

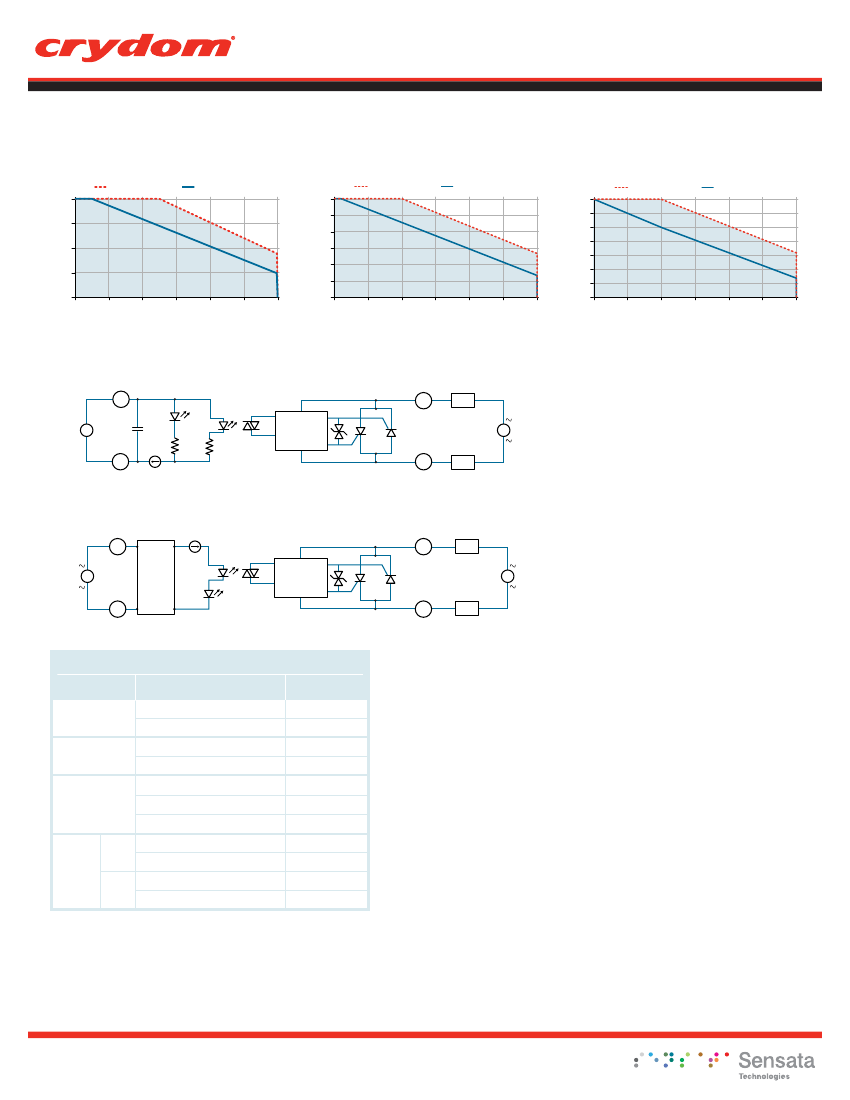

THERMAL DERATE INFORMATION
(8)
DR2260x20x
Single unit
(12)
20
Multiple units
30
DIN Rail Mount
DR2260x30x
Single unit
(12)
Multiple units
35
DR2260x35x
Single unit
(12)
Multiple units
Load Current (Amps)
Load Current (Amps)
15
10
5
0
Load Current (Amps)
25
20
15
10
5
0
20
30
40
50
60
70
80
30
25
20
15
10
5
0
20
30
40
50
60
70
80
20
30
Ambient Temperature (ºC)
40
50
60
70
80
Ambient Temperature (ºC)
Ambient Temperature (ºC)
EQUIVALENT CIRCUIT BLOCK DIAGRAMS/WIRING DIAGRAM
DC Control
+3/A1
1/L1
Trigger
Circuit
Load
A
V
AC
B
Load
DC
V
-
-4/A2
Current
Limiter
2/T1
Load can be wired in position A or B
AC/DC Control
Current
Limiter
+3/A1
1/L1
OUTPUT
INPUT
+
Load
A
V
AC
B
Load
AC/DC
-/
V
AC/DC
Converter
Trigger
Circuit
-4/A2
Load can be wired in position A or B
Recommended Wire Sizes
Terminal
Configuration
Output
(13)
Relay “U” suffix
Input
Relay “U” suffix
Output
Contactor
“V” &“W”
suffixes
Wire Size
(Solid / Stranded)
2 x 18 AWG (1 mm
2
) Stranded
2 x 10 AWG (6 mm
2
) Stranded
2 x 18 AWG (1 mm
2
) Stranded
2 x 12 AWG (4 mm
2
) Stranded
2 x 20 AWG (0.75 mm
2
) [minimum]
2 x 10 AWG (6 mm
2
)
2 x 8 AWG (10 mm
2
) [maximum]
Wire Pull-Out
Strength (lb)[N]
20 [88]
60 [266]
20 [88]
40 [177]
25 [111]
80 [355]
90 [400]
4.5 [20]
30 [133]
4 [18]
30 [133]
30 AWG (0.05 mm
2
) [minimum]
Input Screw
12 AWG (3.3 mm
2
) [maximum]
Contactor
“V” &“W”
26 AWG (0.13 mm
2
) [minimum]
suffixes Spring
12 AWG (3.3 mm
2
) [maximum]
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
OUTPUT
2/T1
INPUT
+/
Datasheet

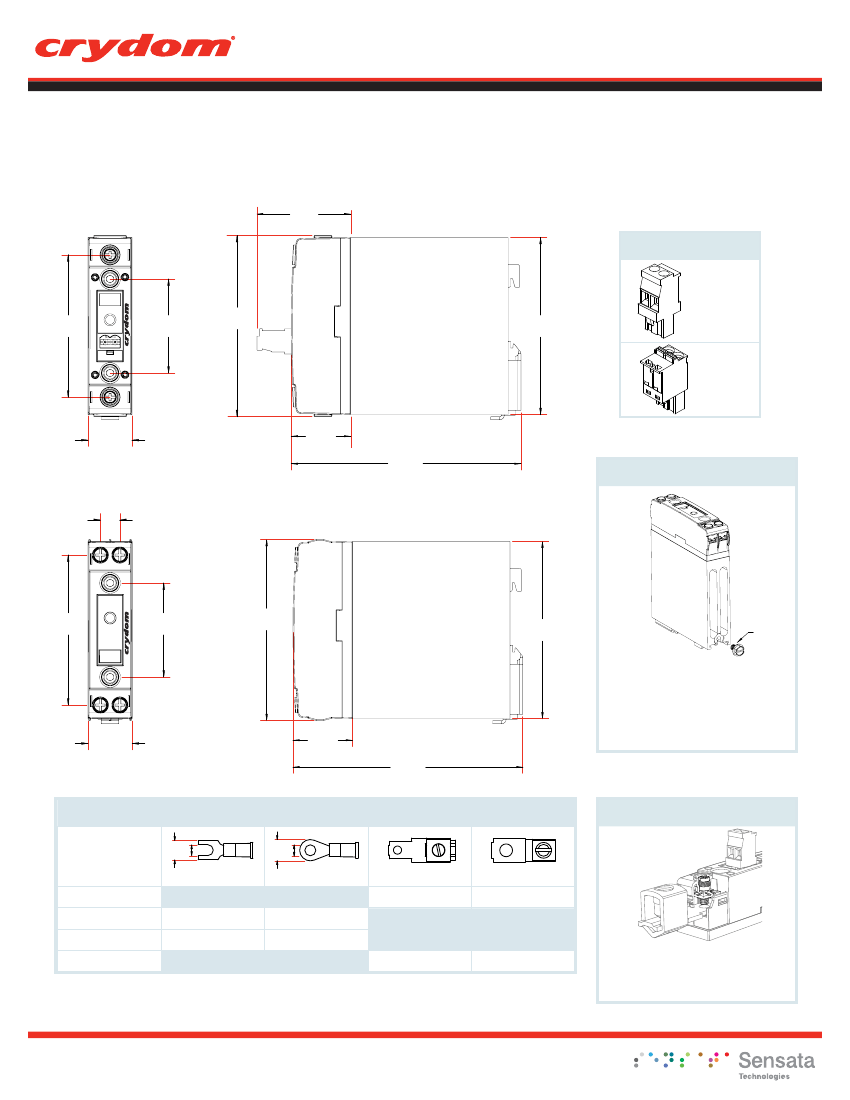

MECHANICAL SPECIFICATIONS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
DIN Rail Mount
Contactor Configuration
1.87
[47.5]
1/L1
Input Connector
2.85
[72.3]
+3/A1
-4/A2
1.88
[47.8]
3.62
[91.9]
3.54
[90]
Screw
Terminal
Spring
Terminal
2/T1
0.89
[22.5]
1.19
[30.2]
4.59
[116.5]
Protective Earth Connection
Relay Configuration
0.39
[9.9]
+3/A1
INPUT
-4/A2
3.00
[76.2]
1.88
[47.8]
3.67
[93.2]
3.54
[90]
10-32
Thread
1/L1
OUTPUT
2/T1
0.89
[22.5]
1.19
[30.2]
4.59
[116.5]
Protective Earth (PE) screw type recommended is
10-32 UNC standard not provided with SSR. Through
the use of a DIN rail ground (protective conductor)
terminal block, the DIN rail itself can be used as the
grounding bus bar. In this case, the zinc plated steel
material used for the DIN rail clip of DR22 models,
permits a secure path to ground and avoid the need of
a further PE connection.
TABLE 1. Compatible Terminals
Elevator Screw (Suffix ‘W’)
W D
W D
Terminals
Crydom Part No.
Width [W] in (mm)
Stud Size Dia [D] (in)
Wire Size AWG
Fork Lug
Ring Lug
Copper Lug
TRM0
Copper Lug
TRM6
0.45 (11.4)
#8 (0.168)
0.45 (11.4)
#8 (0.168)
6-0
14-6
The Elevator Screw option allows the screw and
clamp to be raised out of the mating threads
completely. This provides for the insertion and
use of a ring or lug type wire terminal. Refer to
TABLE 1 for Compatible Terminals.
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet

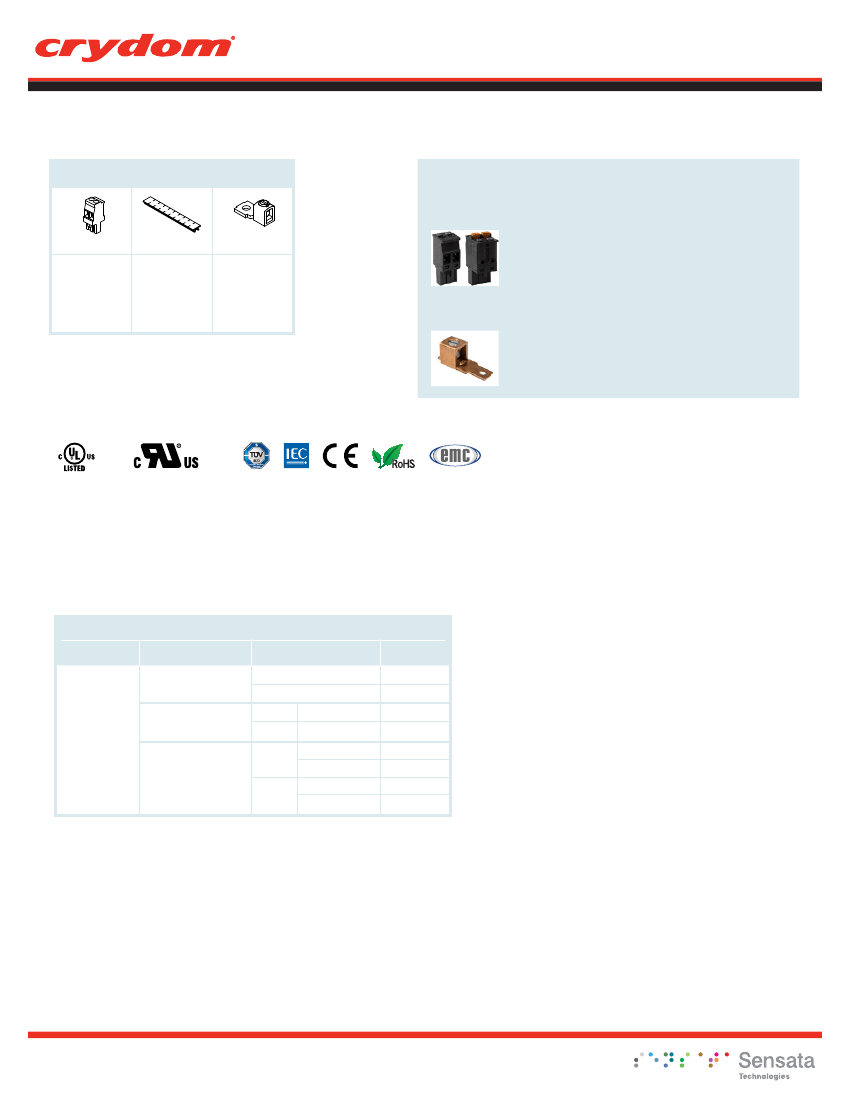

ACCESSORIES
Recommended Accessories
DIN Rail Mount
New Accessories!
Connectors
Part number: CP201, CP202
Pluggable input connectors, 2 position, with screw terminals (CP201) or
spring type terminals (CP202). Compatible with Contactor Configuration
NOVA22 SSRs.
Connectors
CP201
CP202
ID Marker
CNLB
CNLN
CNL2
Lug Terminal
TRM0
TRM6
Lug Terminal
Part number: TRM0
Copper wire lug for AWG 6 (13.3 mm²) to AWG 0 (53.5 mm²) wire size. For
use with "Elevator" screw option ("W" suffix) NOVA22 SSRs.
AGENCY APPROVALS, CONFORMANCES AND EMC
(14)
E116949
E116949
Certification in accordance with:
United States Standard for Industrial Control Equipment - UL 508 and
Canadian Standard Association for Industrial Control Equipment – C22.2 No. 14.
TUV Certified in accordance to EN62314
Vibration Resistance:
IEC 60068-2-6: Amplitude Range 10-500 Hz, Displacement 0.75mm
Shock Resistance:
IEC 60068-2-27: Peak Acceleration 50g, Duration11ms.
Electromagnetic Compatibility
Generic
Standard
Inmunity Tests
Electrostatic Discharge
IEC 61000-4-2
IEC 61000-6-2
Immunity for
Industrial
Environments
Fast transients (burst)
IEC 61000-4-4
Surge
IEC 61000-4-5
Test Specification
Level
8kV air discharge
6kV contact discharge
Output
Input
Output
Performance
Criterion A
Criterion A
2kV, 5kHz, 100kHz Criterion B
1kV, 5kHz, 100kHz Criterion B
1kV Line to Line
2kV Line to Earth
2kV Line to Earth
Criterion B
Criterion B
Criterion A
Criterion A
AC Input 1kV Line to Line
Option
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
