From Deep UV to Mid-IR
An ITW Company

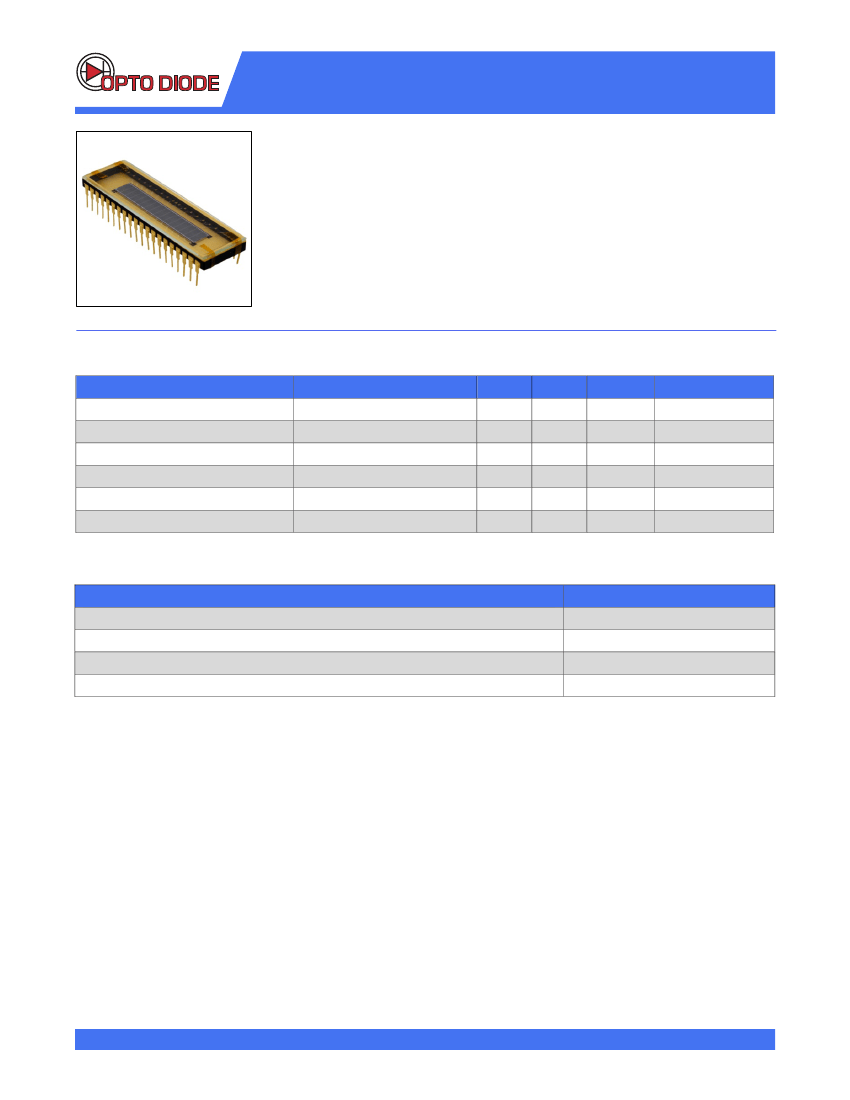

Photodiode 16 Element
FEATURES
•
40 Pin Dual-In-Line Package
•
Ideal for Electron Detection
•
100% Internal QE
•
Protective Cover Plate
3
AXUV16ELG
Electro-Optical Characteristics at 25 °C
Parameters
Active Area
Responsivity
Reverse Breakdown Voltage, V
R
Capacitance, C
Rise Time
Shunt Resistance (per element)
Test Conditions
2 mm x 5 mm
(see graphs on next page)
I
R
= 1 µA
V
R
= 0 V
V
R
= 0 V
V
f
= ± 10 mV
100
25
700
500
2000
Min
Typ
10
Max
Units
mm
2
A/W
Volts
pF
nsec
MOhms
Thermal Parameters
Storage and Operating Temperature Range
Ambient
1
Nitrogen or Vacuum
Maximum Junction Temperature
Lead Soldering Temperature
2
1
Units
-10 °C to 40 °C
-20 °C to 80 °C
70 °C
260 °C
Temperatures exceeding these parameters may create oxide growth on the active area.
Over time responsivity to low energy radiation and wavelengths below 150 nm will be compromised.
0.080" from case for 10 seconds.
Shipped with temporary cover to protect the photodiode array and wire bonds.
Review the Application Note, “Handling Precautions for AXUV, SXUV, and UVG Detectors”, prior to removing cover.
2
3
Revision May 25, 2018
Page 1 of 3
From Deep UV to Mid-IR
An ITW Company
Photodiode 16 Element
AXUV16ELG
Typical Electron Response
0.30
RESPONSIVITY (A/W)
0.25
0.20
0.15
0.10
0.05
0.00
100
1000
10,000
100,000
ENERGY (ev)
Typical EUV-UV Photon Response
0.30
0.25
0.20
0.15
0.10
0.05
0.00
0
50
100
150
200
250
RESPONSIVITY (A/W)
WAVELENGTH (nm)
Typical UV-VIS-NIR Photon Responsivity
0.5
0.4
0.3
0.2
0.1
0.0
200
300
400
500
600
700
800
900
1000
1100
RESPONSIVITY (A/W)
WAVELENGTH (nm)
Revision May 25, 2018
Page 2 of 3
From Deep UV to Mid-IR
An ITW Company
Photodiode 16 Element
AXUV16ELG

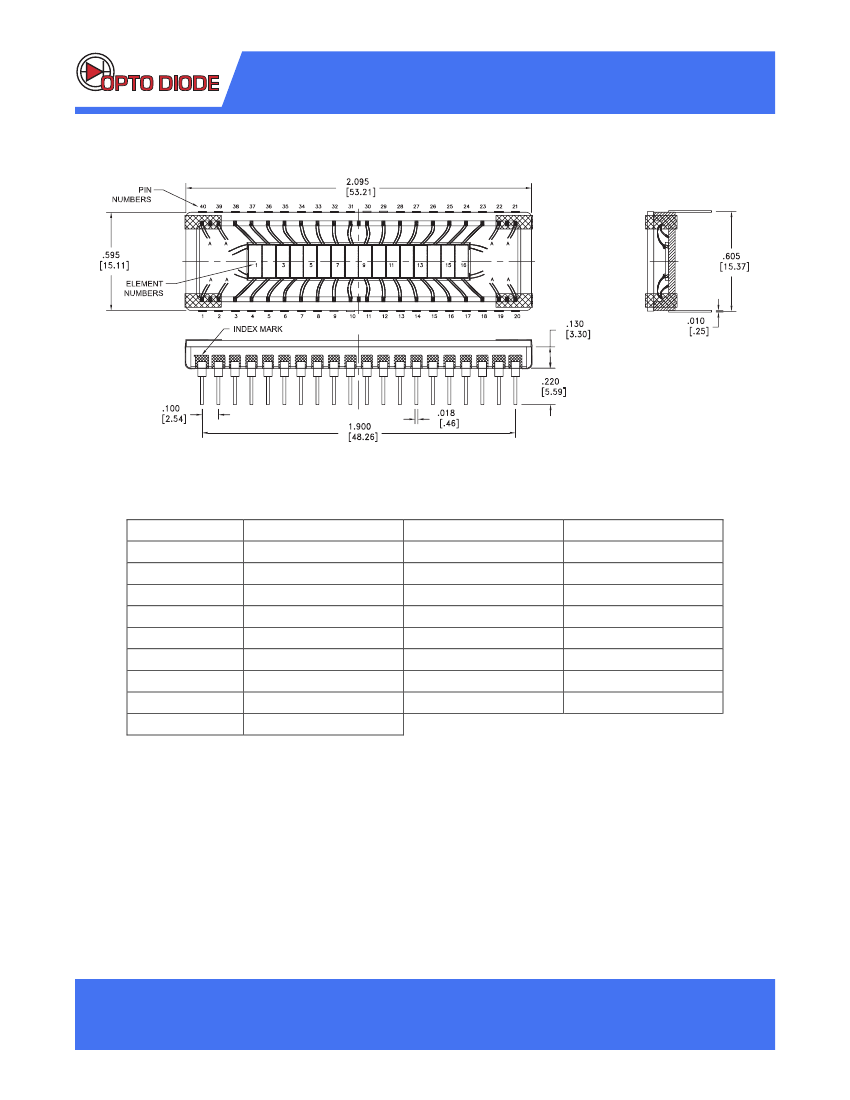

Package Information
Dimensions are in inch [metric] units.
Pin Description
Pins
1, 2, 19, 20
21, 22, 39, 40
3, 38
4, 37
5, 36
6, 35
7, 35
8, 33
9, 32
Connection
Common Anode
Common Anode
Cathode Element 1
Cathode Element 2
Cathode Element 3
Cathode Element 4
Cathode Element 5
Cathode Element 6
Cathode Element 7
Pins
11, 30
12, 29
13, 28
14, 27
15, 26
16, 25
17, 24
18, 23
Connection
Cathode Element 9
Cathode Element 10
Cathode Element 11
Cathode Element 12
Cathode Element 13
Cathode Element 14
Cathode Element 15
Cathode Element 16
Ordering Information
ODD-AXU-023
16 Element Photodiode Array Shipped with Protective Cover
Specifications are subject to change without prior notice.
1260 Calle Suerte, Camarillo, California 93012
Phone: +1 805.499.0335 | Fax: +1 805.499.8108 | sales@optodiode.com | www.optodiode.com
Revision May 25, 2018
Page 3 of 3
