BM14C(0.8)-64DS-0.4V(51) datasheet, PDF

Datasheet> All Categories > The connector> BM14C(0.8)-64DS-0.4V(51)

BM14C(0.8)-64DS-0.4V(51): DescriptionCONN RCPT 64POS 0.4MM SMD; CategoryThe connector; File Size684KB，12 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

BM14C(0.8)-64DS-0.4V(51) Overview

CONN RCPT 64POS 0.4MM SMD

BM14C(0.8)-64DS-0.4V(51) Parametric

Parameter Name	Attribute value
Connector type	Socket with central contact
Number of pins	64
spacing	0.016"（0.40mm）
Number of rows	2
Installation type	surface mount
characteristic	Fixed solder tail
Contact plating	gold
Contact plating thickness	2.00µin（0.051µm）
Joint stack height	0.8mm
board height	0.031"（0.80mm）

Preview

Download Datasheet

View All

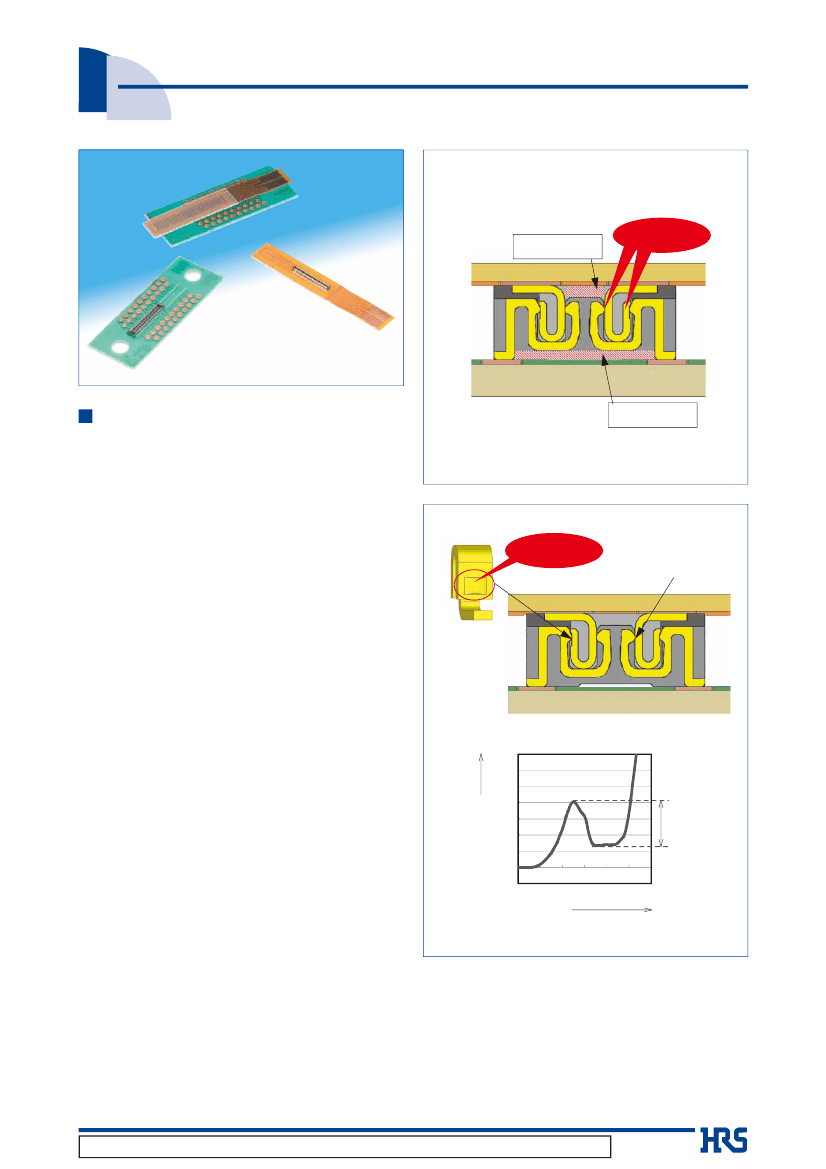

0.4mm Contact Pitch Board-to-FPC Connectors

BM14 Series

Mating Cross-Section Diagram (H = 0.8mm type)

Molded structure

Two-point

contact system

Features

1. Two stacking height options

Two separate heights available : 0.8 and 1.3mm

Molded structure

The molded structure provides security and

insulation between the terminals and the board

2. Ultra space-saving design

With its drastically reduced depth of 1.98mm,

this series can fit in the tightest designs.

Fig.1

Solid mating feedback

Dimple on contact

Point A

3. Two point contact system

The two point contact structure encloses the

plug contacts and assures a completely secure

connection. (Fig.1)

4. Superior tactile feedback

A clear tactile click is delivered upon the

successful completion of the mating process.

(Fig. 2)

5. Drop and shock resistant structure

Dimples were designed into the plug contacts ;

they increase retention force and absorb shock

when dropped.

Insertion force

6. User friendly operations

Insertion force (N)

The low-profile connectors with stacking height

of 0.8mm maintain the mating self-alignment

range of 0.3mm, securing easy mating

operations.

-10

Time

Distance (mm)

Clear tactile

feeling

7. No pattern prohibited area

No restrictions on PCB layout patter n are

imposed, as thin molding technology maintains

the effective mating length of 0.2mm while

achieving complete insulation between the

bottom side of the receptacle and the board.

Image : 0.8mm stacking height

Fig.2

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.1e
