TOUCH SCREEN BREAKOUT BOARD FOR

Parameter Name	Attribute value
Prototype board type	Connector to Plated Through Hole
Accepted packages	FPC connector
Number of pins	4
spacing	0.039"（1.00mm）
Board thickness	-
Material	-
size/dimensions	0.500" long x 0.500" wide (12.70mm x 12.70mm)

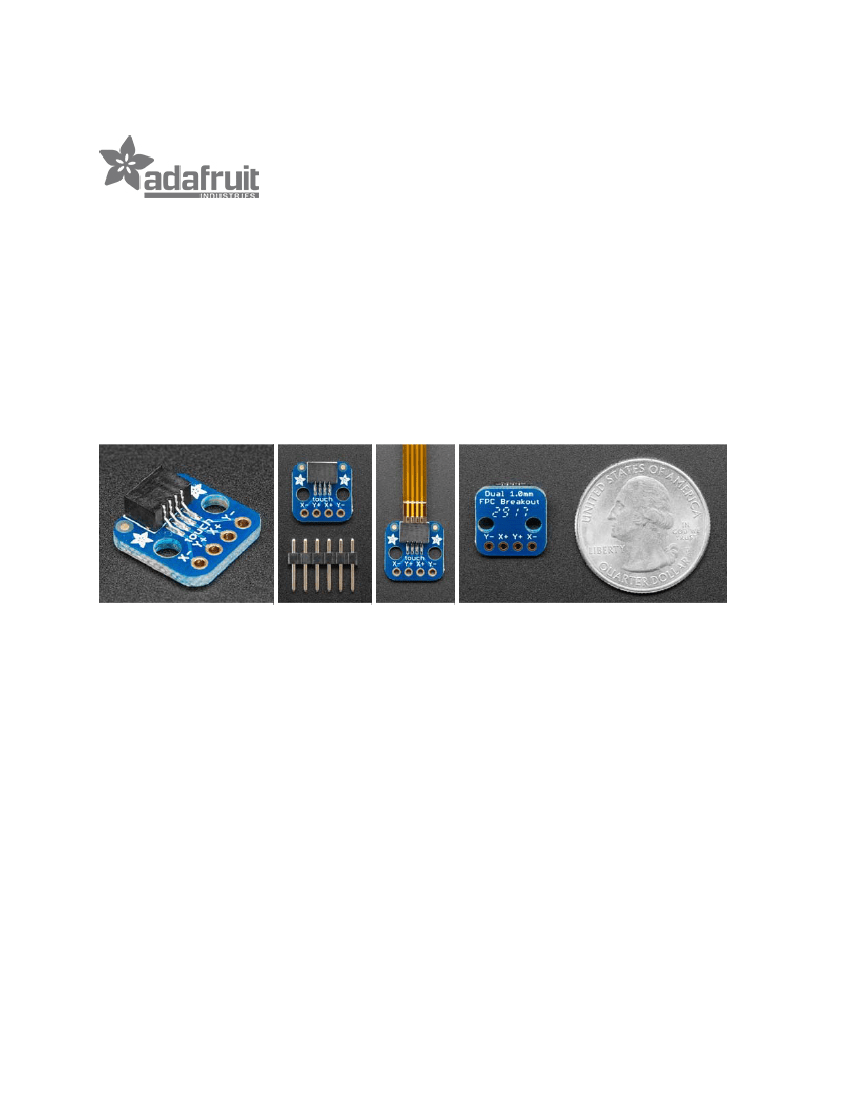

Adafruit Touch Screen Breakout Board for

4 pin 1.0mm FPC

PRODUCT ID: 3575

Description

If you've got a resistive touch screen that you'd like to use, you'll need this breakout! It has a medium

pitch (1.0mm) connector soldered onto it, and it's broken out into the four resistive wires of the panel.

If you need a breakout for 0.5mm‐pitch touch panels, check out this product. If you want a breakout

with a resistive‐panel control driver chip on it, our STMPE I2C/SPI breakout or USB AR1100 driver will

do what you need!

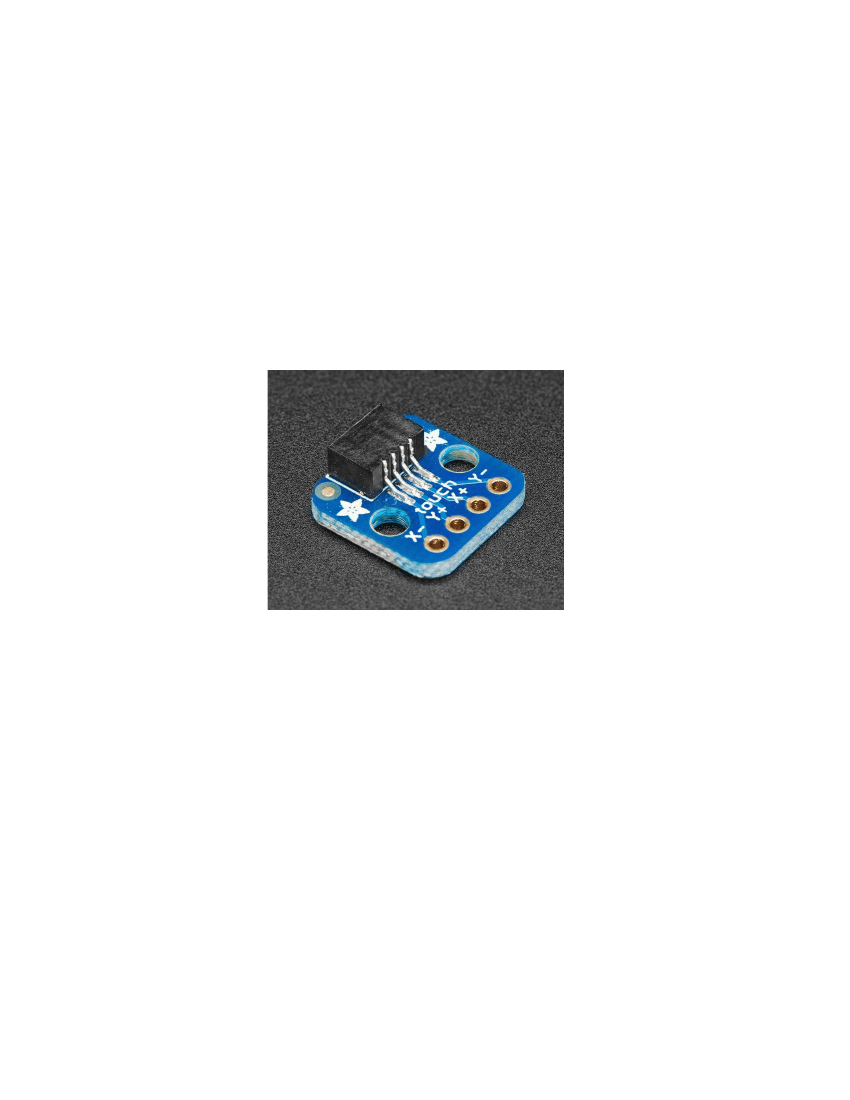

This is a petite 0.5"x0.5" (12.7mm x 12.7mm) breakout board with two mounting holes as well that you

can use for strain relief. Works perfectly with our 7" touch screen and any other touch screen with

1.0mm pitch. The connector we use is double‐sided so you can use it with top‐contact or bottom‐

contact flex PCBs.

Check out our great example Arduino library code that shows how to get readings, debounce, and read

the pressure from any touch screen (so you can detect when it's being touched and how hard). The

code is not complex and is easily ported to other microcontrollers.
