PLCC4 SMD Top View Package LED
SMP4-SBC-RB, RED/BLUE
SMP4-SBC-RB
♦
♦
♦
♦
♦
Industry Standard PLCC4 Footprint
2 Super Bright Chips in One Low Profile Package
High Luminous Intensity
Wide Viewing Angle
High Power Efficiency
Bivar SMP4 Super Bright Bi-Color LED combines two chips in a single package and is offered in an industry
standard PLCC4 footprint. The SMP4 LED has a water clear lens for high luminous intensity and wide
viewing angle making them ideal for outdoor illumination applications where higher ambient lighting condi-
tions exist. The robust package is ideal for harsh working environments and can be clustered in LED ar-
rays for maximum illumination. Low power consumption and excellent long life reliability are suitable for
battery powered equipment. Bivar SMP4 LED is packaged in standard tape and reels for pick and place
assemblies.
Part Number
SMP4-SBC-RB
Material
AlGaInP
InGaN
Emitted Color
Red
Blue
Lumen Typ. mcd
180
285
Lens Color
Water Clear
Viewing Angle
120°

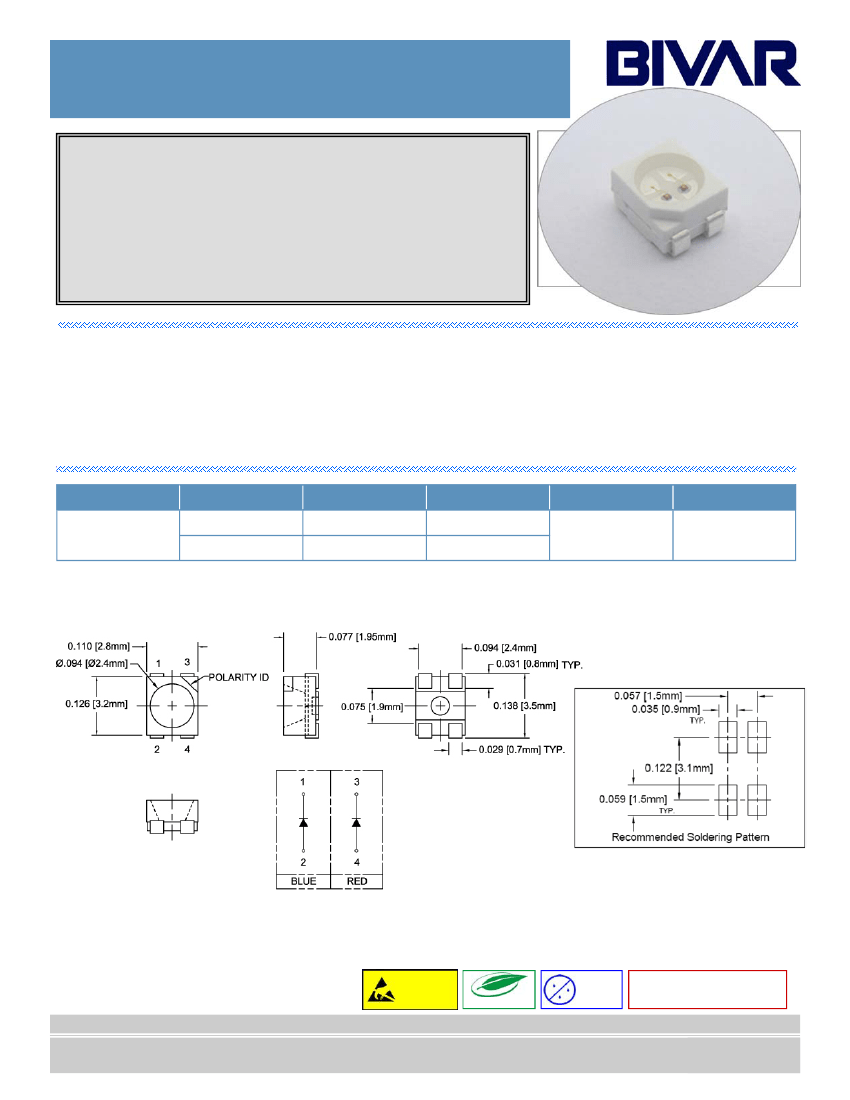

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 4
CAUTION: LOOKING DIRECTLY AT
LED WITHOUT SHIELDED EYES
MAY CAUSE DAMAGE TO RETINA.
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 07/10
Page 1 of 5
PLCC4 SMD Top View Package LED
SMP4-SBC-RB, RED/BLUE
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Continuous Forward Current
Peak Forward Current
1
Reverse Voltage
Electrostatic Discharge Classification (HBM)
Derating Linear From 25°C
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
2. Solder time less than 5 seconds at temperature extreme.
Red - 72 mW
Blue - 100 mW
Red - 30 mA
Blue - 25 mA
100 mA
5V
2000 V
0.4 mA/°C
-40 ~ +85°C
-40 ~ +100°C
260°C
Electrical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
TYP
Red
Blue
1.9
3.2
MAX
2.4
3.5
Recommend
Forward
Current (mA)
TYP
20
20
Reverse
Current (µA)
V
R
=5V
MAX
10
10
Dominant
Wavelength (nm)
2
TYP
631
470
Luminous
Intensity (mcd)
3
MIN
115
115
TYP
180
285
Viewing
Angle
2
Ө
½ (deg)
TYP
120
Emitting
Color
Notes: 1. Tolerance of Forward Voltage : ±0.05V.
2. Tolerance of Dominant Wavelength : ±0.1nm.
3. Tolerance of Luminous Intensity : ±15%.

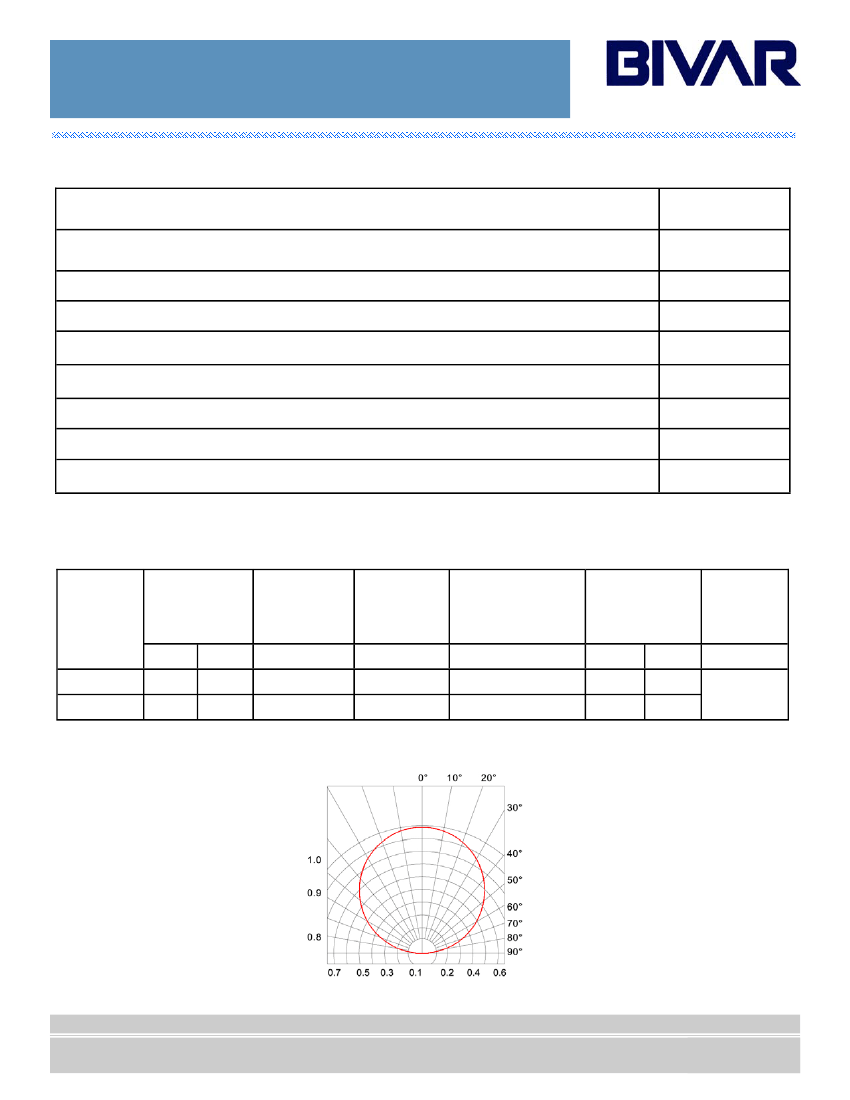

Directivity Radiation
T
A
= 25°C unless otherwise noted
Radiation Diagram
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 07/10
Page 2 of 5
PLCC4 SMD Top View Package LED
SMP4-SBC-RB, RED/BLUE

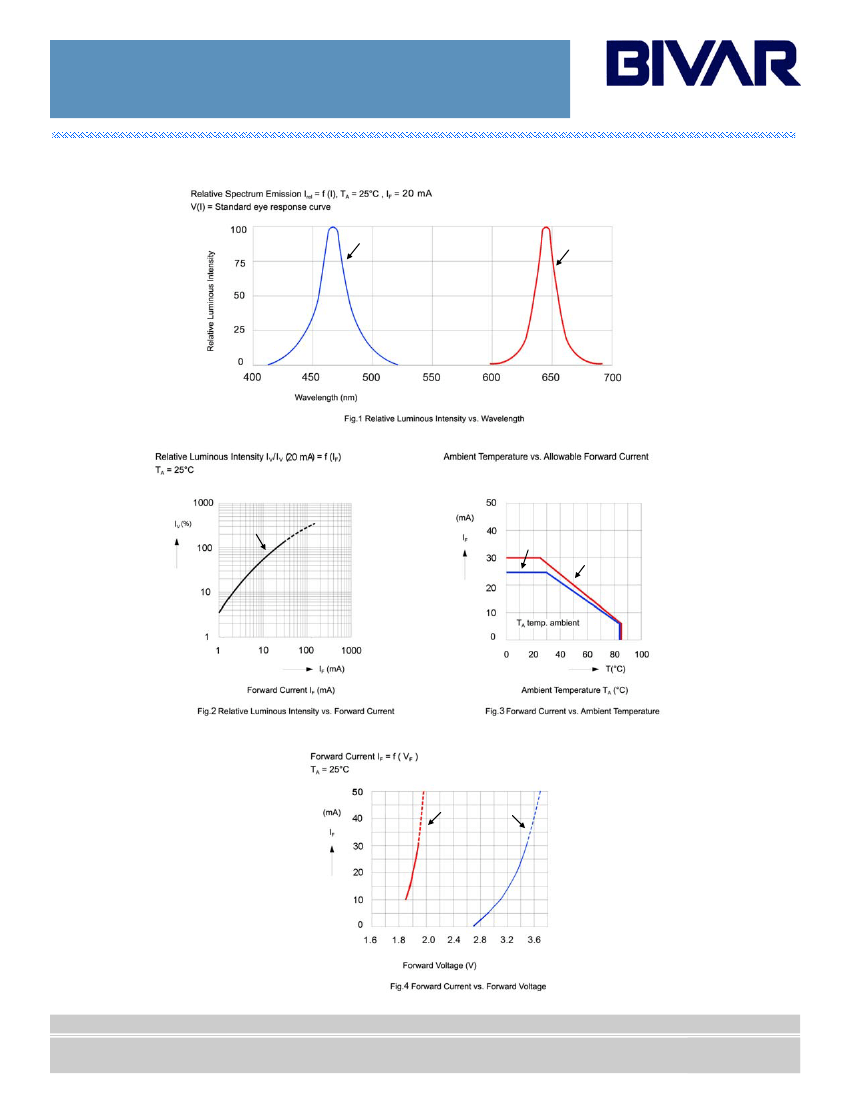

Typical Electrical / Optical Characteristics Curves
T
A
= 25°C unless otherwise noted
Blue
Red
Red, Blue
Blue
Red
Red
Blue
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 07/10
Page 3 of 5
PLCC4 SMD Top View Package LED
SMP4-SBC-RB, RED/BLUE

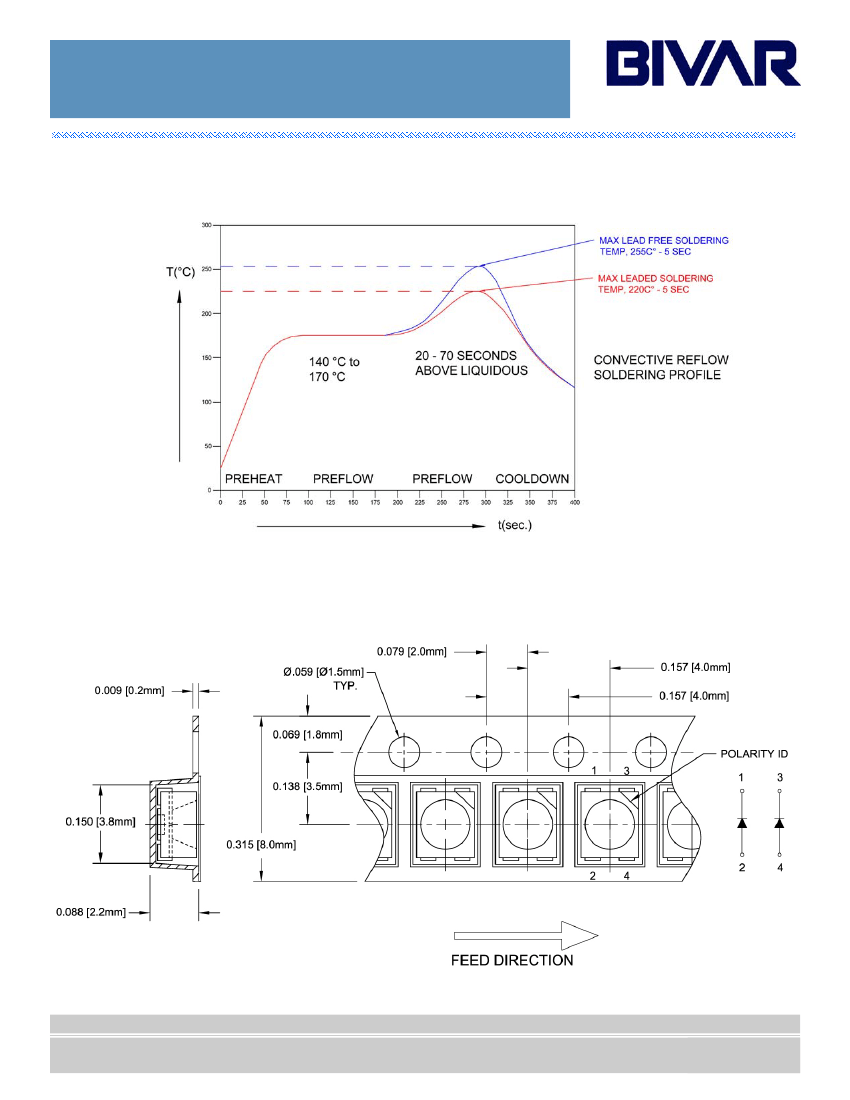

Recommended Soldering Conditions
Tape and Reel Dimensions
Note: 2000 pcs/Reel
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 07/10
Page 4 of 5
PLCC4 SMD Top View Package LED
SMP4-SBC-RB, RED/BLUE
0.63 [16.0mm]

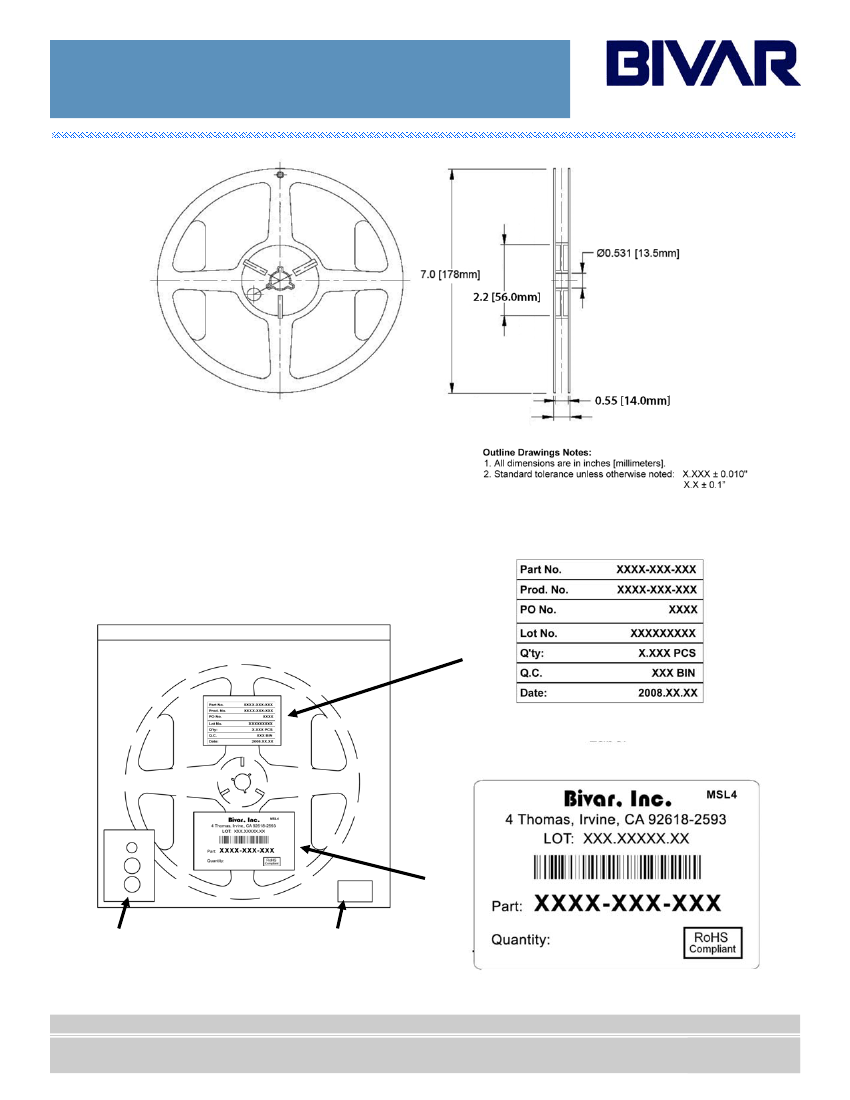

Packaging and Labeling Plan
Note: 1 Reel / Bag
Sealed ESD and Moisture Barrier Bag
Internal Quality Control Label
X.XXX
Humidity Indicator
Card
Desiccant
X.XXX
Bivar Standard Packaging Label
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 07/10
Page 5 of 5
