SWR25X-NREC-S10-ST-BA datasheet, PDF

Datasheet> All Categories > The connector> SWR25X-NREC-S10-ST-BA

SWR25X-NREC-S10-ST-BA: DescriptionCONN HDR 2.54MM TIN 10POS; CategoryThe connector; File Size312KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

SWR25X-NREC-S10-ST-BA Overview

CONN HDR 2.54MM TIN 10POS

SWR25X-NREC-S10-ST-BA Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	10
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 1 wall
Installation type	Through hole
Termination	welding
Fastening type	friction lock
Contact Length - Mating	0.295"（7.49mm）
Contact length - terminal	0.134"（3.40mm）
Overall contact length	0.559"（14.20mm）
Insulation height	0.449"（11.40mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA66), Nylon 66
characteristic	-
Operating temperature	-25°C ~ 85°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	beige
Rated current	4A
Rated voltage	250V
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

2006

DESCRIPTION

INITIAL RELEASE

DATE

9/16/09

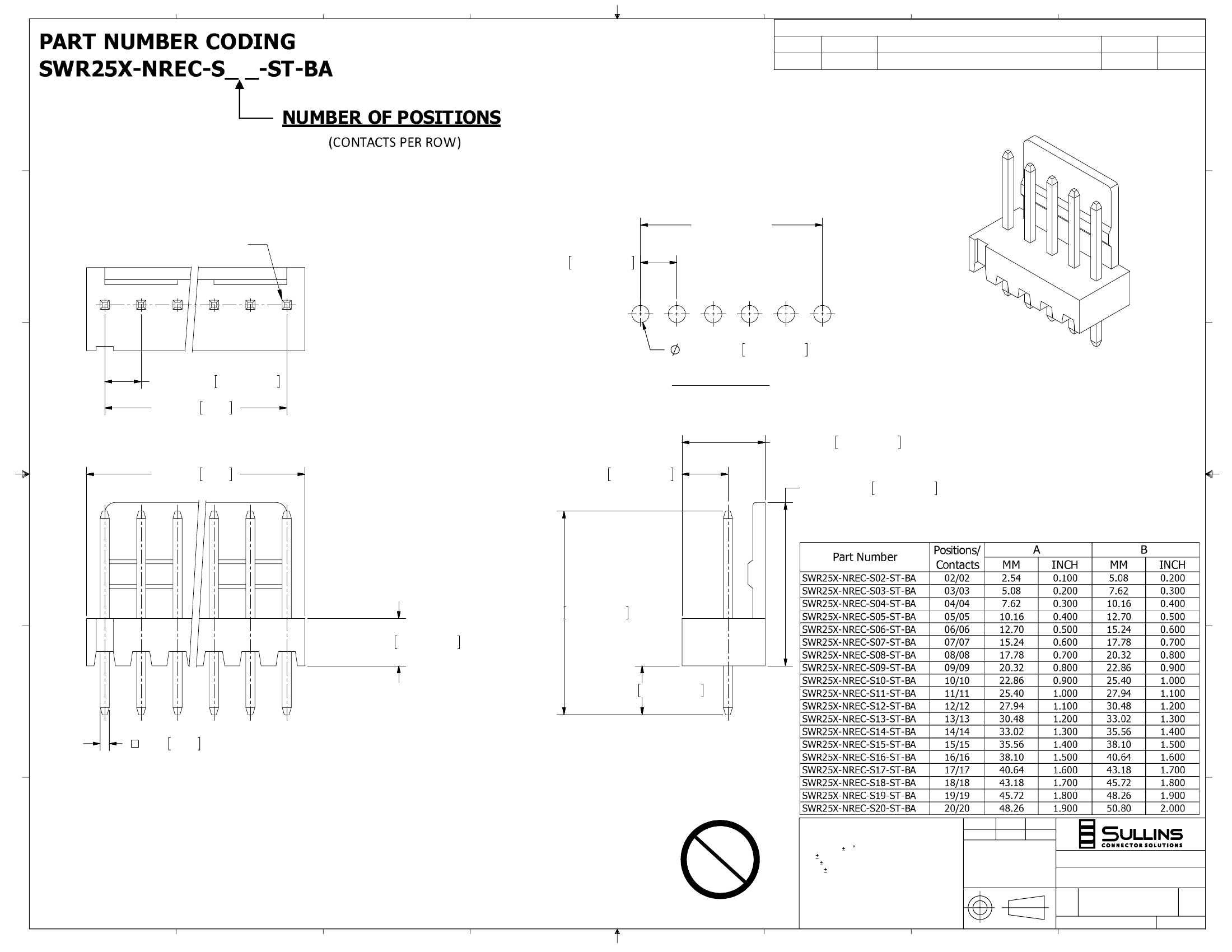

A±0.10[.004]

Circuit 1

2.54±0.10 .100±.004

1.20±0.05 .047±.002

2.54±0.10 .100±.004

P.C.B LAYOUT

A±0.20 .008

5.80±0.25 .228±.010

B±0.25 .010

3.20±0.20 .126±.008

11.40±0.25 .449±.010

14.20±0.20 .559±.008

3.30±0.20 .130±.008

3.40±0.20 .134±.008

0.64 .025

NOTES:

1. INSULATOR MATERIAL: NYLON66, UL94V-2, COLOR:BEIGE (PANTONE 7506C).

2. CONTACT MATERIAL: BRASS.

3. CONTACT PLATING: TIN OVERALL.

4. CURRENT RATING: 4 AMPS.

5. VOLTAGE RATING: 250V AC/DC.

6. INSULATOR RESISTANCE: 1000 MEGOHMS MIN.

7. CONTACT RESISTANCE: 10 MILLIOHMS MAX.

8. DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC.

9. OPERATING TEMPERATURE: -25° C TO +85° C.

10. MATES WITH SWH25X SERIES SINGLE ROW HOUSING.

oHS COMPLIANT

DIMENSIONS ARE IN MM[INCHES]

TOLERANCES:

ANGULAR: 5

.X= .3 [.01]

.XX= .15 [.006]

.XXX= .050 [.0020]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

9/16/09

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

WAFER 2.54mm CC, 1 ROW, ST

SWR25X-NREC-S_ _-ST-BA

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 6.5:1

11313

REV

SHEET 1 OF 1

FILE NAME: Z:\ECO PENDING\2006, wafer 25_ series\11313, SWR25X-NREC-S_ _-ST-BA PRINT: 9/29/2009
