BT900-SA-03-T/R datasheet, PDF

Datasheet> All Categories > Topical application> Wireless rf/communication> BT900-SA-03-T/R

BT900-SA-03-T/R: Description"BTV4.0 DUAL MODE SMARTBASIC (IN; CategoryTopical application Wireless rf/communication; File Size366KB，2 Pages; ManufacturerLaird Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

BT900-SA-03-T/R Overview

"BTV4.0 DUAL MODE SMARTBASIC (IN

BT900-SA-03-T/R Parametric

Parameter Name	Attribute value
RF series/standard	Bluetooth, WiFi
protocol	Bluetooth v4.0
modulation	-
frequency	2.402GHz ~ 2.48GHz
data rate	4Mbps
Power - output	8dBm
Sensitivity	-90dBm
serial interface	ADC, GPIO, I²C, PWM, SPI, SIO, UART
Antenna type	Integrated, chip
IC/parts used	-
storage	6kB ROM
Voltage - Power	1.75 V ~ 3.6 V
Current - Receive	-
Installation type	surface mount
Operating temperature	-40°C ~ 85°C
Package/casing	44-SMD module

Preview

Download Datasheet

View All

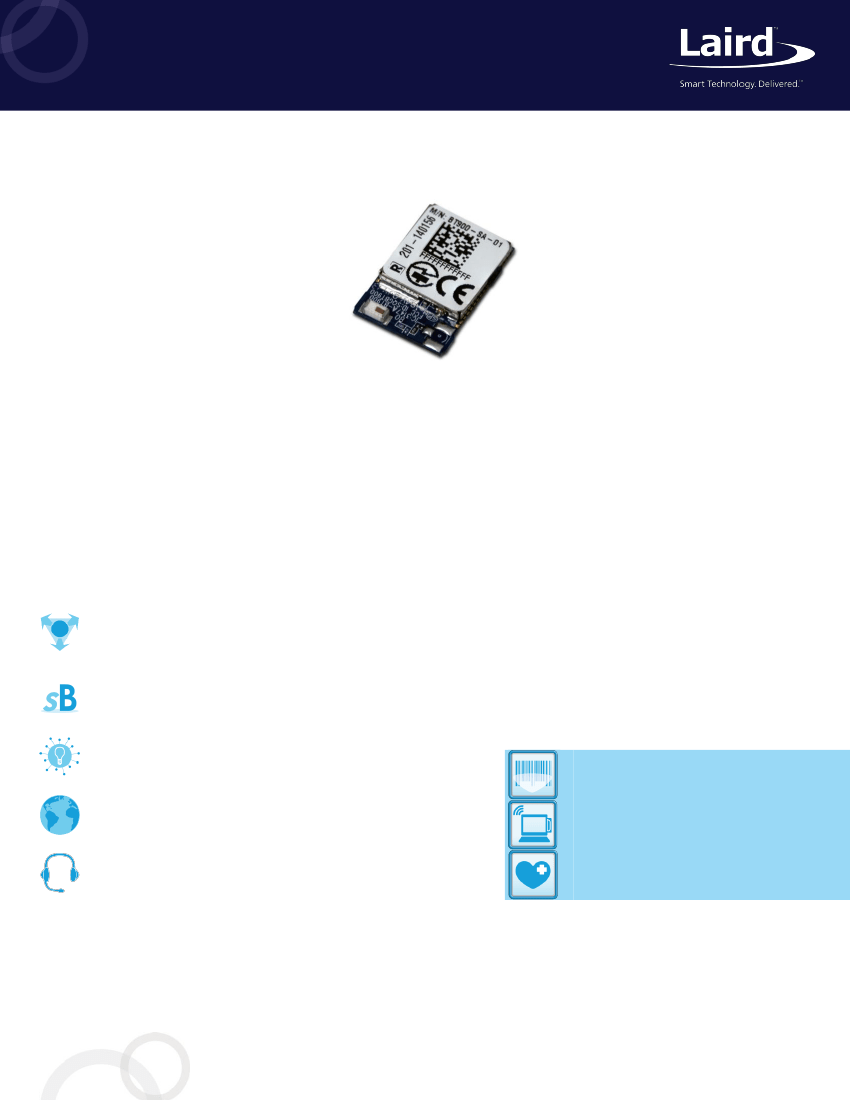

BT900 Series

Bluetooth v4.0 Dual Modules with

smartBASIC

SMALL. SMART. SIMPLE

Laird’s BT900 modules reduce engineering

burden and design risk when integrating

Bluetooth and Bluetooth Low Energy into any

OEM device. A small form factor, optimized

power schemes and

smartBASIC

language

provide a secure, stable BT environment for any

embedded design. Let Laird’s innovative BT900

series and decades of expertise in Bluetooth

module design speed your product to market.



Bluetooth v4.0 dual mode

(BT and BLE)

Supports

SPP

+ any

BLE Peripheral or Central roles

Supports

simultaneous BT and BLE

connections

Hostless operation

– No need for external MCU

reducing overall BOM

Broad range of hardware interfaces:

UART, I2C,

SPI, ADC, GPIO

Small footprint

(19mm x 12.5mm x 2.5 mm)

smartBASIC

powers rapid design and deployment

Features at a Glance

FLEXIBLE FOR ANY CHALLENGE: A COMPLETE SOLUTION

Cortex M3 microcontroller and

smartBASIC

create truly

hostless operation and enable power/throughput

flexibility and sleep mode control.

SPEED TO MARKET WITH

smartBASIC

Easily write event-driven apps for any use case and run

in the module. No toolchain required.

FULL, COMPREHENSIVE BLUETOOTH SOLUTION

The best of Bluetooth: Dual Mode, Simultaneous BT +

BLE, and SPP + BLE Peripheral / Central Roles.

GLOBAL APPROVALS – MAKE YOURSELF AT HOME

Carries several modular FCC, IC, CE, MIC and Bluetooth

SIG approvals

PERSONAL SUPPORT FROM DESIGN TO MANUFACTURE

Support works onsite with Laird engineering to speed

your design to market.

Application Areas

Logistics and Barcode Scanners

Point of Sale Terminals

Health and Medical Devices

Contact Sales -

Americas:

Europe:

+1 262 375 4400

+44 1628 940 ext. 958

Korea:

+82 10 2622 3935

Hong Kong: +852 2923 0610

For documentation, software, sample apps and more visit:

http://www.lairdtech.com/products/BT900-Series

BT900-SA-03-T/R Related Products

	BT900-SA-03-T/R	BT900-SC-03-T/R	DVK-BT900-SA	DVK-BT900-SC	BT900-SC	BT900-SA
Description	"BTV4.0 DUAL MODE SMARTBASIC (IN	"BTV4.0 DUAL MODE SMARTBASIC (EX	DEV KIT FOR BT900-SA	DEV KIT FOR BT900-SC	RF TXRX MODULE BLUETOOTH U.FL	RF TXRX MOD BLUETOOTH CHIP ANT
frequency	2.402GHz ~ 2.48GHz	2.402GHz ~ 2.48GHz	2.4GHz	2.4GHz	2.4GHz	2.4GHz
RF series/standard	Bluetooth, WiFi	Bluetooth, WiFi	-	-	Bluetooth	Bluetooth
protocol	Bluetooth v4.0	Bluetooth v4.0	-	-	Bluetooth V4.0 dual mode	Bluetooth V4.0 dual mode
data rate	4Mbps	4Mbps	-	-	3Mbps	3Mbps
Power - output	8dBm	8dBm	-	-	8dBm	8dBm
Sensitivity	-90dBm	-90dBm	-	-	-90dBm	-90dBm
serial interface	ADC, GPIO, I²C, PWM, SPI, SIO, UART	ADC, GPIO, I²C, PWM, SPI, SIO, UART	-	-	I²C，SPI，UART	I²C，SPI，UART
Antenna type	Integrated, chip	Integrated, chip + U.FL	-	-	Not included, U.FL	Integrated, chip
Voltage - Power	1.75 V ~ 3.6 V	1.75 V ~ 3.6 V	-	-	1.8 V ~ 3.6 V	1.8 V ~ 3.6 V
Installation type	surface mount	surface mount	-	-	surface mount	surface mount
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-	-	-40°C ~ 85°C	-40°C ~ 85°C
Package/casing	44-SMD module	44-SMD module	-	-	module	module
