142-0593-411: DescriptionRF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack,; CategoryThe connector The connector; File Size17MB，292 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

142-0593-411 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-0593-411	-	-	View	Buy Now

142-0593-411 Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack,

142-0593-411 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 10GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.09 dB
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.65
Base Number Matches	1

Preview

Download Datasheet

View All

RF & Microwave Connectors

& Cable Assemblies

Product Catalog

cinch.com

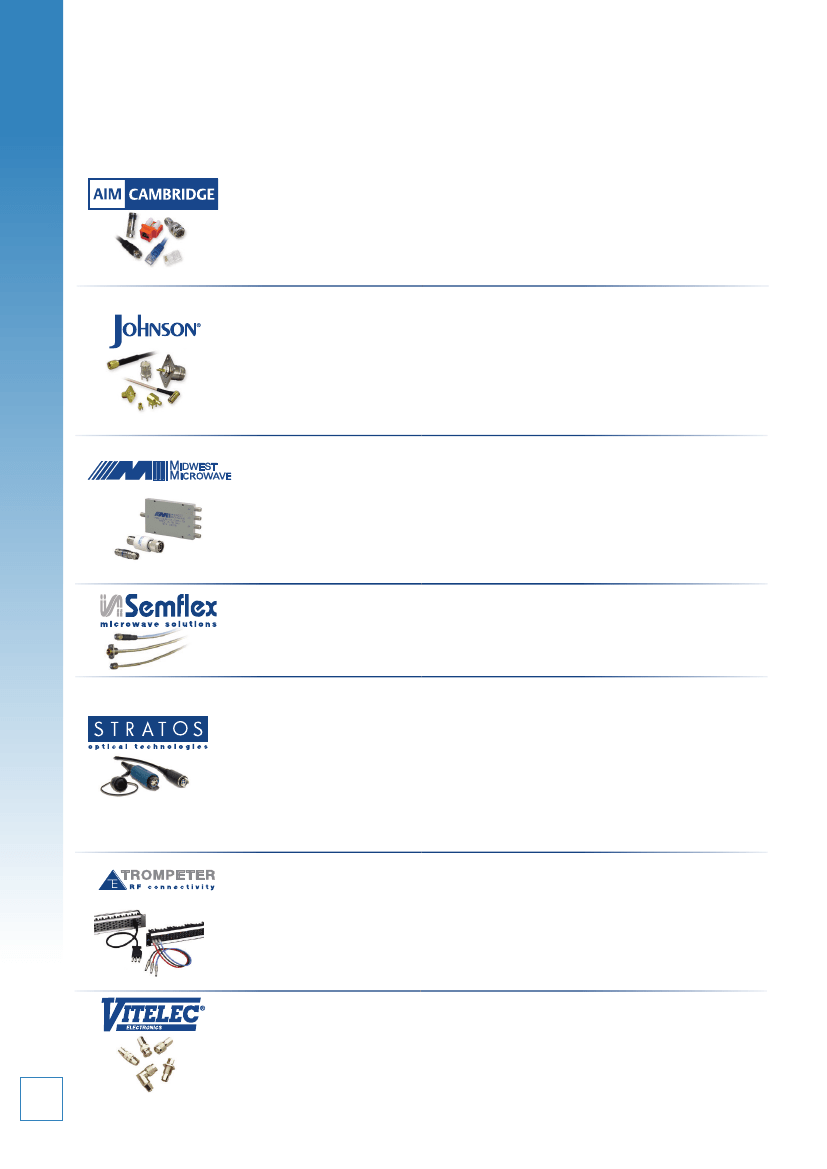

Cinch Connectivity Solutions

has a wide range of cable assemblies and connectors suited for RF, Microwave and Fiber

Optic signal transmission. Connectivity Solutions is a vertically integrated supplier of custom, fixed length and semi-rigid

cable assemblies from DC to 50 GHz. Our product lines deliver custom-engineered products and solutions to satisfy the most

demanding and complex requirements.

AIM-Cambridge has a universal line of products that offer cost effective, high quality solutions for

connectivity. Our connectors are available in BNC, Type N, F Type, RCA, UHF, Mini-UHF, TNC, D-Sub

and Modular Plugs for Data/Telecom applications. In addition, we stock a wide variety of cables for

A/V, SATV, CATV, computer and LAN applications, as well as a complete line of termination tools

and structured cabling products. AIM-Cambridge promises that its product will provide you with

unmatched consistency, quality, reliability and ease of use.

Johnson designs and manufactures an industry leading line of RF coaxial connectors and adapters,

which are available in both 50 and 75 ohm versions. Johnson connectors are designed to provide the

highest quality data transmission for audio, video and data applications. The Johnson line of products

can address frequency ranges from DC to 46GHz and all sizes from Ultra-miniature interfaces (UMC),

Micro-miniature, (MCX, MMCX, SMP), Subminiature (SMA, SMB, SMK, kwiQMAte™), Medium

connectors (Type N connectors) through to large connectors (DIN7/16). The breadth of products

available within the Johnson range includes board and cable mount connectors as well as semi-rigid,

conformable, and flexible RF coaxial cables.

Midwest Microwave manufacturers passive coaxial microwave components that are known for their

precision performance and high quality that meets the precise requirements of the RF/Microwave

industry. Our broad product portfolio includes: Attenuators, Precision Adapters, Terminations, DC

Blocks, Power Dividers, Couplers, Equalizers, Phase Shifters, Connectors, Custom Cable Assemblies

and Test Cables that are designed and manufactured for both military and commercial applications.

Midwest also offers a wide variety of Qualified Product List (QPL) approved products in the M3933,

M39030 and M39012 series, as well as many DESC/DSCC approved models.

Semflex designs and manufactures low loss, flexible, microwave coaxial cable and custom cable

assemblies for the military/aerospace, commercial OEM and test instrumentation markets. Semflex

offers cables ranging from DC to 50 GHz, available with ultra low insertion loss, power ratings up to

21 KW, and available with all popular connectors.

Stratos optical connectivity products is globally recognized as highly reliable, cost-effective, and

provides optical connectivity solutions that are virtually immune to dust, mud, oil, water, and other

contaminants.

Our expanded beam connectivity products are ideal for harsh environment applications in the

broadcast, industrial, petrochemical and military/aerospace markets where high reliability, low

maintenance and quick serviceability are critical requirements. Our optical active products are used

mainly in military, aerospace and industrial markets where high speed/high reliable performance is

mission critical. The actives product line includes optical transceivers, optical media converters and

custom devices tailored to your application.

Trompeter is recognized as a global leader in delivering best in class RF connectivity products. The

Trompeter line of patch jacks, RF connectors, cable assemblies, HDTV digital technology and DS3

connectivity solutions is unrivalled. Our mission is to provide products that continually deliver the

highest quality signal integrity for the most demanding applications in Telecom, Central Office,

Broadcast, Military Aerospace, and Instrumentation markets worldwide. Our extensive line of cost-

effective products are rigorously designed and tested to provide the critically engineered solutions

necessary to enhance the end-user’s overall experience.

Vitelec provides a comprehensive range of RF coaxial interconnect products and cable assemblies.

The company has a long established reputation for offering quality and innovation with a wide range

of both standard and custom designed products for the electronic and communication industries.

Table of Contents

MMCX Connectors

50 Ohm Connectors

Specifications................................................................................ 4

Semi-Rigid and Flexible Cable................................................ 6

PC Mount........................................................................................ 8

Termination ................................................................................... 9

Non-Magnetic Connectors - 50 Ohm

Specifications.............................................................................. 11

Semi-Rigid and Flexible Cable.............................................. 12

PC Mount...................................................................................... 12

Other Information

Assembly Tools ........................................................................185

Cable Information ...................................................................192

Assembly Instructions ...........................................................193

Mounting Hole Layouts ....................................................... 194

Index ............................................................................................274

Competitor Cross Reference .............................................. 280

103

131

137

145

153

157

161

173

181

185

193

257

MMCX Connectors

MCX Connectors

SMK Connectors

SMA Connectors

SMB Connectors

SMC Connectors

SMP Connectors

Type N Connectors

Shielded Cable Terminations

Between-Series Adapters

Fixed Length Cable Assemblies

Ultra Miniature Connectors (UMC)

kwiQMAte ™ Connectors

Tools

Assembly Instructions

MMCX CONNECTORS

Electronic Hardware

Index

While every precaution has been taken to ensure accuracy and completeness

herein, Cinch Connectivity Solutions assumes no responsibility, and disclaims all

liability for damages resulting from use of this information or for any errors or

omissions. Specifications subject to change without notice.

274

For more information, please contact customer service at (507) 833-8822 or (800) 247-8256 • cinch.com

MMCX CONNECTORS – 50 OHM

Specifications

Electrical Specifications

Impedance:

50 Ohms

Frequency Range:

Connectors .......................................................................................................................................................................................................................0-6 GHz

Dummy loads................................................................................................................................................................................................. 0-1 GHz

VSWR (max):

(f = GHz)

Straight

Right Angle

Cable Connectors Cable Connectors

.047 OD ....................................................................................................................................................................1.20

1.14 + .07f

RG-178, RG-316, RG-316 DS ..............................................................................................................................1.20

1.25

RG-405 ......................................................................................................................................................................1.15

1.15

Uncabled receptacles, dummy loads .................................................................................................................................................... N/A

Working Voltage:

Connectors ...........................................................................................................................................................170 VRMS at sea level†

Dummy loads.........................................................................................................................................................N/A

Dielectric Withstanding Voltage:

Connectors... .......................................................................................................................................................... 500 VRMS at sea level†

Dummy loads......................................................................................................................................................... N/A

Insulation Resistance:

1000 megohms min

Contact Resistance:

(milliohms max)

After

Initial

Environmental

Center contact (straight cabled connectors and uncabled receptacles) .........................................5.0

8.0

Center contact (right angle cabled connectors) .......................................................................................5.0

15.0

Outer contact (all connectors) .........................................................................................................................1.0

1.5

Braid to body ........................................................................................................................................................1.5

N/A

Corona Level:

Dummy loads......................................................................................................................................................... N/A

Insertion Loss:

(dB max, tested at 1 GHz)

Straight cabled connectors ....................................................................................................................................................................... 0.1

Right angle cabled connectors ................................................................................................................................................................ 0.2

Uncabled receptacles, dummy loads ..................................................................................................................................................... N/A

RF Leakage:

(dB min, tested at 2.5 GHz)

Flexible cable ...................................................................................................................................................................................................-60 dB

RG-405 ...............................................................................................................................................................................................................-70 dB

Dummy loads ..................................................................................................................................................................................................N/A

RF High Potential Withstanding Voltage:

(400 VRMS at 4 and 7 MHz)†

Power Rating (Dummy Load):

0.5 watt @ +25°C, derated to 0.25 watt @ +125° C

†Avoid user injury due to misapplication. See safety advisory definitions inside front cover.

Mechanical Specifications

Engagement Design:

Series MMCX

Engagement/Disengagement Force:

8 lbs max axial engagement

1.4 lbs min axial disengagement

Contact Retention:

2.0 lbs min axial force

Axial Force* (lbs)

Torque (oz-in)

Cable Retention:

.047 flexible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5

N/A

RG-178 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0

N/A

RG-316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20.0

N/A

RG-316 DS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25.0

N/A

RG-405 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30.0

*Or cable breaking strength whichever is less.

Durability:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 cycles min

142-0593-411 Related Products

	142-0593-411	131-3403-026	131-3404-026
Description	RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack,	RF SMB Connector, Female, Cable Mount, Crimp/Solder Terminal, Plug,	RF SMB Connector, Female, Cable Mount, Crimp/Solder Terminal, Plug,
Is it lead-free?	Lead free	Lead free	Lead free
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Other features	INSERTION LOSS MAX AT 10GHZ	APPLICABLE CABLES: RG 161/U; RG 174; RG 179; RG 187; RG 188; RG 316, CAPTIVE CONTACT	APPLICABLE CABLES: RG 316DS; RG 188DS; RG 179DS; RG 187DS, CAPTIVE CONTACT
Body/casing type	JACK	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD (30)	GOLD (30)
Contact point gender	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.09 dB	0.3 dB	0.3 dB
insulator material	PTFE FLUOROCARBON/PFA	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	18 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	NO
Termination type	SOLDER	CRIMP/SOLDER	CRIMP/SOLDER
voltage standing wave ratio	1.65	1.41	1.41
Base Number Matches	1	1	1

Recommended Resources

XDH-2 electrocardiograph circuit

New switching power supply circuit diagram using MAX761

Circuit diagram of method for changing MAX660 oscillation frequency external clock drive

LA4575 power amplifier circuit

Ultrashortwave receiver circuit tuned by edge-capacitor

Precision pulse oscillator

From the world of radio to the world of microcontrollers: [size=5][color=#000080]The industrial revolution of modern computer technology has brought the world economy from the capital economy to the knowledge economy. In the field of the electronic world, fr...; malvar Robotics Development

Digital Communication FPGA Development and Design Platform.pdf: Digital Communication FPGA Development and Design Platform.pdf...; zxopenljx FPGA/CPLD

Design and measurement of Bluetooth inverted-F antenna: [font=Arial, Helvetica, sans-serif]Bluetooth is a radio technology that supports short-range communication between devices (generally within 1Om). It can exchange wireless information between devices....; xtss RF/Wirelessly

GRPS dial-up package into kernel problem: I want to burn the GPRS dial-up connection into the kernel in WINCE, so that I don't have to create it every time. However, I successfully burned all the configurations into the kernel and created a c...; jouend Embedded System

Help with MSP430F149 AD sampling problem: The question I want to ask is: using MSP430F169 for sampling and processing, and LMT70A temperature sensor, there is a problem that the transmission distance between LMT70A and the microcontroller is ...; fish001 Microcontroller MCU

Memory selection: [font=宋体][size=12pt][font=宋体][size=12pt] I am designing a data acquisition system recently. In order to save the collected data, the storage unit uses non-volatile memory such as NVRAM. [/size][/font]...; yang_swust MCU

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
