V8 Array Series
®
Product Data Sheet DS41
BXRE-27x0800
|
30x0800
|
35x0800
|
40x0800
|
50x0800
Introduction
The V Series LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These Chip-on-Board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility
not previously possible. This high flux density light source is designed to support a wide range of high quality, low cost
directional luminaires and replacement lamps for commercial and residential applications.
The V8 LED Array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility
and energy efficiencies.
Lighting system designs incorporating these LED Arrays deliver comparable performance to 7-13 Watt compact
fluorescent and 40-75 Watt incandescent and halogen based luminaires, delivering increased system level efficacy and
longer service life. Typical applications include, but are not limited to, replacement lamps, task, accent, spot, track, down
light, wide area, security, and wall pack.
Features
Benefits
• Efficacy of 130 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 70, 80 and 90 CRI options
• Streamlined thermal path
• Energy Star / ANSI compliant color binning
structure with 3SDCM and 4SDCM options
• More energy efficient than incandescent,
halogen and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• Enhanced optical control
• Clean white light without pixilation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors
to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue
V Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
4
7
8
9
13
14
15
16
17
19
19
19
20
1

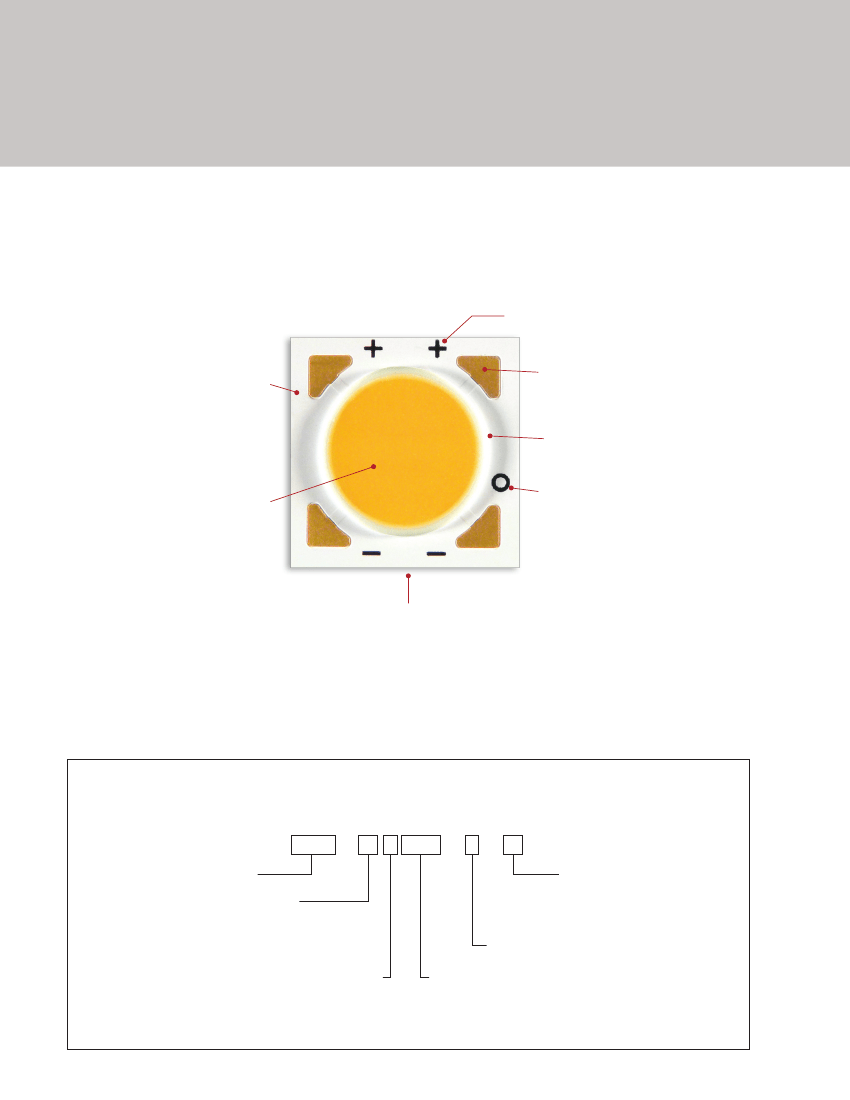

Product Feature Map
Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on
an engineered mechanical platform. The V Series arrays
are the most compact chip-on-board devices across
all of Bridgelux’s LED Array products. The arrays
incorporate several features to simplify design integration
and assembly.
Polarity symbols
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Solder Pads
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) Measurement Point
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
– 12
– 13 14
BXRE – 30 E 0800 – A – 23
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
Color Control Bin Options
23 = 3 SDCM
24 = 4 SDCM
Array Configuration
Minimum CRI
C = 70 CRI
E = 80 CRI
G = 90 CRI
Flux Indicator
0800 = 800lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRE-27E0800-A-2x
BXRE-27E0800-B-2x
BXRE-27G0800-A-2x
BXRE-27G0800-B-2x
BXRE-30E0800-A-2x
BXRE-30E0800-B-2x
BXRE-30G0800-A-2x
BXRE-30G0800-B-2x
BXRE-35E0800-A-2x
BXRE-35E0800-B-2x
BXRE-35G0800-A-2x
BXRE-35G0800-B-2x
BXRE-40E0800-A-2x
BXRE-40E0800-B-2x
BXRE-40G0800-A-2x
BXRE-40G0800-B-2x
BXRE-50C0800-A-24
BXRE-50C0800-B-24
BXRE-50E0800-A-24
BXRE-50E0800-B-24
Nominal CCT
1
(K)
2700
2700
2700
2700
3000
3000
3000
3000
3500
3500
3500
3500
4000
4000
4000
4000
5000
5000
5000
5000
CRI
2
80
80
90
90
80
80
90
90
80
80
90
90
80
80
90
90
70
70
80
80
Nominal Drive
Current
3
(mA)
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
742
742
642
642
785
785
657
657
807
807
679
679
831
831
724
724
896
896
853
853
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
699
699
600
600
708
708
617
617
736
736
595
595
772
772
632
632
834
834
811
811
Typical V
f
(V)
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
35.6
17.8
Typical
Power
(W)
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
6.2
Typical
Efficacy
(lm/W)
119
119
103
103
126
126
105
105
130
130
109
109
133
133
116
116
144
144
137
137
Table 2:
Selection Guide, Stabilized DC Performance (T
c
= 85°C)
8,9
Part Number
BXRE-27E0800-A-2x
BXRE-27E0800-B-2x
BXRE-27G0800-A-2x
BXRE-27G0800-B-2x
BXRE-30E0800-A-2x
BXRE-30E0800-B-2x
BXRE-30G0800-A-2x
BXRE-30G0800-B-2x
BXRE-35E0800-A-2x
BXRE-35E0800-B-2x
BXRE-35G0800-A-2x
BXRE-35G0800-B-2x
BXRE-40E0800-A-2x
BXRE-40E0800-B-2x
BXRE-40G0800-A-2x
BXRE-40G0800-B-2x
BXRE-50C0800-A-24
BXRE-50C0800-B-24
BXRE-50E0800-A-24
BXRE-50E0800-B-24
Nominal CCT
1
(K)
2700
2700
2700
2700
3000
3000
3000
3000
3500
3500
3500
3500
4000
4000
4000
4000
5000
5000
5000
5000
CRI
80
80
90
90
80
80
90
90
80
80
90
90
80
80
90
90
70
70
80
80
2
Nominal Drive
Current
3
(mA)
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
Typical DC Flux
T
c
= 85ºC
(lm)
666
666
565
565
703
703
578
578
723
723
598
598
749
749
637
637
788
788
751
751
Minimum DC
Flux
10
T
c
= 85ºC
(lm)
628
628
528
528
634
634
543
543
659
659
524
524
696
696
556
556
734
734
714
714
Typical V
f
(V)
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
34.6
17.4
Typical
Power
(W)
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
6.1
Typical
Efficacy
(lm/W)
110
110
93
93
116
116
96
95
119
119
99
98
124
123
105
105
130
130
124
123
Notes for Tables 1 & 2:
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI Values are minimums. Minimum R9 value for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
9. Typical performance is estimated based on operation under DC (direct current) with LED array mounted onto a heat sink with thermal interface
material and the case temperature maintained at 85°C. Based on Bridgelux test setup, values may vary depending on the thermal design of the
luminaire and/or the exposed environment to which the product is subjected.
10. Minimum flux values at elevated temperatures are provided for reference only and are not guaranteed by 100% production testing. Based on Bridgelux
test setup, values may vary depending on the thermal design of the luminaire and/or the exposed environment to which the product is subjected.
3
