Precondition for Class II MLCC measurement: Apply a preheat treatment @150 ±10 °C for 1 hour.
The measurement should be applied after 24 ±2 hrs the part was stored under ambient conditions.
There is not any precondition necessary for Class I MLCC.
L
H

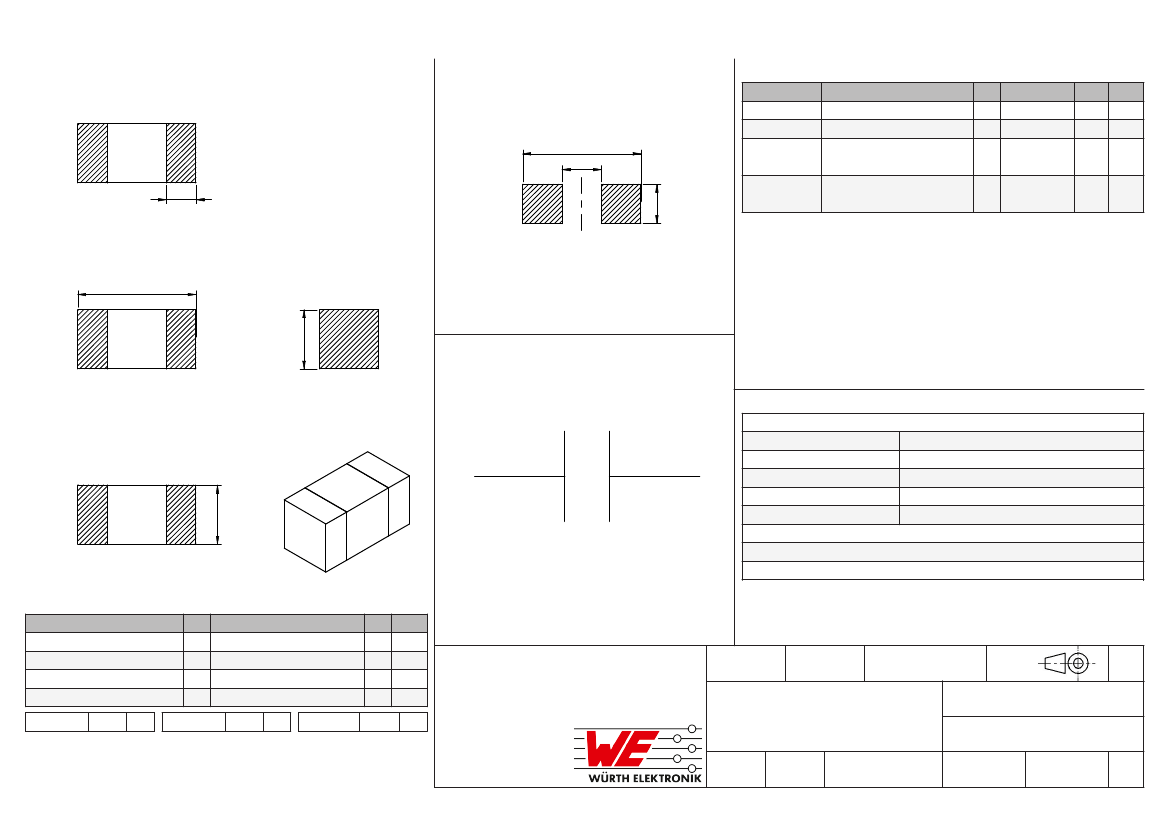

Schematic:
General Information:
Mid & High Voltage MLCC
Ceramic Type
Temperature Coeffecient
Storage Conditions
Operating Temperature
X7R Class II
± 15 % max.
5-35 °C, < 75% RH
-55 °C up to +125 °C
15 sec. @150 % U
R
; Charge & Discharge Current <50 mA
FIT according to separate documentation
Component conform to REACh and RoHS requirements and standards
W
Dielectric Strength
Test conditions of Electrical Properties: +20°C, 35% RH if not specified differently
Properties
Length
Width
Height
Pad Dimension
pl1 - Reflow
4
mm
L
W
H
Fl
pl2 - Reflow
2.2
Value
3.2
1.6
1.25
0.6
mm
fw - Reflow
Unit
Tol.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
SIZE
REVISION
STATUS
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
mm ±0.15
mm ±0.15
mm
mm
1.6
±0.1
±0.2
mm
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
X7R1206103K500DFCT10000
ORDER CODE
885342208009
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.000
Valid
2016-09-19
eiCap
1/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Mechanical Properties:
Properties
Termination
Adhesice
Strength of
Termination
Vibration
Resistance
Resistance to
Solder Heat
Specific
Definition
Cu/ Ni/ Sn
≤ 0603
> 0603
10 ±1 sec; 5 N
10 ±1 sec; 10 N
all 3 directions, 2 hours each @ 10 - 50 Hz/ min., amplitude 0.75 mm
or 10 g
Refer to Soldering Profile
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
X7R1206103K500DFCT10000
ORDER CODE
885342208009
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.000
Valid
2016-09-19
eiCap
2/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak temperaure
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
Temperature
Preheat Area
T
s min
t
S
Package Classification Reflow Temperature:
Properties
Volume mm³
<350
260 °C
250 °C
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
25
Time 25°C to Peak
PB-Free Assembly | Package Thickness < 1.6 mm
PB-Free Assembly | Package Thickness ≥ 2.5 mm
refer to IPC/ JEDEC J-STD-020E
PB-Free Assembly | Package Thickness 1.6 mm - 2.5 mm
260 °C
Time
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
X7R1206103K500DFCT10000
ORDER CODE
885342208009
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.000
Valid
2016-09-19
eiCap
3/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of WCAP-CSMH of
Würth Elektronik eiSos GmbH & Co. KG:
1. General
•
•
•
•
The capacitor is engineered, designed and manufactured to be used within the datasheet specified values.
Do not use the capacitor neither short term nor long term outside the specified values, which are given in the data sheet.
Do not apply any kind of flexural or compressive force onto soldered or unsoldered component.
Prevent the capacitor surface from any damage or scratches with sharp edges (e.g. chassis, screwdrivers, pincers).
2.03 Operating load conditions
• Do not use the capacitor with any higher than specified voltage.
• Violation of the technical product specifications such as exceeding the specified voltage will void the warranty.
• Operating voltage across the terminals including AC and DC peaks and AC or pulse overshooting, Vp-p as well as irregular voltage
because of resonance or switching must be below the rated voltage.
• Due to self-heating the reliability of the capacitor may be reduced, if high frequency AC or pulse is applied.
• Avoid any overload or conditions that are not specified in the capacitors datasheet.
• Consider carefully possible specific changes of electrical characteristics like capacitance over temperature, voltage and time as well as
the specific performance over frequency for the actual use conditions. For detailed information see datasheet.
2.04 Design of the P.C. board
• The chip capacitor shall be located to minimize any possible mechanical stress from deflection or board wrap.
• It is recommended to position the chip capacitor in parallel to slits and perforations and as far away from slits, perforations, separation
points, screw holes, frames and edges of the P.C. board to avoid mechanical stress.
• Determine the shape and size of the solder pads to have proper amount of solder on the terminations as the amount of solder at the
terminations has a direct effect on the reliability of the capacitor.
• Provide individual solder pads for each termination. Solder pads are specified in the datasheet.
• The PCB design (e.g. land pattern design and grounding planes) must be evaluated for each individual circuit to achieve the optimal
soldering results.
2. Product specific
The responsibility for the applicability of customer specific products and use in a particular customer design is always within the authority of
the customer. All technical specifications for standard products do also apply to customer specific products.
Follow all instructions mentioned in the data sheet, especially the following items:
2.01 Storage conditions
• These ceramic capacitors must be stored in stable conditions within an ambient temperature between 5°C to 40°C with a relative
humidity of
• The environment in which the capacitors are operated and stored has to have atmospheric characteristics and must be free of dew
condensation and toxic gases (e.g. chlorine, ammonia, sulfur, hydrogen sulphide and hydrogen sulfate).
• All products shall be used before the end of the period of 12 months based on the product date code, if not, a 100% solderability
cannot be guaranteed.
• The capacitance tolerance as specified within the datasheet is only valid on the date of delivery.
2.05 Mounting
•
•
•
•
•
Avoid any stress from the mounting head to avoid cracks.
Adjust the bottom dead center of the mounting head not to press on the P.C. board surface.
The mounting head pressure has to be adjusted to 1 N up to 3 N of static force.
Provide support from the bottom side of the P.C. board by a support pin for minimizing the impact energy from the mounting head.
Provide sufficient close up dimension, preventive maintenance and replacement of the centering jaw to avoid a crack when it is worn
out.
2.02 Operating climatic conditions
• Do not exceed the lower nor the upper specified temperature under no condition.
• Be aware that the specified capacitance tolerance is only valid at the date delivery and according specified measurement criteria.
• Do not use the capacitors under high humidity, high temperature nor under high or low atmospheric pressure which may affect
capacitors reliability.
• Surface temperature including self-heating must be kept below the maximum operating temperature.
• The temperature rise of the capacitor´s temperature compared to ambient temperature shall be below 20°C.
• Avoid any water or heavy dust on capacitors surface, which may cause electrical leakage, damage, overheating or corrosion.
2.06 Adhesive
Selection of adhesive
• The adhesive should have sufficient coating and viscosity and should harden rapidly.
• The adhesive should be strong enough to hold parts on the board during the mounting and solder process and should have sufficient
strength at high temperatures.
• The adhesive should have corrosion resistance, excellent insulation characteristics and no emission of toxic gasses nor any effect on the
human body.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
X7R1206103K500DFCT10000
ORDER CODE
885342208009
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.000
Valid
2016-09-19
eiCap
4/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
• Do not use too much adhesive to avoid pollution of the soldering pads.
2.09 Coating, molding and potting of the P.C. board
•
•
•
•
When coating and molding the P.C. board verify the quality influence on the capacitor.
Verify the curing temperature and assure that there is no harmful decomposing or reaction gas emission during curing.
Do not exceed the maximal temperature rise of 20°C.
If the product is potted in customer applications, the potting material might shrink during and after hardening. The product is exposed to
the pressure of the potting material with the effect that the body and termination is possibly damaged and so the electrical as well as
the mechanical characteristics are endangered to be affected. After the potting material is cured, the body and termination of the
product have to be checked if any reduced electrical or mechanical functions or destructions have occurred.
2.07 Soldering
•
•
•
•
•
•
•
•
1.
2.
3.
4.
5.
The detailed soldering instructions for reflow and wave soldering are given within Soldering Specification in the datasheet.
The soldering profile has to be compliant with the technical soldering specification, otherwise this will void the warranty.
Avoid any other than specified temperature and / or time conditions during soldering.
Customer needs to ensure that the applied solder paste, the paste thickness and solder conditions are applicable to guarantee a
sufficient solder result according to the relevant criteria of IPC-A-610.
Excessive amount of solder may lead to higher tensile force and chip cracking. Insufficient amount of solder may detach the capacitor
due to defective contacts.
Do not use excessive nor insufficient flux.
Provide enough washing when water-soluble flux is used.
Consider the preheating conditions as follows to avoid thermal shock:
Reflow soldering - 1206 or less - Temperature difference ΔT ≤ 190°C
Reflow soldering - 1210 or more - Temperature difference - ΔT ≤ 130°C
Manual soldering - 1206 or less - Temperature difference ΔT ≤ 190°C
Manual soldering - 1210 or more - Temperature difference ΔT ≤ 130°C
2.10 Handling after chip is mounted
•
•
•
•
Direct mechanical impact to the product shall be prevented.
After soldering please pay attention not to bend, twist or distort the P.C. board in handling and storage.
Avoid excessive pressure during the functional check of the P.C. board.
Avoid bending stress while breaking the P.C. board.
2.11 Handling of loose chip capacitor
• Once dropped do not use the chip capacitor.
• After mounting avoid piling up P.C. boards to avoid hitting the chip capacitor of another board.
• It is recommended to use air for natural cooling. When dipping the chips into a solvent for cleaning, the temperature difference (∆T)
must be less than 100°C.
• For reflow soldering two times limitation is recommended.
• Wave soldering is recommended only for the following case sizes: 0603 and 0805, thickness
• Please ensure for manual soldering (solder iron) not to exceed the general temperature capabilities as specified above.
• The following conditions are recommended for solder repair by solder iron:
• Size
Temp. (°C)
Preheating Temp. (°C)
Temperature difference (ΔT) Atmosphere
• 1206 or less
330 ± 20°C
>150°C
ΔT ≤ 190°C
• 1210 or more 280°C max
>150°C
ΔT ≤ 130°C
Room air
Typical time of actual peak temperature:
Do not make direct contact with the ceramic dielectric.
2.08 Cleaning
• Cleaning agents that are used to clean the customer application might damage or change the characteristics of the component, body,
pins or termination.
• Avoid Halogen in the flux or any contaminated flux as well as excessively high ultrasonic cleaning.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
X7R1206103K500DFCT10000
ORDER CODE
885342208009
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.000
Valid
2016-09-19
eiCap
5/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
【TI M4 development board】Be the first to experience the list of EE forum members! https://bbs.eeworld.com.cn/thread-306527-1-1.html-------------------------------------------------- ------------------...
[Mil MYS-8MMX] Mil MYS-8MMQ6-8E2D-180-C Application 3 - NLP Part of Speech Analysis and Application
In the previous article, we talked about using jieba for word segmentation. In this article, we will...
I have always been very interested in SimpleLink. TI claims 100% reuse, which is really very attractive and worth a try. Since there is an event, of course I will try it out. CC2640R2 is TI's first Bl...
Generally, the repairs I write down are those that leave a deep impression on me. In other words, the repairs I feel are a bit difficult during the repair process. A customer in Liaoning reported that...
[size=14px]Since the current is too small, many meters cannot directly measure nA level, and can only be tested by conversion method [/size] [size=14px]Just put a resistor (high-precision resistor is ...
Among natural foods, there are many foods that have the effect of maintaining skin and eliminating freckles. Here are some clinically proven and effective dietary therapy methods. Tomato juice Drinkin...
In recent years, with the increasing demand for manufacturing and automated production management, industrial barcode scanners have gradually become an indispensable part of the industrial manufact...[Details]
A vacuum eutectic furnace is a critical piece of equipment used in the manufacturing and processing of various materials, particularly in the fields of microelectronics and nanotechnology. One of t...[Details]
As the main model among new energy vehicles, pure electric vehicles have received strong support and encouragement from the country in recent years, and their development is changing with each pass...[Details]
On August 25th, SK Hynix announced that it has completed development and entered mass production of its 321-layer, 2Tb QLC NAND flash memory product. This achievement marks the world's first applic...[Details]
Recently, South Korean robotics giant WIRobotics launched its first general-purpose humanoid robot, ALLEX, at the Robotics Innovation Center (RIH) at the Korea University of Science and Technology....[Details]
According to foreign media reports, Nissan Motor has recently reached a cooperation with US battery technology company LiCAP Technologies to jointly promote the research and development of next-gen...[Details]
Have you ever heard stories about "crazy appliances"? Think of microwaves that turn on automatically or ovens that preheat without any human input? With radios and electromagnetic interfaces ubiqui...[Details]
A multilevel inverter converts a DC signal into a multilevel staircase waveform. Instead of a straight positive-negative output waveform, the output waveform of a multilevel inverter alternates in ...[Details]
My career has been closely tied to the semiconductor industry. From product management to content marketing, I've provided countless forecasts and predictions across a variety of roles. Whethe...[Details]
With the gradual popularization of new energy vehicles in recent years, more and more people have been able to access and purchase electric vehicles. The structure of electric vehicles is composed ...[Details]
For today's new energy vehicles, they have different configurations from fuel vehicles, and some configurations have also become a selling point for manufacturers. Compared with traditional vehicle...[Details]
Civilian internal combustion engines operate in the range of approximately 1000-4000 rpm. This results in the engine's kinetic energy being ineffective at low or high rpm, making starting difficult...[Details]
Nascent Micro is launching devices covering a wide range of power applications, including gallium nitride (GaN) drivers, dual-channel automotive drivers, and battery protection MOSFETs.
...[Details]
From time to time, I see some audiophiles spending a lot of money or a lot of time to DIY speakers, but the results are not what they want. Below I list some of the small experiences I summarized b...[Details]
Definitions of VR
, AR, and MR:
What is Virtual Reality?
Virtual Reality (VR), also known as "spiritual realm" or "illusion," is a high-tech technology that has emerged in recent ye...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
