98424-F52-12 datasheet, PDF - EEWORLD Datasheet

98424-F52-12: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug; CategoryThe connector The connector; File Size188KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

98424-F52-12 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Other features	PLASTIC PACKAGING
body width	0.24 inch
subject depth	0.244 inch
body length	0.528 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	CREAM
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	98424
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.588 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

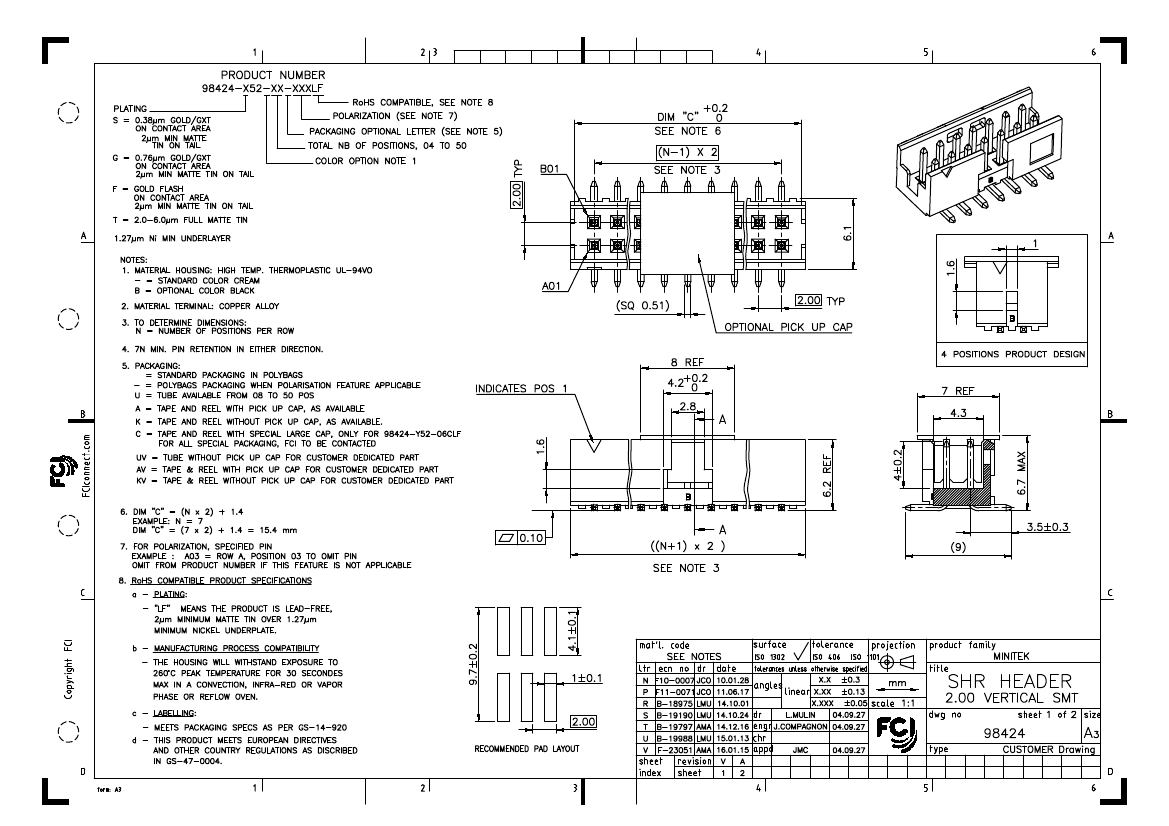

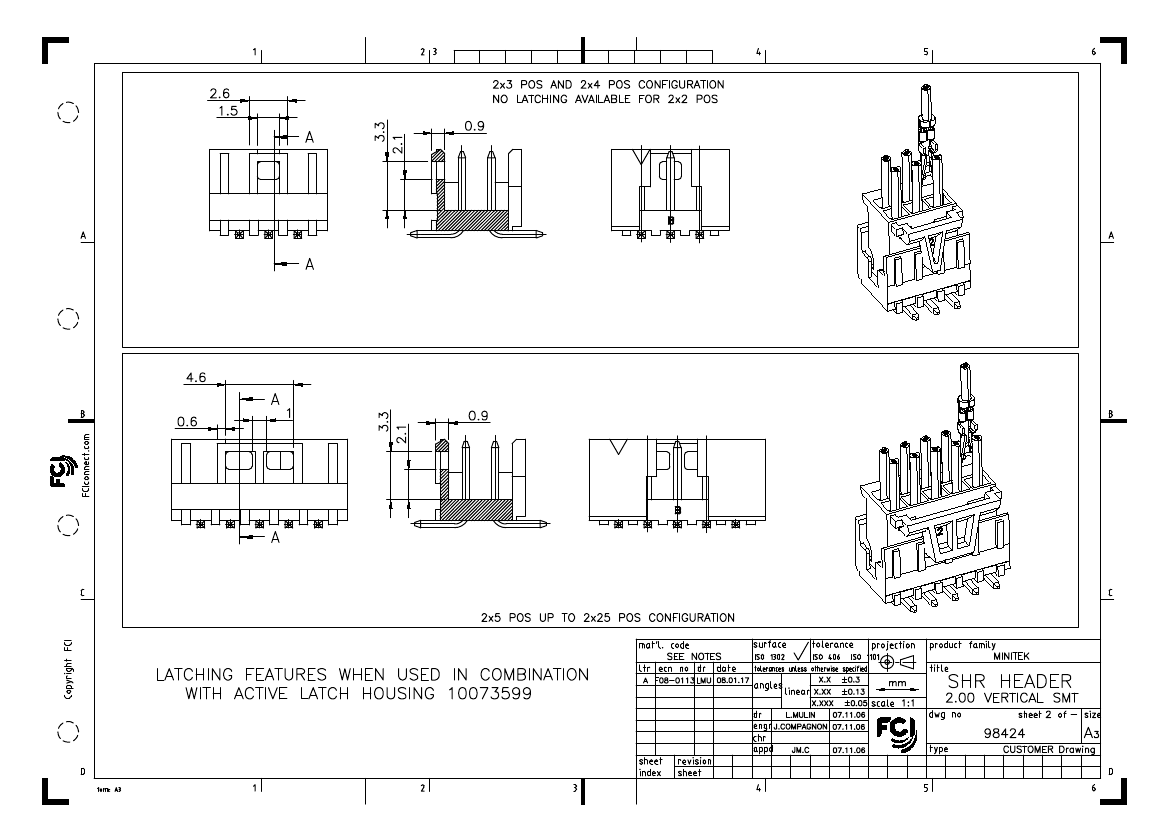

PDS: Rev :V

STATUS:Released

Printed: Feb 12, 2016
