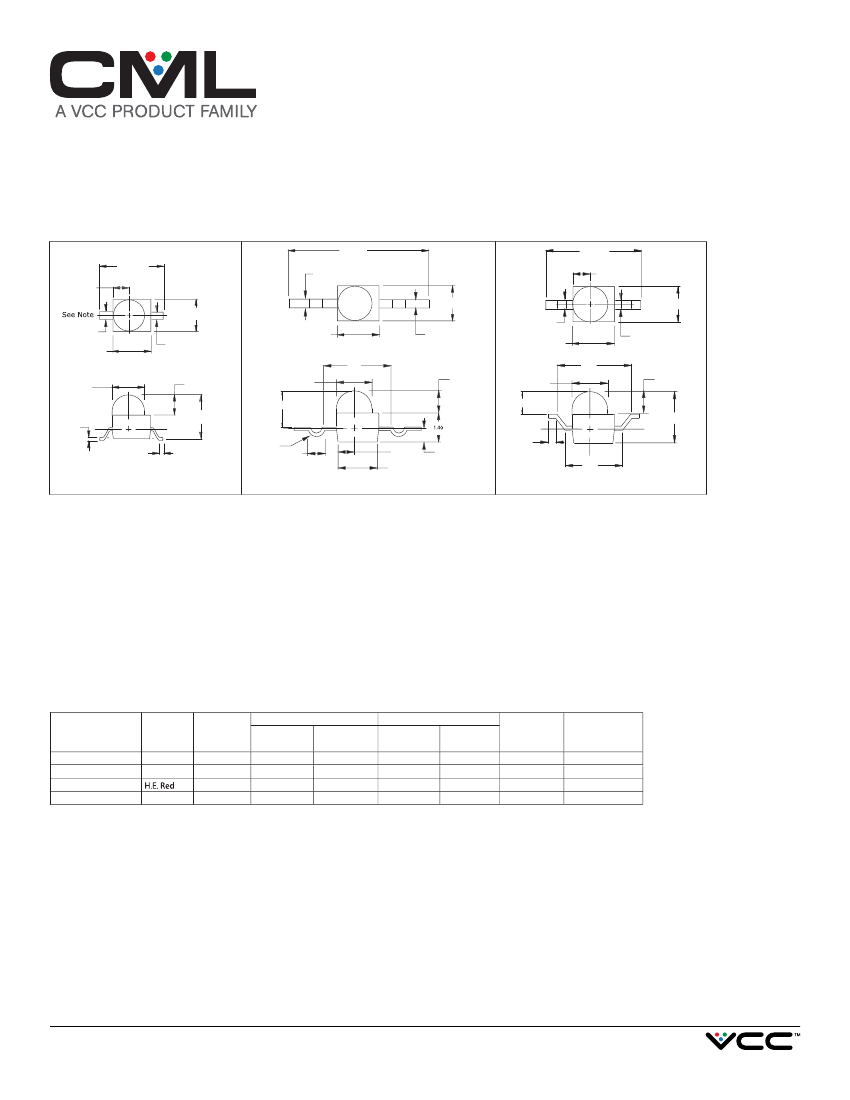

CMD91-21/TR7, TR9, TR10 Series SMT LEDs
Description and Features
All dimensions in mm.
7.40 MAX.
4.20 MAX.
0.50
1.10
1.10
5.80±0.20
*
See Note
*
0.50
0.40
2.50±0.20
3.60
1.40
Ø1.90±0.10
2.00±0.20
2.00±0.20
*
See Note
0.50
2.00±0.20
2.50±0.20
0.40
2.50±0.20
0.40
4.30
1.40
Ø1.90±0.10
1.34±0.20
2.80±0.20
1.40
Ø1.90±0.10
1.94±0.20
2.80±0.20
0.13
MAX.
0.35 R
0.25
1.10
1.10
2.50
1.00
0.75
3.05
CMD91-21/TR7
Gull Wing
CMD91-21/TR9
Yoke
CMD91-21/TR10
Z-bend
* Cathode for
VGC/VYC/VRC
Anode for SRC
Surface Mount Technology
• Tape and reel packaged for high-speed autoinsertion.
• Convection and vapor-phase reflow compatible.
• Compact form enables high density placement.
•
RoHS Compliant
Leading Edge LED Optoelectronic Performance
• Consistent high brightness.
• Gull wing, Yoke or Z-bend lead configuration.
Exceptional Reliability
• Stringent process controls assure quality.
• Extensive qualification testing to meet strictest
requirements.
• Designed to permit easy post-reflow solder joint
inspection.
Electro-Optical Characteristics
Part Number
CMD91-21VGC/TR7/TR9/TR10
CMD91-21VYC/TR7/ - / TR10
CMD91-21VRC/TR7/ - /TR10
CMD91-21SRC/TR7
Emitted
Color
Green
Yellow
Red
Lens
Color
Clear
Clear
Clear
Clear
Luminous Intensity@20Ma
Min.
(mcd)
30.0
18.0
48.0
113.0
Typ.
(mcd)
50.0
30.0
80.0
170.0
Forward Voltage
Typ.
(V)
2.1
2.0
2.0
1.7
Max.
(V)
2.8
2.8
2.8
2.4
Viewing
Angle
(degrees)
25
25
25
25
Peak
Wavelength
(nm)
565
585
640
660
Absolute Maximum Ratings
Green
H.E.Red
Yellow
Red
Units
Power Dissipation.........................................................105...............105...................105.................100..................mW
Storage/Operating Temperature.............................-40 to +85....-40 to +85........-40 to +85.........-40 to +85...............°C
Peak Forward Current (1μs @ 10% duty cycle)...........150...............150..................150.................150....................mA
Reverse Voltage (IR=100μA)........................................4.0................4.0...................4.0..................4.0.......................V
Lead Solder Time @ 260°C...........................................5...................5......................5....................5...............Seconds
Average Forward Current..............................................25.................30....................30...................30.....................mA
