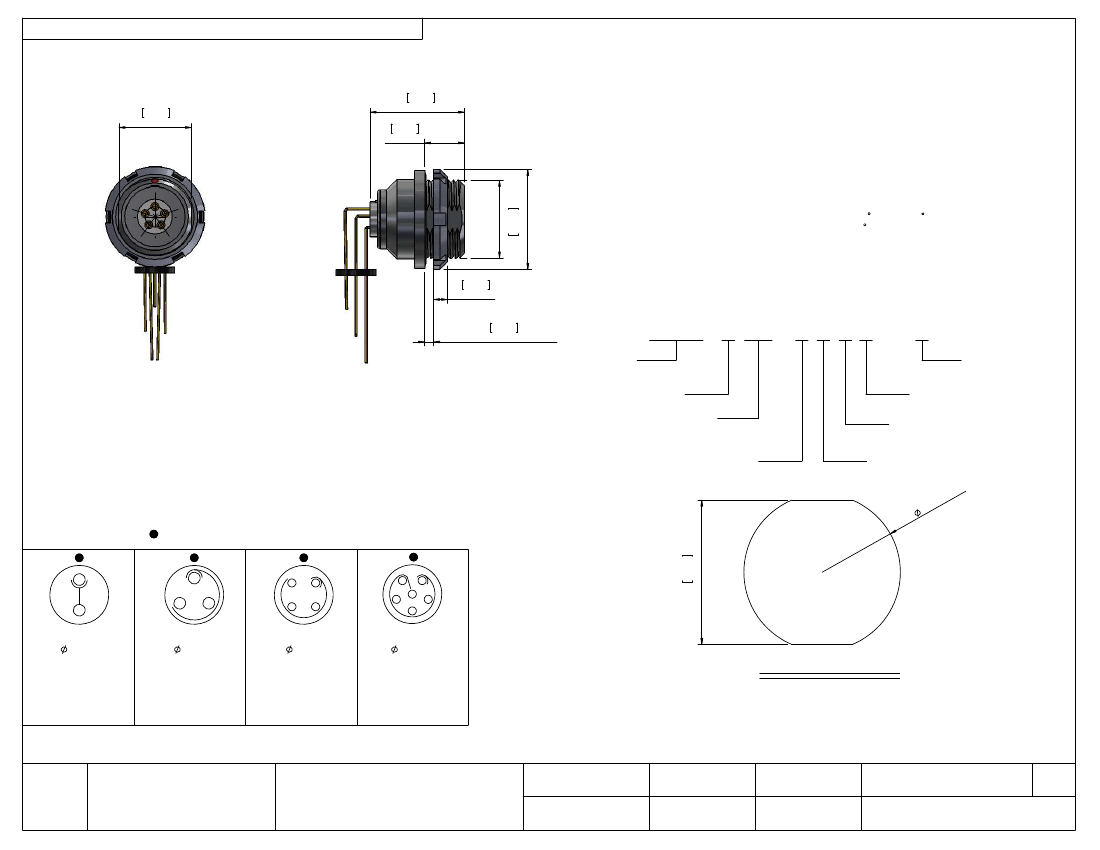

DESCRIPTION: QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT - IP67
0.728
18.50
0.937
23.80
0.394
10.00
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
SHELL : BRASS
SHELL PLATING : NICKEL
NUT : BRASS
NUT PLATING : NICKEL
LATCH SLEEVE : BRASS
LATCH SLEEVE PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
O-RING: SILICONE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 9.0 Nm [79.0 IN/lbs]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 67
M20*1.0
0.138
3.50
0.984
25.00
0.217
5.50
(MAX. PANEL THICKNESS)
822K R YY - 2 1 3 R 00 1
SERIES
16.00 [0.630]
R = RIGHT ANGLE
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
1 = GOLD FLASH
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
BOARD MOUNT (PANEL MOUNT)
0.7
]
95
**NOTE**
SEE PAGE 2 FOR BOARD LAYOUTS
2
[
0.2
CHART A
1
= KEY LOCATION
**VIEW FROM TERMINATION END**
1
1
1
2 POSITION
30 AMP MAX.
= 2.00 [0.079]
PIN
CONTACT
RESISTANCE
= 3 m
Ω
TEST VOLTAGE
= 2100V
WORKING VOLTAGE
= 700V
3 POSITION
17 AMP MAX.
PIN
= 1.60 [0.063]
CONTACT
RESISTANCE
= 4 mΩ
TEST VOLTAGE
= 2400V
WORKING VOLTAGE
= 800V
4 POSITION
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1850V
WORKING VOLTAGE
= 610V
6 POSITION
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1350V
WORKING VOLTAGE
= 450V
0.732
18.60
PANEL CUTOUT
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
03-01-16
N.T.S.
1
DWG NO.
2
2
822KRYY-213R001
DESCRIPTION:
QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT - IP67
UNITS = MM [INCHES]

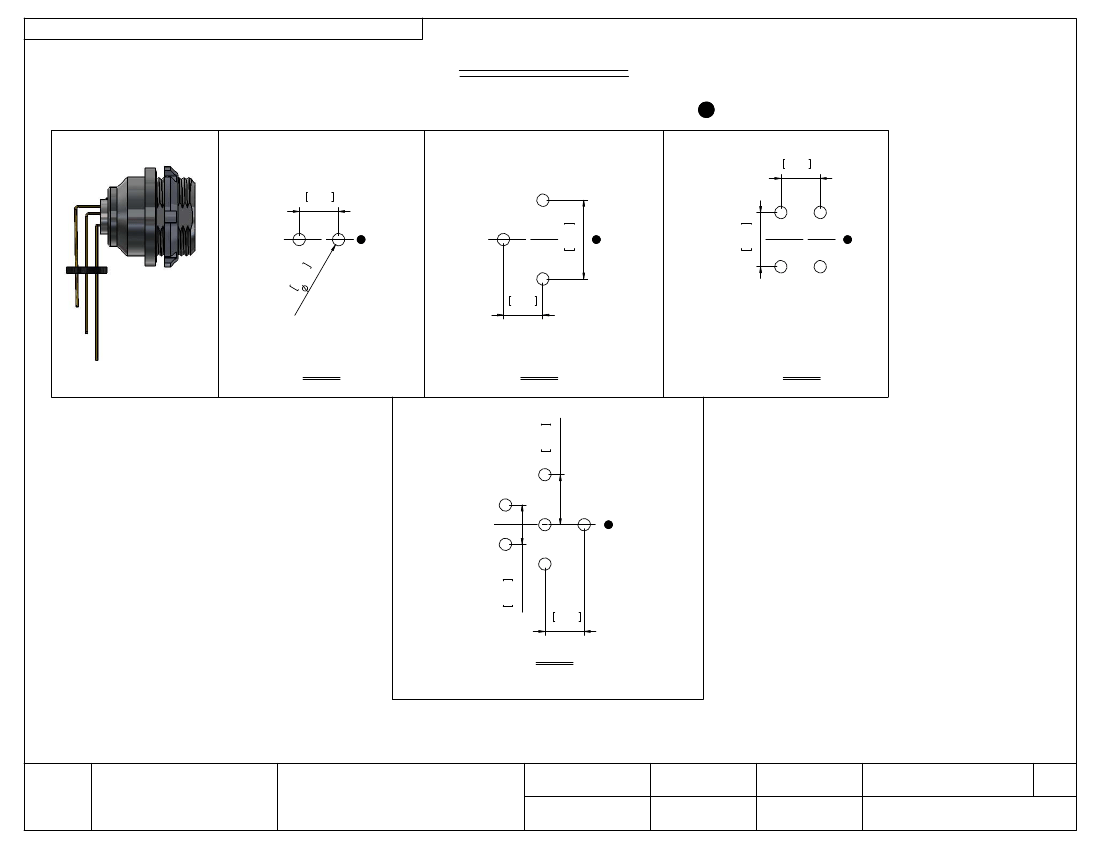

BOARD LAYOUTS
NOTE : **HOLE DIAMETERS ARE TYPICAL ALL SIZES**
= KEY LOCATION
0.100
2.54
0.100
2.54
3
4
0.200
5.08
0.138
3.50
3
0.0
3
0 1
AL .80
LS
IZE
S
**
1
2
1
1
2
2
0.100
2.54
**T
YP
2 POS
3 POS
4 POS
4
5
0.100
2.54
6
1
2
0.100
2.54
3
0.100
2.54
6 POS
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
03-01-16
N.T.S.
2
DWG NO.
2
2
822KRYY-213R001
