Printed-circuit board connector - FRONT-GMSTB 2,5/12-
STF-7,62 - 1806106
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin

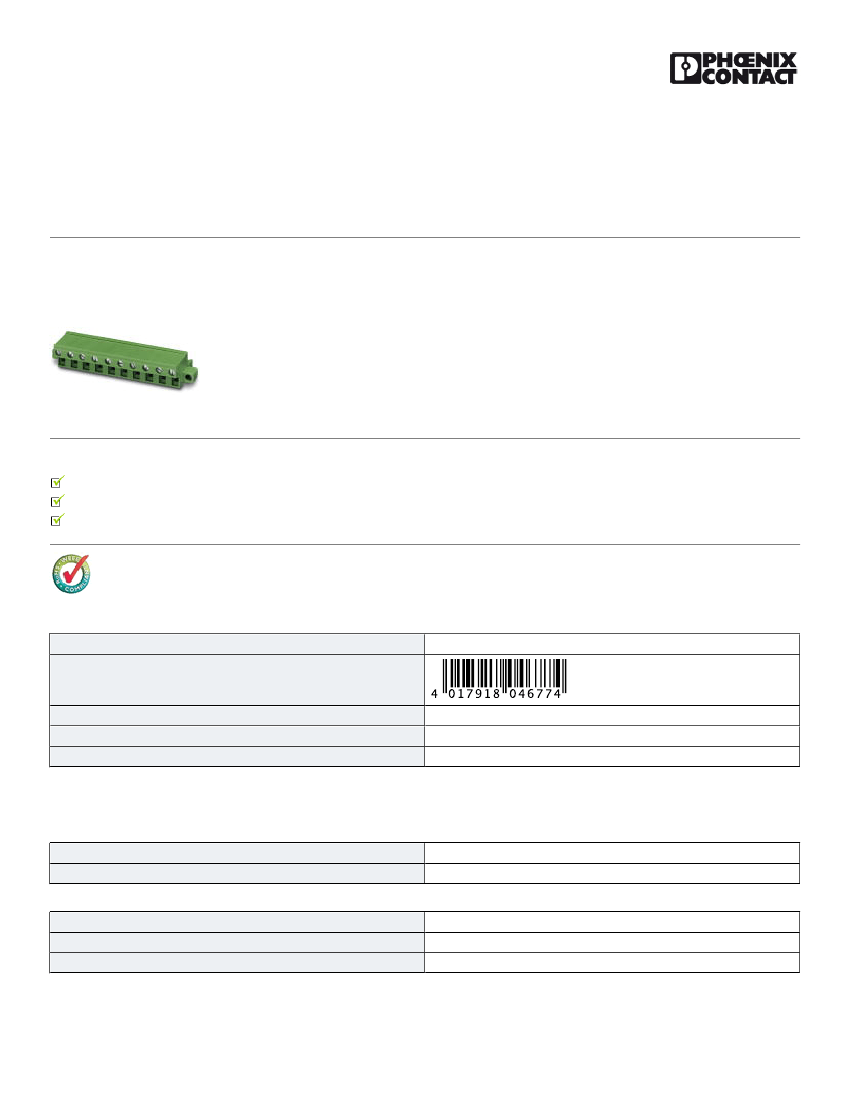

The figure shows a 10-position
version of the product
Product Features
Plug-in direction parallel to the conductor axis
Plugs for 630 V applications (III/2)
FRONT-GMSTB 2,5 plug with front screw connection
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
42.37 GRM
85366990
Germany
1 pc
Technical data
Dimensions
Pitch
Dimension a
7.62 mm
83.82 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
FRONT-GMSTB 2,5/..-STF
I
6 kV
10/30/2014 Page 1 / 6
https://www.phoenixcontact.com/us/products/1806106
Printed-circuit board connector - FRONT-GMSTB 2,5/12-
STF-7,62 - 1806106
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
6 kV
6 kV
400 V
630 V
1000 V
EN-VDE
12 A
2.5 mm²
12 A
PA
V0
A3
10 mm
12
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
10/30/2014 Page 2 / 6
https://www.phoenixcontact.com/us/products/1806106
Printed-circuit board connector - FRONT-GMSTB 2,5/12-
STF-7,62 - 1806106
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
30
12
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / GOST / CCA / cULus Recognized
10/30/2014 Page 3 / 6
https://www.phoenixcontact.com/us/products/1806106
Printed-circuit board connector - FRONT-GMSTB 2,5/12-
STF-7,62 - 1806106
Approvals
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
22-12
10 A
300 V
D
22-12
10 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
300 V
D
30-12
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.34-2.5
12 A
400 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
B
30-12
15 A
D
30-12
10 A
10/30/2014 Page 4 / 6
https://www.phoenixcontact.com/us/products/1806106
Printed-circuit board connector - FRONT-GMSTB 2,5/12-
STF-7,62 - 1806106
Approvals
Nominal voltage UN
B
300 V
D
300 V
GOST
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.34-2.5
12 A
400 V
GOST
CCA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.34-2.5
12 A
400 V
cULus Recognized
Drawings
